5 Bedroom Home Plan Embraces Large Family
Heated S.F.
2,828
Beds
5
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • A popular wrap-around porch gives this 5 bedroom country home plan lots of charm.
  • The secluded, oversized family room with vaulted ceiling and wet bar features many windows and has direct patio access.
  • A smartly designed kitchen with island, pantry and corner windows is a chef's delight and has easy service to the nook and dining room.
  • The first floor master suite has a luxurious bath and a huge walk-in closet plus a fireplace flanked by doors leading to the porch.

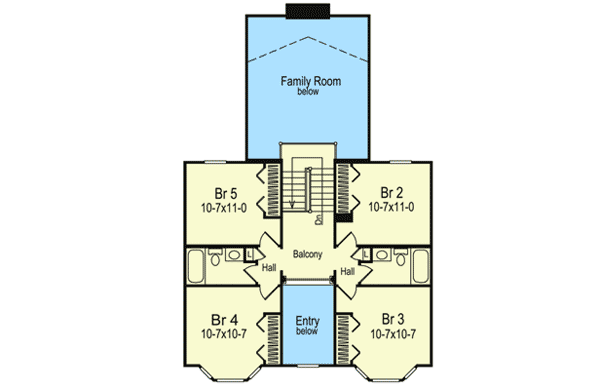

  • Upstairs, an overlook to the foyer and to the family room helps divide the four bedrooms and two baths.
  • Available in 2x6 framing as well for those building in colder climates.
What's Included

  • Front Cover Sheet

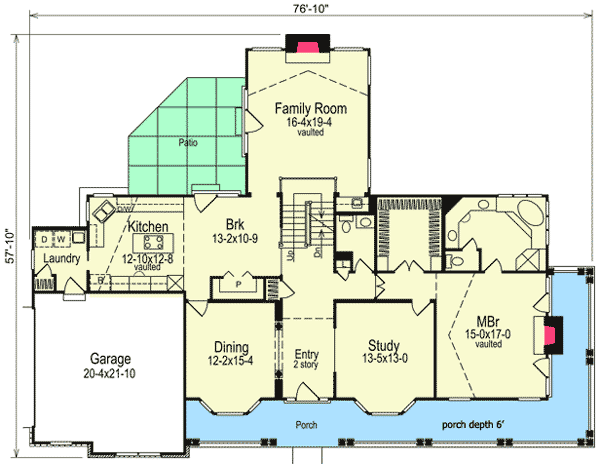

  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

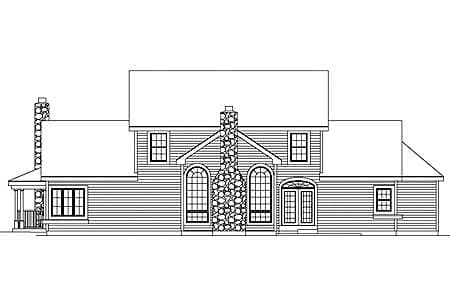

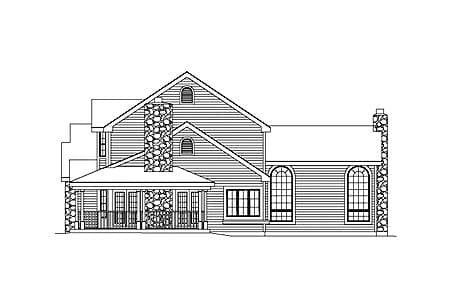

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
