Plan 506057BRY

5-Bedroom Transitional House Plan with Main-Level Primary Suite

Heated S.F.
3,265
Beds
5
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 506057BRY

Main Level
Main Level
2nd Floor
2nd Floor
Unfinished Basement
Unfinished Basement

Plan 506057BRY

M-F 9am-5pm EST |

1-203-761-8500

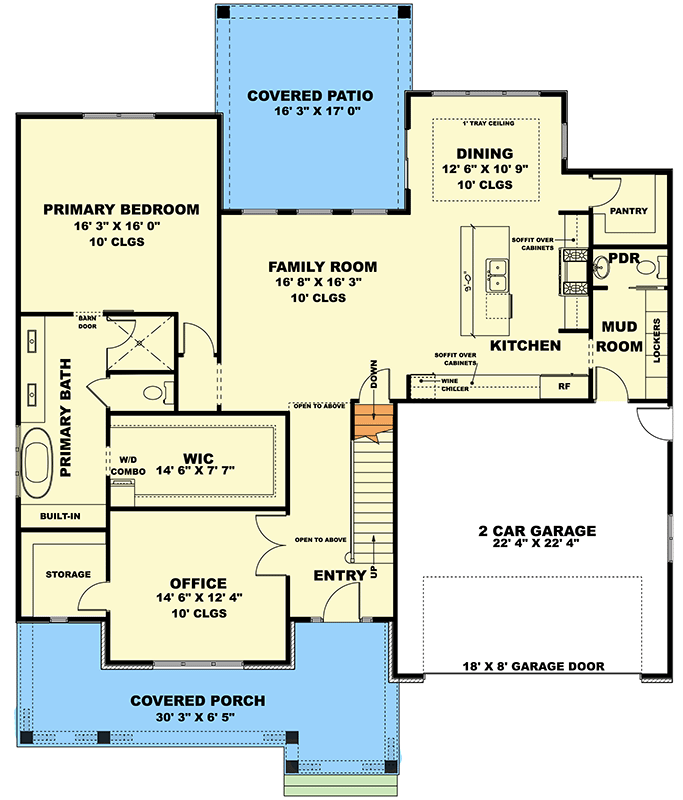

Main Level

Plan 506057BRY: 5-Bedroom Transitional House Plan with Main-Level Primary Suite - Floor Plan - Main Level - Transitional

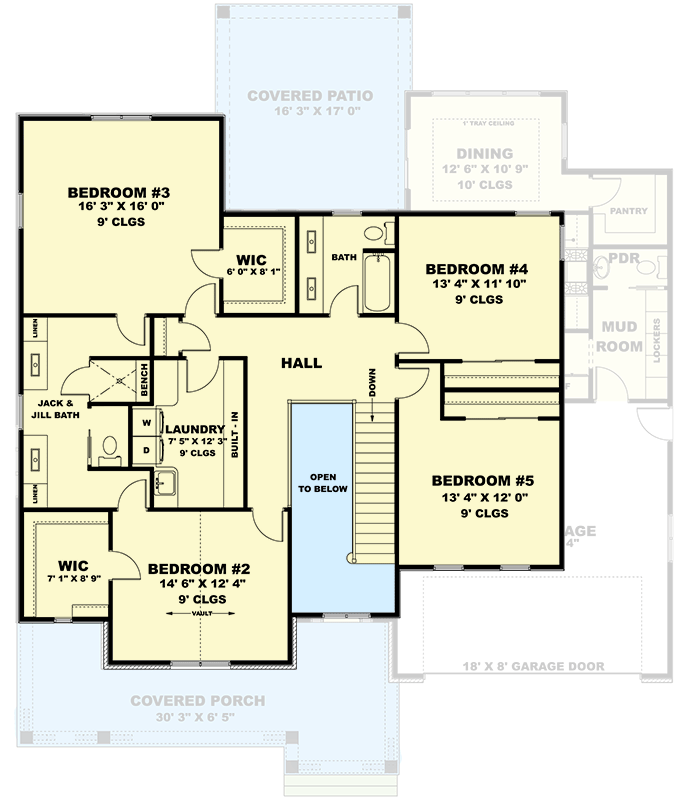

2nd Floor

Plan 506057BRY: 5-Bedroom Transitional House Plan with Main-Level Primary Suite - Floor Plan - 2nd Floor - Transitional

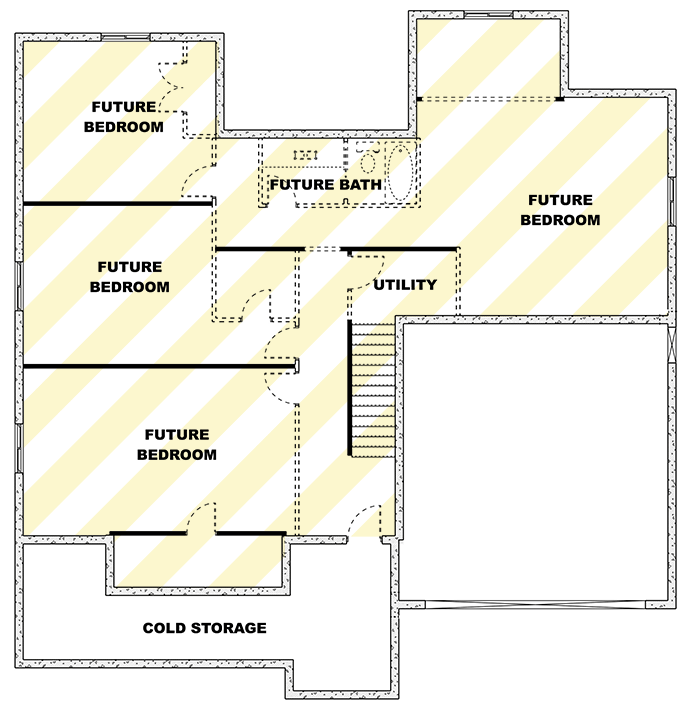

Unfinished Basement

Plan 506057BRY: 5-Bedroom Transitional House Plan with Main-Level Primary Suite - Floor Plan - Unfinished Basement - Transitional

Plan Details

  • This 3,265 sq. ft. Transitional house plan offers 5 bedrooms, 3 full bathrooms, 1 half bath, and an attached 511 sq. ft. 2-car garage, showcasing a sophisticated blend of classic and contemporary design.
  • Upon entering, a grand foyer opens to an immediate view of the open-concept family room, creating an expansive welcome, while a dedicated home office is conveniently placed near the entrance, perfect for focused work or quiet study.
  • The heart of the home features a seamless flow between the family room, a gourmet kitchen with a spacious pantry, and a sunlit dining area, fostering an ideal environment for daily life and entertaining, complemented by a practical mudroom and powder room off the garage entry.
  • The luxurious primary bedroom suite, privately situated on the main level, boasts a spa-like bath and a generous walk-in closet with direct access to the main-level laundry, while four additional bedrooms, including one with a vaulted ceiling and another served by a Jack & Jill bath, reside upstairs, offering comfortable retreats for family and guests.
  • This thoughtfully designed plan incorporates a versatile home office on the main floor, offering a dedicated space for productivity or quiet contemplation, complemented by the convenience of dual laundry facilities—one accessible directly from the primary suite and another on the second floor—streamlining household chores.
  • Outdoor living is effortlessly extended with a welcoming 295 sq. ft. covered front porch, ideal for morning coffee, and a spacious 275 sq. ft. covered patio at the rear, perfect for al fresco dining and relaxation, complete with provisions for an outdoor kitchen.

What's Included

  • Index Page
  • Notes
  • Foundation Plan
  • Main Floor Plan
  • Front and Rear Elevations
  • Left and Right Elevations
  • Bird’s Eye Roof Plan
  • Floor Joist Layout
  • Main Floor Electrical Plan
  • Basement Electrical Plan (if applicable)
  • Cross Sections
  • Details Page
View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,265 sq. ft.

1st Floor

1,744 sq. ft.

2nd Floor

1,521 sq. ft.

Basement Unfinished

1,737 sq. ft.

Porch, Front

295 sq. ft.

Covered Patio

275 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

63' 0"

Garage

Type

Attached

Area

511 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick And Truss

Architectural Style

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Den

Flex Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen
