5 Beds and 5 Fireplaces

Plan 36466TX

  • 7,696

    Heated s.f.

  • 5

    Beds

  • 8

    Baths

  • 2

    Stories

  • 3

    Cars

  • MORE PHOTOS: See more pictures in our Google+ photo album.
  • A two-story covered entry greets you to this 5 bedroom house plan with master on main and the rest upstairs. There is a a beautiful curved stair plus an elevator that get you to the second floor.

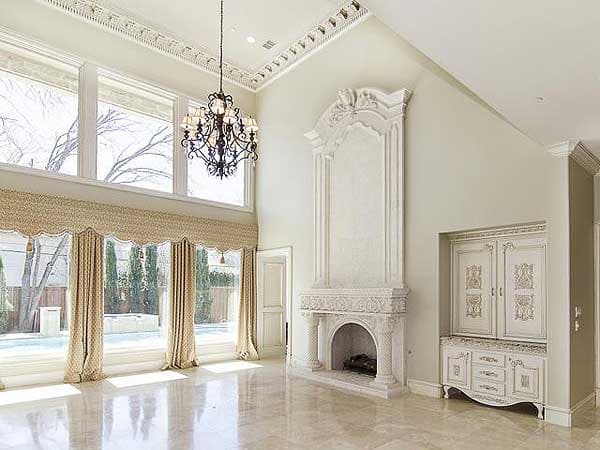

  • The grand foyer is flanked by the dining room and study and leads you to the living room with 22' ceilings, a fireplace and views to the back. A butlery is there so you can serve drinks to friend.

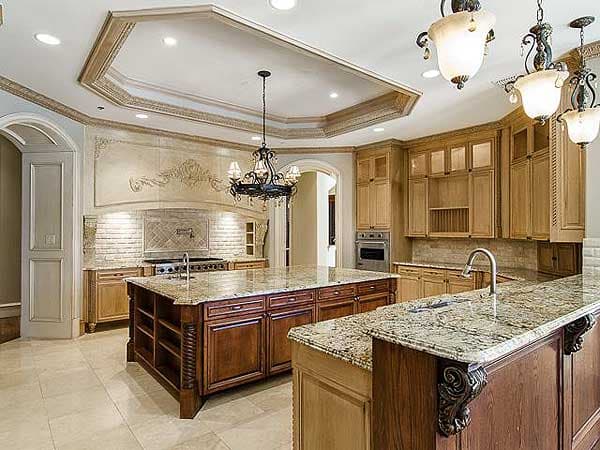

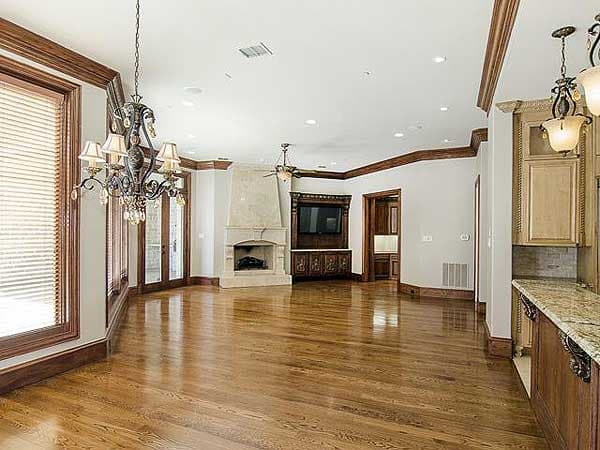

  • The kitchen has three access points and faces the breakfast and family rooms. A large island gives you workspace and there is a walk-in pantry.

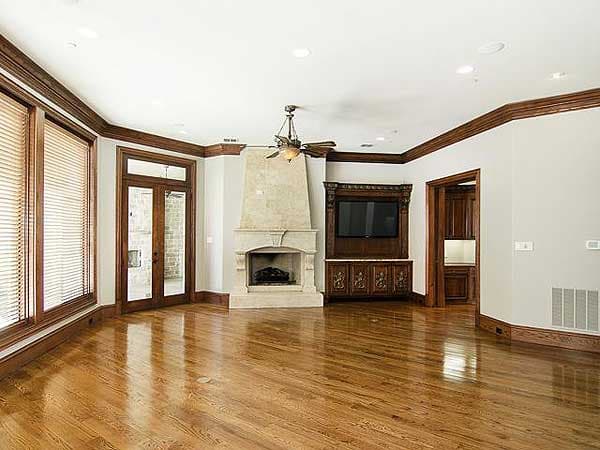

  • The family room has a fireplace plus access to the outdoor living room with another fireplace and outdoor kitchen.

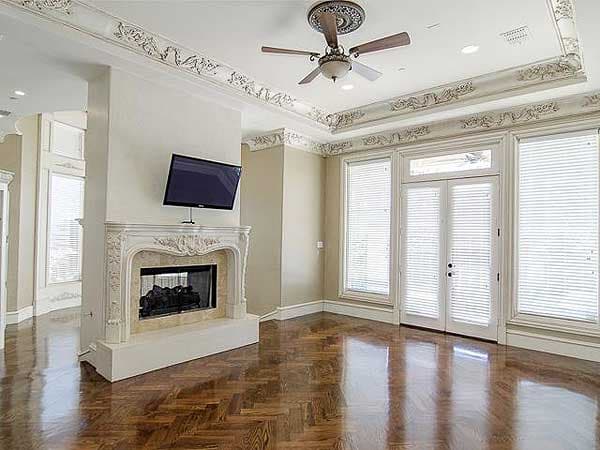

  • The master suite has outdoor access and a two-sided fireplace shared with the circular sitting room. The lavish master bath and huge walk-in wardrobe complete the suite.

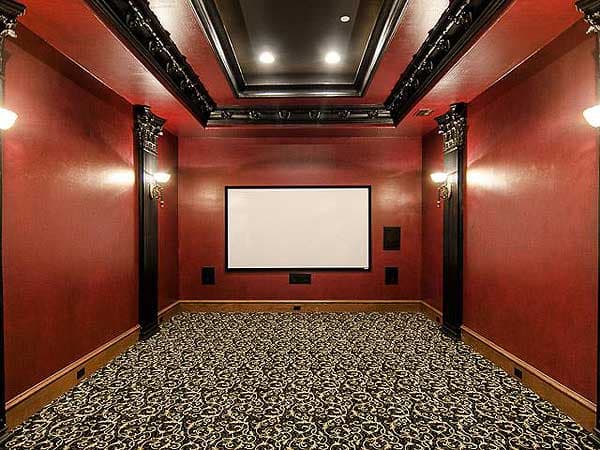

  • In addition to the bedrooms, you'll also enjoy the media and game roooms upstairs, plus another wetbar.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

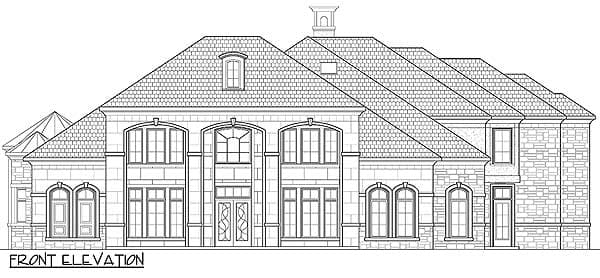

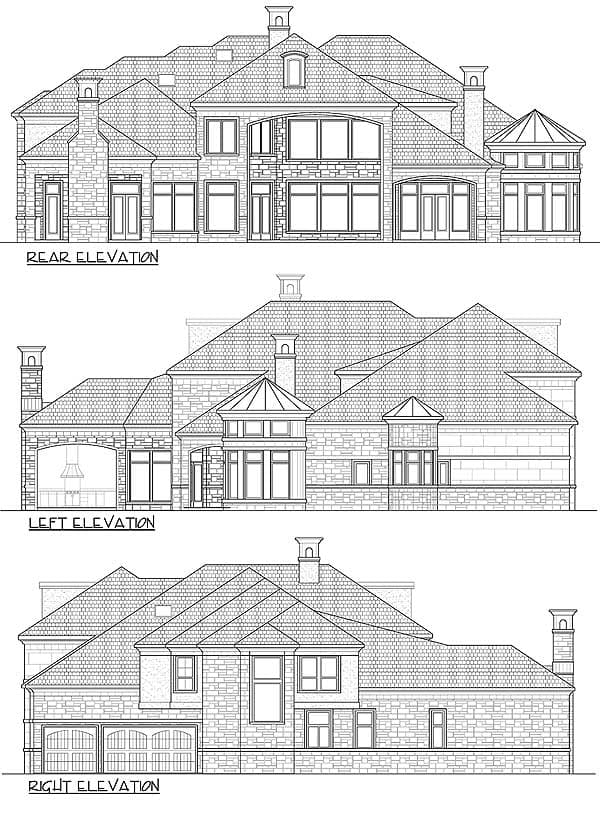

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



5 Beds and 5 Fireplaces

  • 7,696

    Heated s.f.

  • 5

    Beds

  • 8

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,295
  • 5 Sets $3,495
  • CAD $4,950
  • View all purchase option online

About This Plan

  • MORE PHOTOS: See more pictures in our Google+ photo album.
  • A two-story covered entry greets you to this 5 bedroom house plan with master on main and the rest upstairs. There is a a beautiful curved stair plus an elevator that get you to the second floor.
  • The grand foyer is flanked by the dining room and study and leads you to the living room with 22' ceilings, a fireplace and views to the back. A butlery is there so you can serve drinks to friend.
  • The kitchen has three access points and faces the breakfast and family rooms. A large island gives you workspace and there is a walk-in pantry.
  • The family room has a fireplace plus access to the outdoor living room with another fireplace and outdoor kitchen.
  • The master suite has outdoor access and a two-sided fireplace shared with the circular sitting room. The lavish master bath and huge walk-in wardrobe complete the suite.
  • In addition to the bedrooms, you'll also enjoy the media and game roooms upstairs, plus another wetbar.

Floor Plans

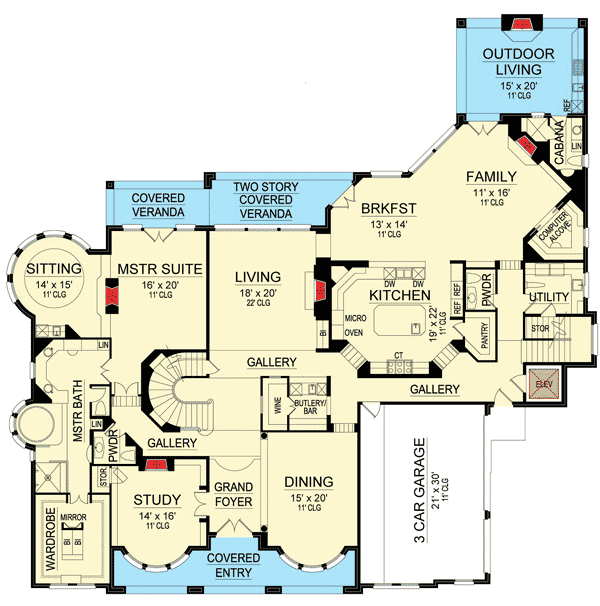

  • Main Level

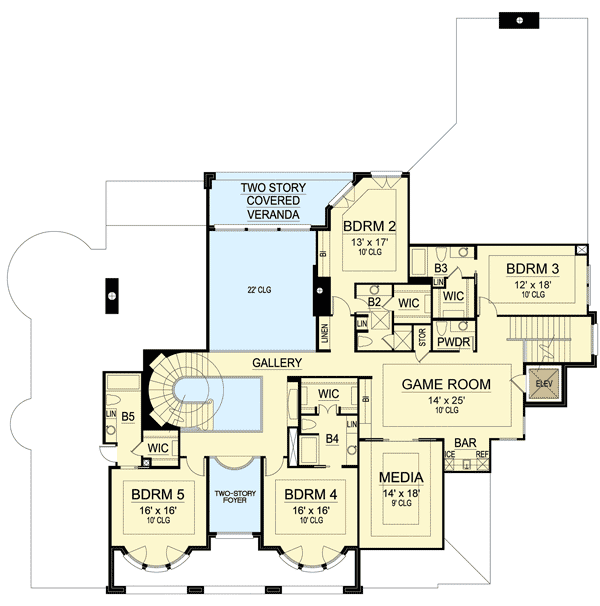

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,696 sq. ft.
  • 1st Floor: 4,978 sq. ft.
  • 2nd Floor: 2,718 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 96' 0"
  • Depth: 96' 0"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 700 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Architectural Style

  • European
  • Mediterranean

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Elevator
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Luxury
  • Photo Gallery
  • Premium Collection
