515 Square Foot 2-Car Contemporary Garage Plan with Upstairs Rec Room

Plan 61302UT

  • 515

    Heated s.f.

  • 2

    Stories

  • 2

    Cars

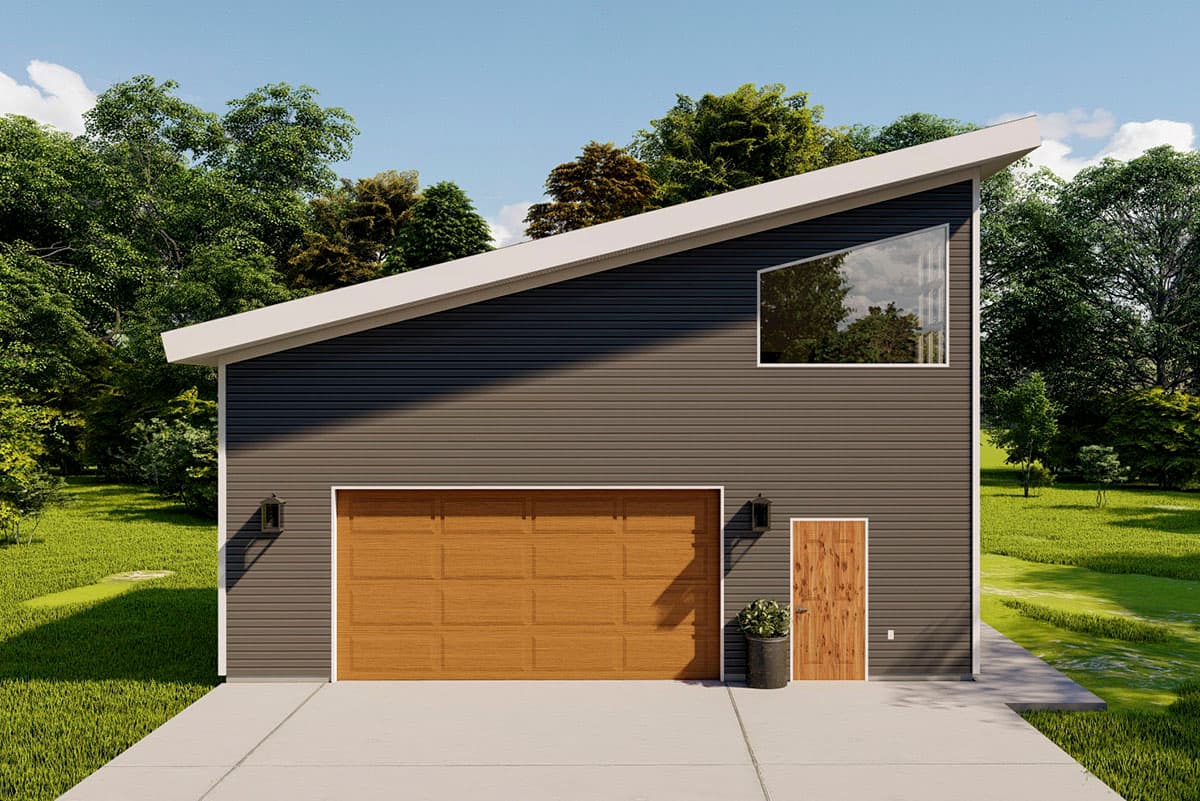

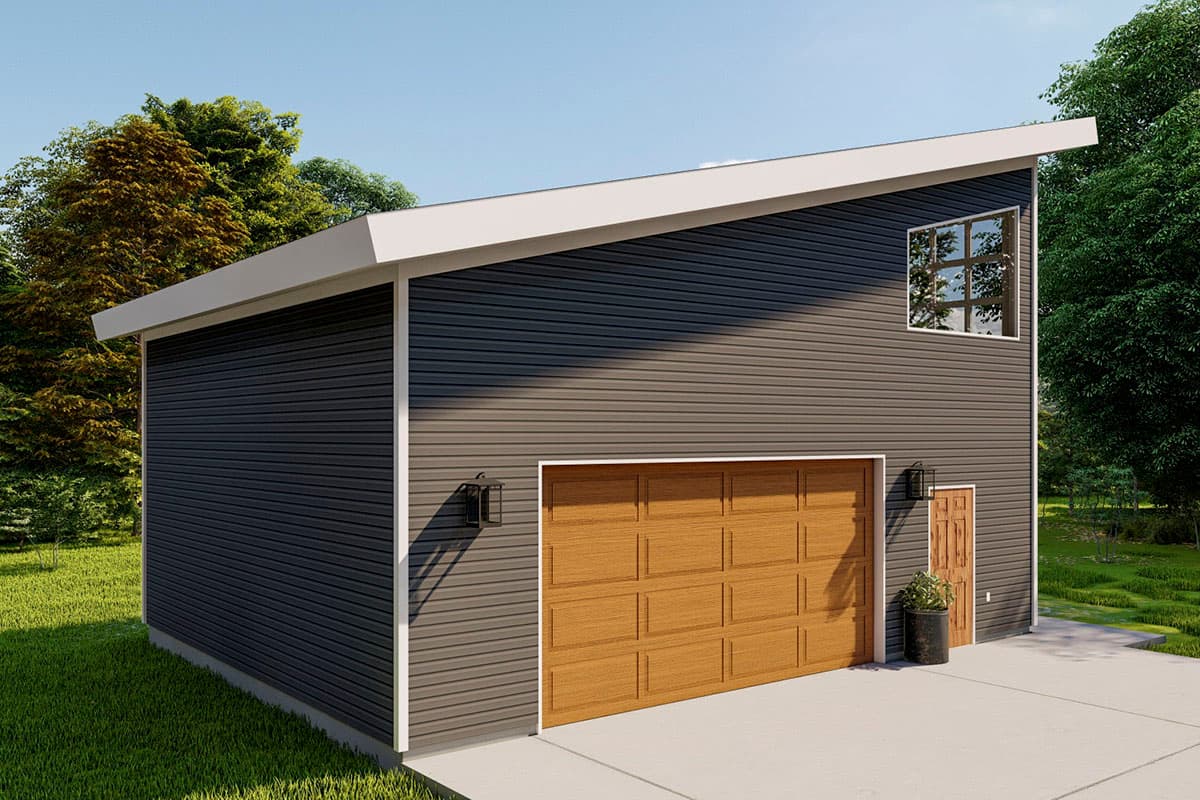

  • This 2-car garage is designed with a stemwall foundation and gives you 775 square feet of parking wrapped in a contemporary shell.
  • A single 16' by 8' overhead door gives your vehicles access.

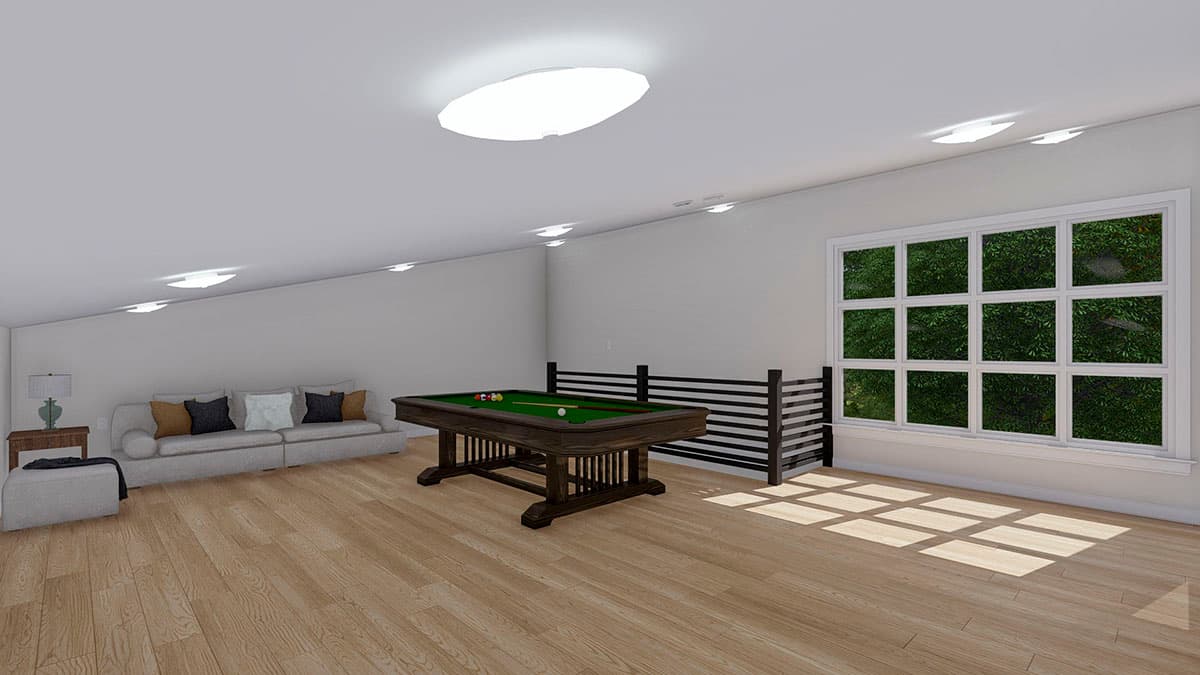

  • Stairs take you to an open rec room with light pouring in through windows in both sides of the front right corner. The ceiling slopes from 4' 6" to 9' 8".

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

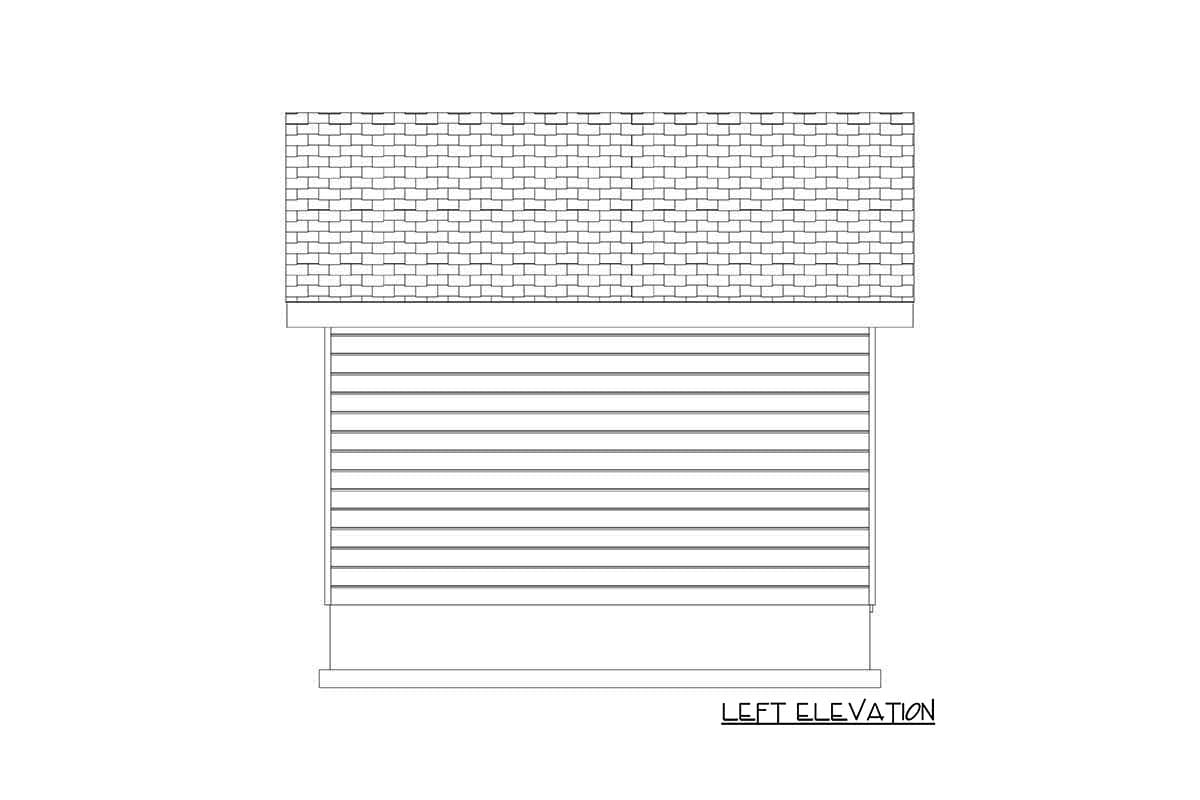

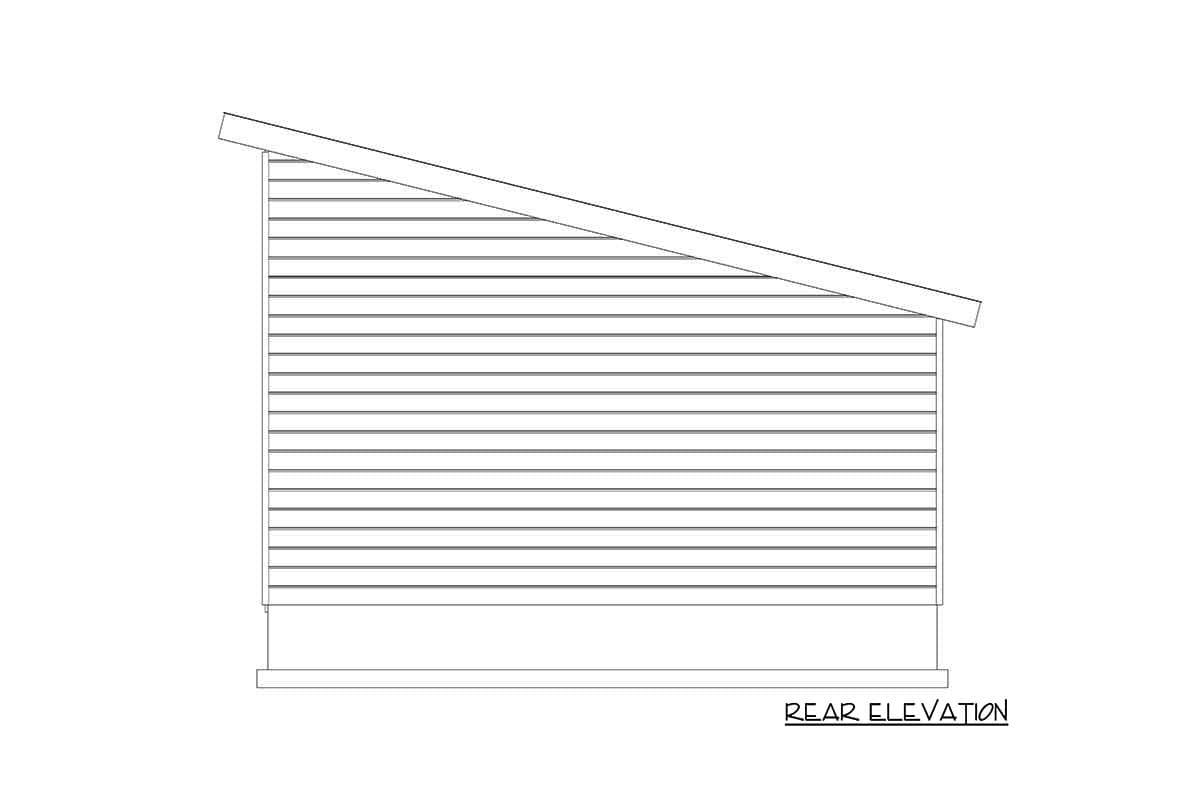

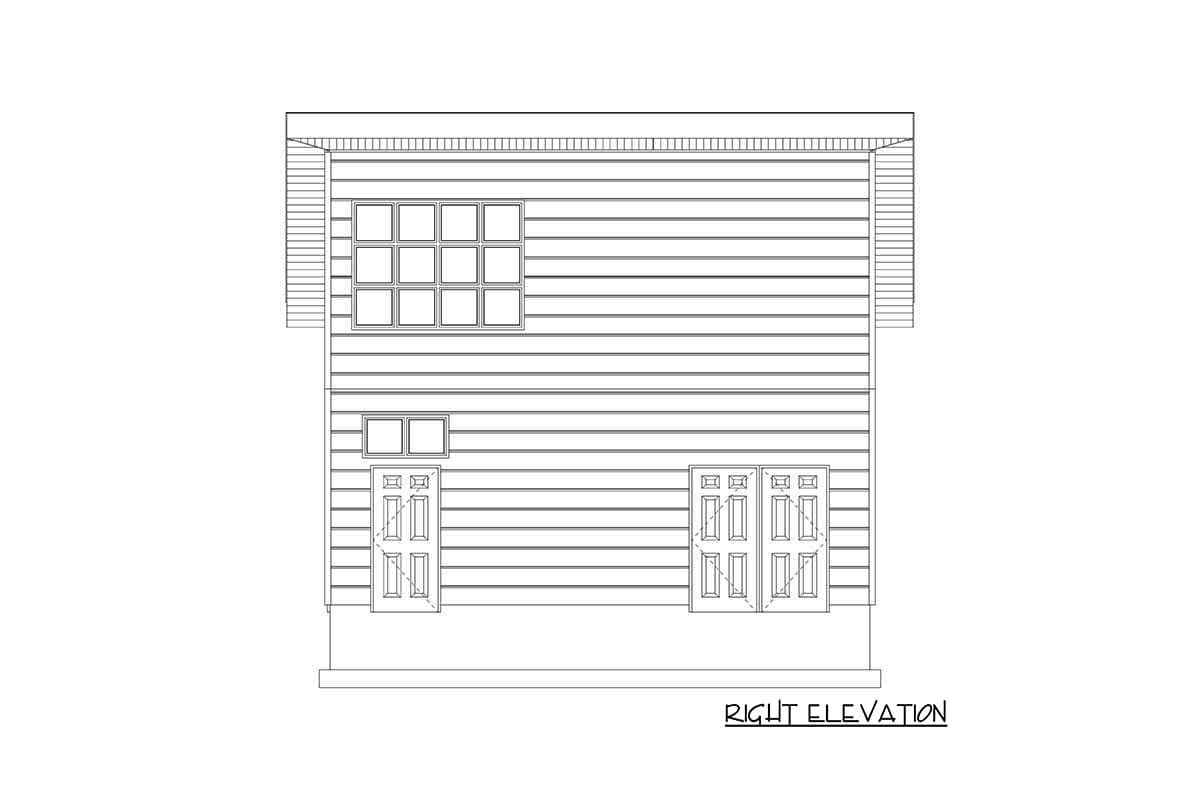

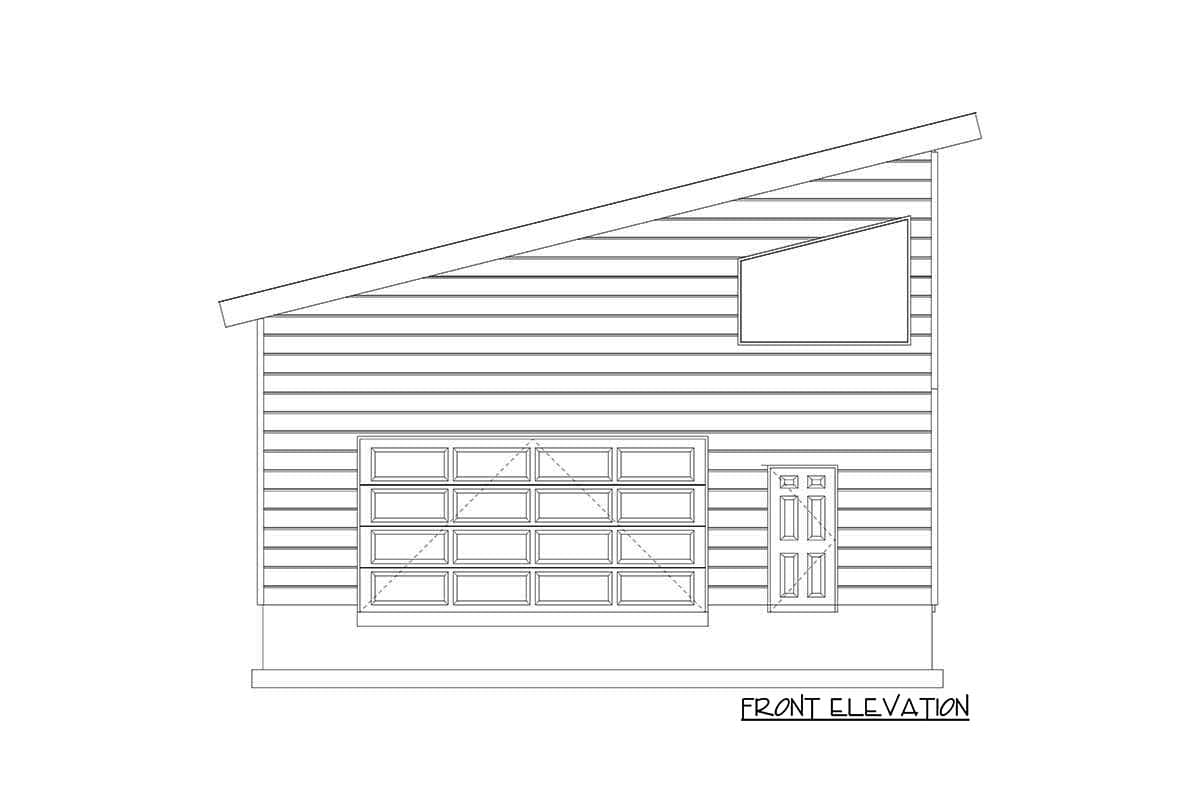

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

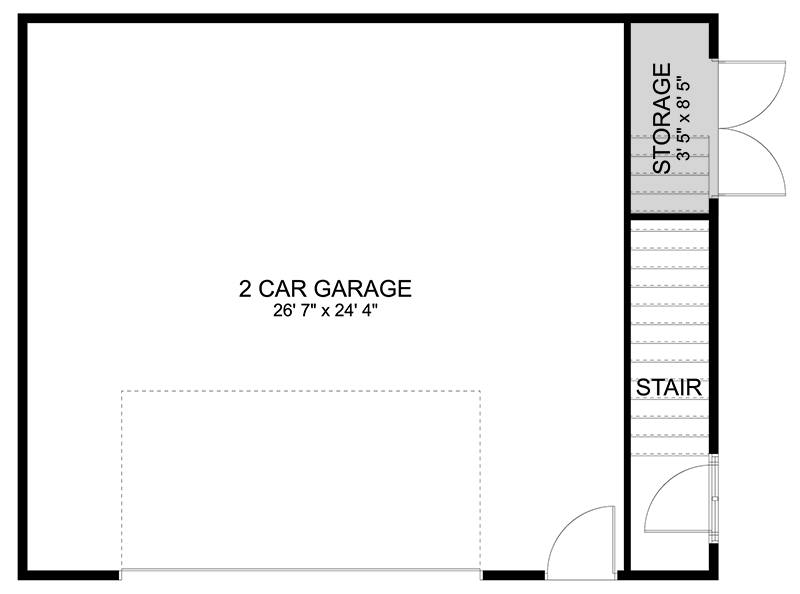

515 Square Foot 2-Car Contemporary Garage Plan with Upstairs Rec Room - 61302UT floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

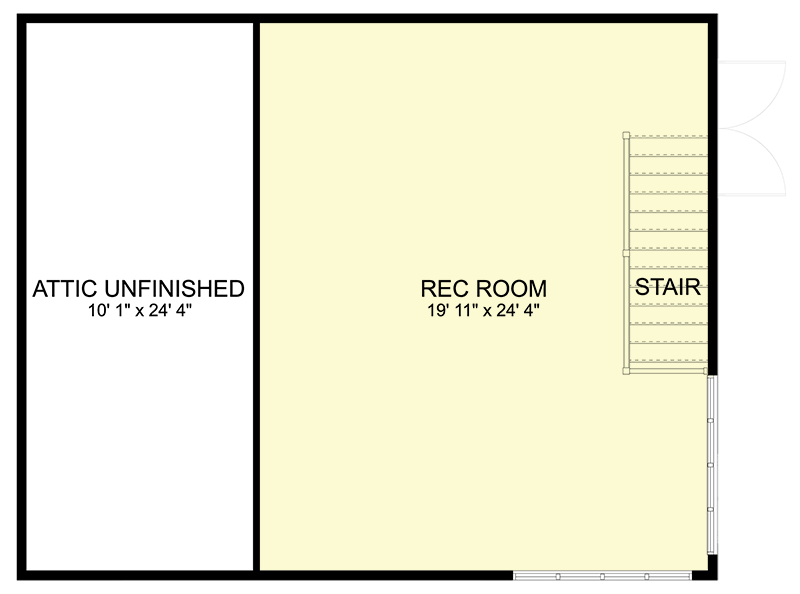

515 Square Foot 2-Car Contemporary Garage Plan with Upstairs Rec Room - 61302UT floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 515 sq. ft.
  • 2nd Floor: 515 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 31' 0"
  • Depth: 25' 0"
  • Max ridge height: 22' 10"

Garage

  • Type: Detached
  • Area: 775 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

515 Square Foot 2-Car Contemporary Garage Plan with Upstairs Rec Room

  • 515

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $575
  • PDF - Unlimited Build $725
  • 5 Sets + PDF $925
  • CAD - Single-Build $1,050
  • CAD Unlimited + PDF $1,175
  • View all purchase option online

About This Plan

  • This 2-car garage is designed with a stemwall foundation and gives you 775 square feet of parking wrapped in a contemporary shell.
  • A single 16' by 8' overhead door gives your vehicles access.
  • Stairs take you to an open rec room with light pouring in through windows in both sides of the front right corner. The ceiling slopes from 4' 6" to 9' 8".

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 515 sq. ft.
  • 2nd Floor: 515 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 31' 0"
  • Depth: 25' 0"
  • Max ridge height: 22' 10"

Garage

  • Type: Detached
  • Area: 775 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick
