Open Living Duplex with Flipped 825 Square Foot 2 Bed and 2 Bath Units

Heated S.F.
1,650
Units
2
Width
Depth

Floor Plan

Plan 5183MM

Main Level
Main Level

Plan 5183MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

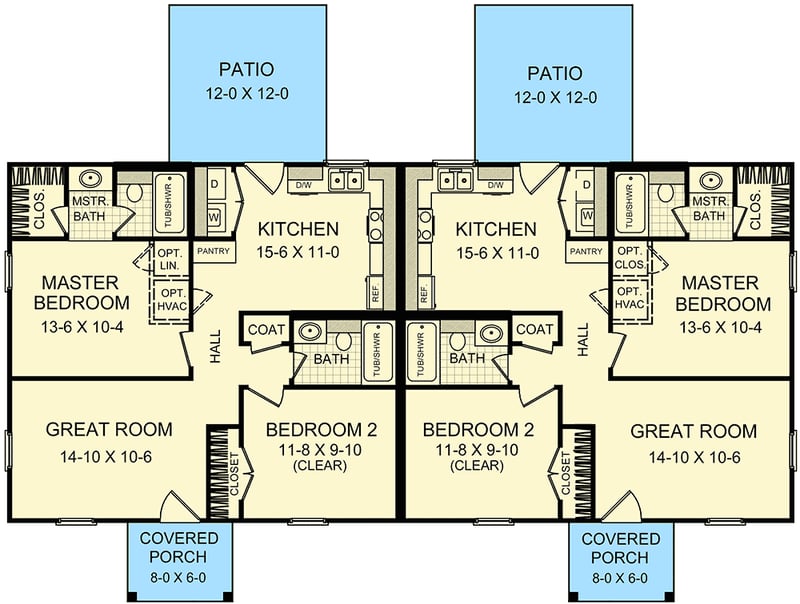

Plan 5183MM: Open Living Duplex with Flipped 825 Square Foot 2 Bed and 2 Bath Units - Floor Plan - Main Level - Ranch, Southern, Traditional

Plan Details

  • This is a beautiful, traditional duplex house plan featuring open living area and spacious bedrooms.
  • Each 2 bed, 2 bath unit gives you 825 square feet of heated living space.
  • The L-shaped kitchen has a large panty and a double sink set below a window looking out back.
  • A 12' by 12' patio in back is perfect for outdoor entertaining.
  • A split bedroom layout maximizes your privacy.
  • Related Plans: Get smaller units with duplex plan 51176MM (701 sq. ft./unit). Get more room per unit with duplex plans 5183MM (825 sq. ft./unit), 51200MM (898 sq. ft./unit), 5150MM (990 sq. ft./unit) and 51114MM (1,170 sq. ft./unit).
Unit A
Heated Area
825Sq. Ft.
825 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
30'width
33' 6"depth
18' 9"height
Unfinished Areas
48 Sq. Ft. Porch, Front
48 Sq. Ft. Porch, Rear
Unit B
Heated Area
825Sq. Ft.
825 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
30'width
33' 6"depth
18' 9"height
Unfinished Areas
48 Sq. Ft. Porch, Front
48 Sq. Ft. Porch, Rear

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,650 sq. ft.

1st Floor

1,650 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

48 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

33' 6"

Max Ridge Height

18' 9"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,650 sq. ft.

1st Floor

1,650 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

48 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

33' 6"

Max Ridge Height

18' 9"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

USDA Approved
