564 Square Foot New American Style ADU with Cozy Corner Porch
Heated S.F.
564
Beds
1
Baths
1
Stories
1
What's Included
Plan Details
  • This 1-bed, 564 square foot ADU has an attractive board and batten exterior with a cozy entry porch and two large windows centered in the front gable.
  • Inside, a kitchen and living room get light from those windows and give you an open space to enjoy.
  • In back, the bedroom has direct access to the bathroom with closet and laundry.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.

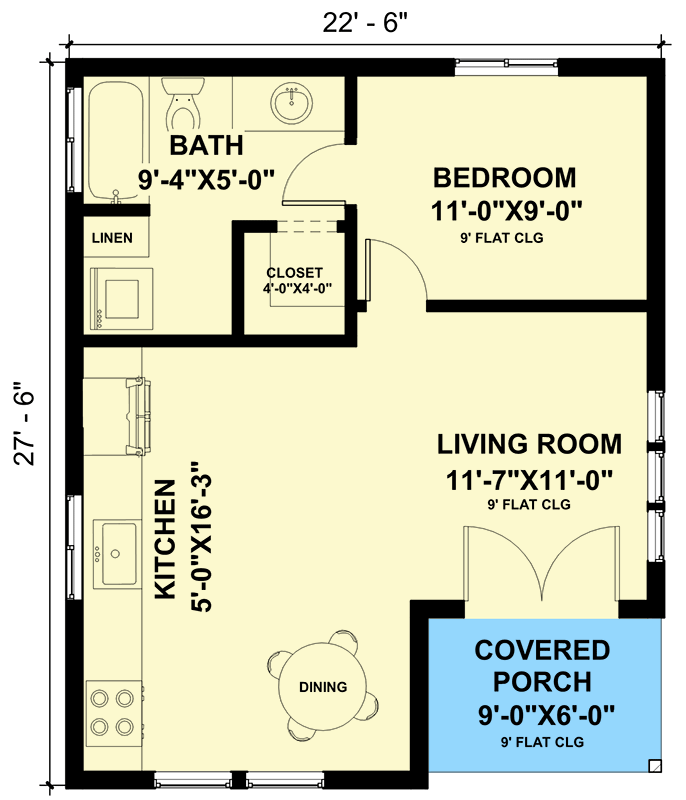

  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Mechanicals Plan - Suggested HVAC equipment placement
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

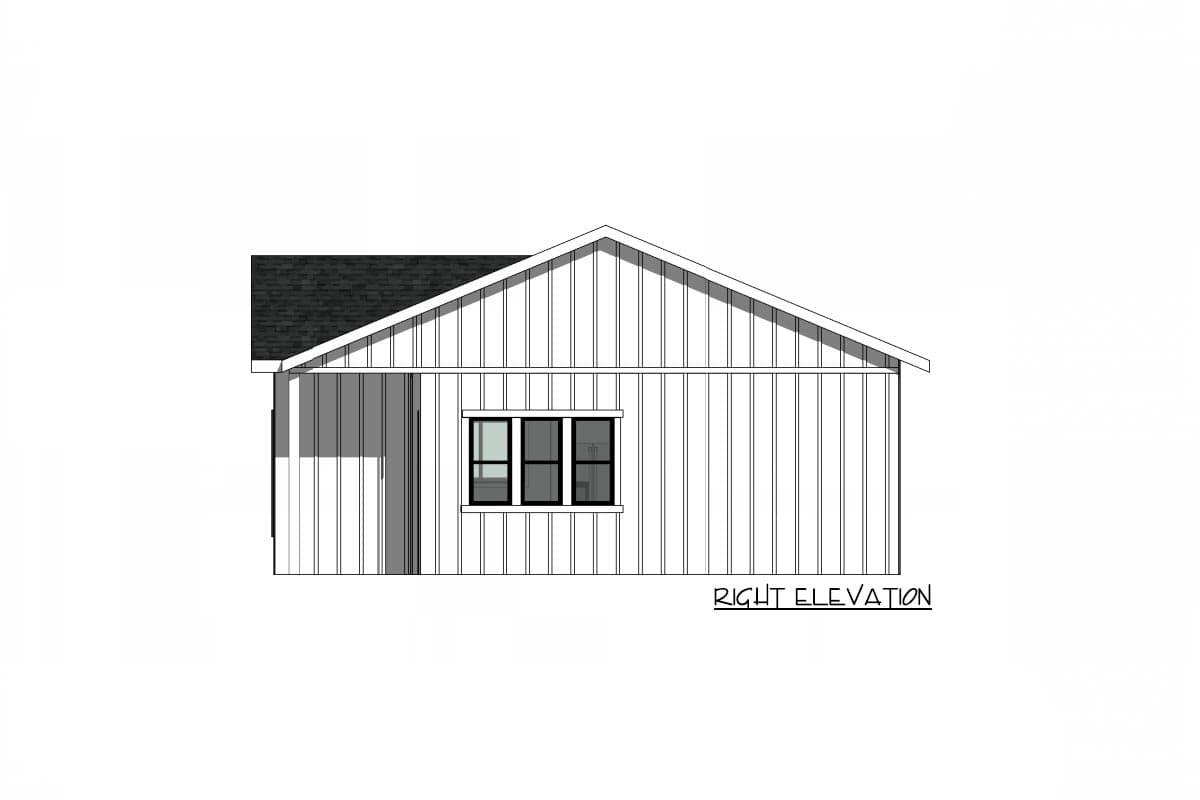

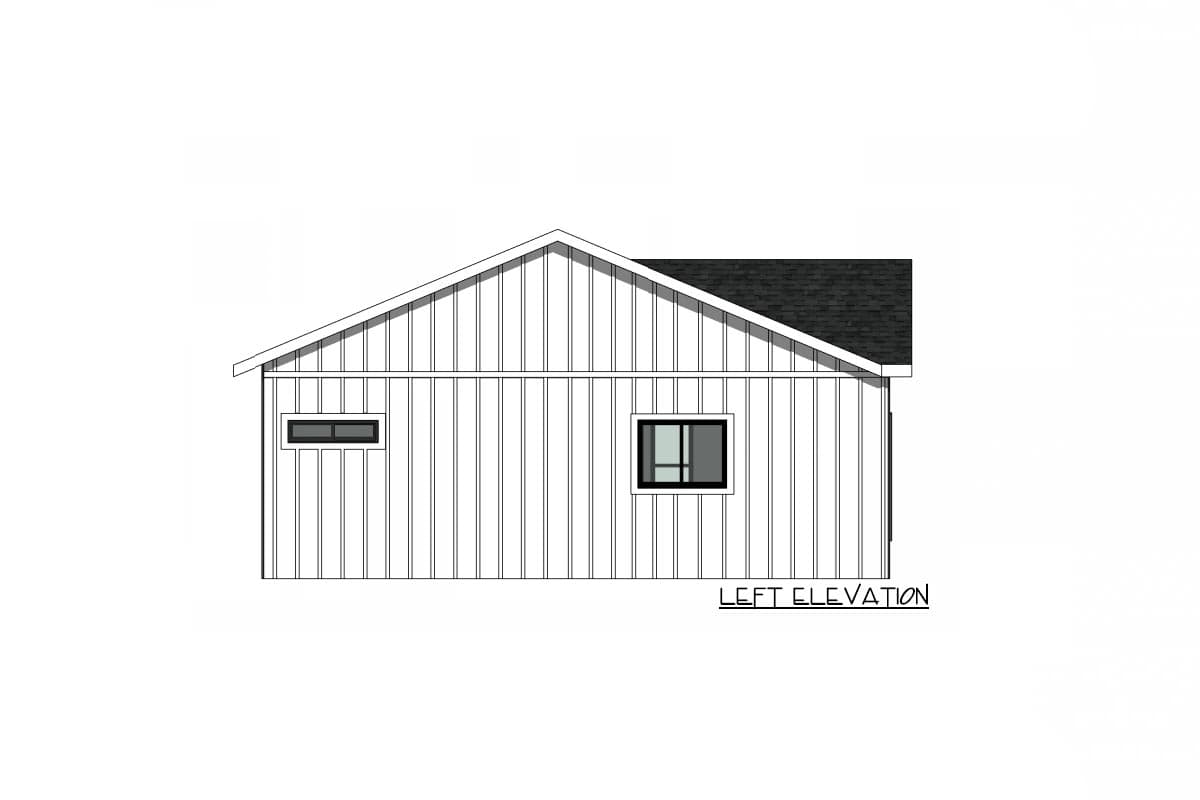

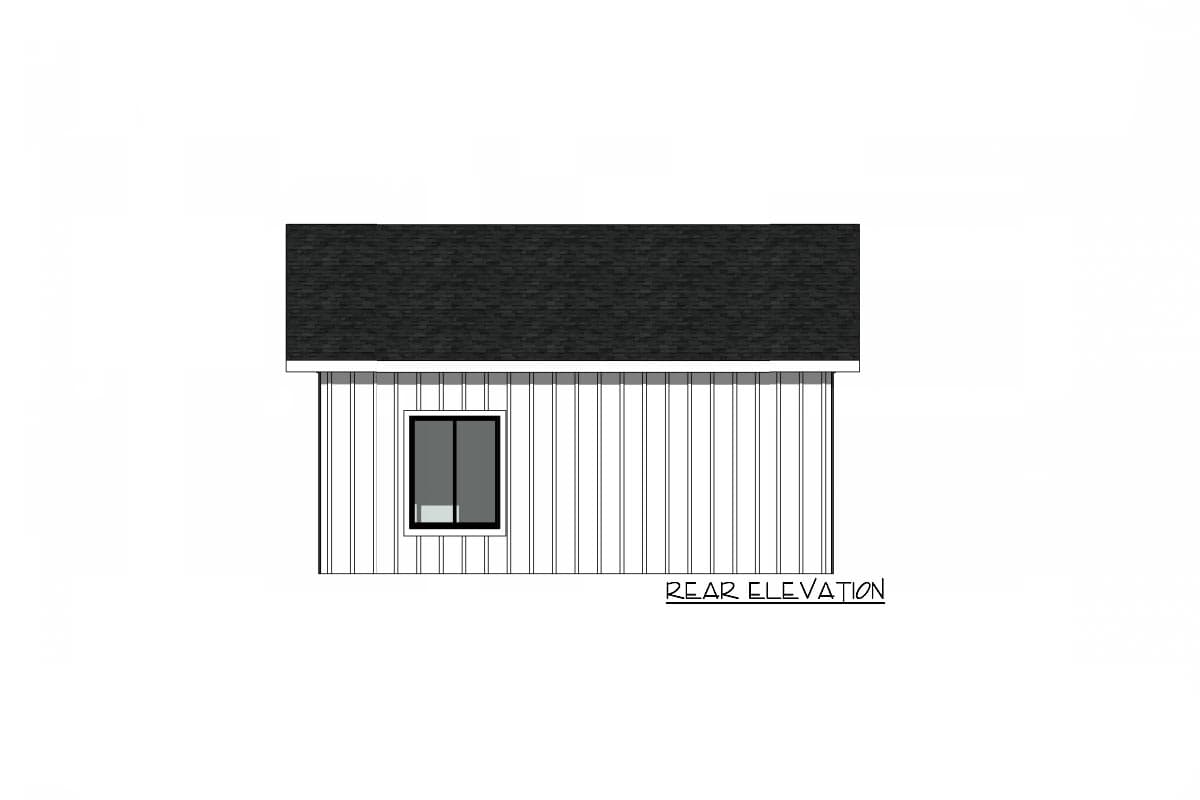

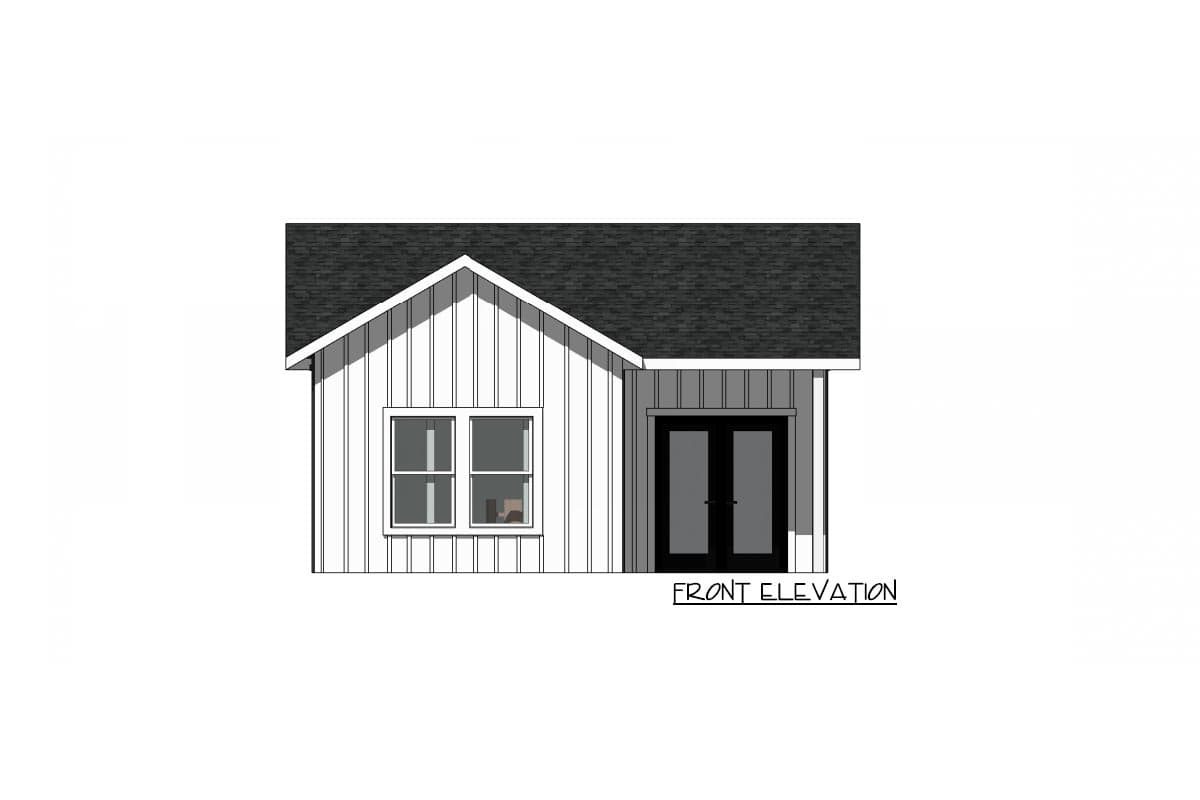

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details and notes - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

564 Square Foot New American Style ADU with Cozy Corner Porch

  • 564

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 564 sq. ft.
  • 1st Floor: 564 sq. ft.

Dimensions

  • Width: 22' 6"
  • Depth: 27' 6"
  • Max ridge height: 15' 7"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
