Plan 290158IY 6-Bed Mountain Craftsman Home Plan with Spacious Walkout Basement

6-Bed Mountain Craftsman Home Plan with Spacious Walkout Basement

Plan 290158IY

  • 6,255

    Heated s.f.

  • 6

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • At over 6,200 square feet of living space, this Mountain Craftsman house plan boasts 6 bedrooms, an angled 3-car garage, open-concept layout, and plenty of outdoor living space.
  • The gourmet kitchen is a homeowner's dream with plenty of workspace, an oversized walk-in pantry, and adjacent dining area filled with natural light.
  • Cozy up next to the fireplace in the master bedroom, which includes sliding doors to the back deck, a deluxe 5-fixture bathroom, and a dresser island in the walk-in closet. A quiet den is located across the hall.
  • The spacious walk-out basement provides another large family room with a fireplace and kitchenette, a media room, five bedrooms, and laundry.
  • Enter from the garage to find a mudroom with built-ins and a coat closet, which then leads into the kitchen.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

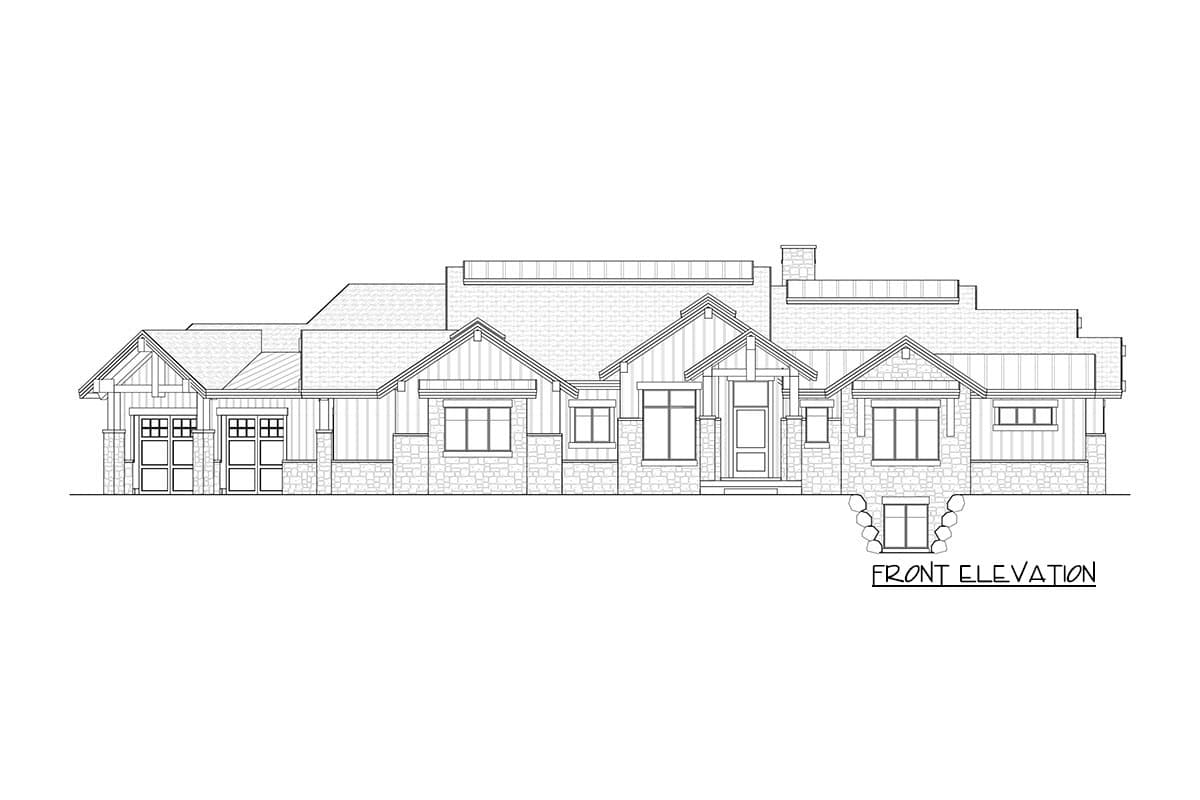

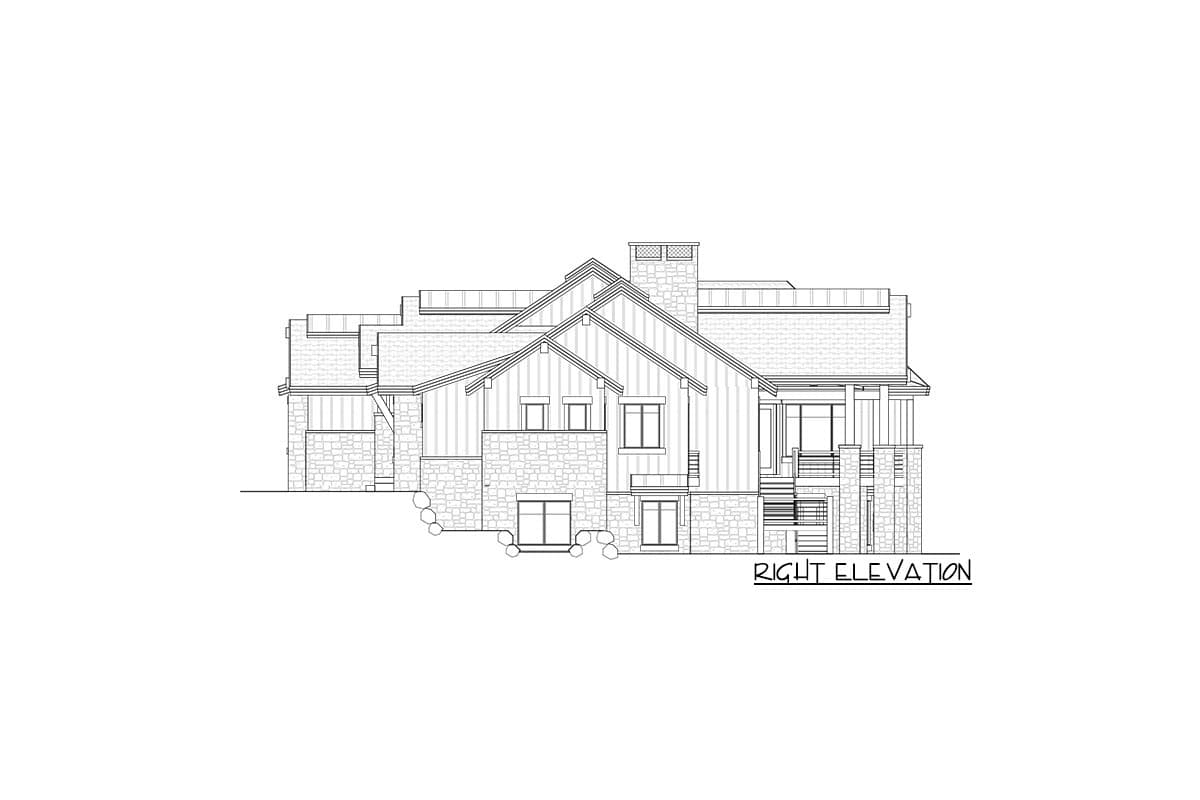

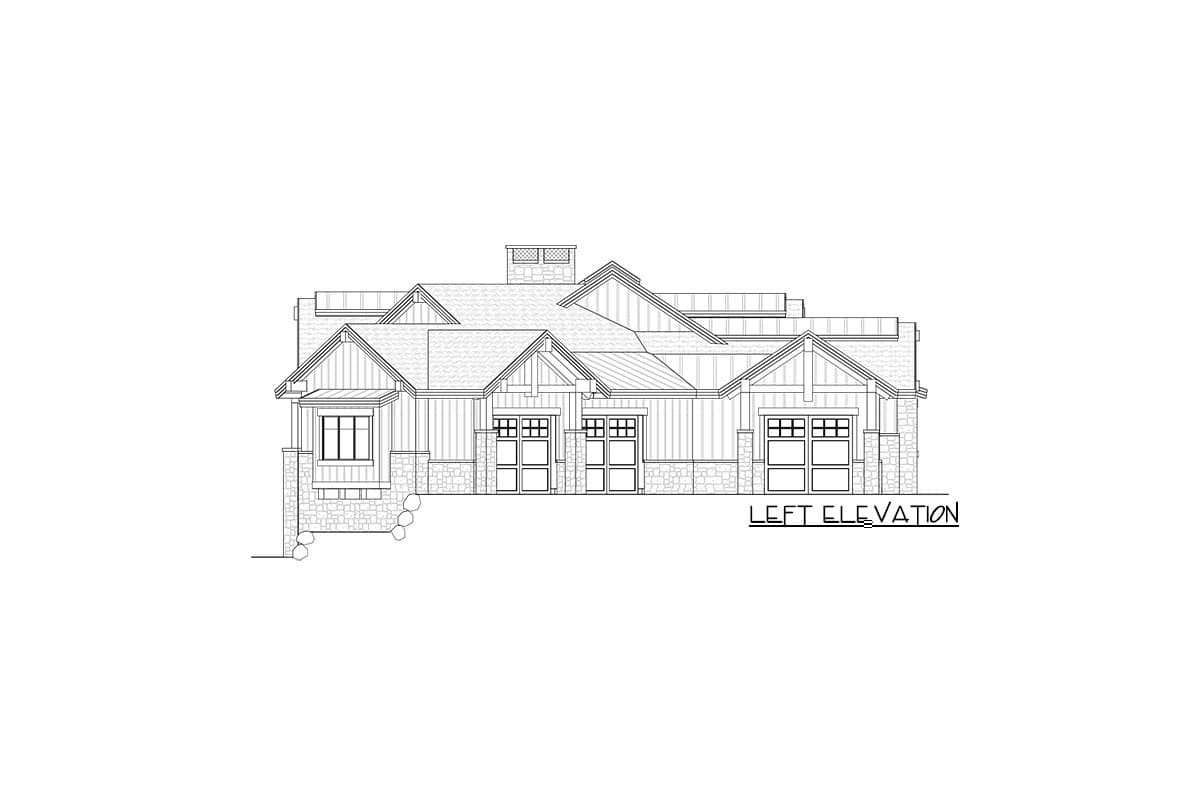

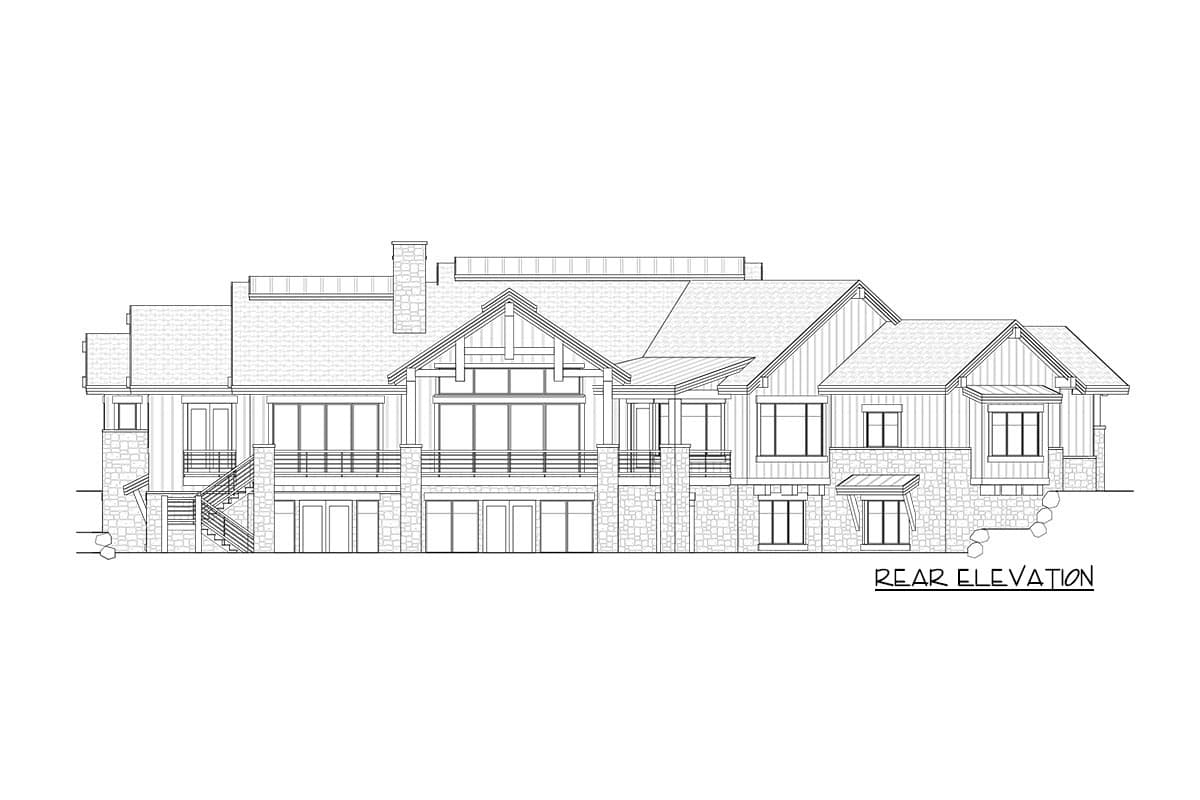

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

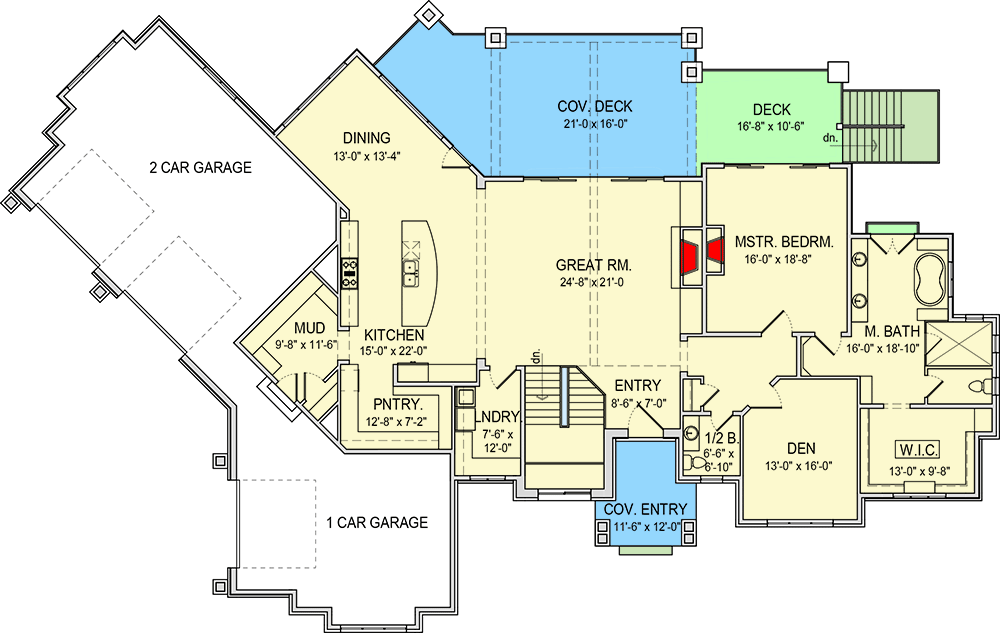

6-Bed Mountain Craftsman Home Plan with Spacious Walkout Basement - 290158IY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

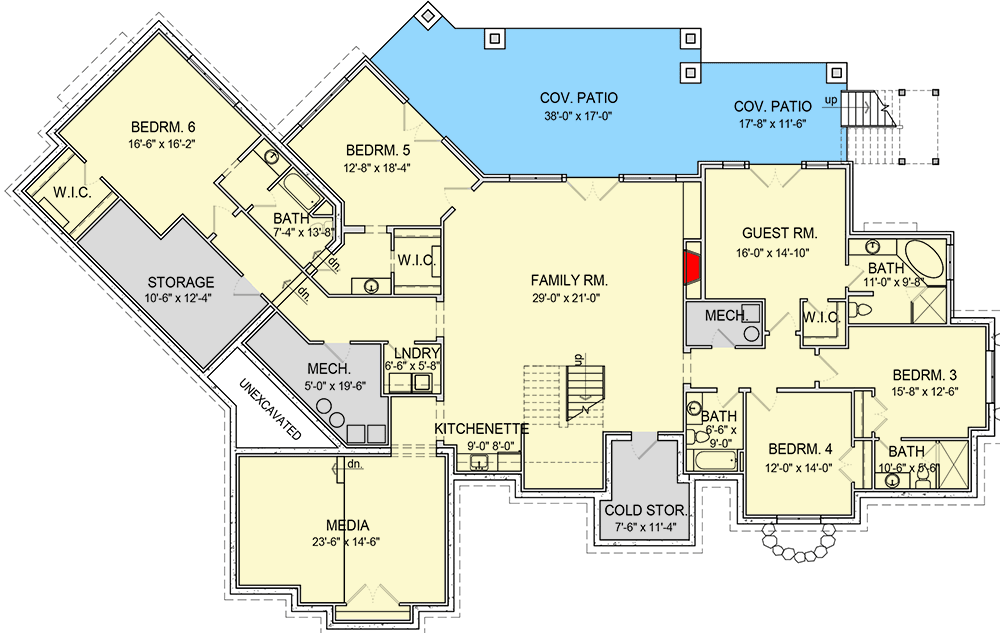

6-Bed Mountain Craftsman Home Plan with Spacious Walkout Basement - 290158IY floor plan - Lower Level

Plan details

6-Bed Mountain Craftsman Home Plan with Spacious Walkout Basement

  • 6,255

    Heated s.f.

  • 6

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,781
  • CAD - Single-Build $4,171
  • View all purchase option online

About This Plan

  • At over 6,200 square feet of living space, this Mountain Craftsman house plan boasts 6 bedrooms, an angled 3-car garage, open-concept layout, and plenty of outdoor living space.
  • The gourmet kitchen is a homeowner's dream with plenty of workspace, an oversized walk-in pantry, and adjacent dining area filled with natural light.
  • Cozy up next to the fireplace in the master bedroom, which includes sliding doors to the back deck, a deluxe 5-fixture bathroom, and a dresser island in the walk-in closet. A quiet den is located across the hall.
  • The spacious walk-out basement provides another large family room with a fireplace and kitchenette, a media room, five bedrooms, and laundry.
  • Enter from the garage to find a mudroom with built-ins and a coat closet, which then leads into the kitchen.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,255 sq. ft.
  • Lower Level: 3,475 sq. ft.
  • 1st Floor: 2,781 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 111' 11"
  • Depth: 70' 8"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 1372 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"
