Plan 940003JNK

6-Stall Barn Plan with 1-Bed 928 Square Foot Apartment Above with Vaulted Ceilings

Heated S.F.
1,357
Beds
1
Baths
1.5
Stories
2

Floor Plan

Plan 940003JNK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 940003JNK

M-F 9am-5pm EST |

1-203-761-8500

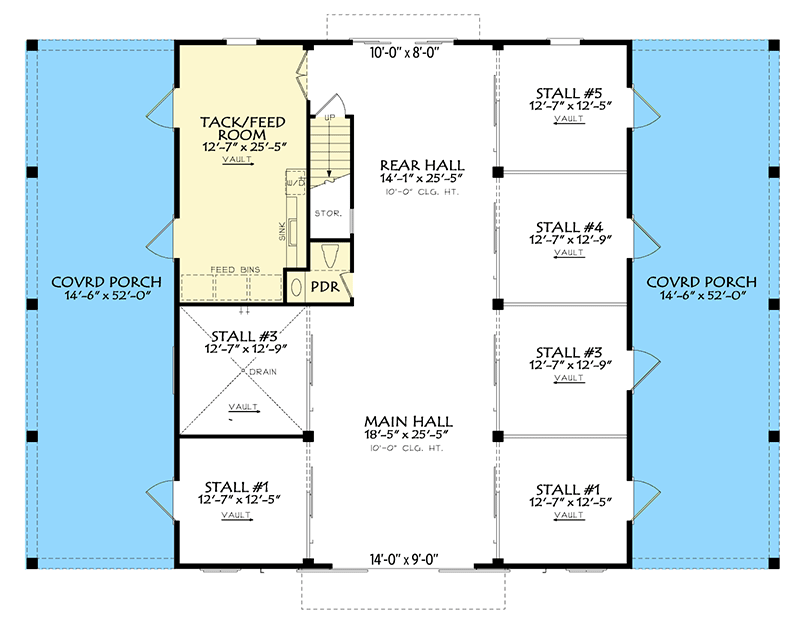

Main Level

Plan 940003JNK: 6-Stall Barn Plan with 1-Bed 928 Square Foot Apartment Above with Vaulted Ceilings - Floor Plan - Main Level - Barndominium, Country, Modern Farmhouse, Rustic

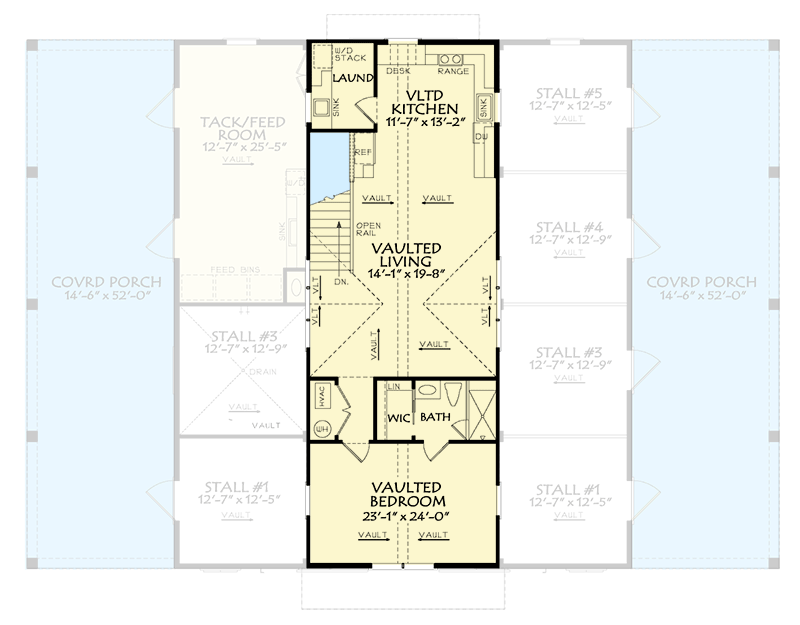

2nd Floor

Plan 940003JNK: 6-Stall Barn Plan with 1-Bed 928 Square Foot Apartment Above with Vaulted Ceilings - Floor Plan - 2nd Floor - Barndominium, Country, Modern Farmhouse, Rustic

Plan Details

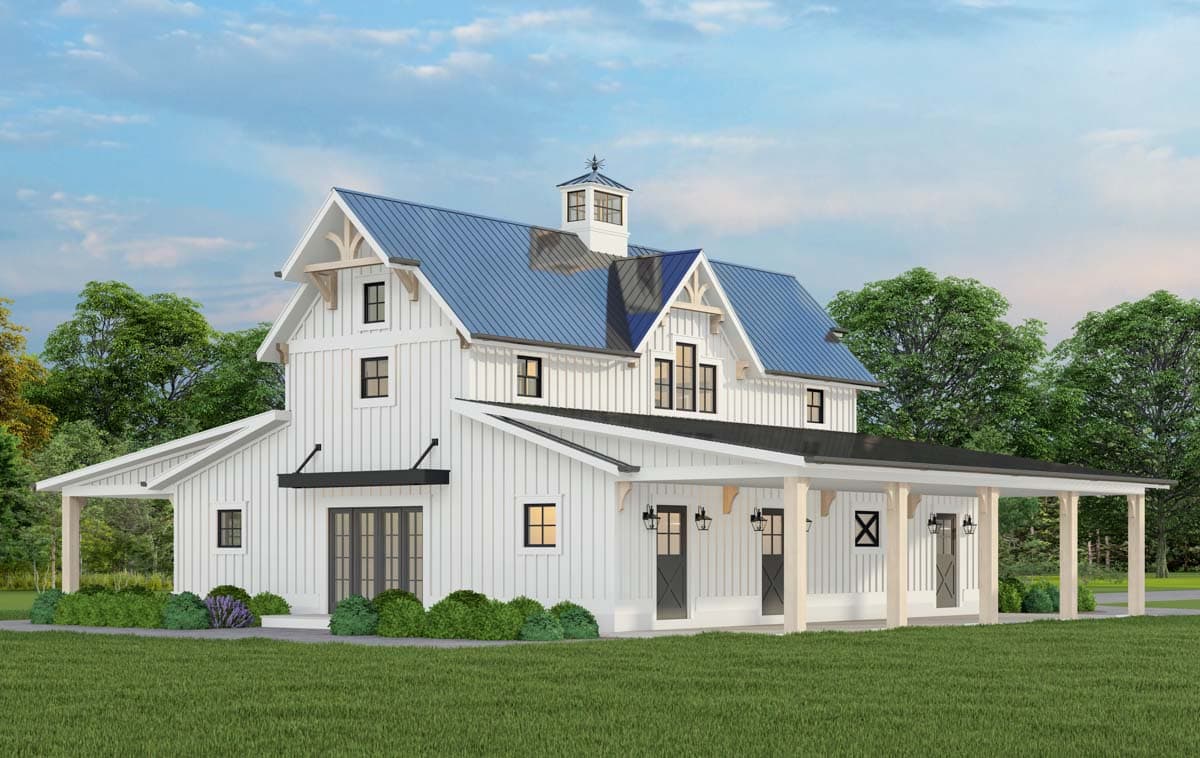

  • This 1,357 sq. ft. Modern Farmhouse ADU House Plan offers 1 bedroom, 1 full bath, and 1 half bath, showcasing a striking Barndominium aesthetic with its crisp white siding and bold blue metal roof.
  • Upon entering, discover an expansive open-concept layout centered around a dramatic two-story great room, creating a voluminous and inviting atmosphere.
  • The main floor features soaring 10-foot ceilings, seamlessly connecting the great room with the dining area and kitchen, fostering an effortless flow for daily life.
  • Ascend to the second floor, where 9-foot ceilings define the private master suite, complete with its own dedicated laundry area for ultimate convenience, creating a serene retreat away from the main living spaces.
  • Embrace outdoor living on the extensive 1,911 sq. ft. covered porch, perfect for enjoying the outside while taking in the surrounding landscape.

What's Included

  • Covered Sheet
  • Front & Rear elevations - 1/4" scale - hatched w/ materials
  • Right & Left elevations - 1/4" scale - hatched w/ materials
  • Roof Over view Plan Foundation Plan
  • Floor plans - w/ Kitchen & Bath elevations
  • Sections, stair sections, typical wall section details, and miscellaneous details
  • Separate electrical plans
  • Typical Detail sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,357 sq. ft.

1st Floor

429 sq. ft.

2nd Floor

928 sq. ft.

Stalls & Porches

1,911 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 0"

Depth

52' 0"

Max Ridge Height

30' 6"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Barndominium

Country

Modern Farmhouse

Rustic

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Two Story Great Room

Plan Collections

ADU
