6-Unit House Plan with Open Floor Plan

Heated S.F.
6,930
Units
6
Width
Depth

Floor Plan

Plan 80655PM

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 80655PM

M-F 9am-5pm EST |

1-203-761-8500

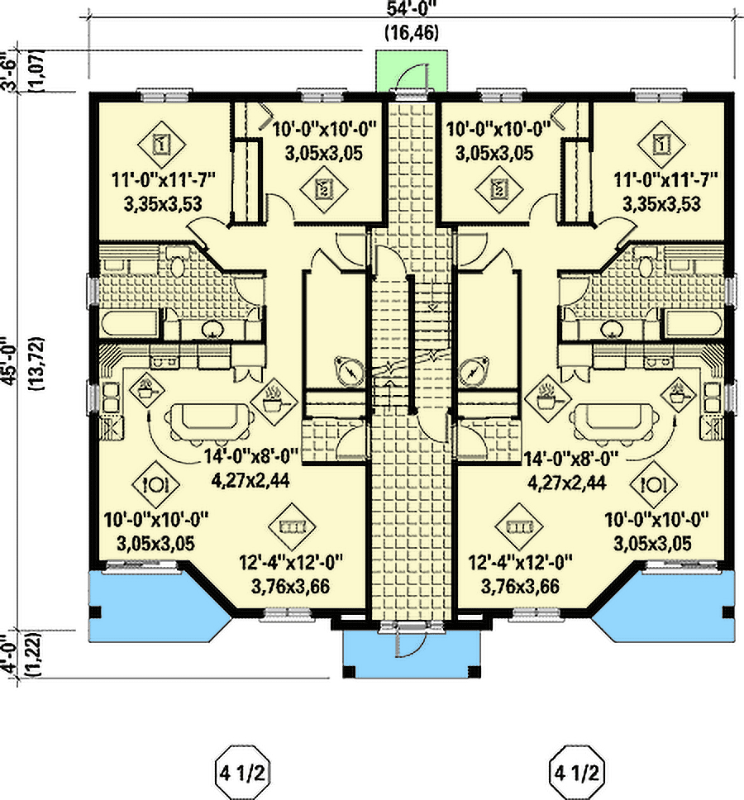

Main Level

Plan 80655PM: 6-Unit House Plan with Open Floor Plan - Floor Plan - Main Level

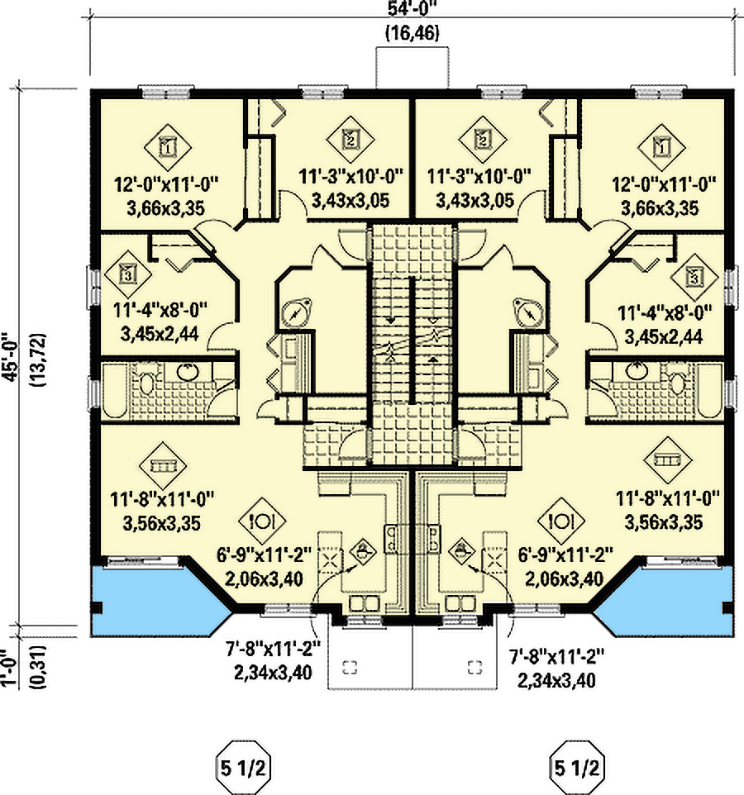

2nd Floor

Plan 80655PM: 6-Unit House Plan with Open Floor Plan - Floor Plan - 2nd Floor

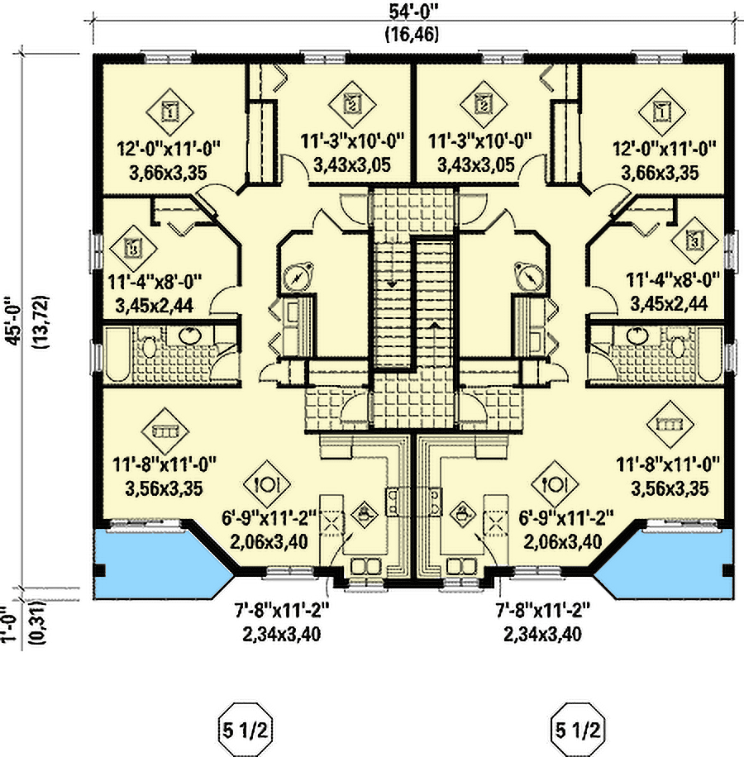

3rd Floor

Plan 80655PM: 6-Unit House Plan with Open Floor Plan - Floor Plan - 3rd Floor

Plan Details

  • This six unit multi-family complex has 6 units with an open-plan kitchen, living room, and dining room. Each unit gives you 1,555 sq. ft. of living space.
  • Units A and B on the first floor have two bedrooms and one bath.
  • Units C, D, E, F on the second and third floor have three bedrooms and one bath each.
Unit A
Heated Area
1,155Sq. Ft.
1155 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
27'width
45'depth
40'height
Unit B
Heated Area
1,155Sq. Ft.
1155 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
27'width
45'depth
40'height
Unit C
Heated Area
1,155Sq. Ft.
1155 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
Dimensions
27'width
45'depth
40'height
Unit D
Heated Area
1,155Sq. Ft.
1155 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
Dimensions
27'width
45'depth
40'height
Unit E
Heated Area
1,155Sq. Ft.
1155 Sq. Ft. 3rd
Beds
3Beds
Baths
1Full Bath
Dimensions
27'width
45'depth
40'height
Unit F
Heated Area
1,155Sq. Ft.
1155 Sq. Ft. 3rd
Beds
3Beds
Baths
1Full Bath
Dimensions
27'width
45'depth
40'height

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

6,930 sq. ft.

1st Floor

2,310 sq. ft.

2nd Floor

2,310 sq. ft.

3rd Floor

2,310 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

45' 0"

Max Ridge Height

40' 10"

Roof Details

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

6,930 sq. ft.

1st Floor

2,310 sq. ft.

2nd Floor

2,310 sq. ft.

3rd Floor

2,310 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

45' 0"

Max Ridge Height

40' 10"

Roof Details

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
