Plan 28127J

650 Square Foot ADU with One Bedroom - Architectural Designs

Heated S.F.
650
Beds
1
Baths
1
Stories
1

Floor Plan

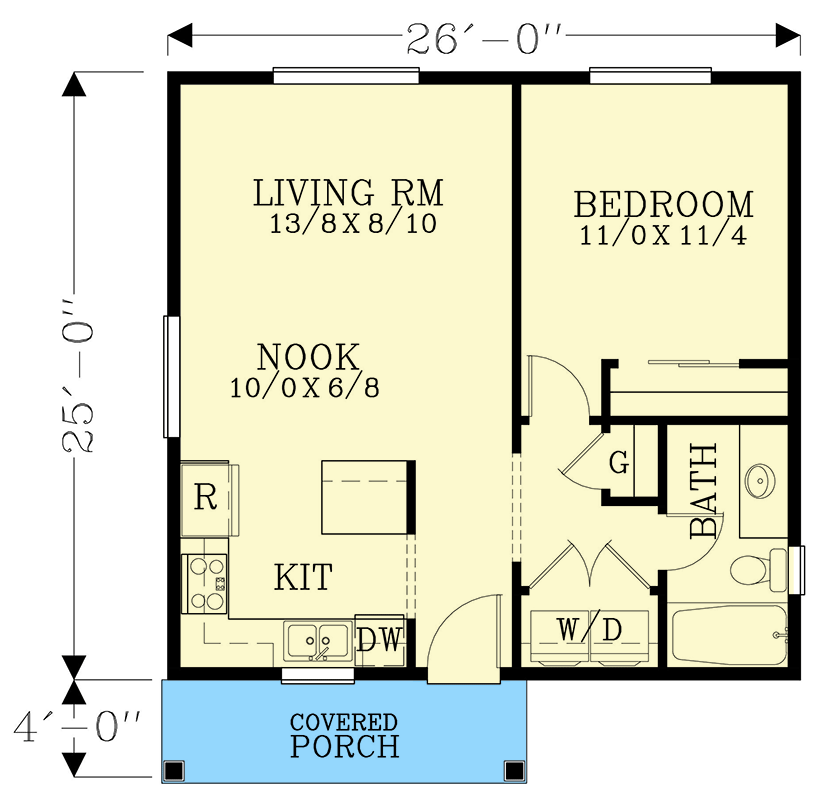

Plan 28127J

Main Level
Main Level

Plan 28127J

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 28127J: 650 Square Foot ADU with One Bedroom - Architectural Designs - Floor Plan - Main Level - Cabin, Cottage

Plan Details

  • This 1-bed ADU casita gives you 784 square feet of heated living space and a 4-'deep front porch.
  • The bedroom, bath and laundry are located on the right, leaving the left side of the home open front to back.
  • An L-shaped kitchen with an island is in front and the living room is in back.
  • Related Plans: Get a 2-bed version with house plan 28031J (784 sq. ft.) and get a 3-bed version with house plan 28128J (924 sq. ft.).

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

650 sq. ft.

1st Floor

650 sq. ft.

Porch, Front

60 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

25' 0"

Max Ridge Height

14' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

650 sq. ft.

1st Floor

650 sq. ft.

Porch, Front

60 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

25' 0"

Max Ridge Height

14' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
