679 Square Foot 2-Car Garage Apartment

Heated S.F.
679
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 493008GNT

Main Level
Main Level
2nd Floor
2nd Floor

Plan 493008GNT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

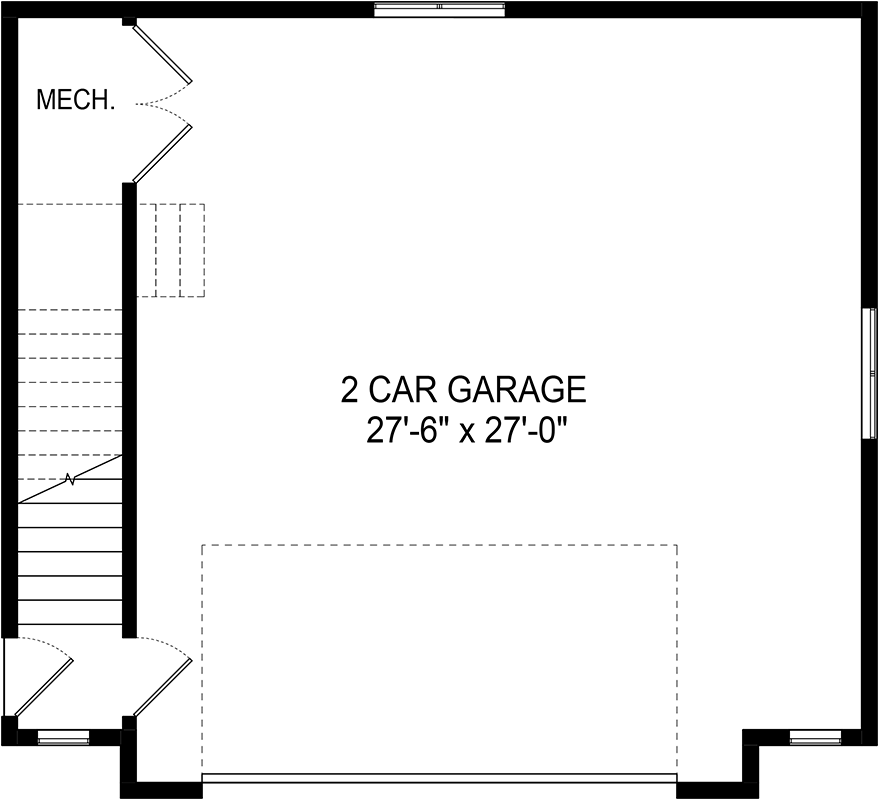

Plan 493008GNT: 679 Square Foot 2-Car Garage Apartment - Floor Plan - Main Level - Carriage, Country, Craftsman, New American, Traditional

2nd Floor

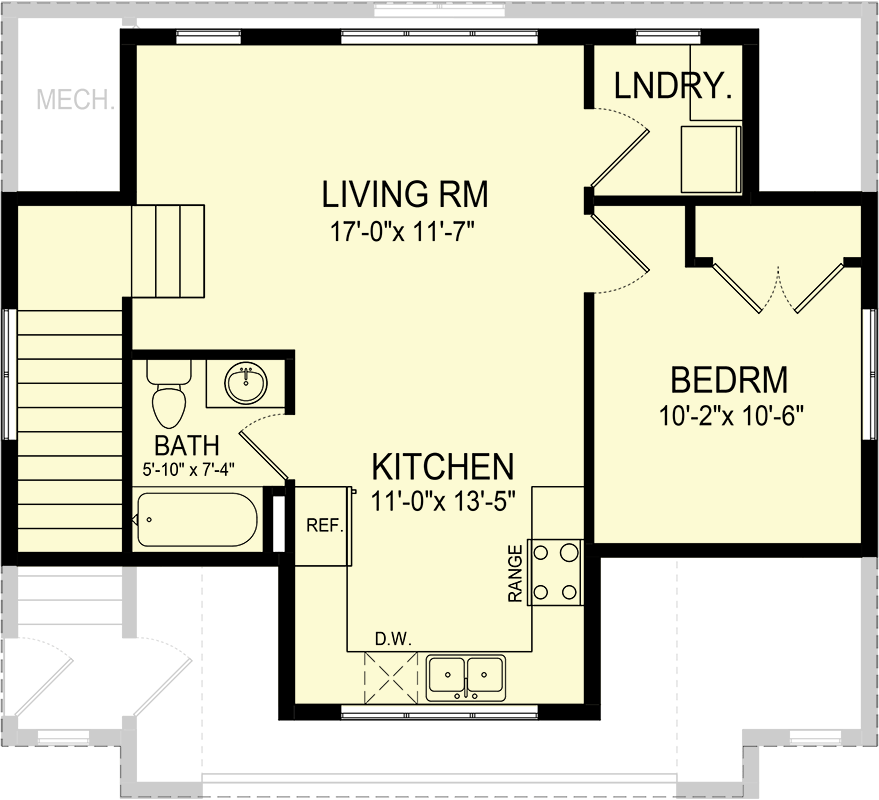

Plan 493008GNT: 679 Square Foot 2-Car Garage Apartment - Floor Plan - 2nd Floor - Carriage, Country, Craftsman, New American, Traditional

Plan Details

  • This 2-car detached garage gives you 974 square feet of parking with a 679 square foot 1-bed apartment above.
  • Covered stairs - accessible from both outside and inside the garage - run along the left side of the garage and take you to the apartment above.
  • The bedroom is located on the right, leaving the main portion open concept with the kitchen in front and the living room in back.

What's Included

  • Cover Sheet
  • General Notes
  • Foundation Plan
  • Main Level/Second Level (if applicable) door and window schedules
  • Fully Dimensioned Floor Plans
  • Elevations
  • Exterior Perspective Views
  • Building Section
  • Typical Construction Details
  • Bird's Eye Roof Plan
  • Suggested Electrical Layout (Outlets, Fixtures, Switches)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

679 sq. ft.

2nd Floor

679 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

30' 0"

Max Ridge Height

26' 5"

Garage

Type

Detached

Area

974 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Architectural Style

Carriage

Country

Craftsman

New American

Traditional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

679 sq. ft.

2nd Floor

679 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

30' 0"

Max Ridge Height

26' 5"

Garage

Type

Detached

Area

974 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Architectural Style

Carriage

Country

Craftsman

New American

Traditional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Exclusive
