Plan 29909RL 700 Square Foot Garage Apartment Above a 2-Car Garage with Separate Shop Space

699 1 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

700 Square Foot Garage Apartment Above a 2-Car Garage with Separate Shop Space

Plan 29909RL

  • 699

    Heated s.f.

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • Contemporary style, front-entry garage, 2 garage bays, wood shop.
  • Apartment above garage. Full kitchen, 1 full bath, 1 comfortable bedroom.

Each plan set includes the following:

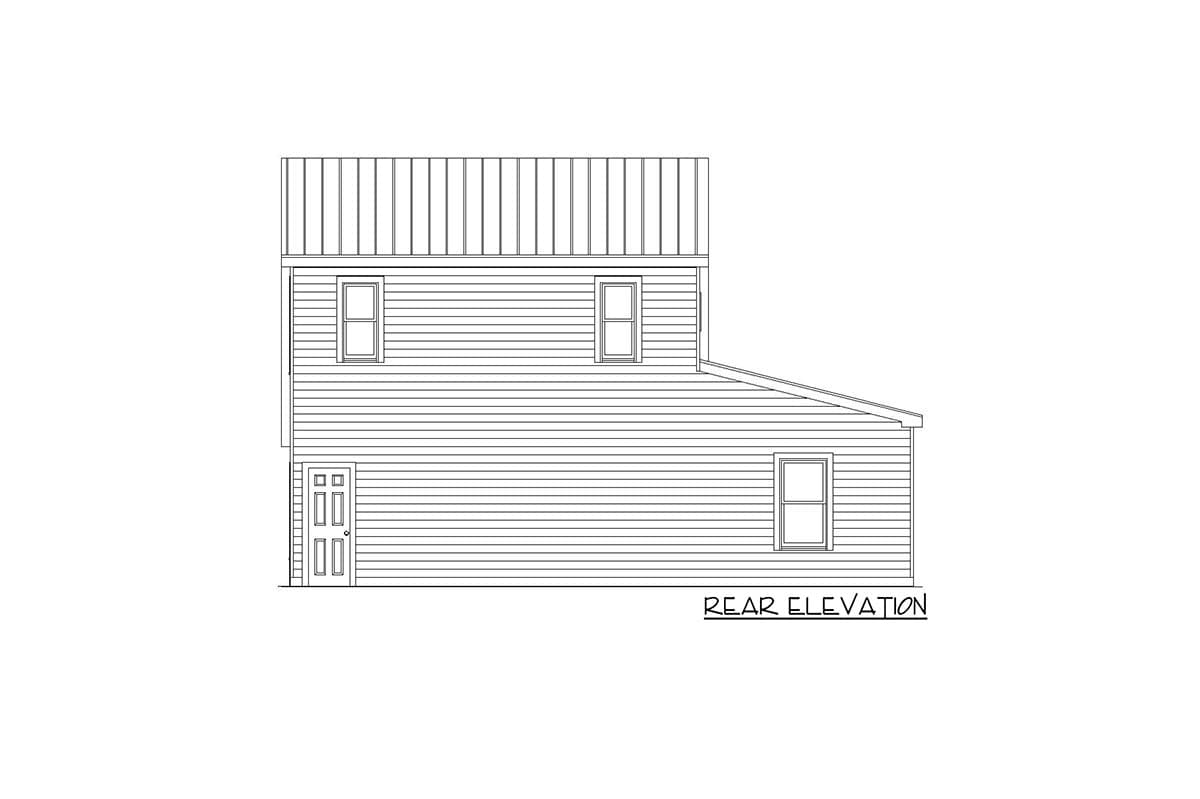

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

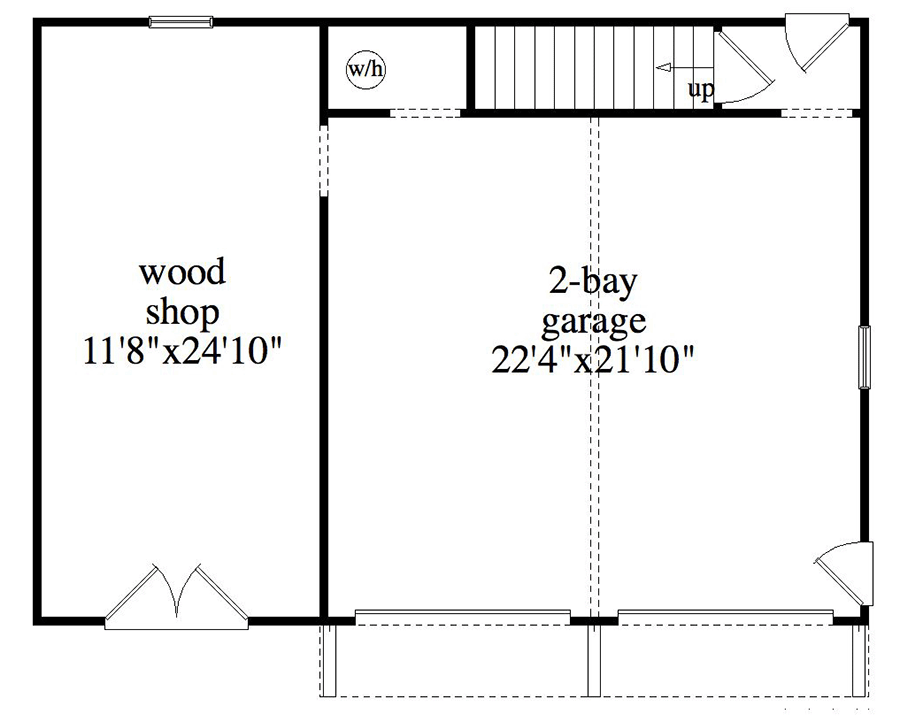

700 Square Foot Garage Apartment Above a 2-Car Garage with Separate Shop Space - 29909RL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

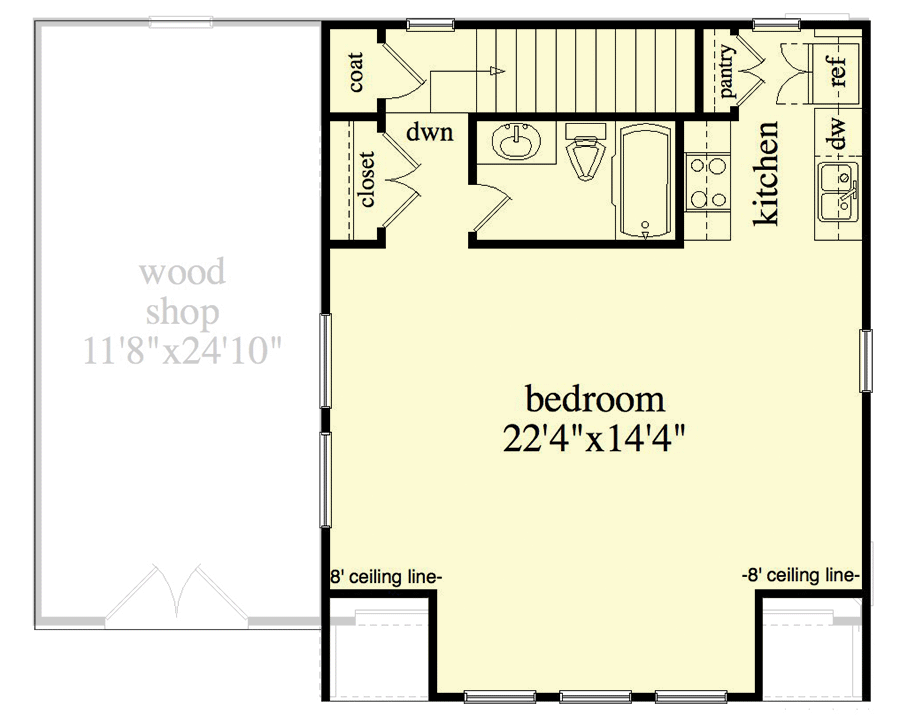

700 Square Foot Garage Apartment Above a 2-Car Garage with Separate Shop Space - 29909RL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 699 sq. ft.
  • 2nd Floor: 699 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 24' 0"
  • Max ridge height: 20' 5"

Garage

  • Type: Detached
  • Area: 878 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 1" Second Floor / 8' 1"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

700 Square Foot Garage Apartment Above a 2-Car Garage with Separate Shop Space

  • 699

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $500
  • 5 Sets + PDF $650
  • PDF - Unlimited Build $800
  • CAD - Single-Build $1,000
  • View all purchase option online

About This Plan

  • Contemporary style, front-entry garage, 2 garage bays, wood shop.
  • Apartment above garage. Full kitchen, 1 full bath, 1 comfortable bedroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 699 sq. ft.
  • 2nd Floor: 699 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 24' 0"
  • Max ridge height: 20' 5"

Garage

  • Type: Detached
  • Area: 878 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 1" Second Floor / 8' 1"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick Or Truss
Plan 29909RL
View this and more for this plan by visiting www.architechtecturaldesigns.com/29909RL
|
