3-Bed Shingle Cottage with Wraparound Porch - 2013 Sq Ft

Plan 70747MK

  • 2,013

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • The cedar shake siding and ribbed metal roof façade lends texture and character to this 3-bedroom, Shingle Cottage house plan.
  • A 12'-deep, screened porch welcomes you inside, where an open great room, dining area, and kitchen allow family and friends to easily gather. The vaulted, two-story ceiling above the great room makes the space feel even bigger.
  • In the kitchen, a prep island provides seating for three and is surrounded by cabinets, counters, and appliances.
  • A pocket door reveals the main-level master suite that includes a dual-sink vanity and toilet room in the 5-fixture bath, along with a walk-in closet. The laundry room is conveniently located next door.
  • Two secondary bedrooms are located upstairs, along with a versatile loft that overlooks the great room below.
  • Related Plans: Get alternate versions with house plans 70818MK and 59156ND.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

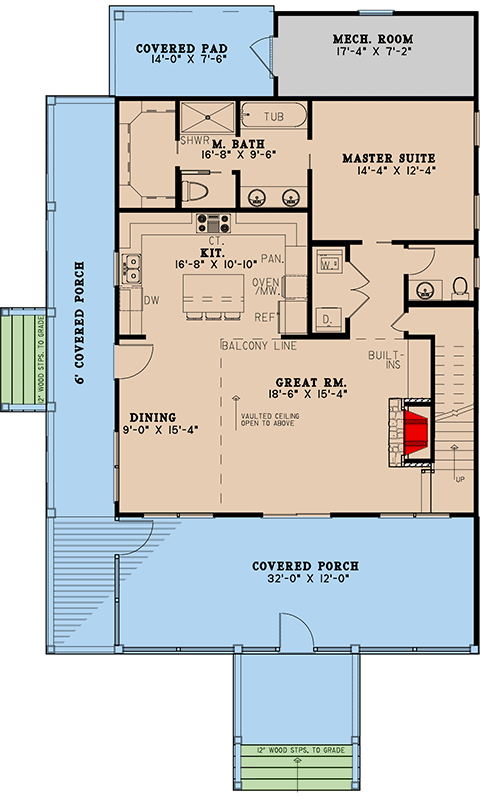

3-Bed Shingle Cottage with Wraparound Porch - 2013 Sq Ft - 70747MK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

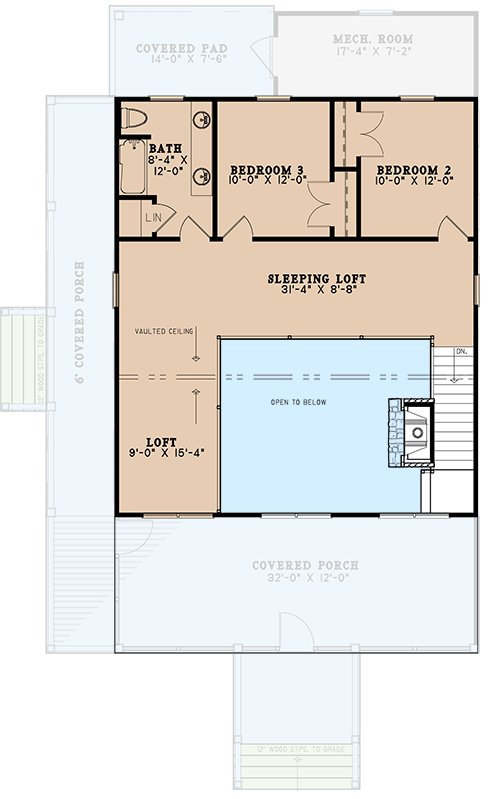

3-Bed Shingle Cottage with Wraparound Porch - 2013 Sq Ft - 70747MK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,013 sq. ft.
  • 1st Floor: 1,184 sq. ft.
  • 2nd Floor: 829 sq. ft.
  • Porch, Combined: 846 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Daylight, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 56' 6"
  • Max ridge height: 24' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

Special features

3-Bed Shingle Cottage with Wraparound Porch - 2013 Sq Ft

  • 2,013

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,013 sq. ft.
  • 1st Floor: 1,184 sq. ft.
  • 2nd Floor: 829 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 56' 6"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Daylight, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
