750-Square Foot Cottage House Plan with Vaulted Living Room

Name: Plan 430808SNG: 750-Square Foot Cottage House Plan with Vaulted Living Room
Brand: Architectural Designs
SKU: 430808SNG
Price: 680.00 USD
Availability: InStock

Heated S.F.

750

Beds

1 - 2

Baths

Stories

Floor Plan

Main Level

2nd Floor

3rd Floor

Plan 430808SNG: 750-Square Foot Cottage House Plan with Vaulted Living Room - Floor Plan - null - Cottage, Country, Farmhouse, New American, Vacation

Plan Details

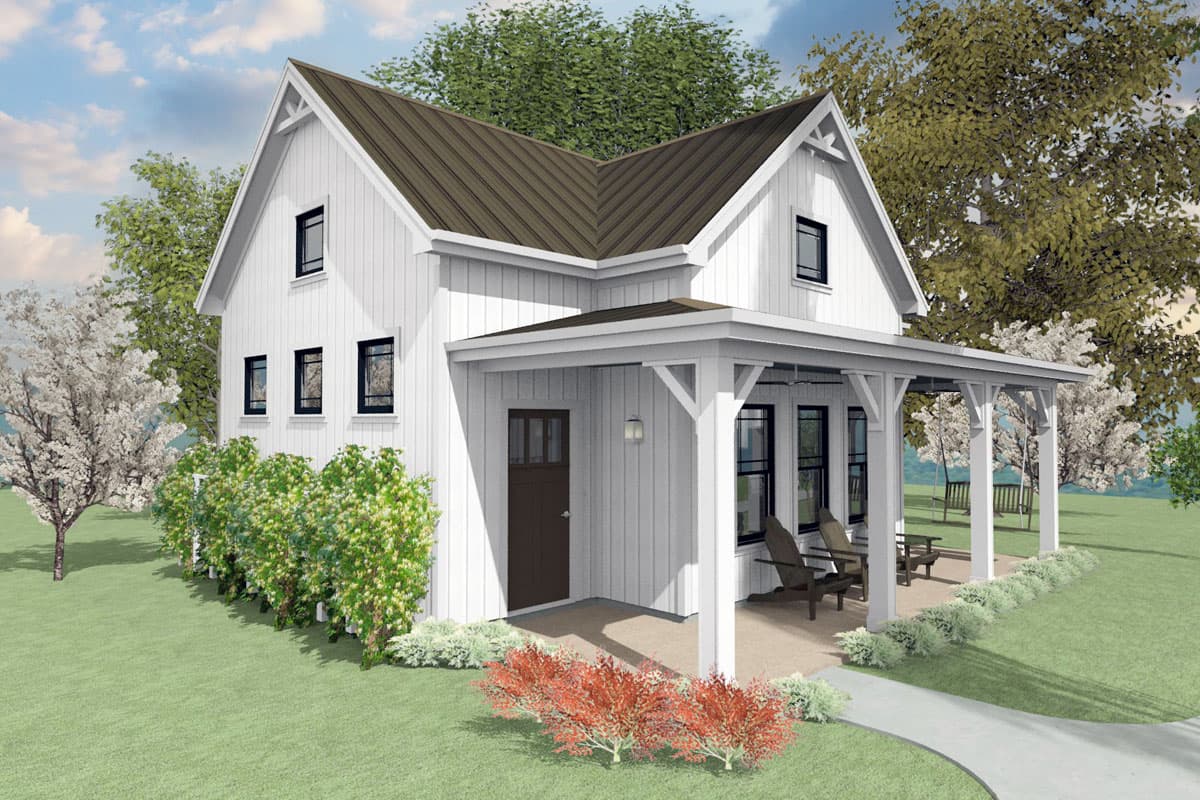

A front porch with decorative brackets and board and batten siding give this 750 square foot cottage house plan - great for use as a vacation home or as an ADU or even a downsizing option - give this home great visual appeal. The gable above lets light into the 2-story living room inside.

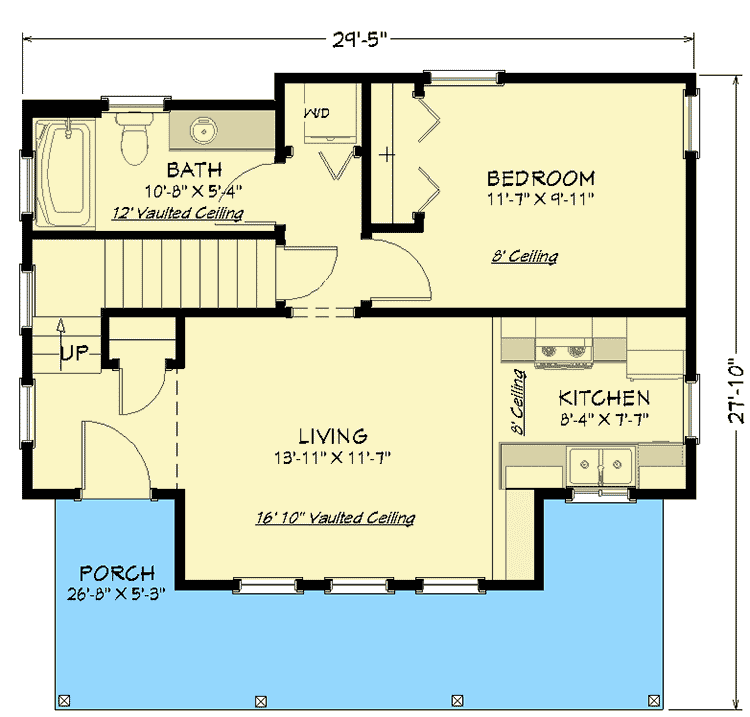

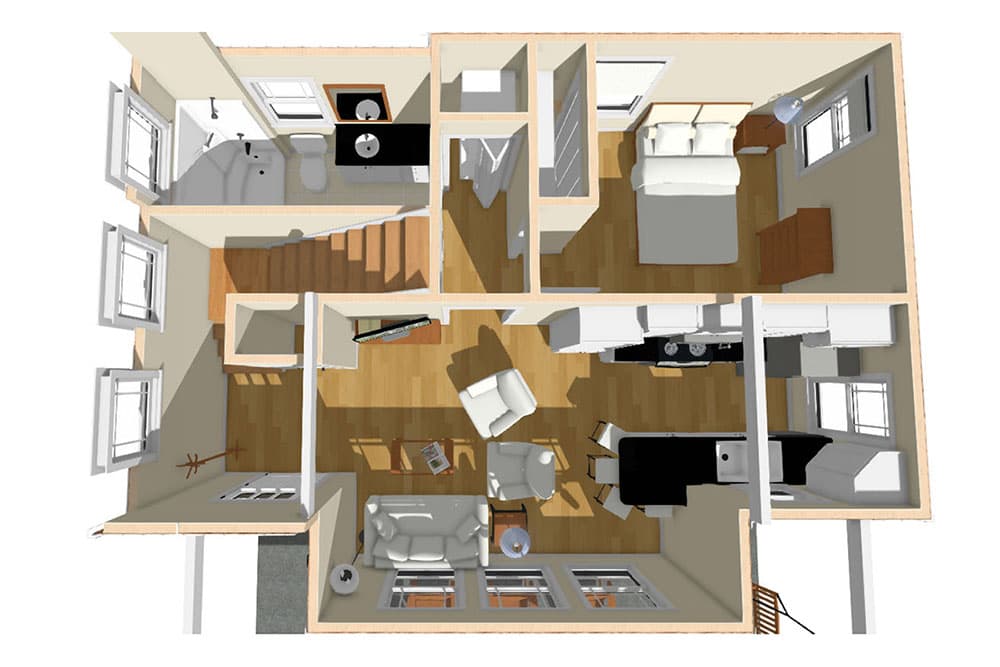

The main floor has an open layout blending the kitchen and the living room together. This space feels roomy with the light streaming in through the window above.
The back of the main floor gives you a roomy bedroom with immediate laundry and bathroom - with vaulted ceiling - access.

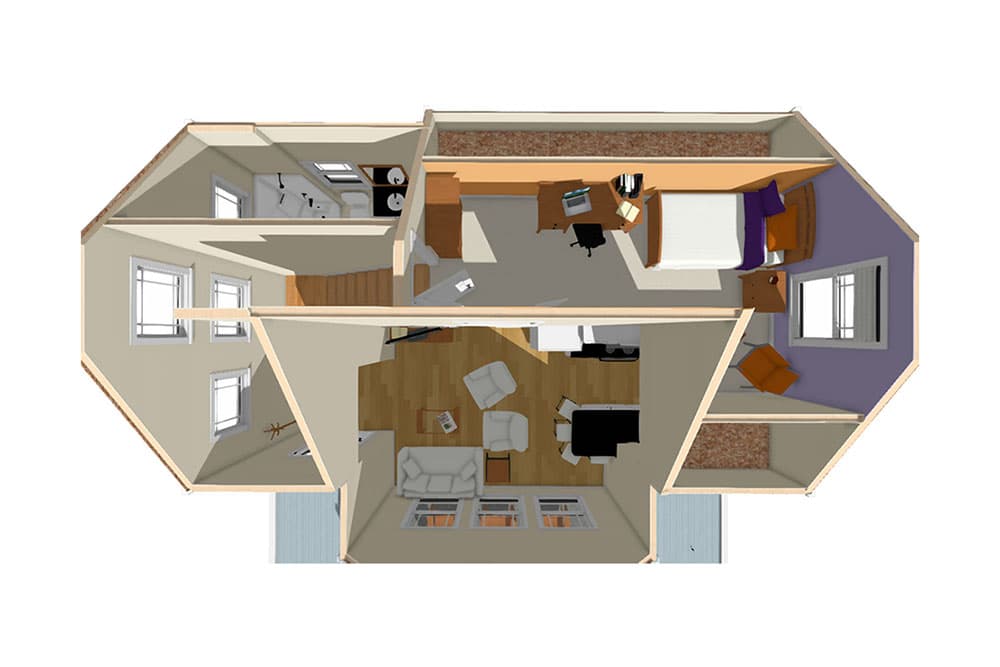

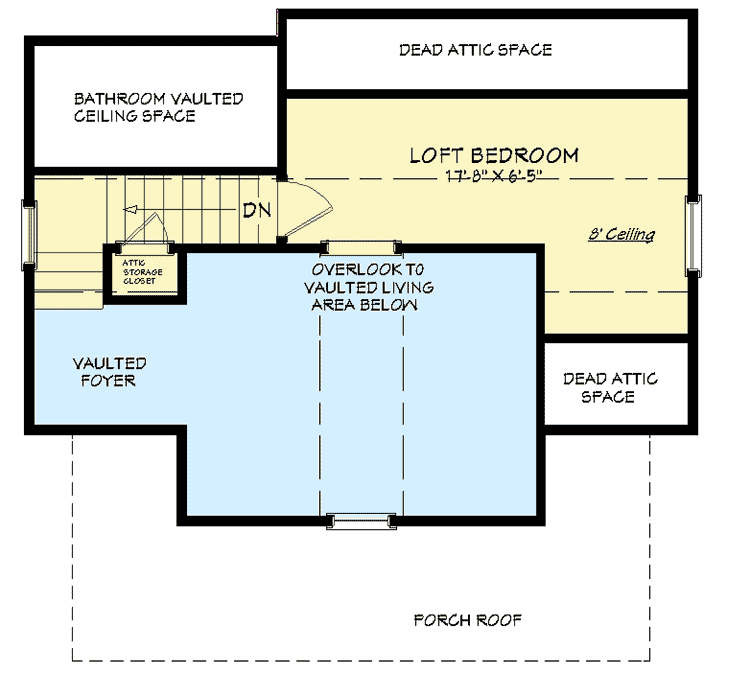

Upstairs, the loft overlooks the living room below and can be used as a second bedroom for friends wanting to visit.
Related Plan: Get more room with house plan 430834SNG (1,100 sq. ft.).

What's Included

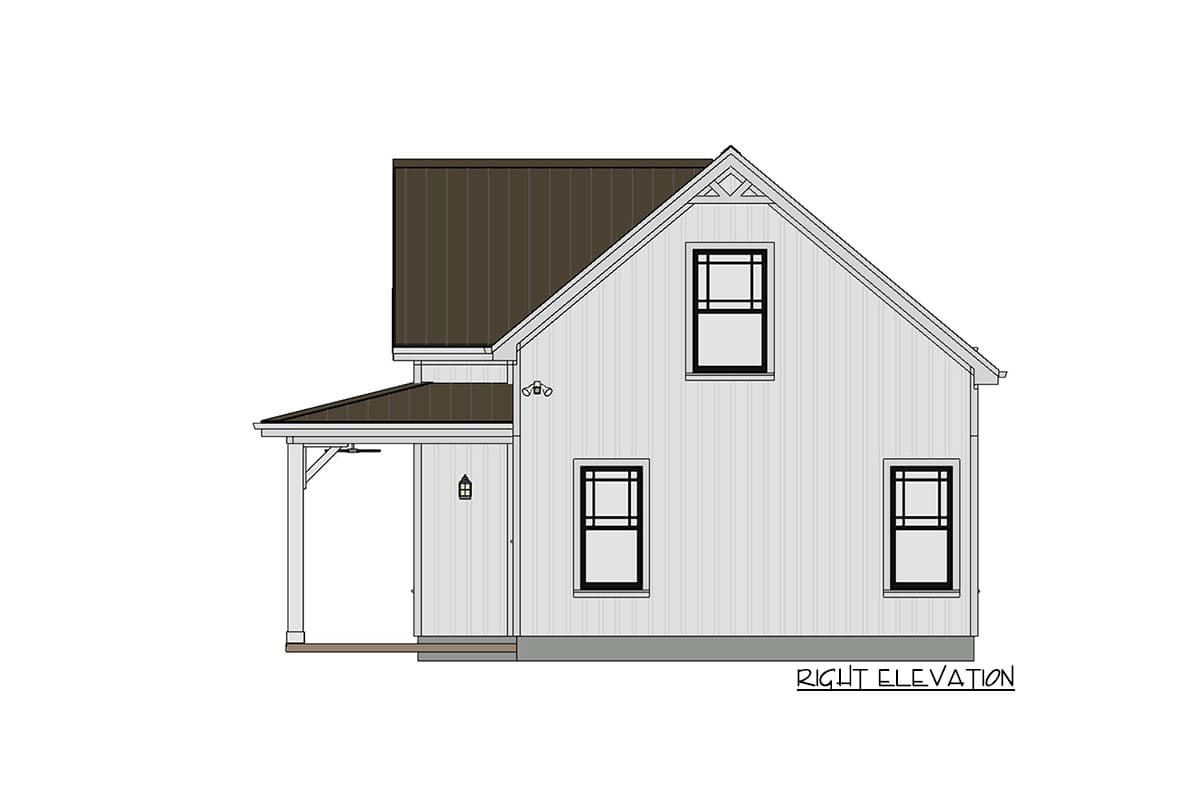

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
