Plan 83119DC

8 Unit 2-Story Apartment Building - 1038 Sq Ft 2 Bedroom Units

Heated S.F.
8,304
Units
8
Width
Depth

Floor Plan

Plan 83119DC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 83119DC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

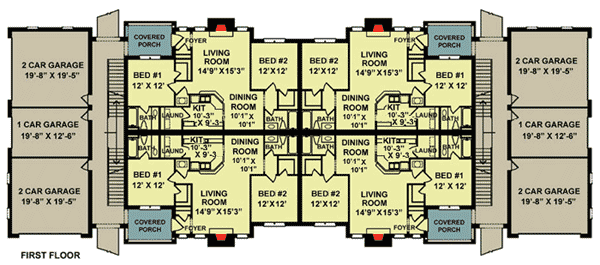

Plan 83119DC: 8 Unit 2-Story Apartment Building - 1038 Sq Ft 2 Bedroom Units - Floor Plan - Main Level - Traditional

2nd Floor

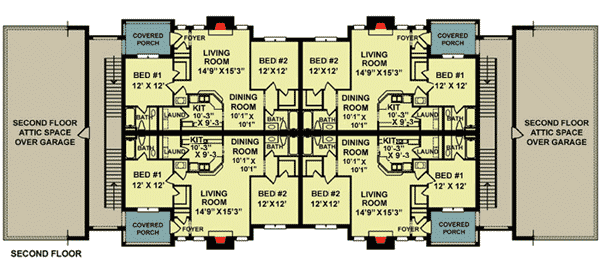

Plan 83119DC: 8 Unit 2-Story Apartment Building - 1038 Sq Ft 2 Bedroom Units - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This 2 story apartment building plan has 8 units. All are identical in size and give you 1,038 square feet of heated living space with 2 beds and 2 baths.
  • Stairs are accessed on the outer sides of the units maximizing everyone's privacy.
  • Covered porches are accessed just off the foyer and all the living rooms have fireplaces.
  • The roof has a 6:12 main pitch and 10:12 secondary pitch and all ceilings are 9'.
Unit A
Heated Area
1,038Sq. Ft.
1038 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
Dimensions
74' 9"width
29' 3"depth
Unit B
Heated Area
1,038Sq. Ft.
1038 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
Dimensions
74' 9"width
29' 3"depth
Unit C
Heated Area
1,038Sq. Ft.
1038 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
Dimensions
74' 9"width
29' 3"depth
Unit D
Heated Area
1,038Sq. Ft.
1038 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
Dimensions
74' 9"width
29' 3"depth
Unit E
Heated Area
1,038Sq. Ft.
1038 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Attached
Dimensions
74' 9"width
29' 3"depth
Unit F
Heated Area
1,038Sq. Ft.
1038 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Attached
Dimensions
74' 9"width
29' 3"depth
Unit G
Heated Area
1,038Sq. Ft.
1038 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Dimensions
74' 9"width
29' 3"depth
Unit H
Heated Area
1,038Sq. Ft.
1038 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Attached
Dimensions
74' 9"width
29' 3"depth

What's Included

  • Foundation plan
  • Floor plans with electrical
  • Elevations
  • Cross sections
  • Firewall and other details
  • Roof Plan
  • Floor framing plans for each floor
  • Ceiling framing Plan
  • Rafter plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

8,304 sq. ft.

1st Floor

4,152 sq. ft.

2nd Floor

4,152 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

149' 7"

Depth

58' 6"

Garage

Type

Attached

Area

1264 sq. ft.

Count

8 Cars

Entry Location

Front, Side

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

8,304 sq. ft.

1st Floor

4,152 sq. ft.

2nd Floor

4,152 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

149' 7"

Depth

58' 6"

Garage

Type

Attached

Area

1264 sq. ft.

Count

8 Cars

Entry Location

Front, Side

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs
