8-Unit Apartment Complex with 1, 2 and 3 Bedroom Units

Heated S.F.
8,176
Units
8
Width
Depth

Floor Plan

Plan 83143DC

Main Level
Main Level

Plan 83143DC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

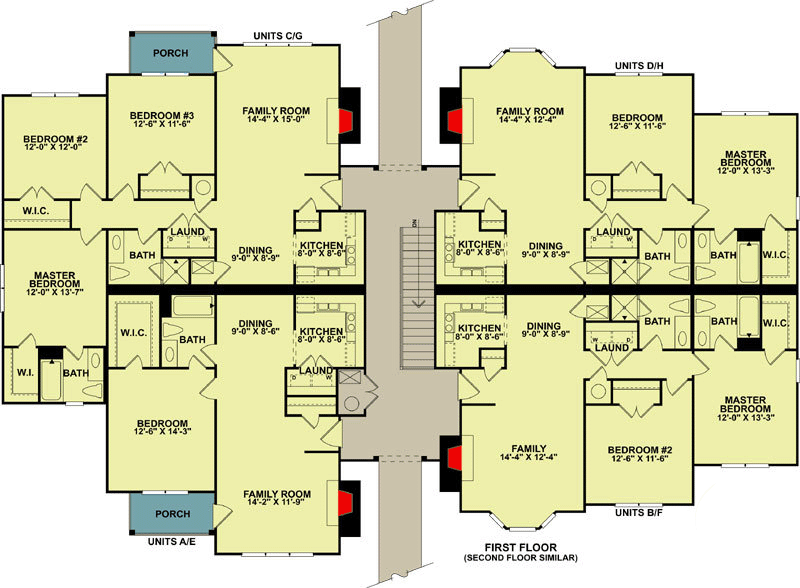

Plan 83143DC: 8-Unit Apartment Complex with 1, 2 and 3 Bedroom Units - Floor Plan - Main Level - Traditional

Plan Details

  • This 8-unit apartment plan gives your four units on each of its two floors.
  • Unit A, the front-left unit, gives you 819 square feet with one bed and one bath.
  • Unit B, the front-right unit, gives you 1,015 square feet with two beds and two baths.
  • Unit C, the top-left unit, gives you 1,239 square feet and three beds and two baths.
  • Unit D, the top-right unit, gives you 1,015 square feet with two beds and two baths.
  • A central stairwell separates the left units from the right. Units A and D have porches off the family rooms.
  • The main roof pitch is 6:12 and the secondary pitch is 9:12
Unit A - Front Left
Heated Area
819Sq. Ft.
819 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
0
Unit B - Front Right
Heated Area
1,015Sq. Ft.
1015 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
0
Unit C - Back Left
Heated Area
1,239Sq. Ft.
1239 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
0
Unit D - Back Right
Heated Area
1,015Sq. Ft.
1015 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
0

What's Included

  • Foundation Plan- includes your choice of concrete slab, crawl space or basment (when available).
  • Detailed Floor Plans- includes the placement of interior walls, room dimensions, doors, windows, fireplace and stairway location (if applicable), and electrical outlet locations.
  • Exterior Elevations- includes the front, rear and sides of the house with detailed measurement and exterior material requirements.
  • Cabinet Details- includes details of all cabinets, fireplaces, built-in unites and other interior features.
  • Cross Sections- includes cross section details of the home, flooring, insulation and roofing construction.
  • Roof Plans- includes rafter, dormer, gable and other feature layouts.
  • Specifications- includes recommendations for materials and equipment such as structural specifications, masonry work, concrete work, wood specifications, excavating and grading, drywall, floor, caulking, glazing and sealants.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

8,176 sq. ft.

1st Floor

4,088 sq. ft.

2nd Floor

4,088 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 10"

Depth

64' 10"

Max Ridge Height

35' 1"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Architectural Style

Traditional

Special Features

Laundry - Main Level

Laundry - Upstairs

Master Suite - Lower Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

8,176 sq. ft.

1st Floor

4,088 sq. ft.

2nd Floor

4,088 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 10"

Depth

64' 10"

Max Ridge Height

35' 1"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Architectural Style

Traditional

Special Features

Laundry - Main Level

Laundry - Upstairs

Master Suite - Lower Level

Master Suite - Upstairs
