Plan 360117DK
804 Square Foot 1 Bed Garage Apartment with Country Craftsman Styling
Heated S.F.
804
Beds
1
Baths
1
Stories
2
Cars
2
What's Included
Plan Details
  • This garage apartment takes garage plan 360116DK - a version with storage space on the second floor - and converts it into a great rental, AirBnB or ADU.
  • Matching 9' by 8' overhead doors get your vehicles inside this 2-car Craftsman garage plan with storage above.
  • An attractive porch opens to an entry with a door accessing the garage and with stairs taking you up to the 804 square foot 1-bed apartment.
  • The shed dormer is filled with four windows - two for the bedroom and two for the family area - giving you two naturally bright spaces to enjoy.
  • The kitchen has room for a 4'6" by 2' island and has a double sink set below a window looking out back.
  • Related Plan: Finish the upstairs later with garage plan 360116DK.
What's Included

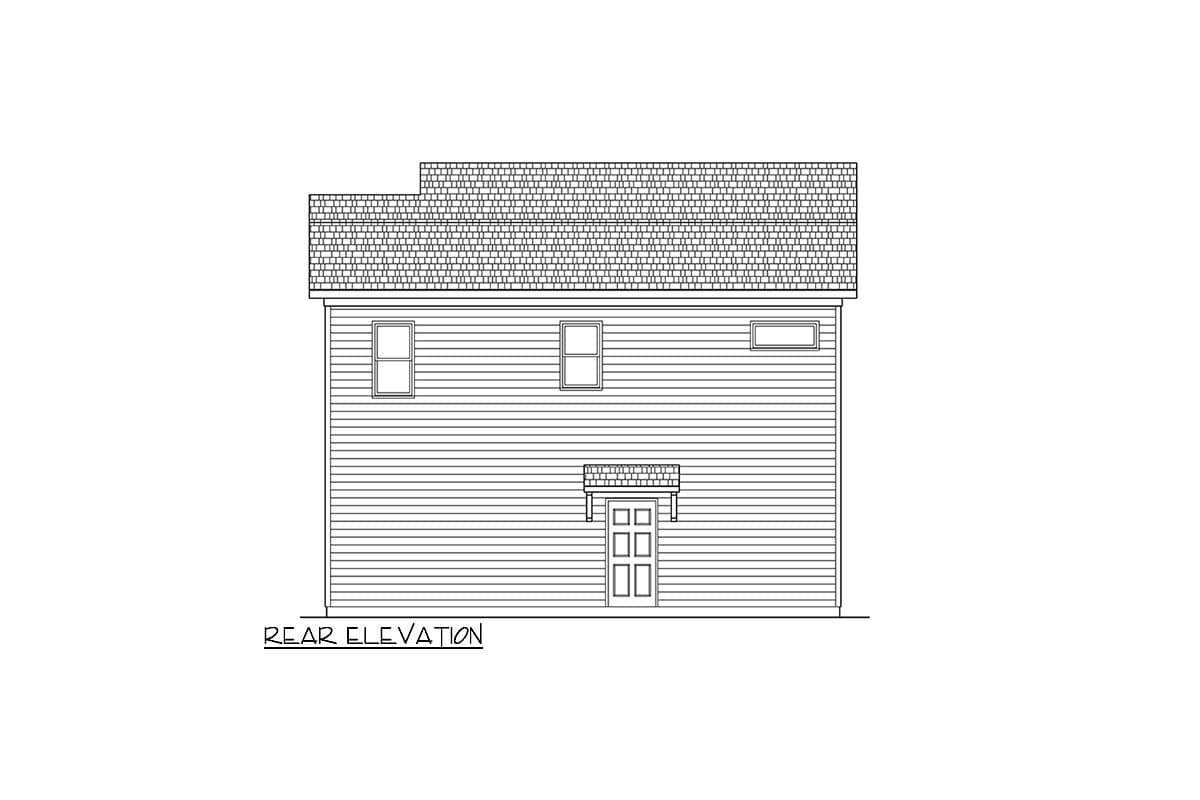

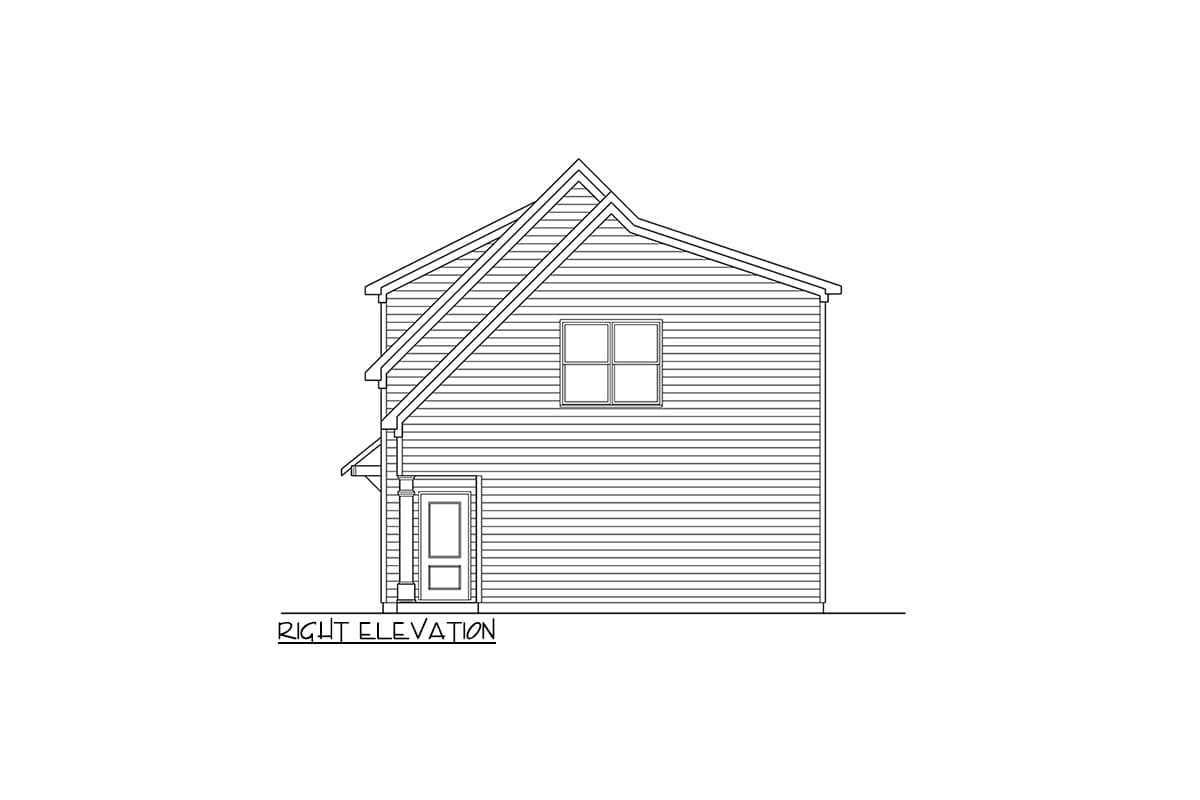

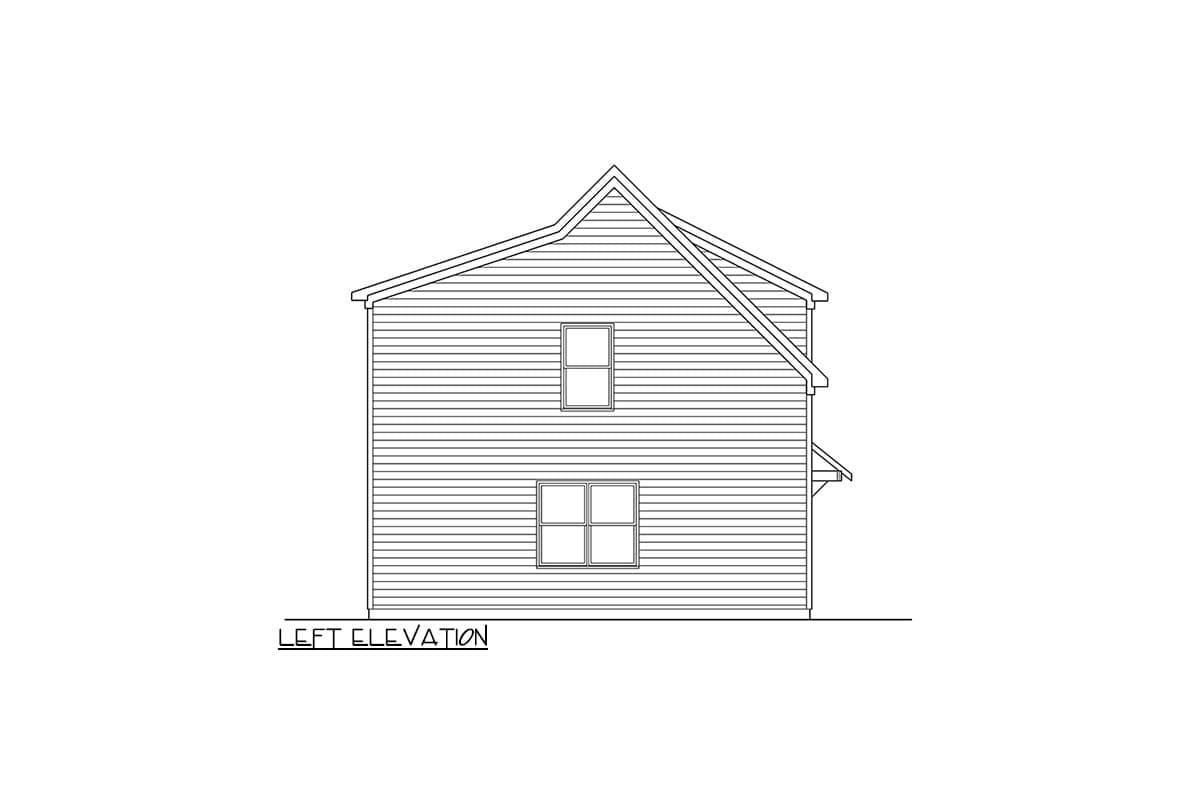

  • All Elevations
  • Birds Eye Roof Plan

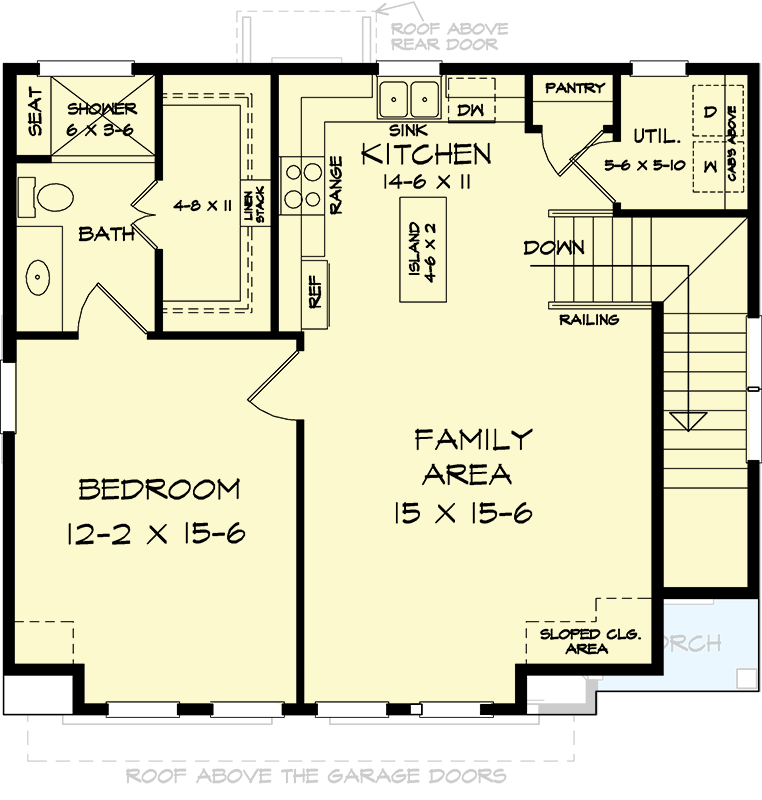

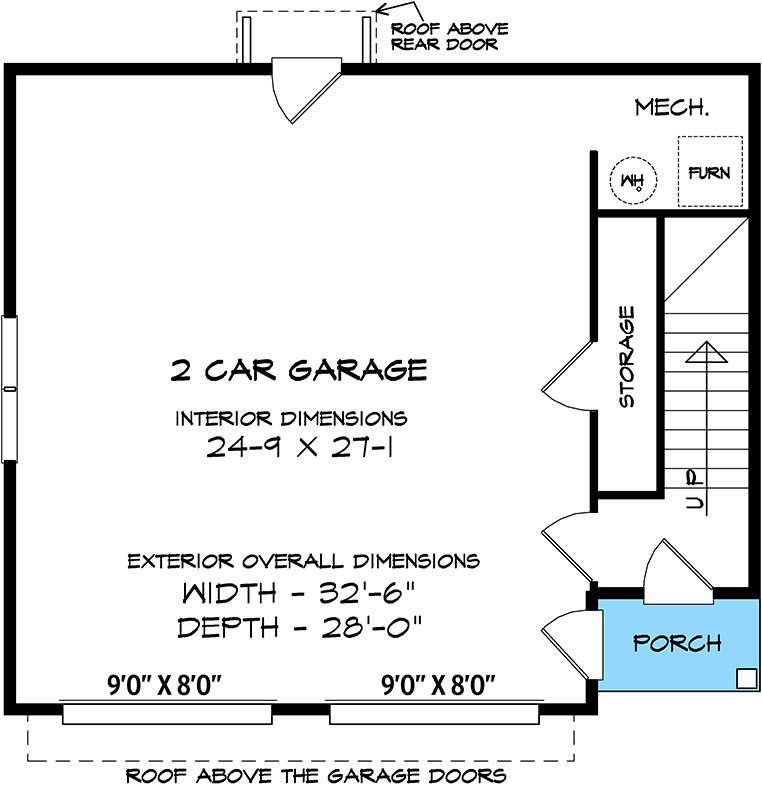

  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

804 Square Foot 1 Bed Garage Apartment with Country Craftsman Styling

  • 804

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 804 sq. ft.
  • 2nd Floor: 804 sq. ft.

Dimensions

  • Width: 32' 6"
  • Depth: 28' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 875 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
