856 Square Foot 2-Bed Garage Apartment House Plan

Plan 680184VR

856
Heated s.f.
2
Beds
1
Baths
2
Stories
2
Cars

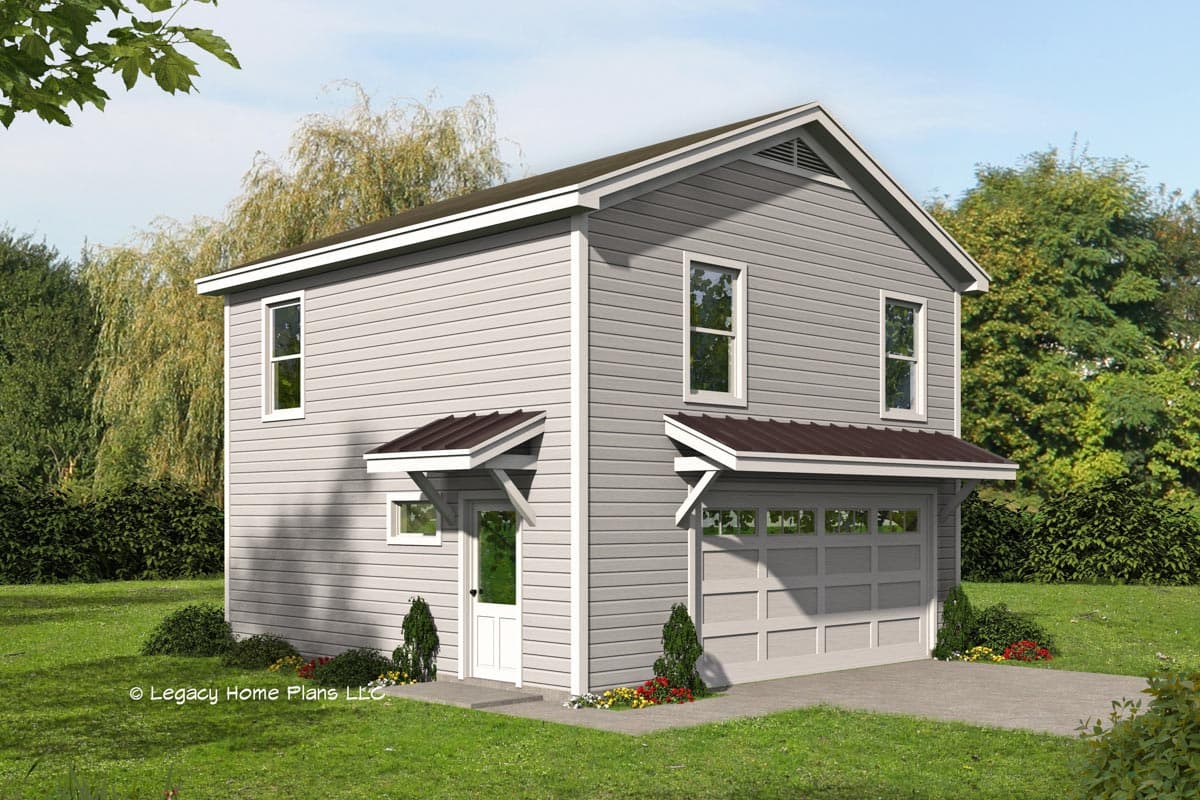

This cube-like garage apartment house plan offers a traditional exterior, clad in horizontal siding. Metal porticos cover the doors for a modern touch.
The double garage with a 16' by 8' overhead door consumes the main level, while a coat closet sits in the entry that leads to the second level.
Upstairs, 768 square feet of living space can be found. A living area (or storage space) neighbors two identical bedrooms and a full bath.
Related Plan: Get a smaller version with garage apartment plan 68698VR (623 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

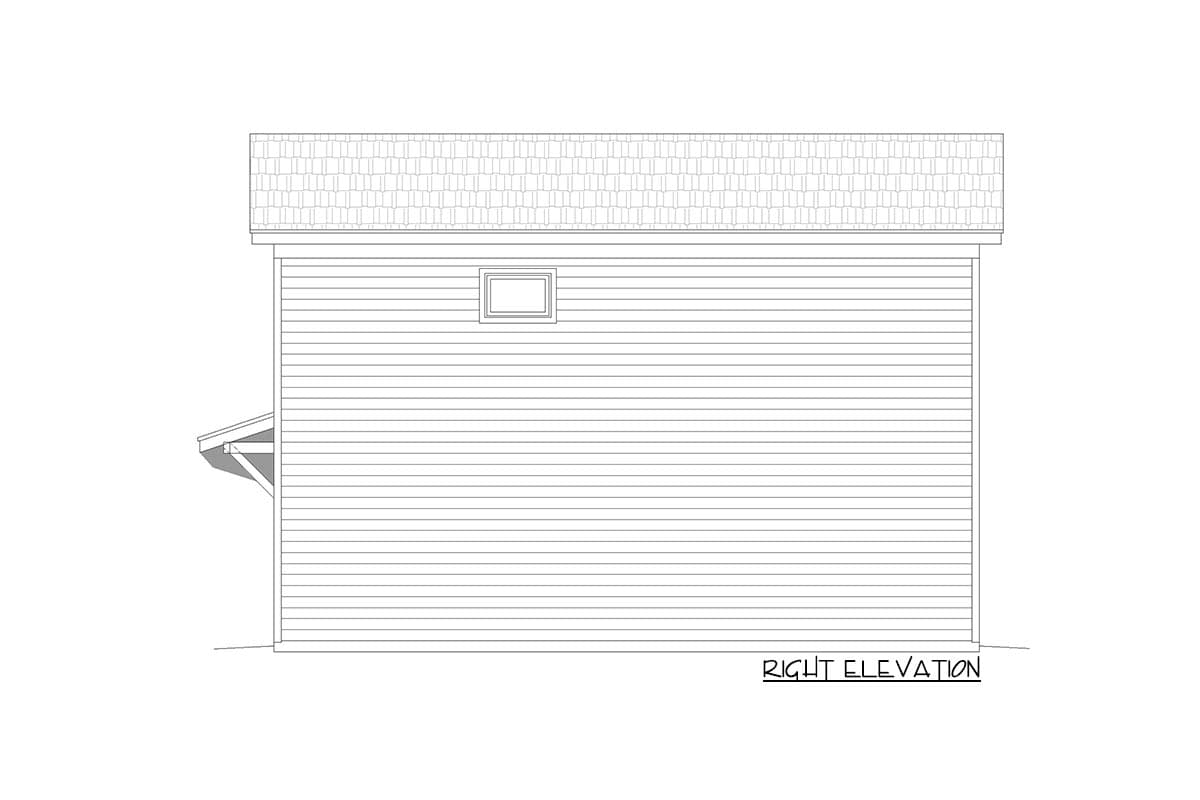

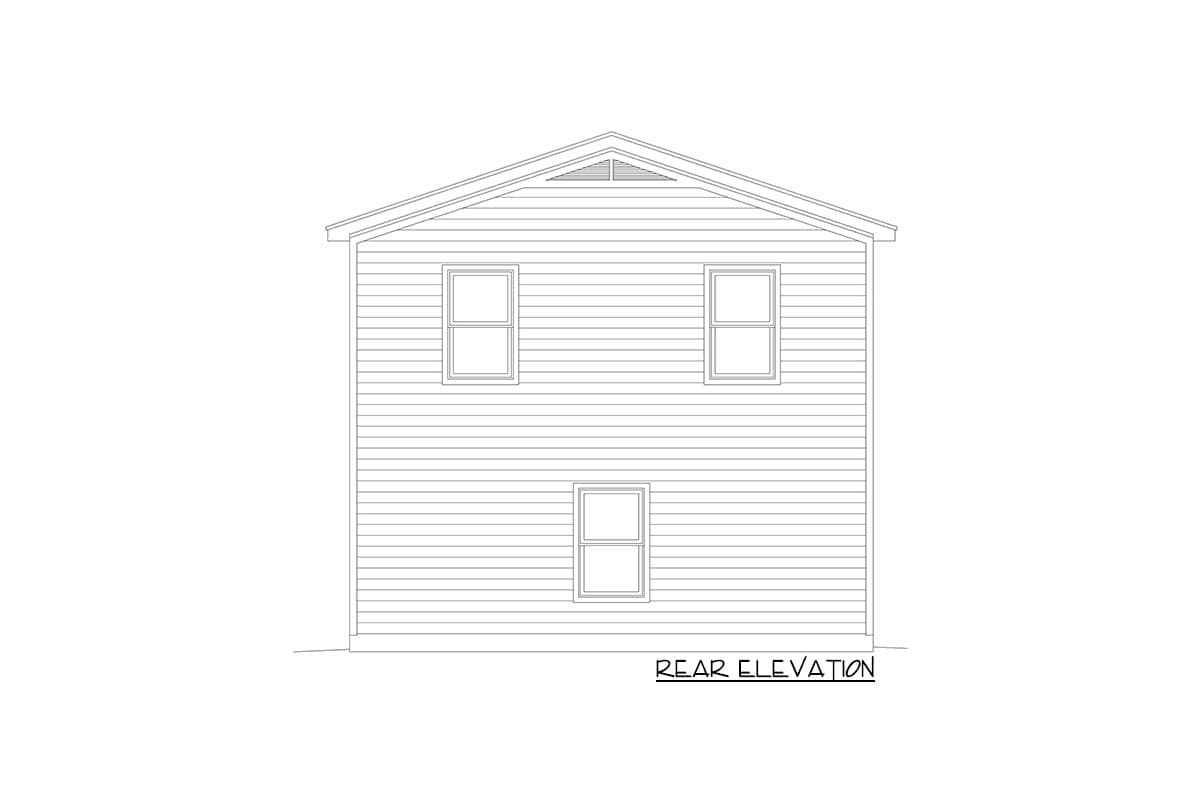

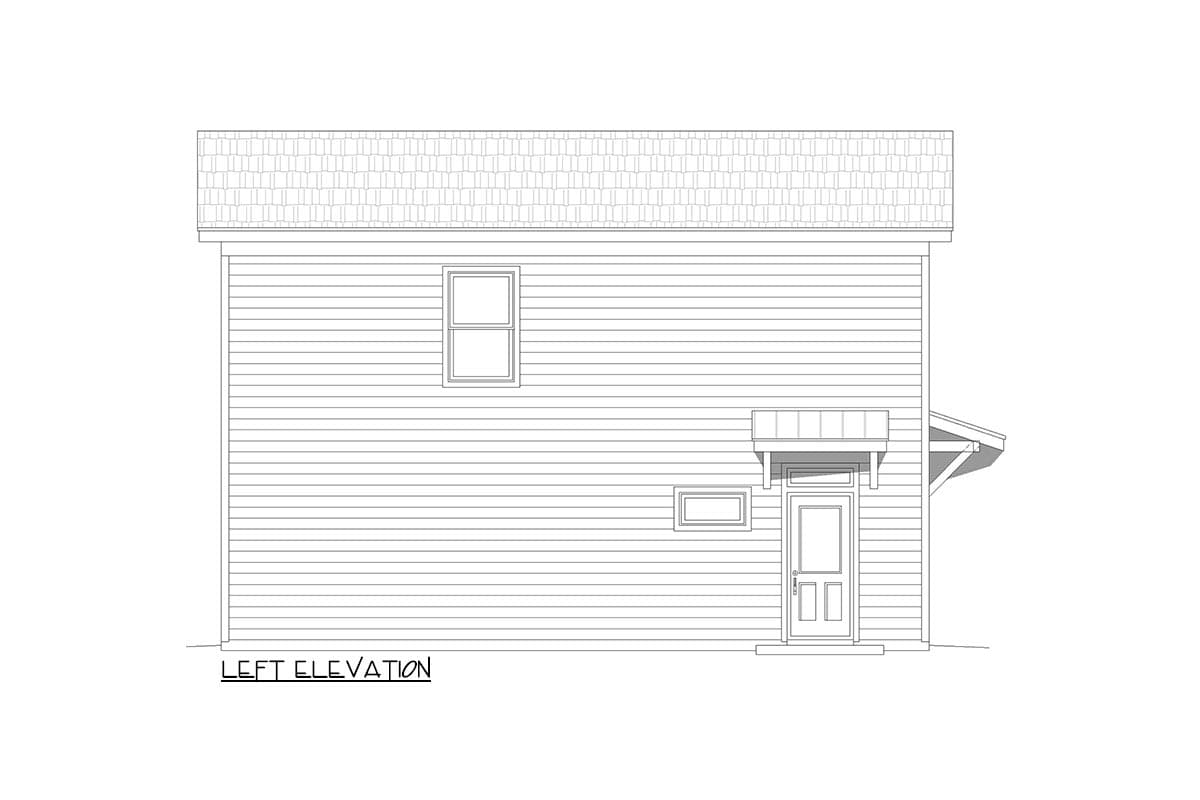

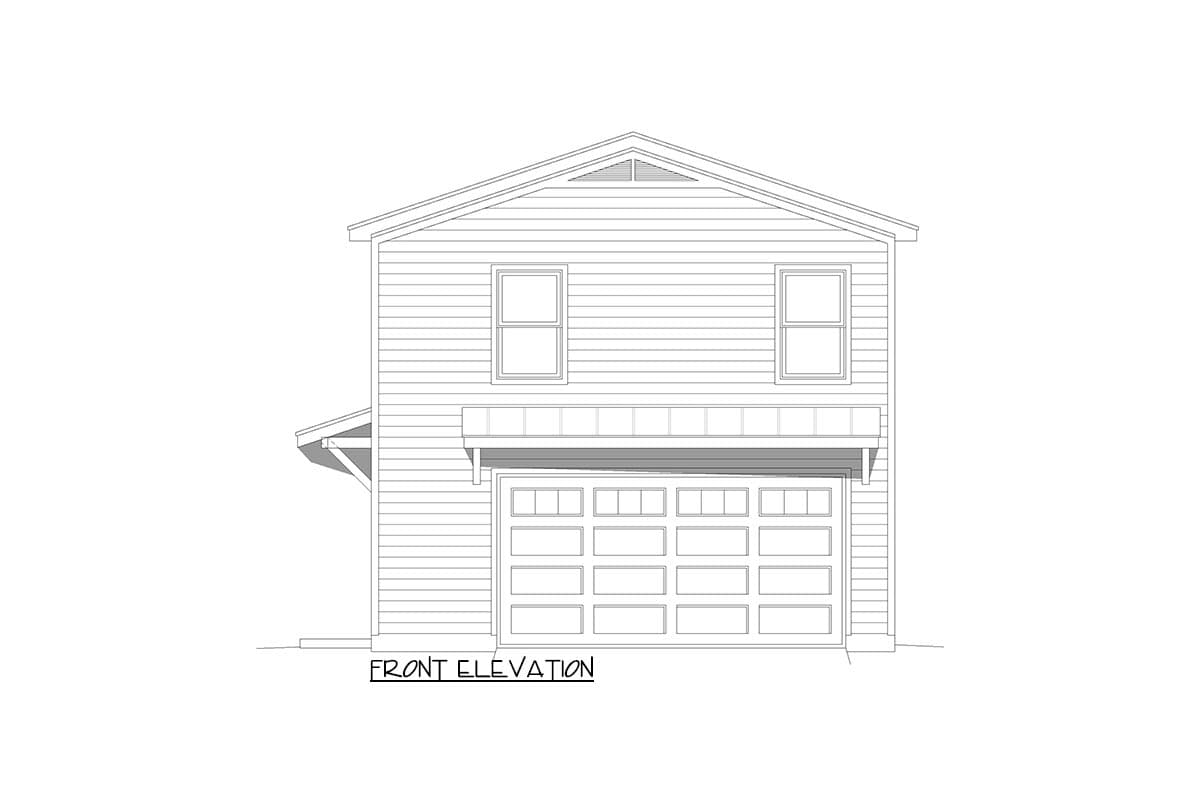

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

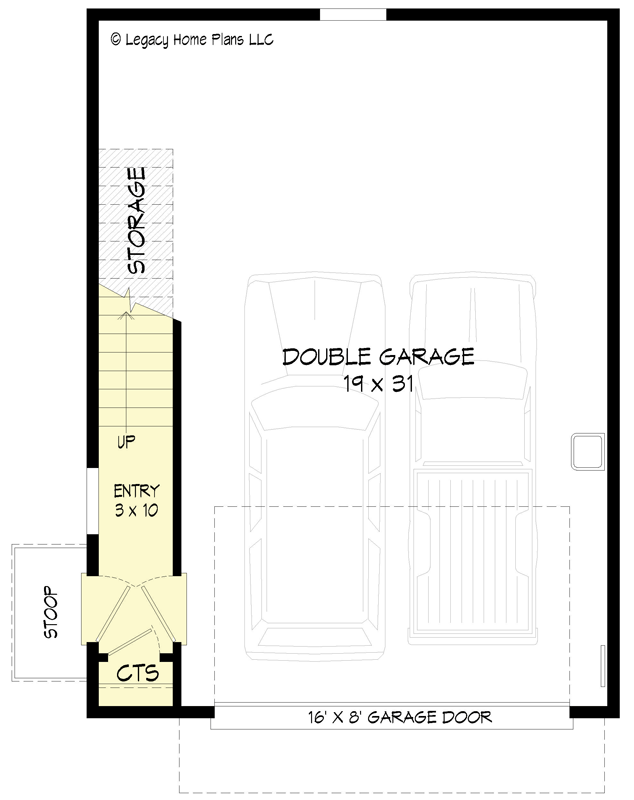

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

856 Square Foot 2-Bed Garage Apartment House Plan - 680184VR floor plan - Main Level

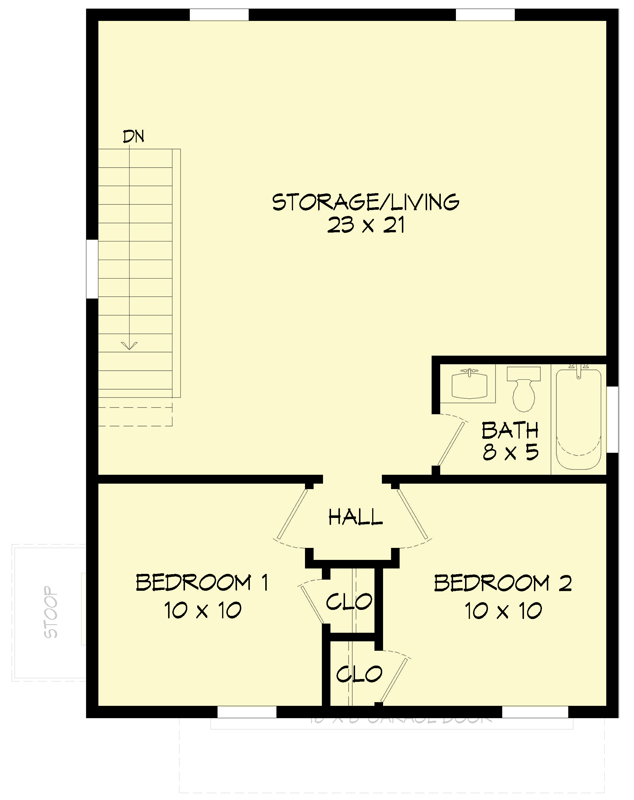

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

856 Square Foot 2-Bed Garage Apartment House Plan - 680184VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 856 sq. ft.
1st Floor: 88 sq. ft.
2nd Floor: 768 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 24' 0"
Depth: 32' 0"
Max ridge height: 25' 2"

Garage

Type: Detached
Area: 680 sq. ft.
Count: 2 Cars

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 4 on 12

Framing Type: Truss
