Plan 2236SL

936 Sq Ft Detached 3-Car Garage Plan with 1032 Sq Ft Apartment Above

Heated S.F.
1,032
Beds
2
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 2236SL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 2236SL

M-F 9am-5pm EST |

1-203-761-8500

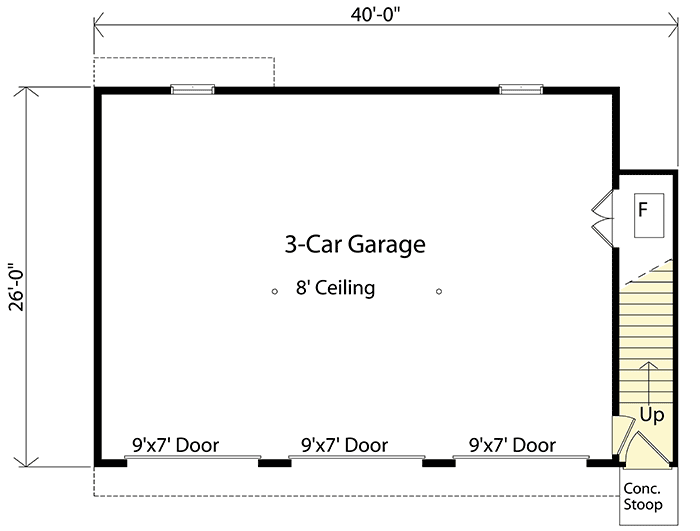

Main Level

Plan 2236SL: 936 Sq Ft Detached 3-Car Garage Plan with 1032 Sq Ft Apartment Above - Floor Plan - Main Level - Carriage, Traditional

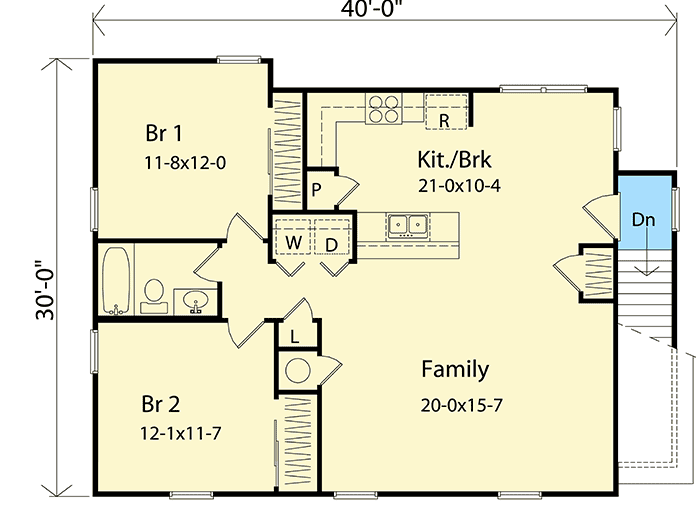

2nd Floor

Plan 2236SL: 936 Sq Ft Detached 3-Car Garage Plan with 1032 Sq Ft Apartment Above - Floor Plan - 2nd Floor - Carriage, Traditional

Plan Details

  • This garage apartment can easily serve as maid or guest quarters or as a simple vacation home. Its compact style conveniently allows it to fit on a narrow lot.
  • The 3-car garage features 8' ceilings and three 9'x7' overhead doors.
  • The upper level apartment has everything for comfortable living. Both bedrooms have plenty of closet space and share a full bath. The spacious family room adjoins the kitchen/breakfast area with eating bar.
  • Related Plans: Get one bedroom with carriage house plan and 2237SL.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans

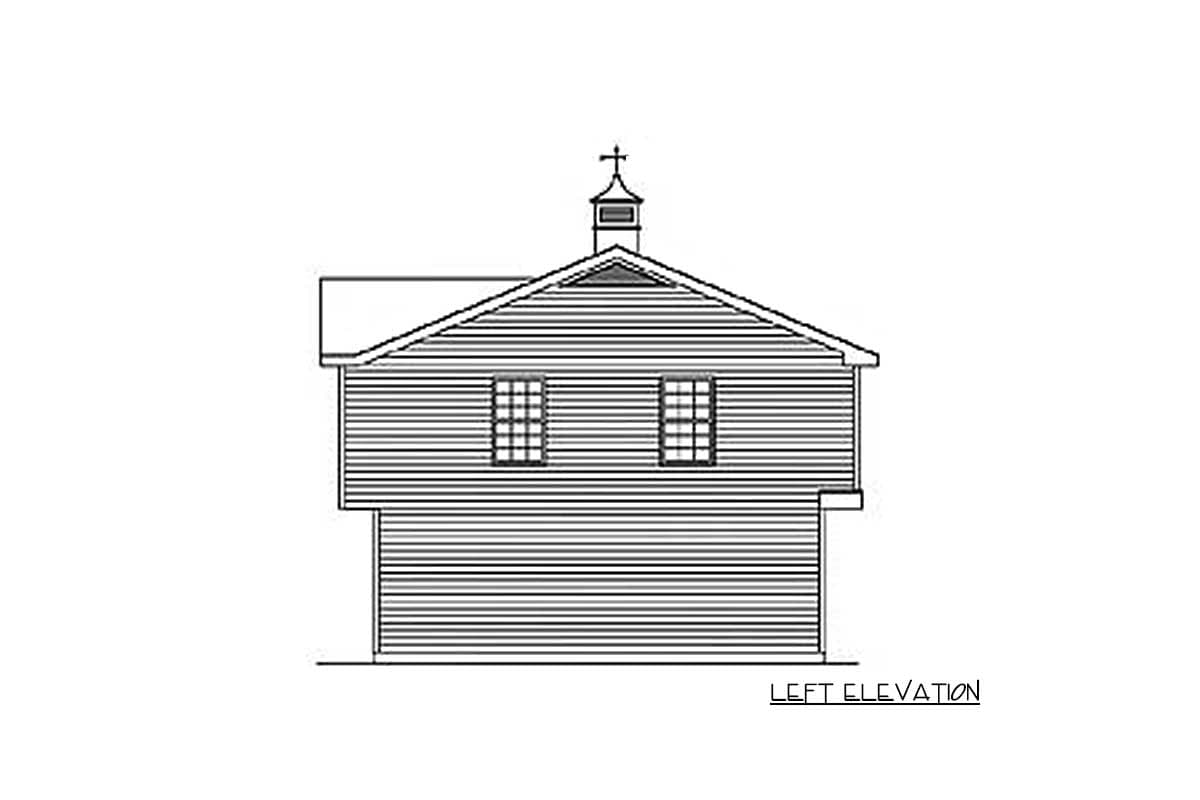

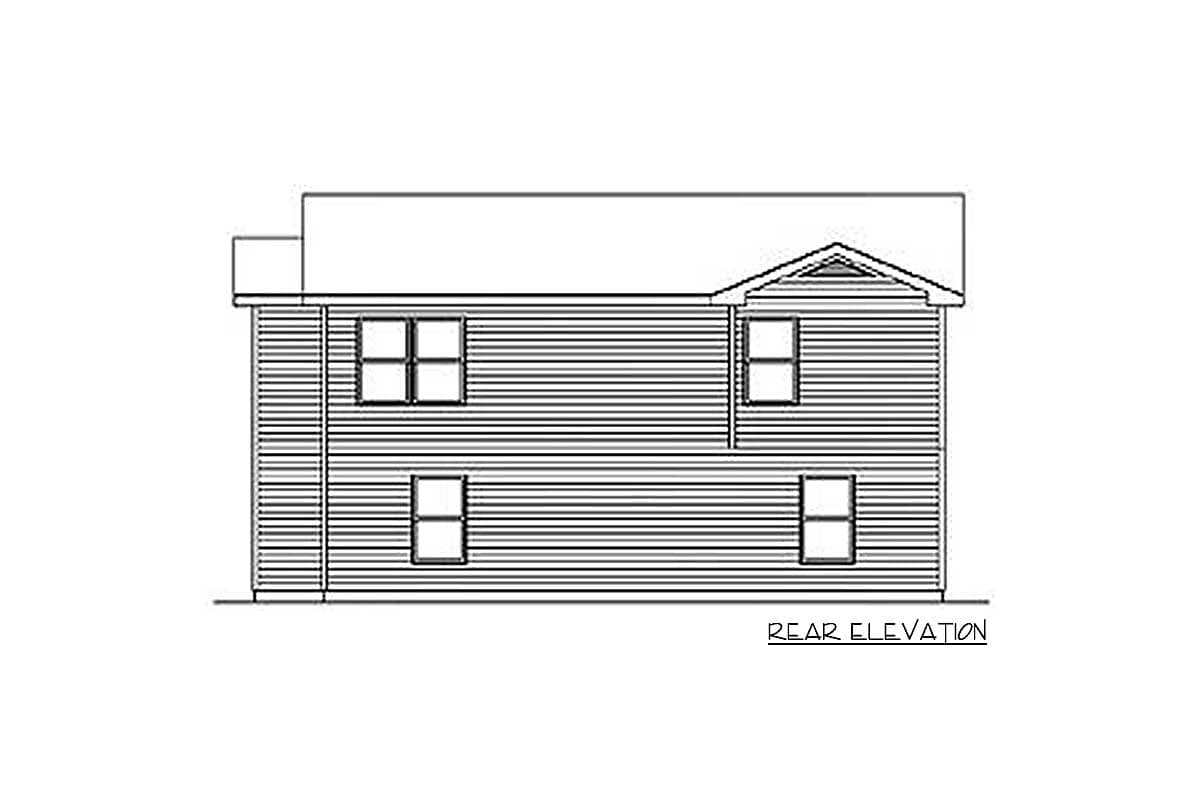

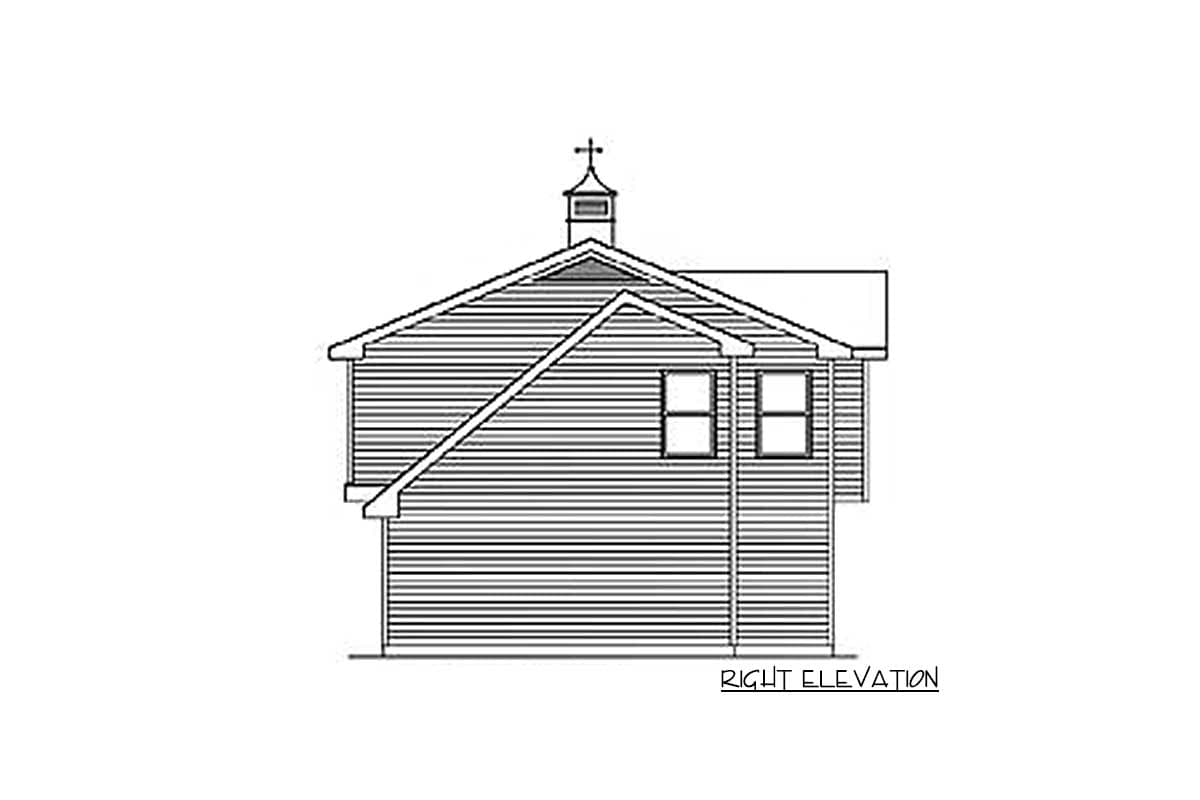

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,032 sq. ft.

2nd Floor

1,032 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

30' 0"

Max Ridge Height

24' 0"

Garage

Type

Detached

Area

936 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Carriage

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,032 sq. ft.

2nd Floor

1,032 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

30' 0"

Max Ridge Height

24' 0"

Garage

Type

Detached

Area

936 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Carriage

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU
