942 Square Foot Craftsman Garage Apartment

Plan 25805GE

  • 942

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 3

    Cars

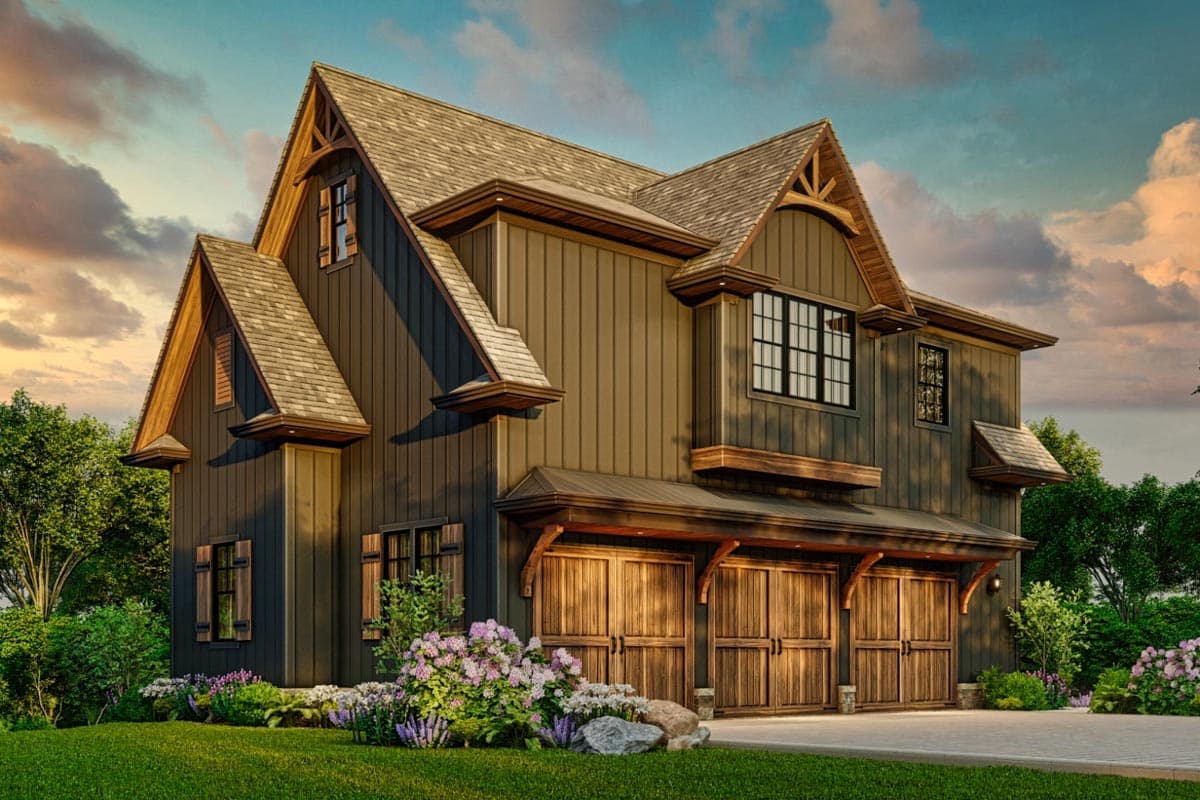

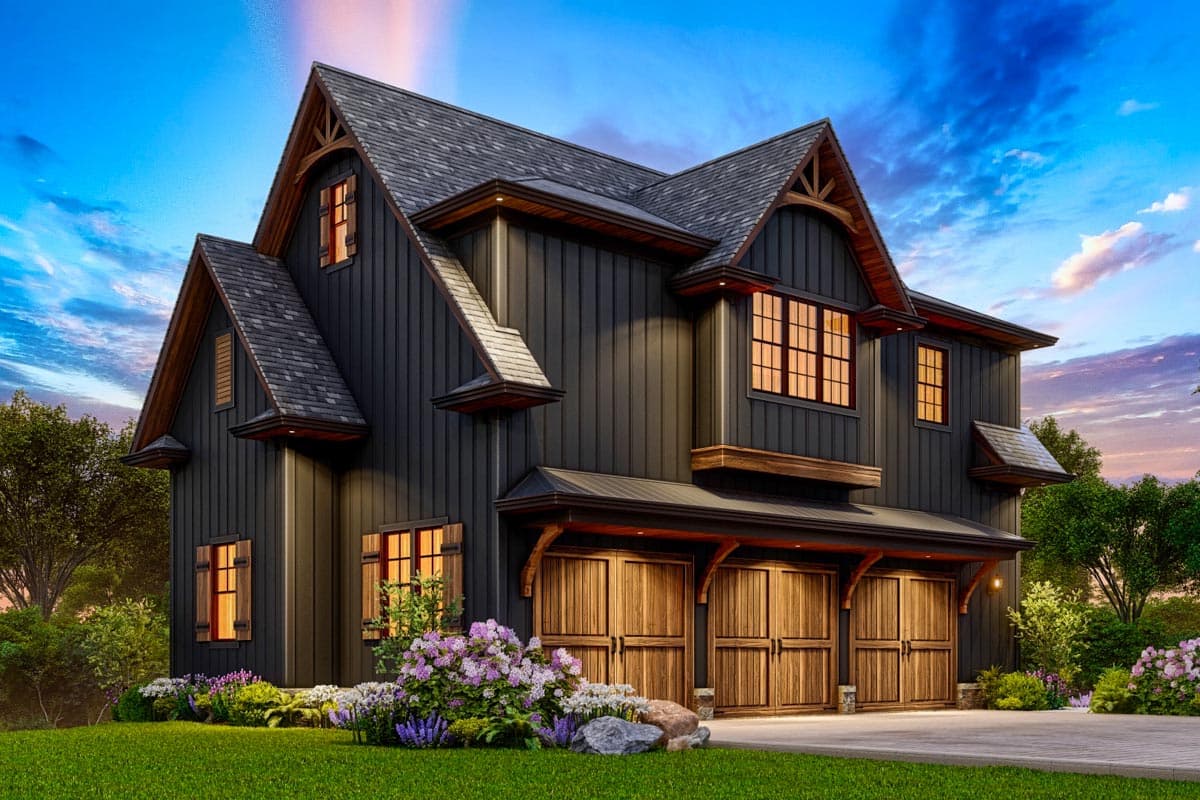

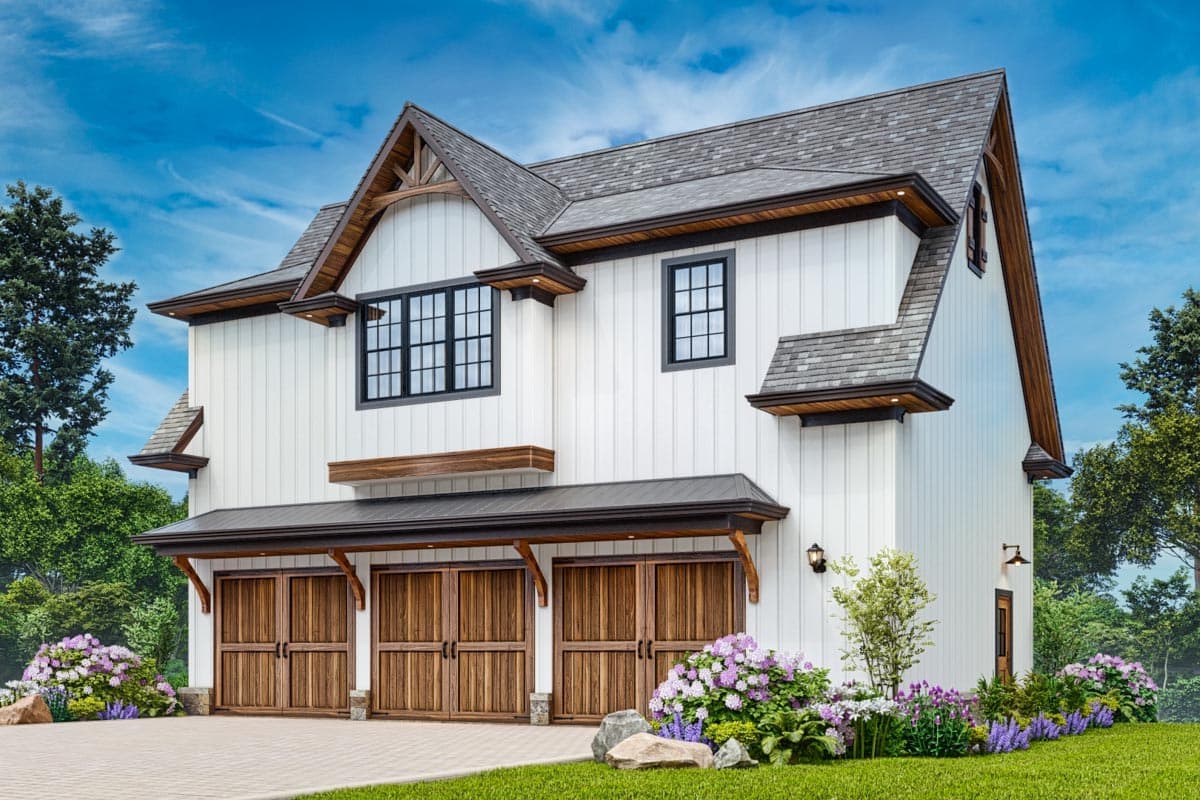

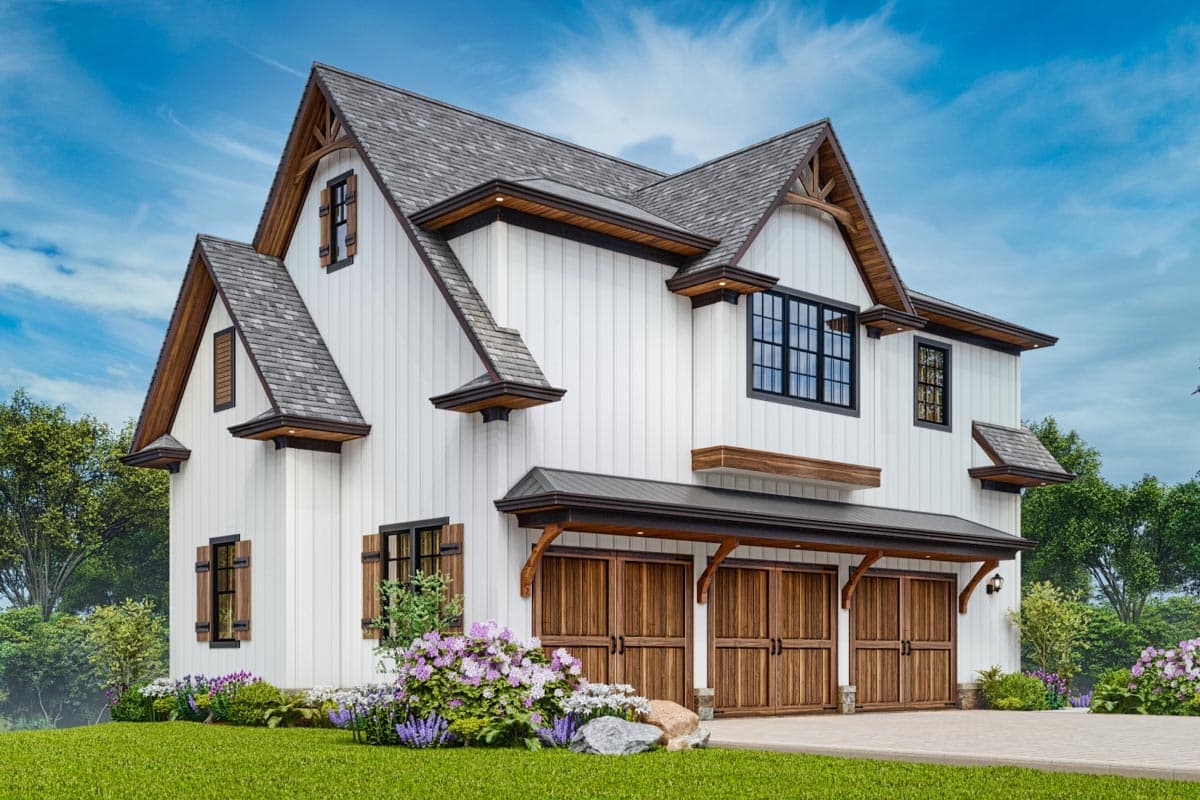

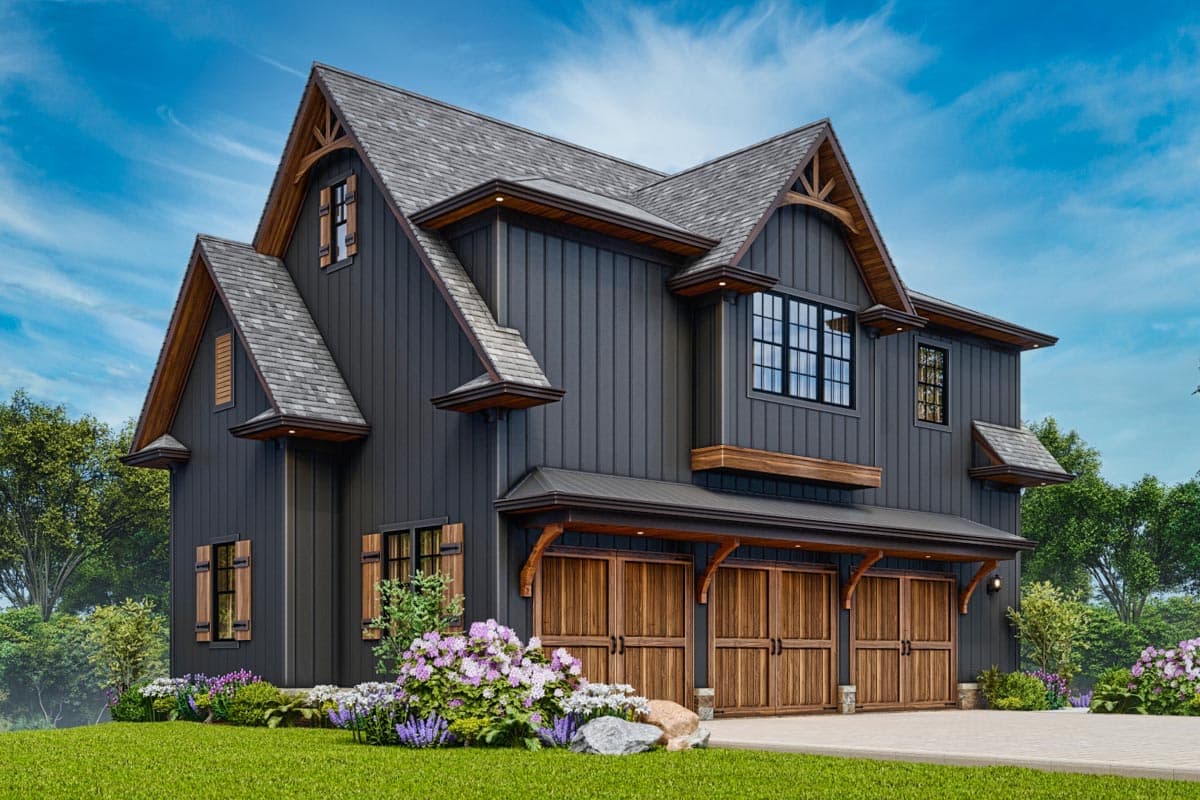

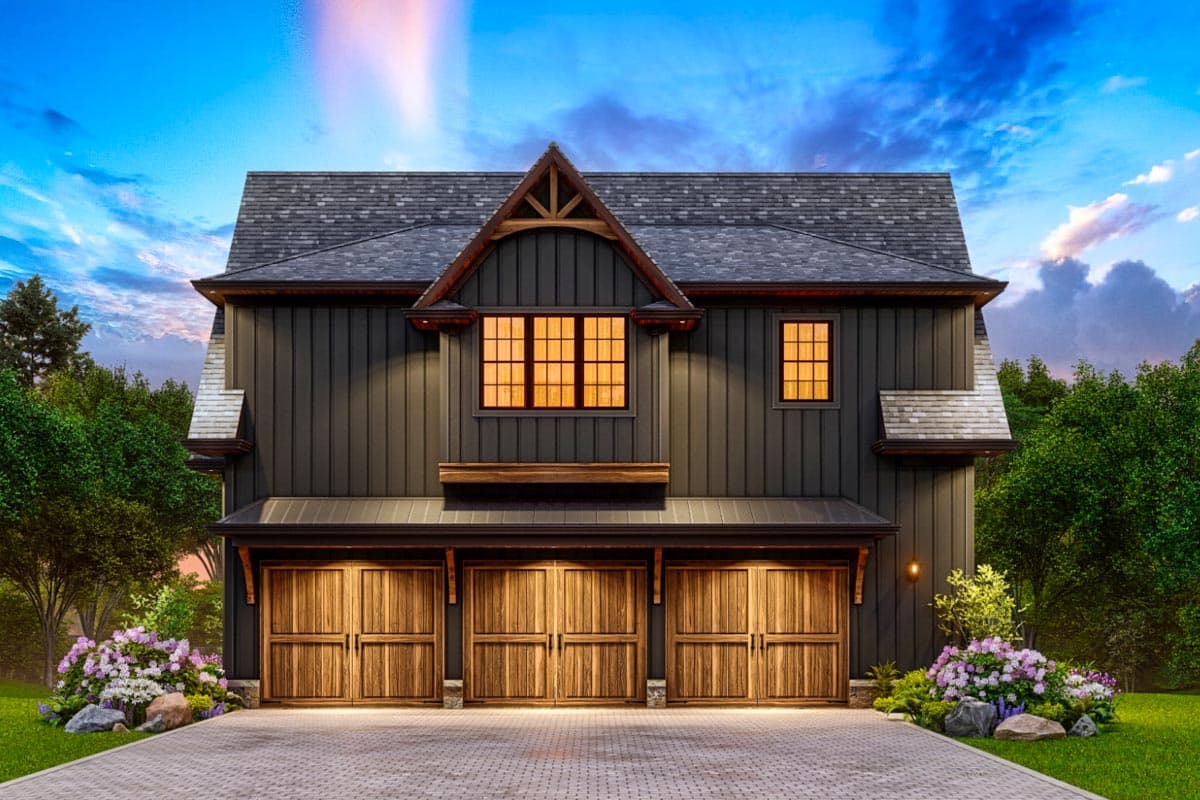

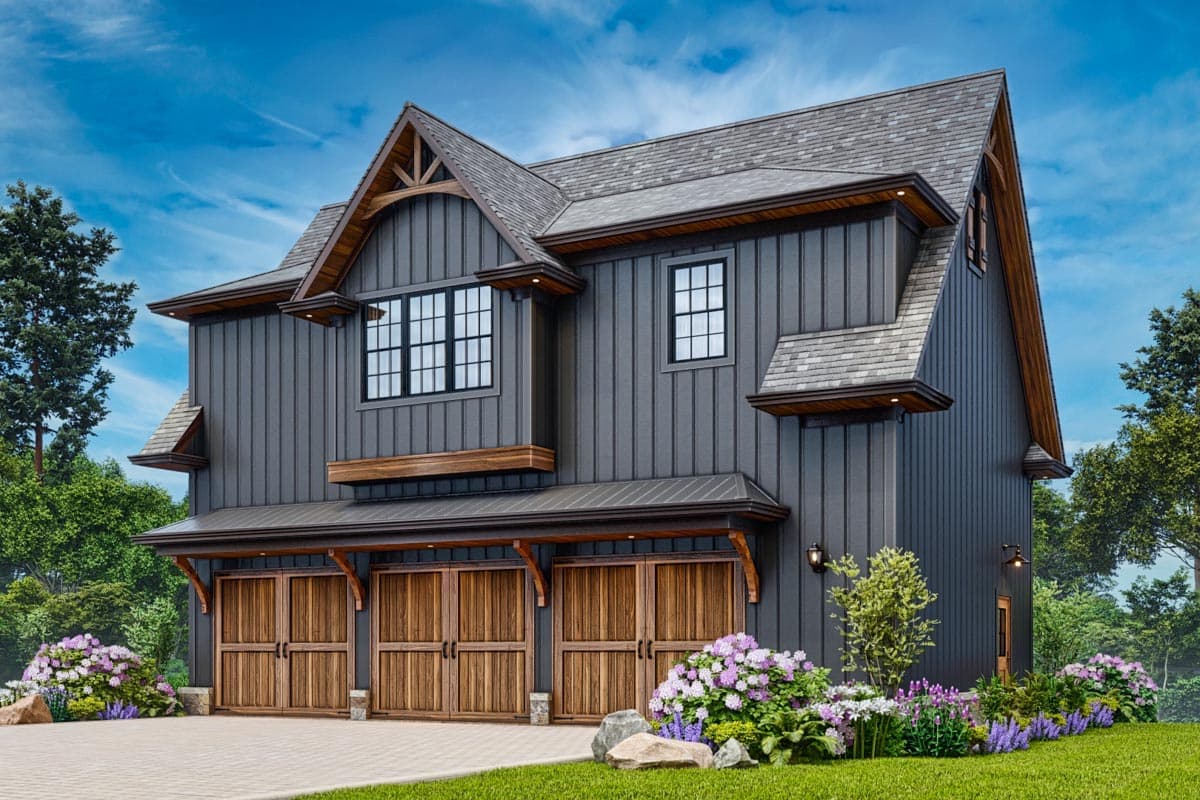

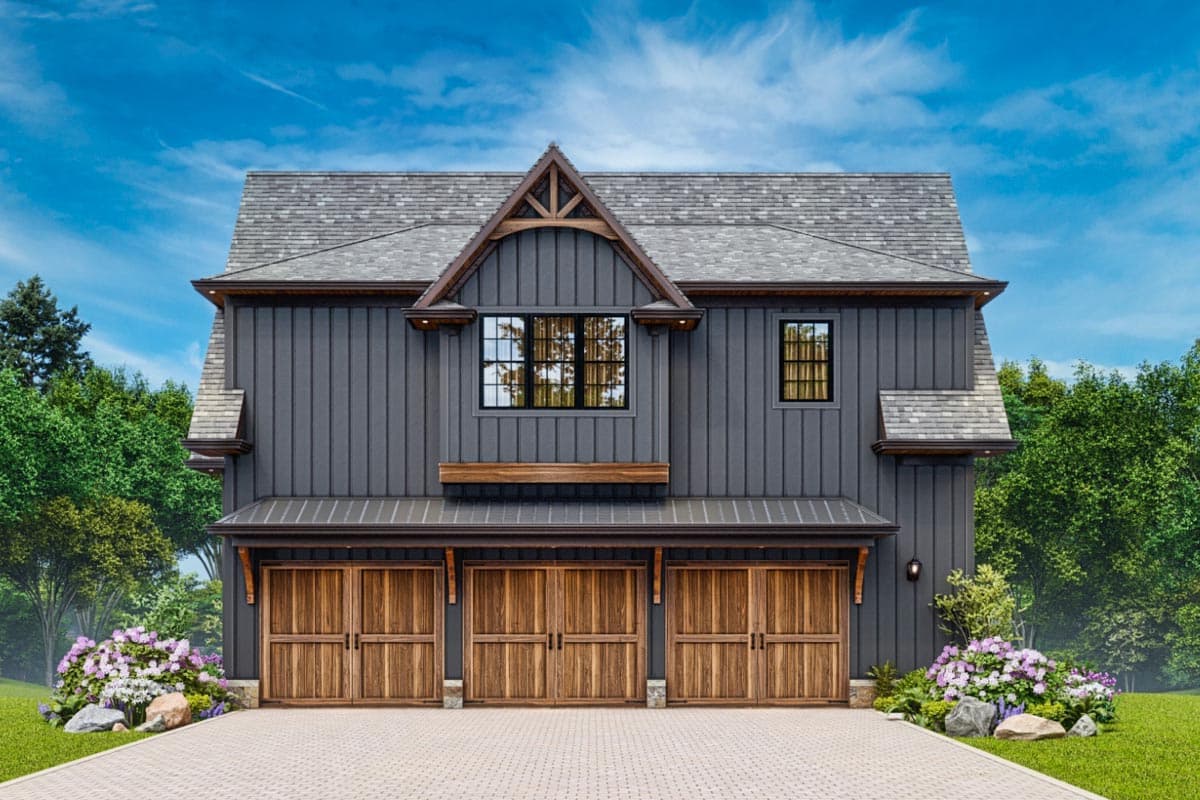

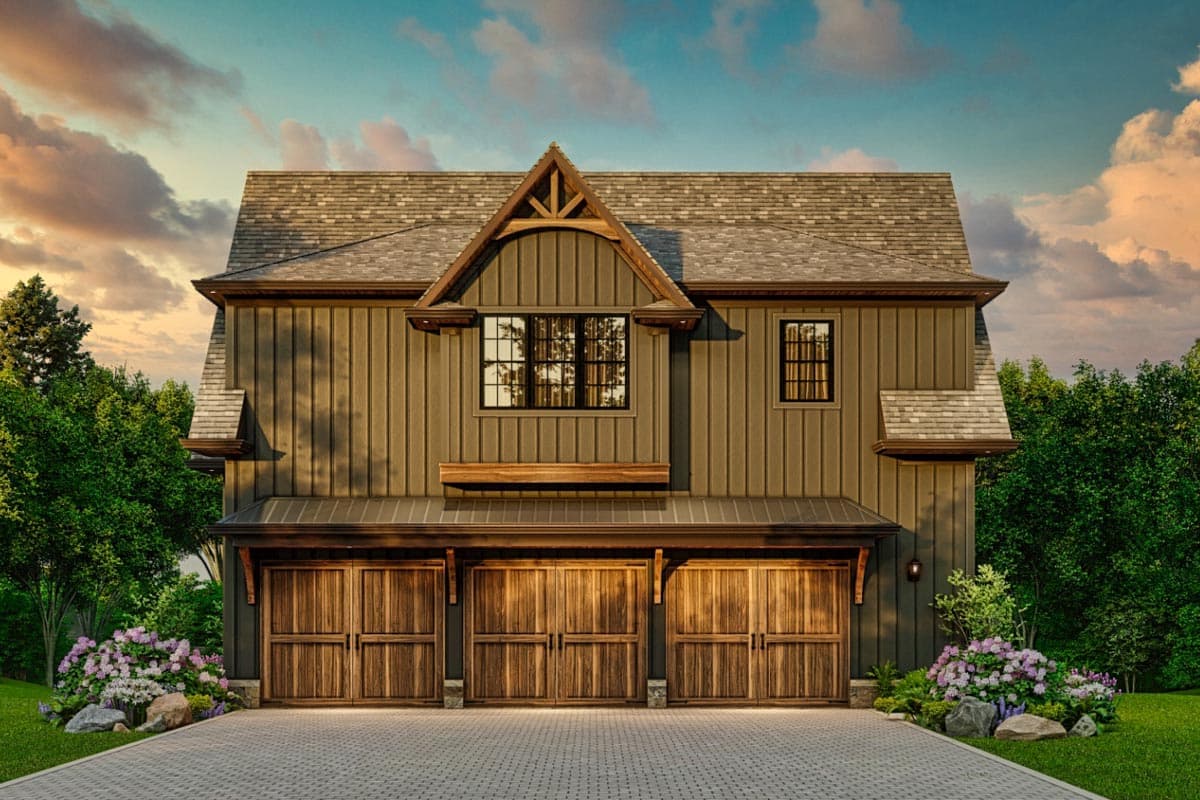

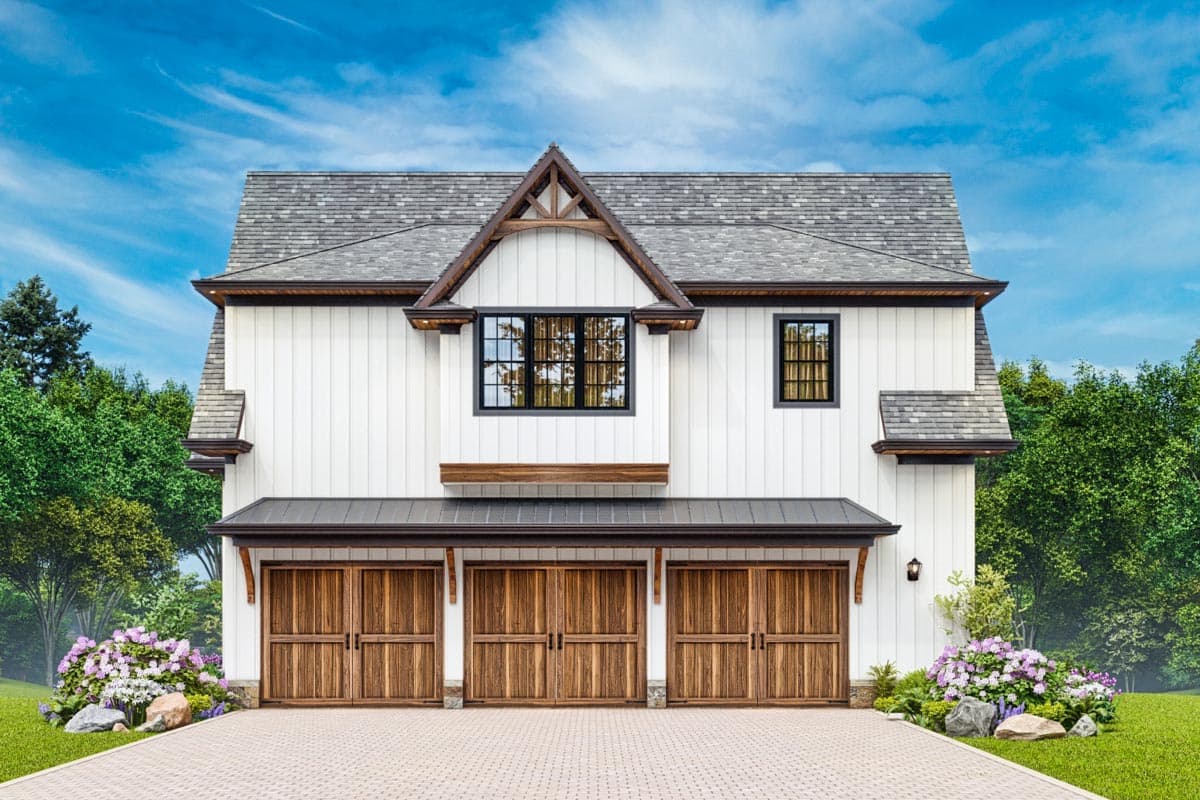

  • Vertical siding, a center gabled dormer and a shed roof that extends over the three overhead garage doors gives this Craftsman-style garage apartment plan great curb appeal. Inside, the main level has 1,119 square feet of parking space and the upper level gives you a 942 square foot 1-bed apartment.
  • The ground level not only has room for three cars but also space for a workbench or storage on the left as well as storage under the stairs that line the right side.

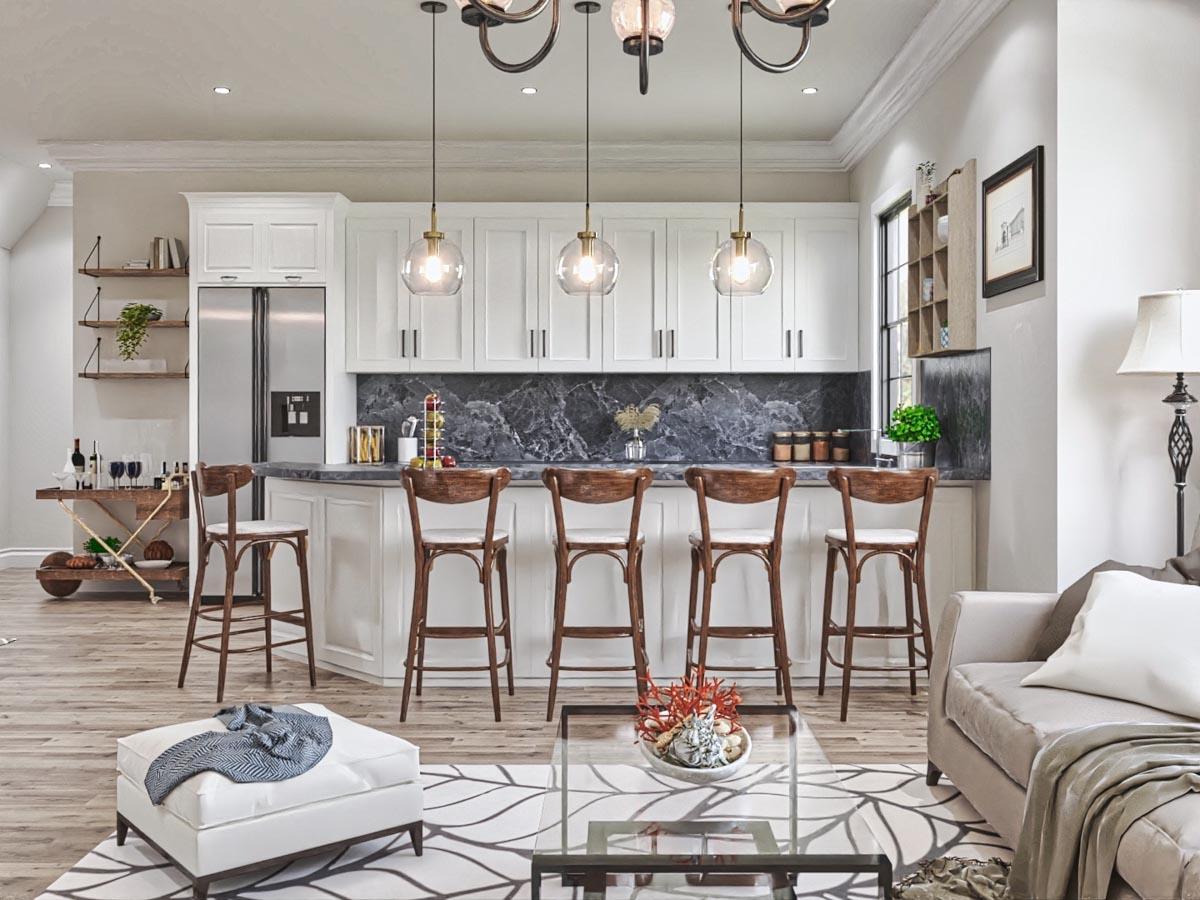

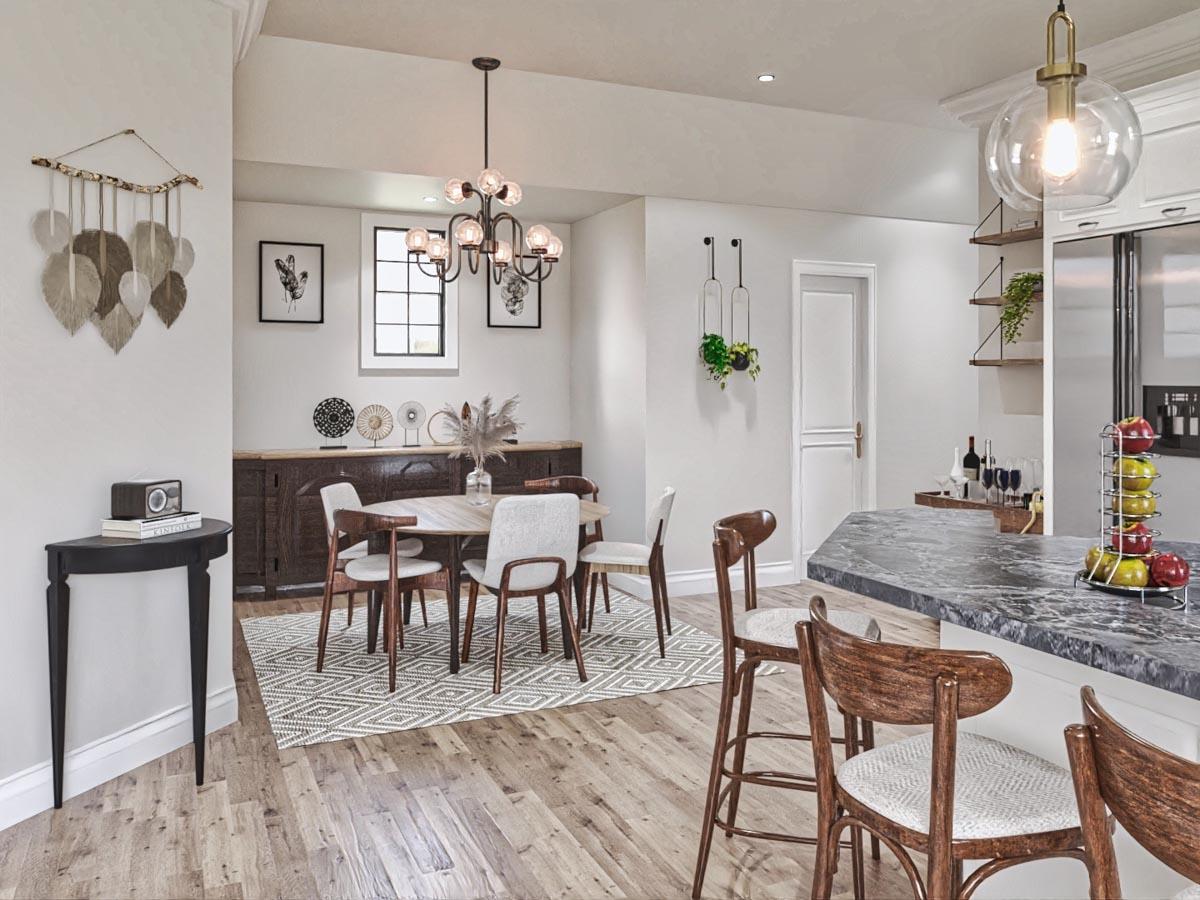

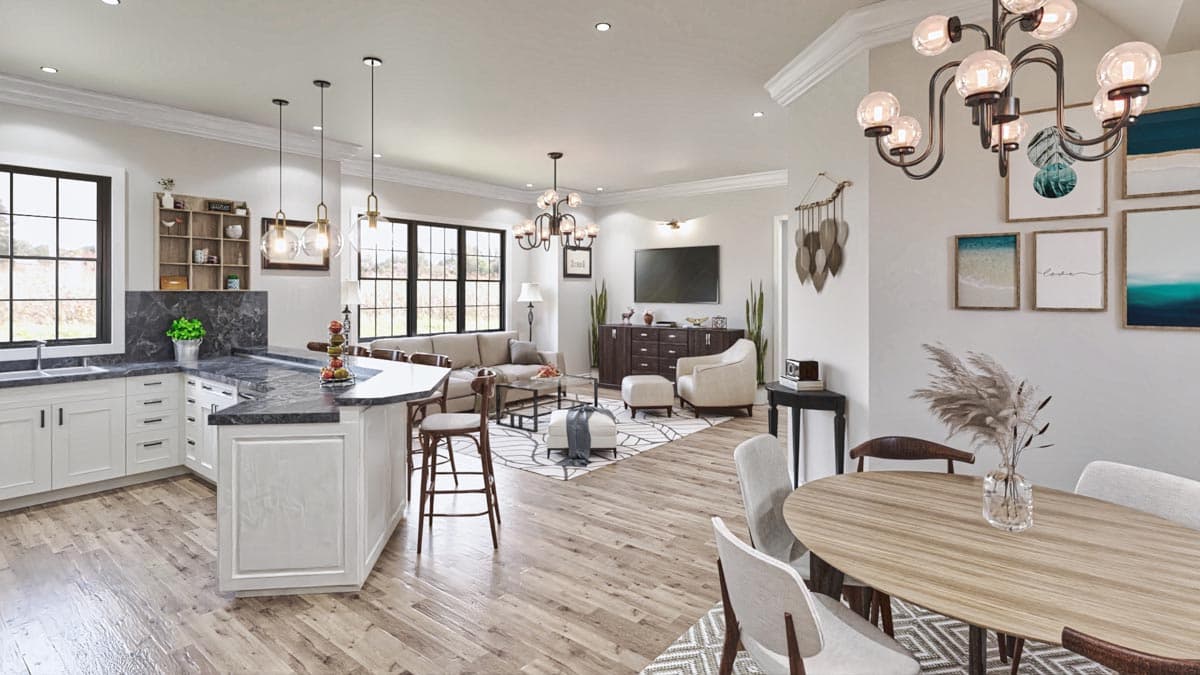

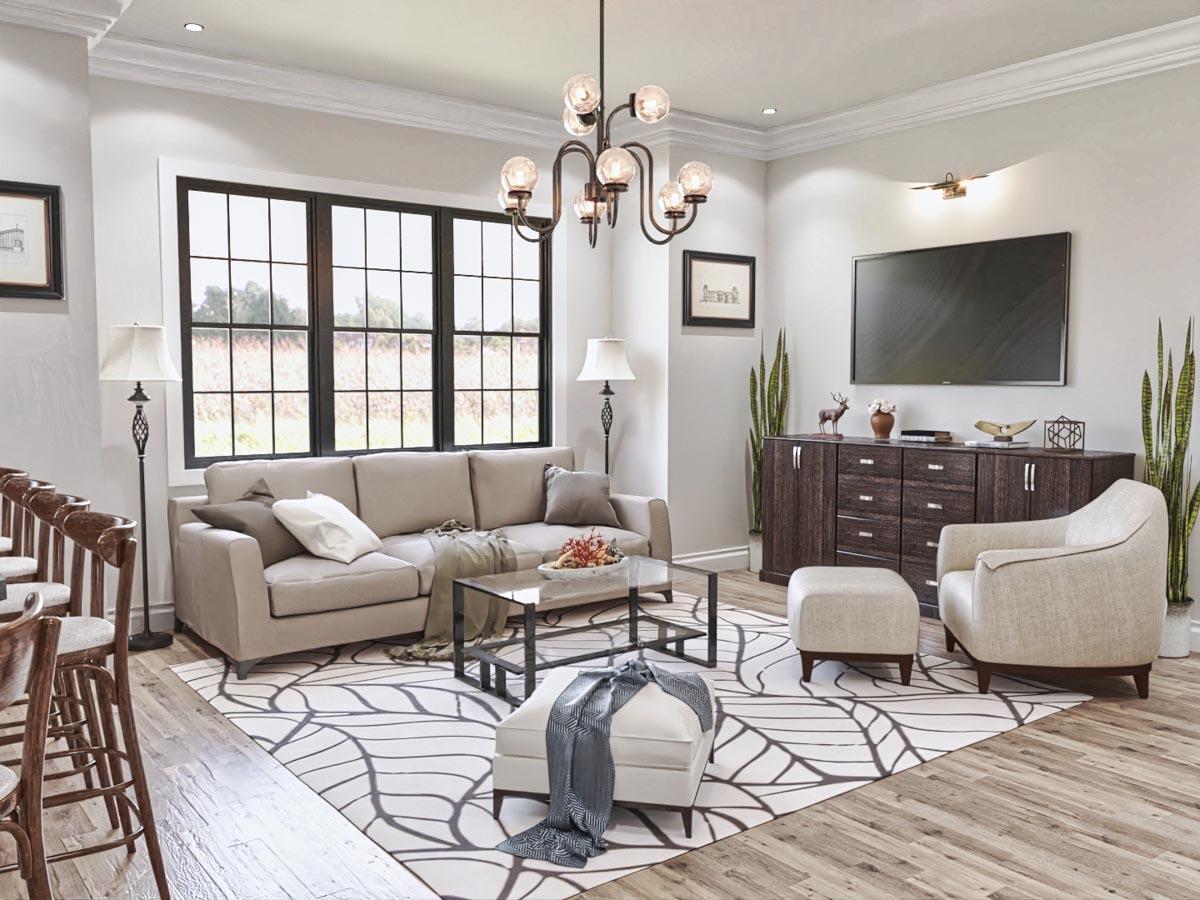

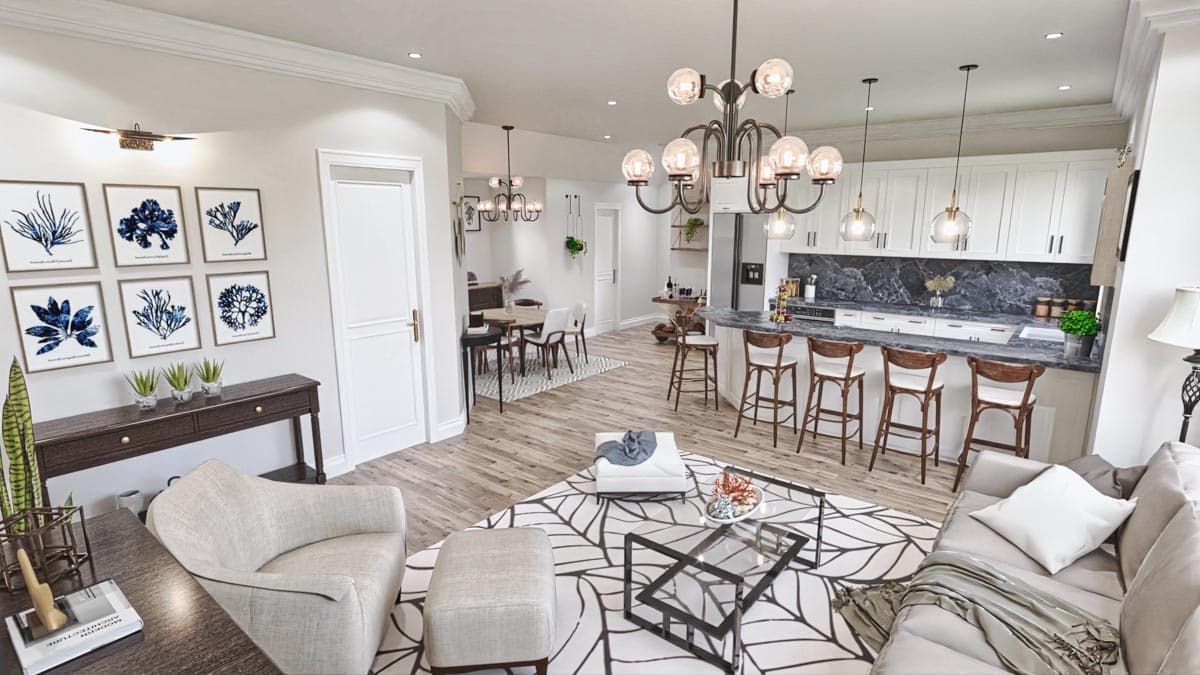

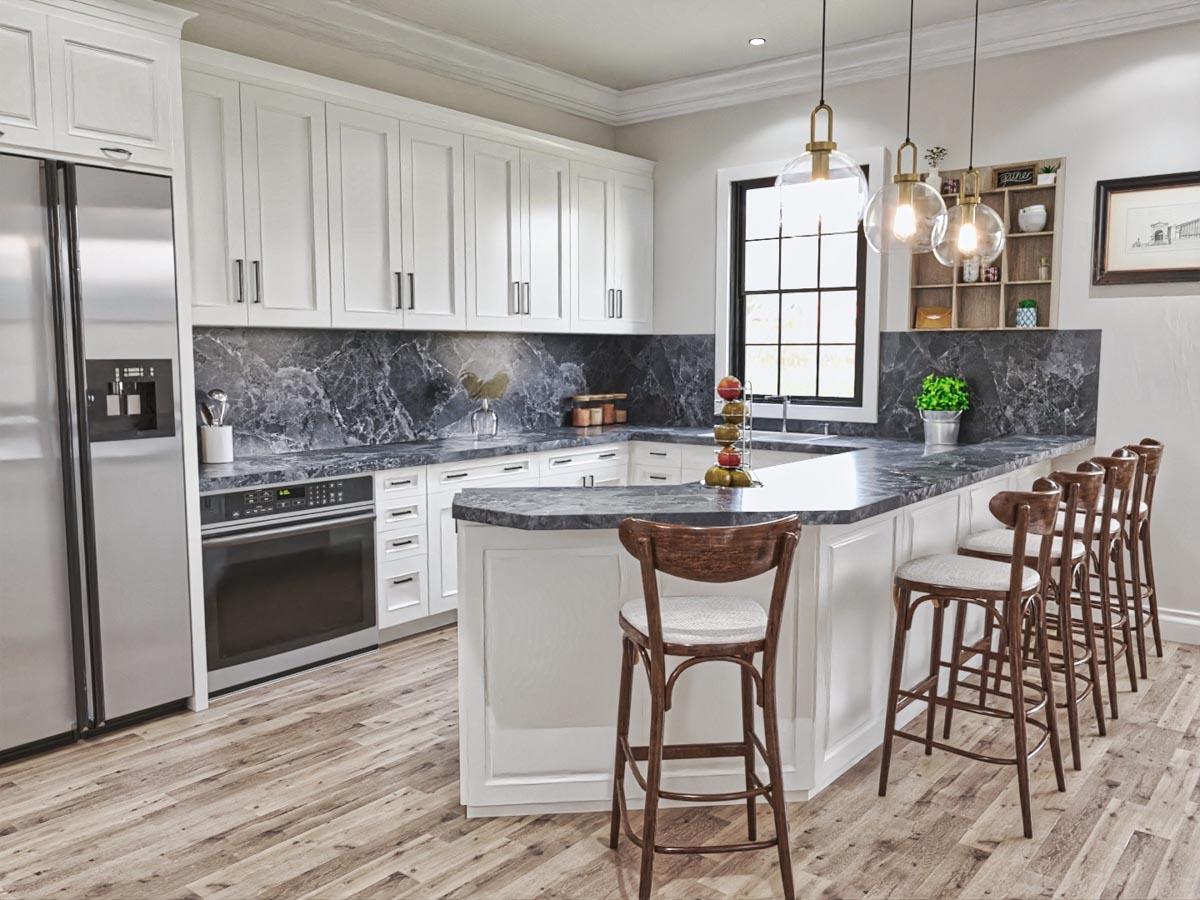

  • A C-shaped kitchen with peninsula seating is open to the studio space.

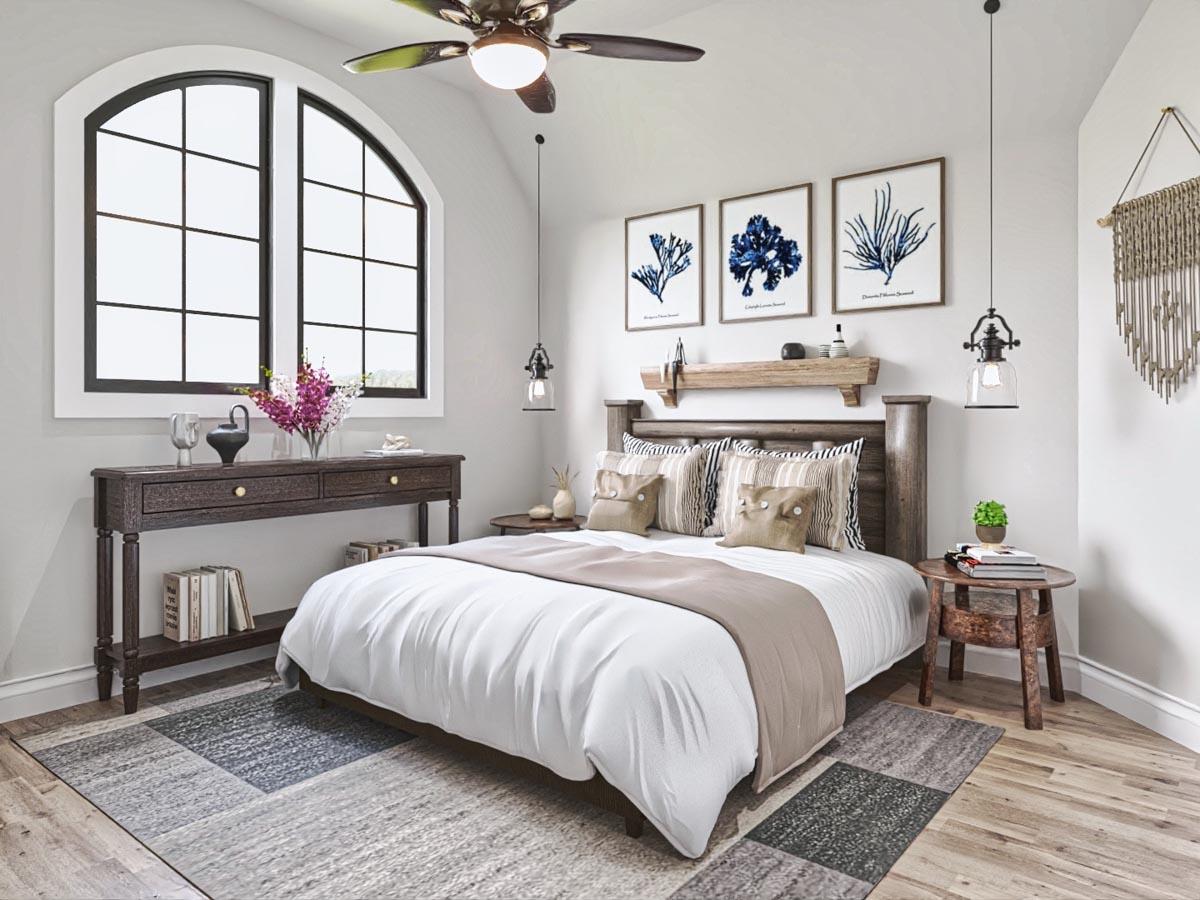

  • The bedroom has windows on the back wall, direct access to the bathroom with linen closet and a walk-in closet.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

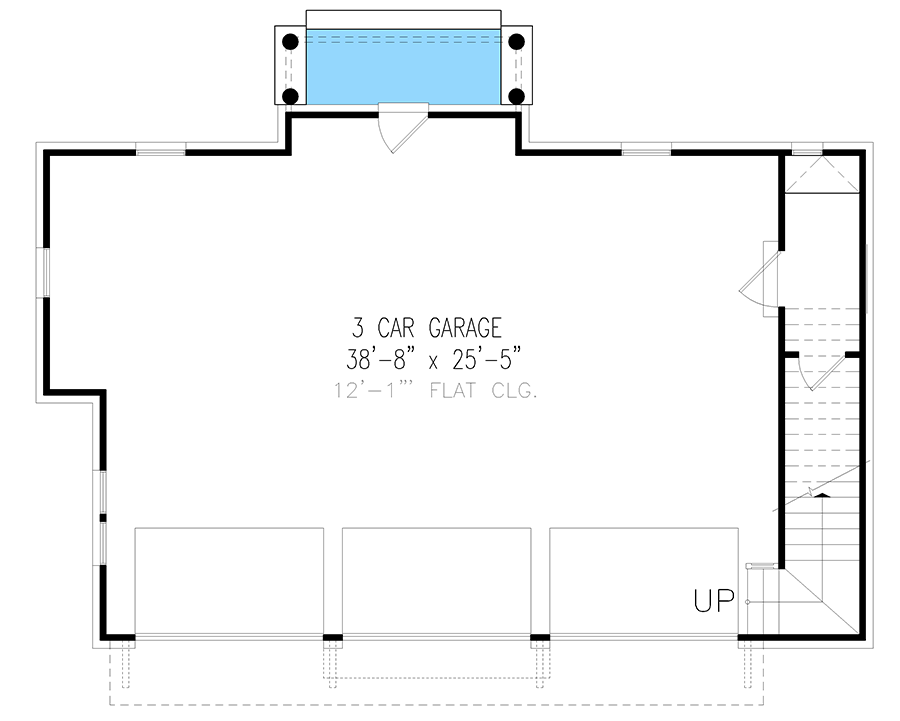

942 Square Foot Craftsman Garage Apartment - 25805GE floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

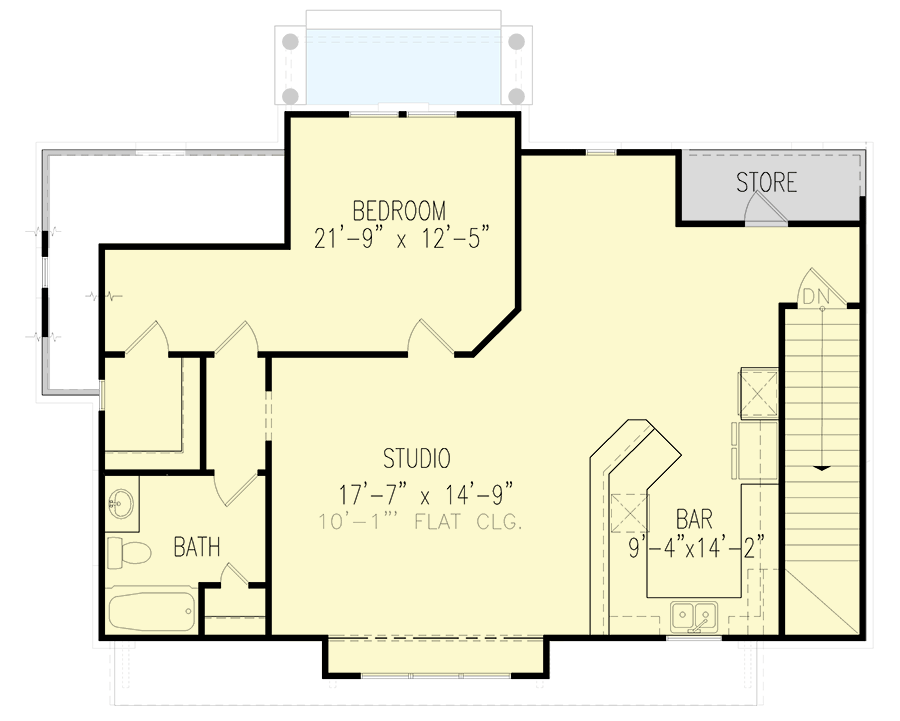

942 Square Foot Craftsman Garage Apartment - 25805GE floor plan - 2nd Floor

Architectural Style

Special features

Plan Collections

942 Square Foot Craftsman Garage Apartment

  • 942

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 942 sq. ft.
  • 2nd Floor: 942 sq. ft.

Dimensions

  • Width: 43' 7"
  • Depth: 32' 2"
  • Max ridge height: 32' 4"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 1119 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Second Floor / 10' 1" Garage 12' 1"
