Plan 60559ND

980 Square Foot 2-Story 4 Unit Multi-Family Home Plan

Heated S.F.
3,920
Units
4
Width
Depth

Floor Plan

Plan 60559ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60559ND

M-F 9am-5pm EST |

1-203-761-8500

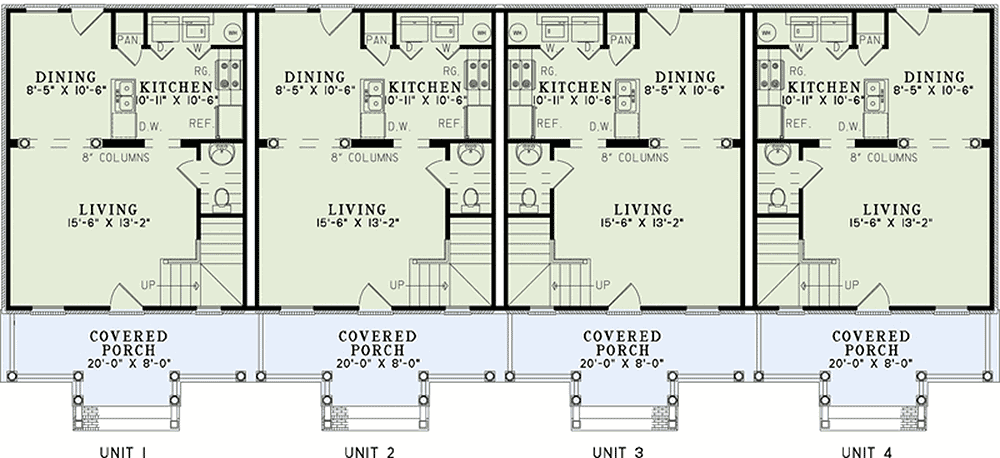

Main Level

Plan 60559ND: 980 Square Foot 2-Story 4 Unit Multi-Family Home Plan - Floor Plan - Main Level

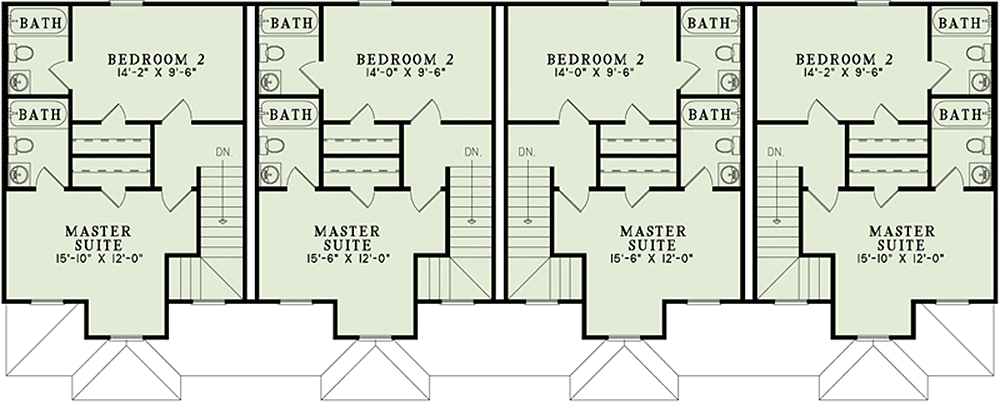

2nd Floor

Plan 60559ND: 980 Square Foot 2-Story 4 Unit Multi-Family Home Plan - Floor Plan - 2nd Floor

Plan Details

  • This beautiful multi-family home plan has a covered porch and living room, dining room, and kitchen downstairs and 2 bedrooms and 2 full bathrooms are upstairs.
  • Each unit gives you 980 square feet of heated living area (500 sq. ft. on the main floor and 480 sq. ft. on the second floor) and 8'-deep front porches.
Unit A
Heated Area
980Sq. Ft.
500 Sq. Ft. 1st
480 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
20' 6"width
33'depth
29'height
Unit B
Heated Area
980Sq. Ft.
500 Sq. Ft. 1st
480 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
20' 6"width
33'depth
29'height
Unit C
Heated Area
980Sq. Ft.
500 Sq. Ft. 1st
480 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
20' 6"width
33'depth
29'height
Unit D
Heated Area
980Sq. Ft.
500 Sq. Ft. 1st
480 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
20' 6"width
33'depth
29'height

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,920 sq. ft.

1st Floor

2,000 sq. ft.

2nd Floor

1,920 sq. ft.

Porch, Front

138 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 0"

Depth

33' 0"

Max Ridge Height

29' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,920 sq. ft.

1st Floor

2,000 sq. ft.

2nd Floor

1,920 sq. ft.

Porch, Front

138 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 0"

Depth

33' 0"

Max Ridge Height

29' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs
