A Blend of Old and New

Plan 89942AH

  • 2,391

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • MOVIE: See this house plan from every angle in our YouTube video.

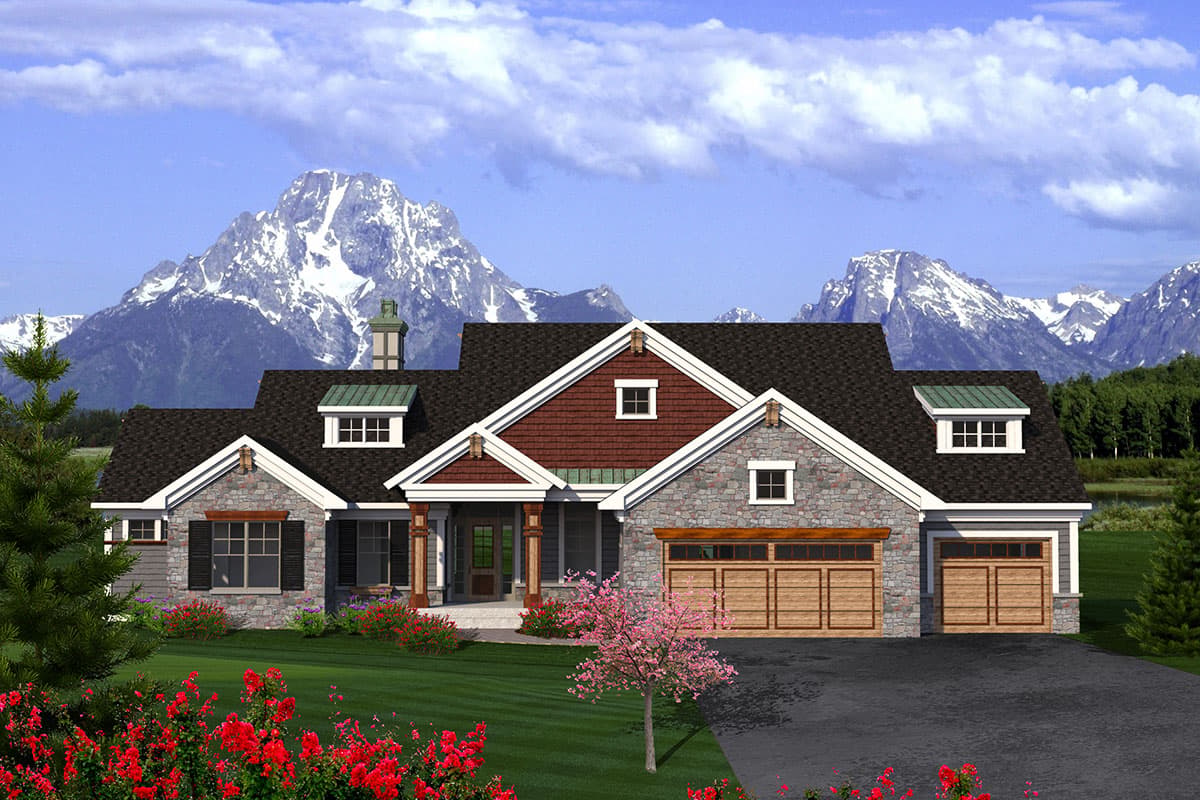

  • This craftsman style design blends old and new in this creative design.
  • 10' ceilings are found throughout the home.
  • The open-concept floor plan features a kitchen with walk-in pantry and unique island that overlooks the dining and great rooms.
  • The great room includes a fireplace with built-ins on either side.
  • Two bedrooms lie to the left of the entry while the master suite with walk-in closet is found at the back.
  • An octagonal sunroom with access to a covered porch is found off the living area.
  • The three-stall garage includes extra storage space.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Floor Plan

Plan details



A Blend of Old and New

  • 2,391

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $995
  • 8 Sets $1,040
  • Reproducible Set $1,250
  • PDF - single-use $1,250
  • CAD $1,980
  • View all purchase option online

About This Plan

  • MOVIE: See this house plan from every angle in our YouTube video.
  • This craftsman style design blends old and new in this creative design.
  • 10' ceilings are found throughout the home.
  • The open-concept floor plan features a kitchen with walk-in pantry and unique island that overlooks the dining and great rooms.
  • The great room includes a fireplace with built-ins on either side.
  • Two bedrooms lie to the left of the entry while the master suite with walk-in closet is found at the back.
  • An octagonal sunroom with access to a covered porch is found off the living area.
  • The three-stall garage includes extra storage space.

Floor Plans

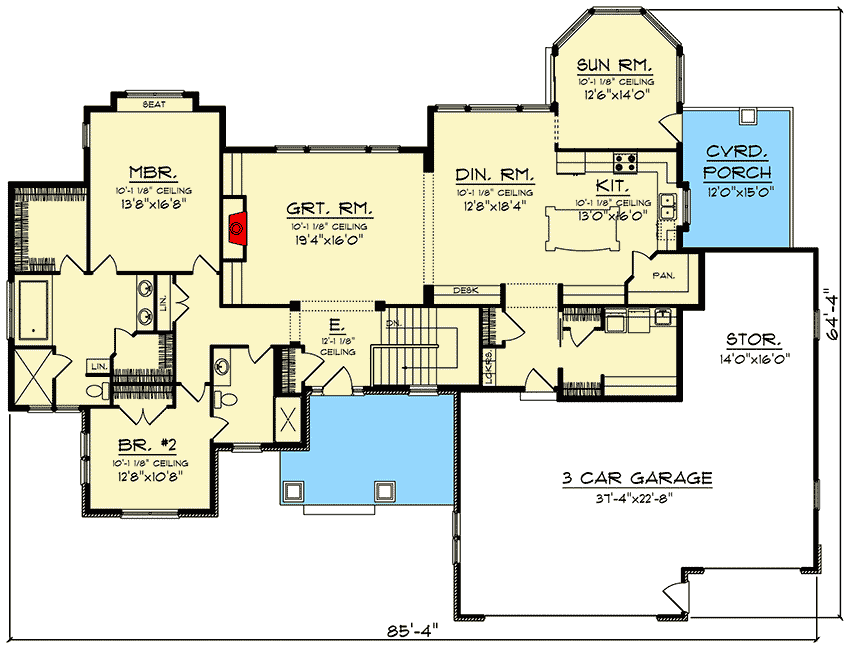

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,391 sq. ft.
  • 1st Floor: 2,391 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 85' 4"
  • Depth: 64' 4"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 1029 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
