Plan 59606ND

A Charming Exterior

1,304 2 2 1 2
print
Pageloader

A Charming Exterior

Plan 59606ND

  • 1,304

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A charming exterior lends curb appeal to this house plan. A vaulted ceiling and cozy fireplace add elegance to the great room. Nearby, the step-saving kitchen merges with the dining room for your convenience.
  • A rear covered porch is also available for outdoor dining possibilities.
  • Relax the day away in this secluded master suite with boxed ceiling. An additional bedroom/study is also included at the front of this house plan. Comfortable and private, this room will prove to be perfect for any guest visiting your home.
  • See these related house plans: 59091ND, 59094ND, 59609ND and 59054ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

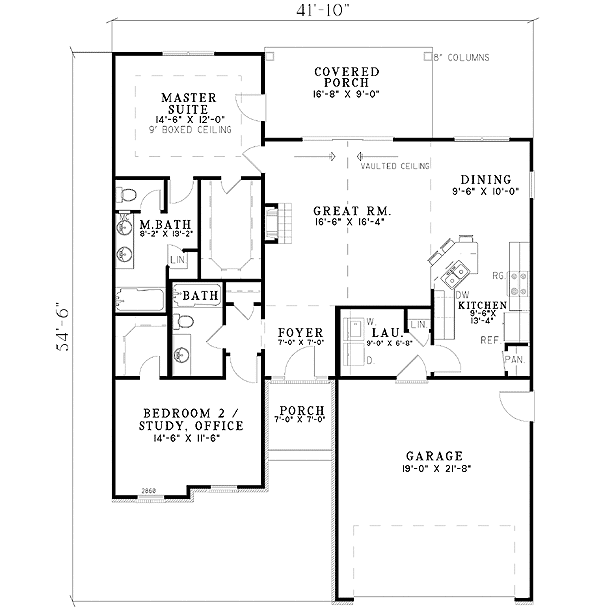

Floor Plan

Main Level

Pinit white
Reverse Floor Plan
A Charming Exterior - 59606ND floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,304 sq. ft.
  • 1st Floor: 1,304 sq. ft.
  • Porch, Combined: 191 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 41' 10"
  • Depth: 54' 6"
  • Max ridge height: 19' 0"

Garage

  • Type: Attached
  • Area: 621 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features



A Charming Exterior

  • 1,304

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $530
  • 5 Sets $580
  • 8 Sets $650
  • Reproducible Set $1,000
  • PDF - single-use $1,000
  • CAD $1,540
  • View all purchase option online

About This Plan

  • A charming exterior lends curb appeal to this house plan. A vaulted ceiling and cozy fireplace add elegance to the great room. Nearby, the step-saving kitchen merges with the dining room for your convenience.
  • A rear covered porch is also available for outdoor dining possibilities.
  • Relax the day away in this secluded master suite with boxed ceiling. An additional bedroom/study is also included at the front of this house plan. Comfortable and private, this room will prove to be perfect for any guest visiting your home.
  • See these related house plans: 59091ND, 59094ND, 59609ND and 59054ND.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,304 sq. ft.
  • 1st Floor: 1,304 sq. ft.
  • Porch, Combined: 191 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 41' 10"
  • Depth: 54' 6"
  • Max ridge height: 19' 0"

Garage

  • Type: Attached
  • Area: 621 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Plan 59606ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59606ND
|
