Secluded Master Suite

Plan 59609ND

  • 1,435

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This is the perfect house plan for a lot with narrow frontage without compromising comfort or privacy.
  • The home radiates from the large centrally located great room with vaulted ceiling.
  • Featuring a cozy fireplace, your family will love this room on long winter nights. For those long summer days, there's quick access to the grilling porch.
  • Features in the kitchen include a bar, a pantry and a laundry room leading to the garage.
  • Your private master suite with a 9' tray ceiling is secluded from the rest of the house. In your master bath you'll luxuriate in your choice of the whirlpool bath or the glass shower. Your suite features a huge walk-in closet.
  • Bedrooms 2 and 3 are isolated from the rest of the house and a separated by a shared bath. Bedroom 3 can be used as a home office.
  • Related Plans: For alternate versions, see these related house plans - 59091ND, 59094ND, 59054ND and 59606ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

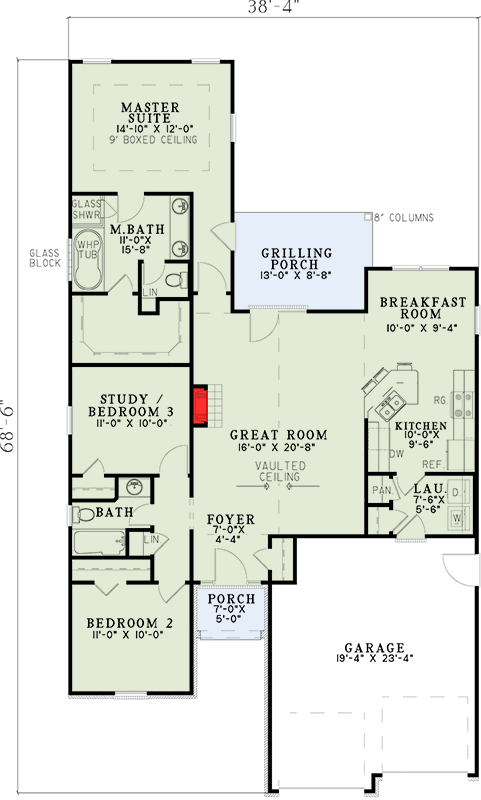

Secluded Master Suite - 59609ND floor plan - Main Level

Plan details

Secluded Master Suite

  • 1,435

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $700
  • 5 Sets $800
  • 5 Sets + PDF $1,050
  • CAD + PDF - Single Build $1,400
  • View all purchase option online

About This Plan

  • This is the perfect house plan for a lot with narrow frontage without compromising comfort or privacy.
  • The home radiates from the large centrally located great room with vaulted ceiling.
  • Featuring a cozy fireplace, your family will love this room on long winter nights. For those long summer days, there's quick access to the grilling porch.
  • Features in the kitchen include a bar, a pantry and a laundry room leading to the garage.
  • Your private master suite with a 9' tray ceiling is secluded from the rest of the house. In your master bath you'll luxuriate in your choice of the whirlpool bath or the glass shower. Your suite features a huge walk-in closet.
  • Bedrooms 2 and 3 are isolated from the rest of the house and a separated by a shared bath. Bedroom 3 can be used as a home office.
  • Related Plans: For alternate versions, see these related house plans - 59091ND, 59094ND, 59054ND and 59606ND.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,435 sq. ft.
  • 1st Floor: 1,435 sq. ft.
  • Porch, Combined: 149 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 38' 4"
  • Depth: 68' 6"
  • Max ridge height: 20' 0"

Garage

  • Type: Attached
  • Area: 443 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
