A Floor Plan that Flows

Plan 61214UT

  • 2,864

    Heated s.f.

  • 4-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

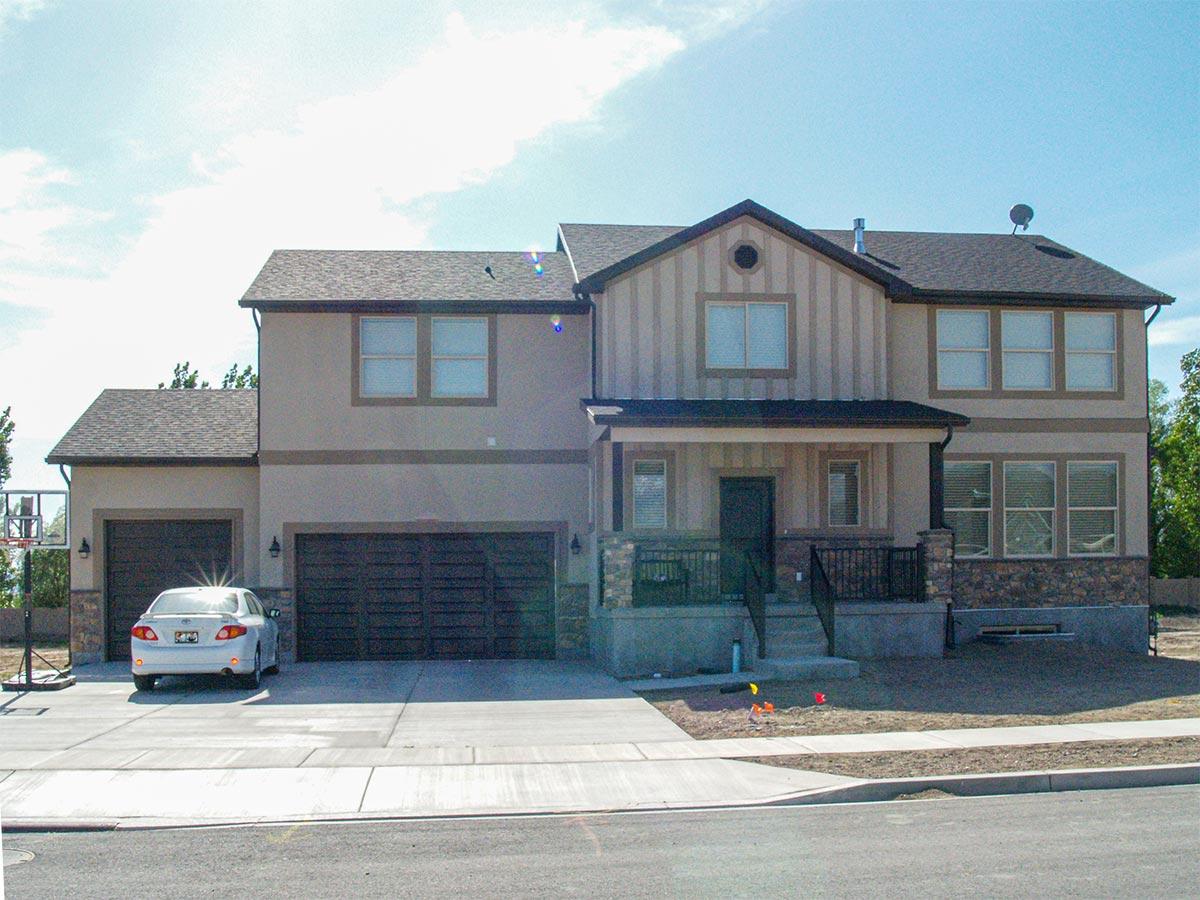

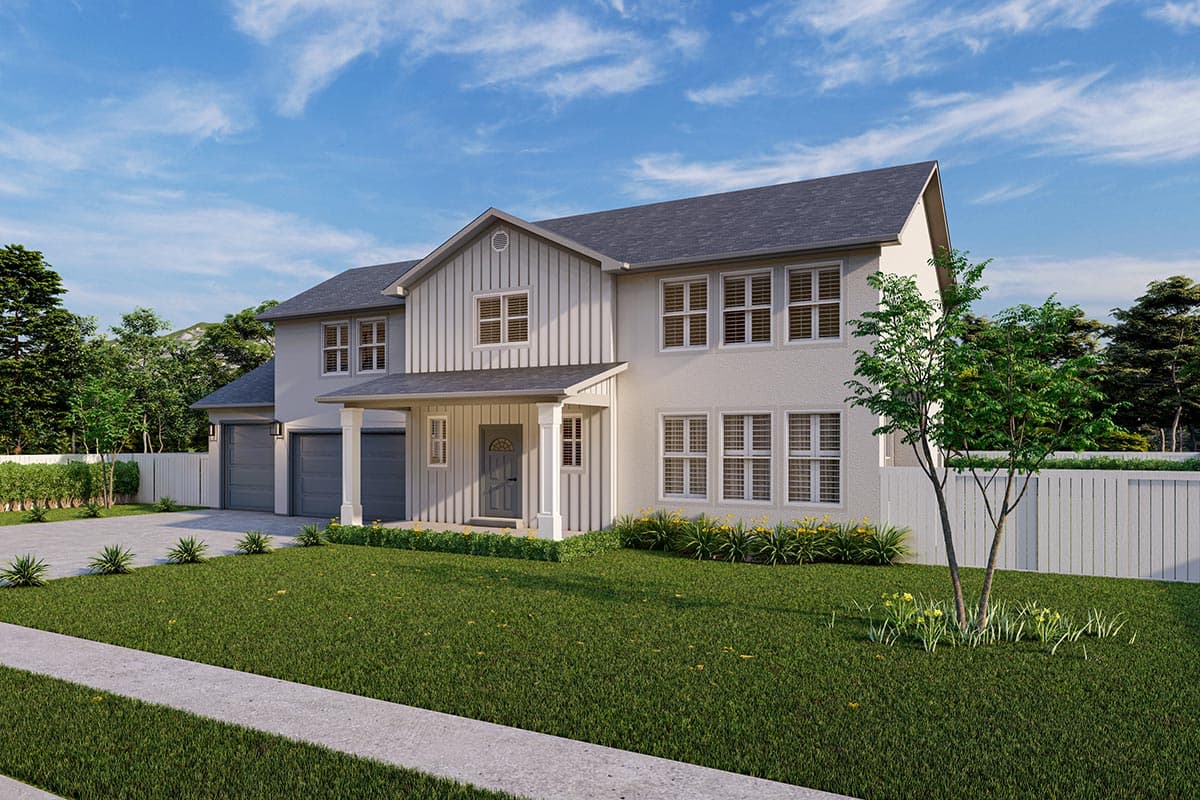

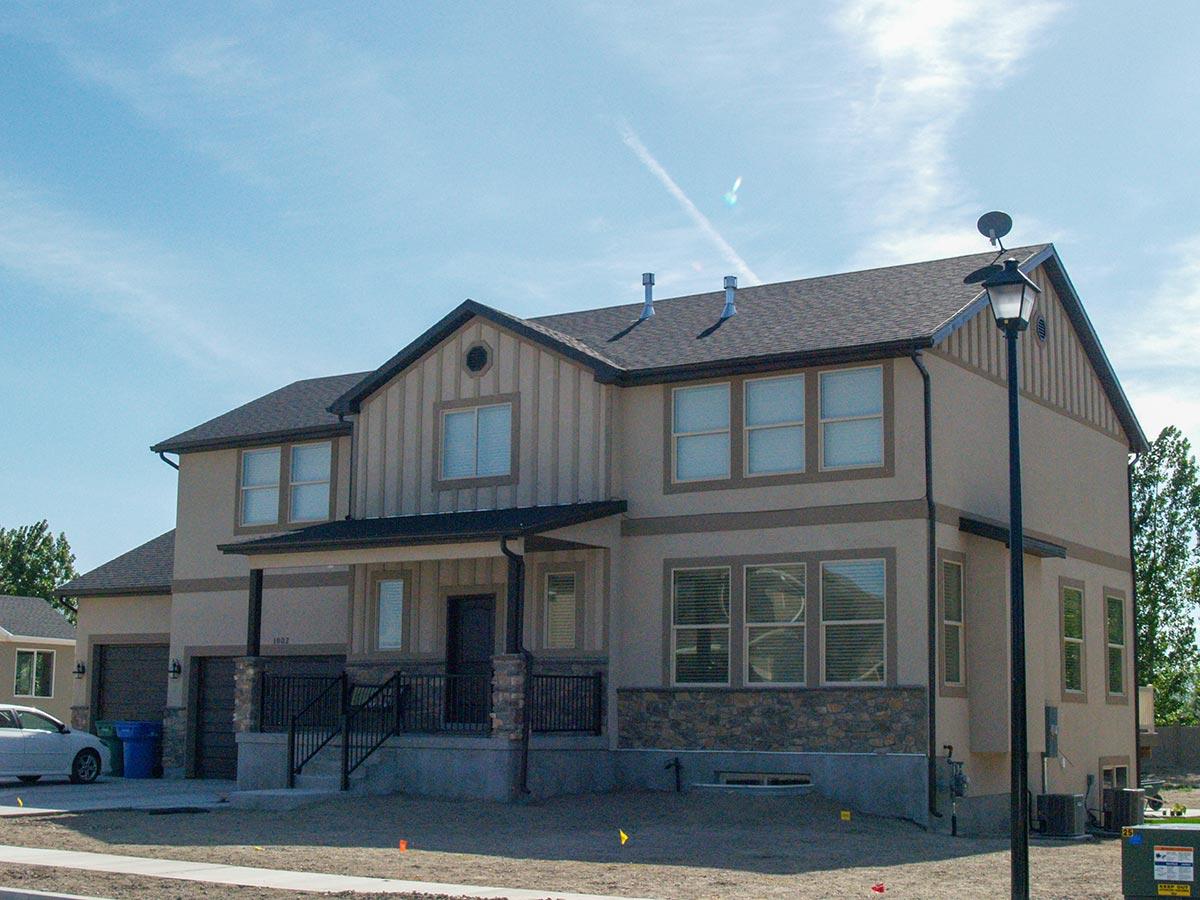

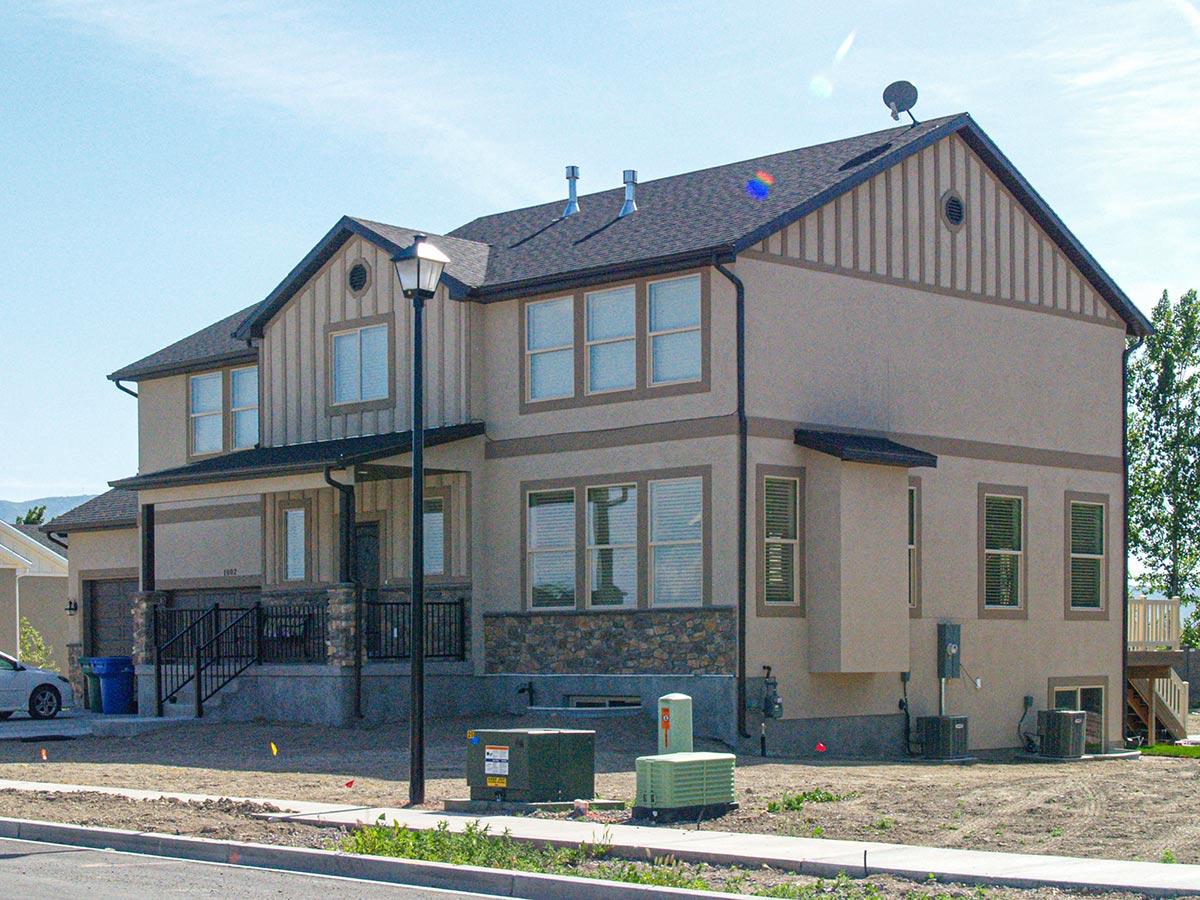

  • No room is closed off on the main floor of this Traditional home plan with attractive vertical siding on the front gable.
  • The big porch shelters you as you enter the home.

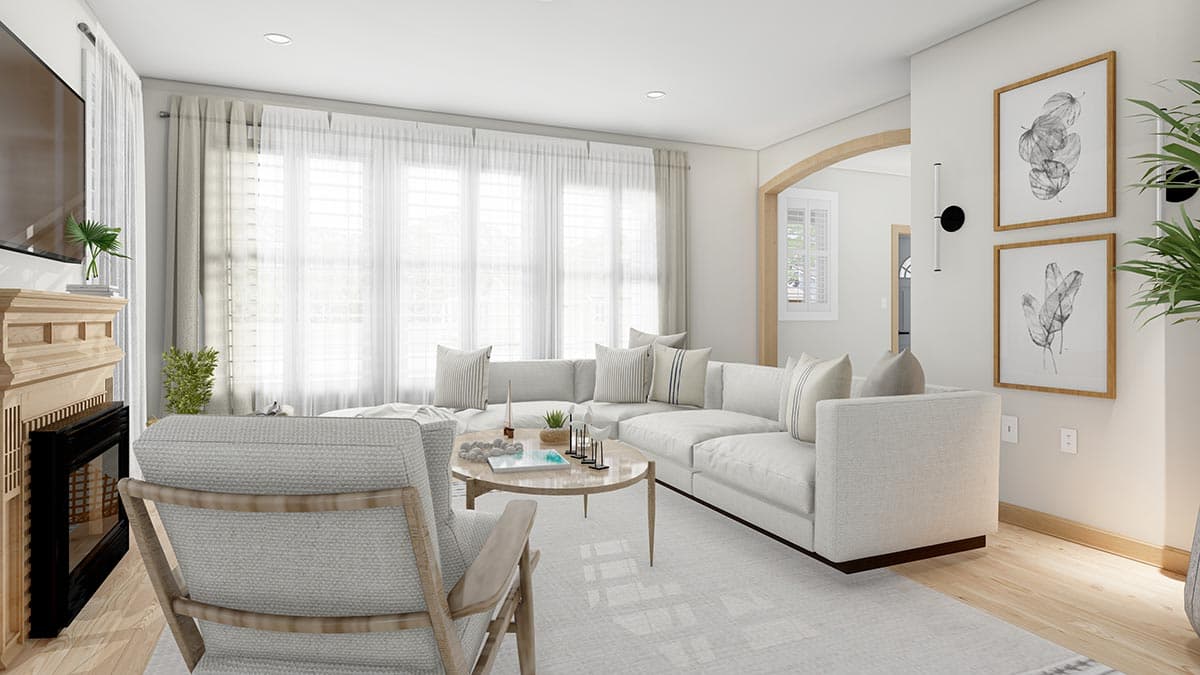

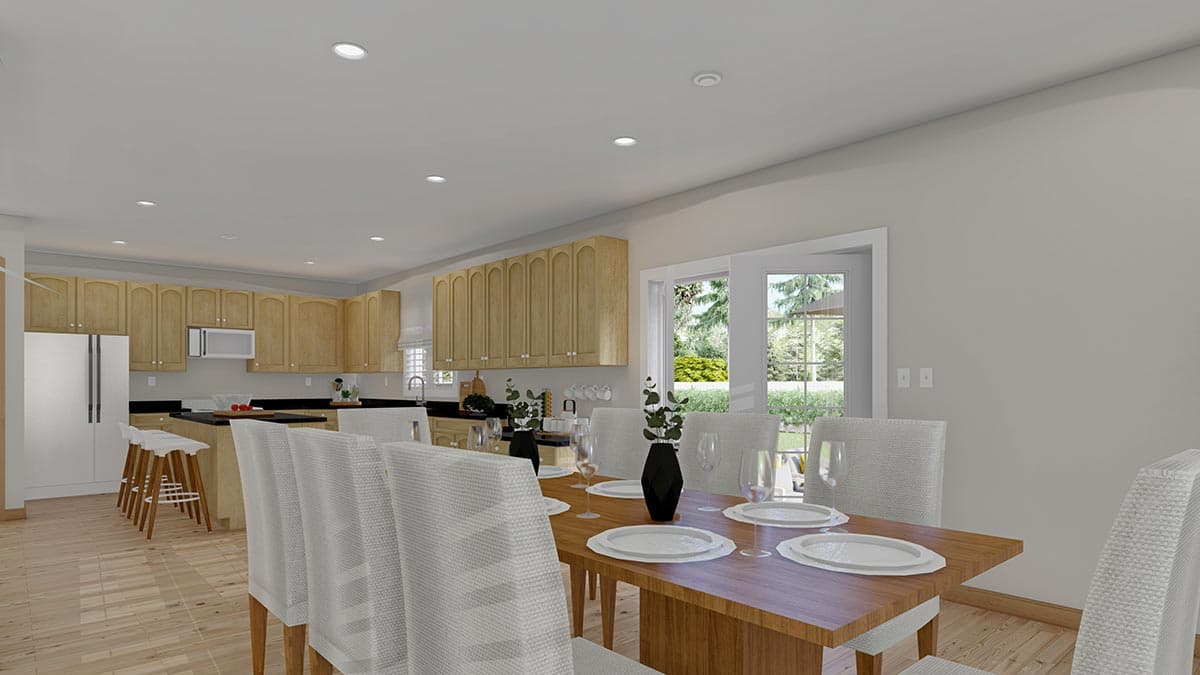

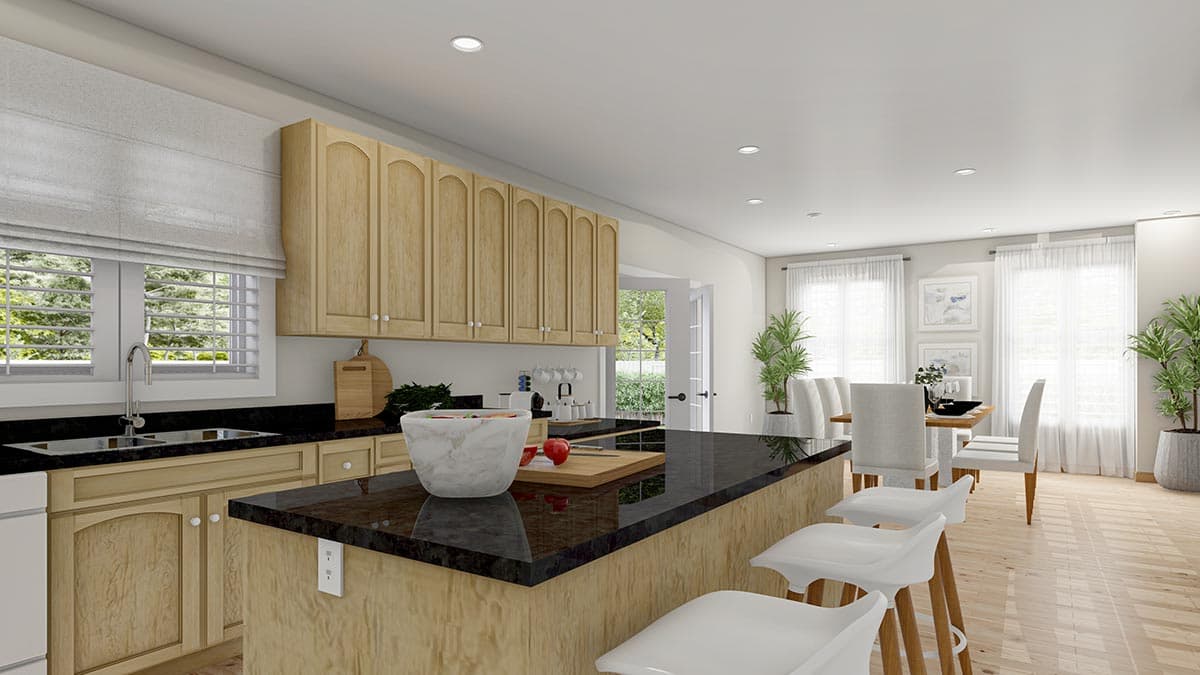

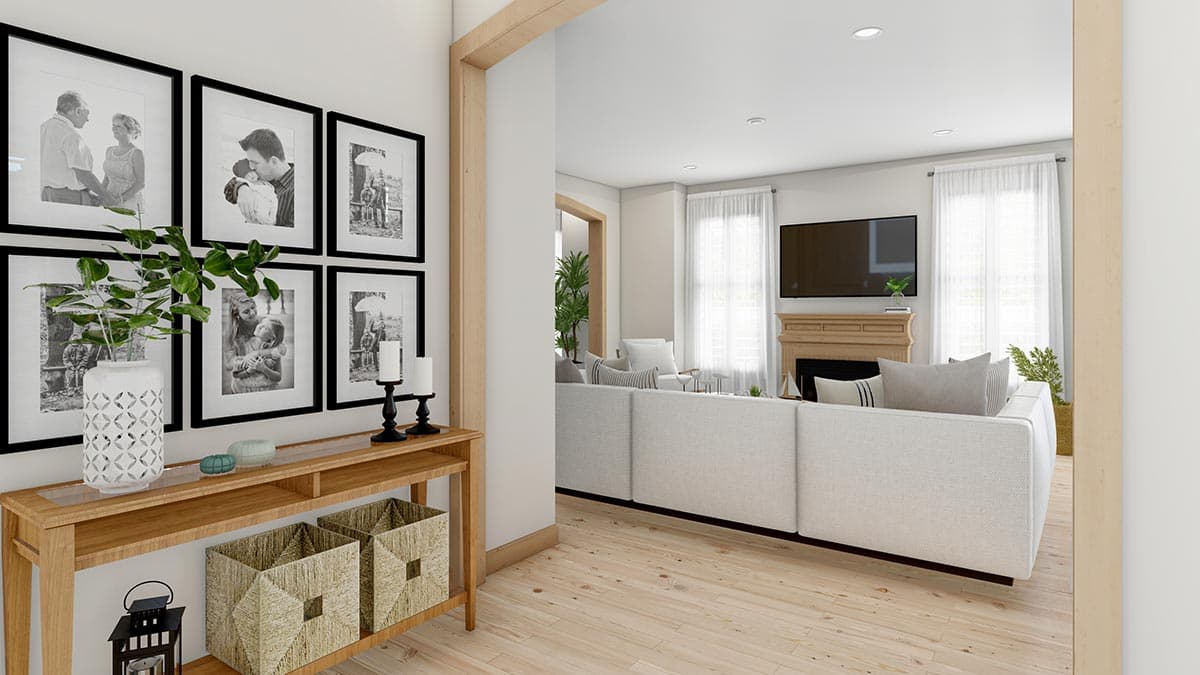

  • The living room, dining room and kitchen all flow into each other.

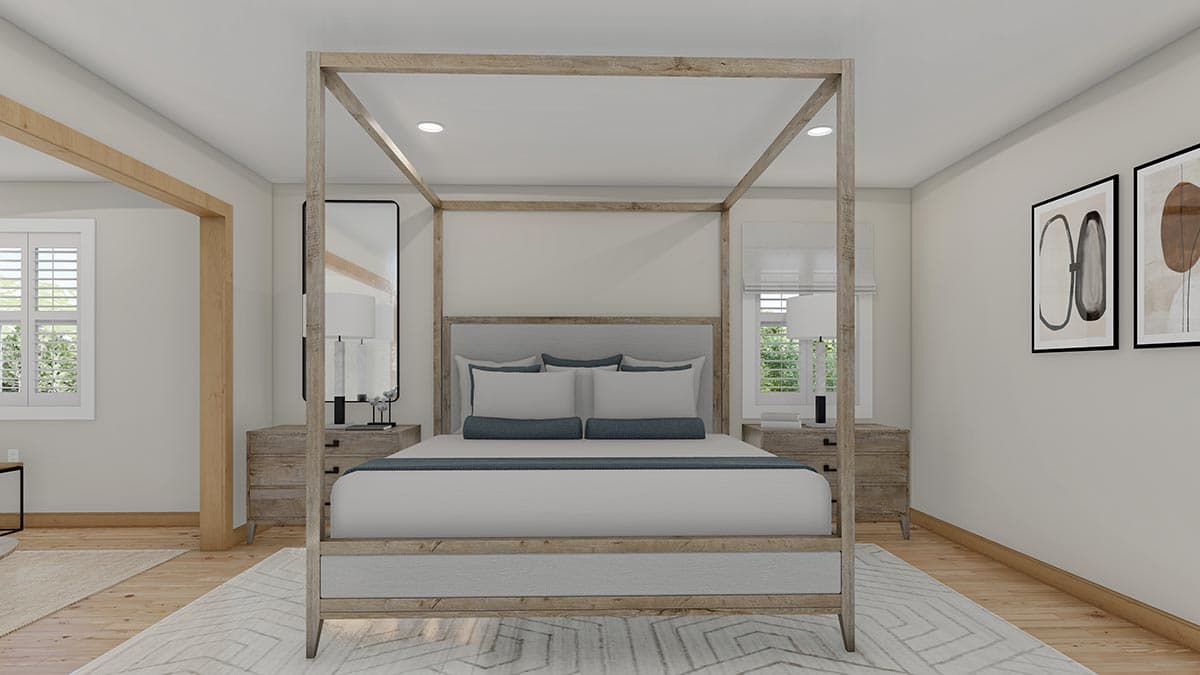

  • On the second floor, three of the bedrooms have nice walk-in closets.
  • The laundry room on this level saves you steps.
  • Plans come with an optional lower level layout for the basement.
  • The three car garage completes this home.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

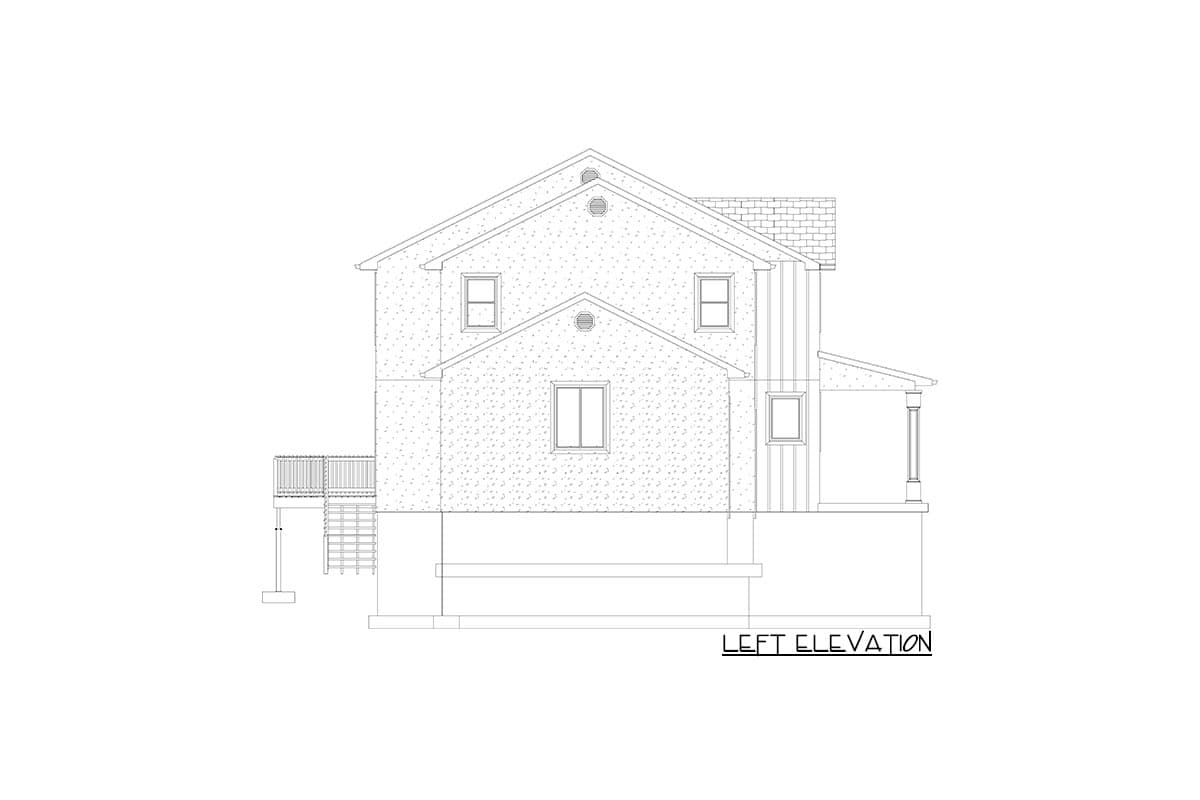

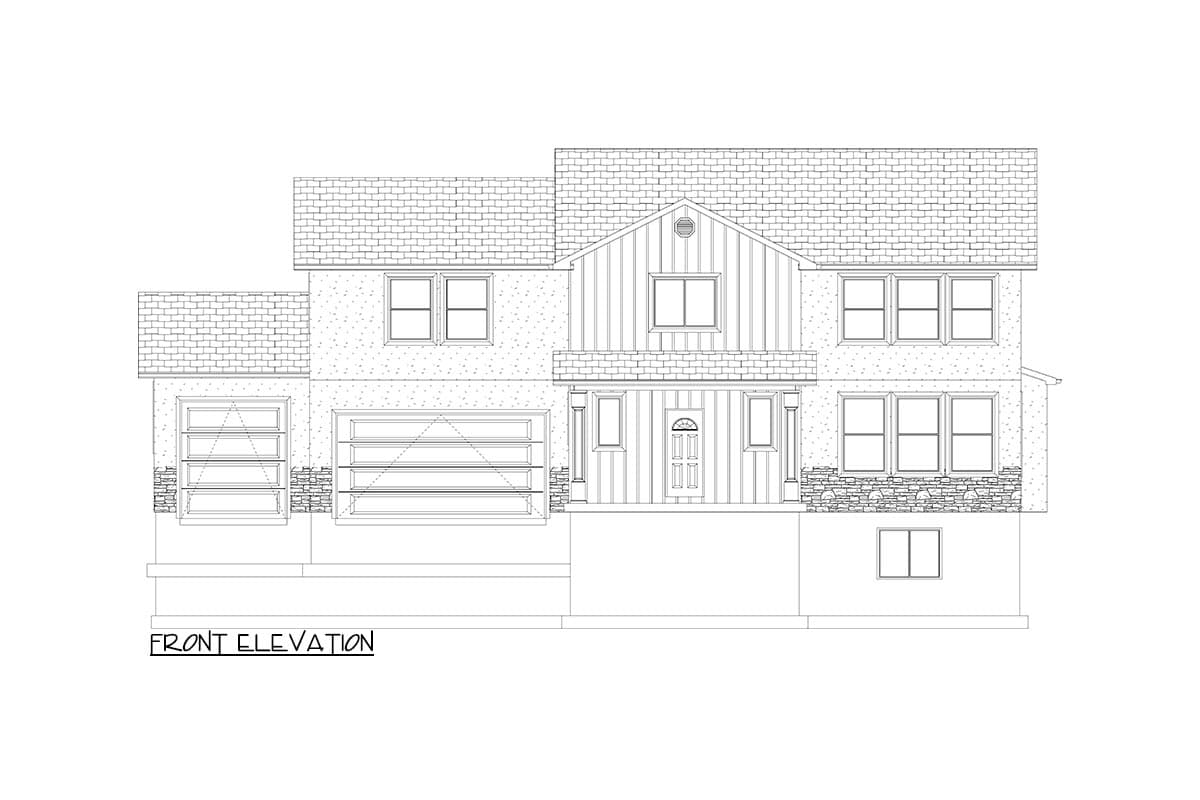

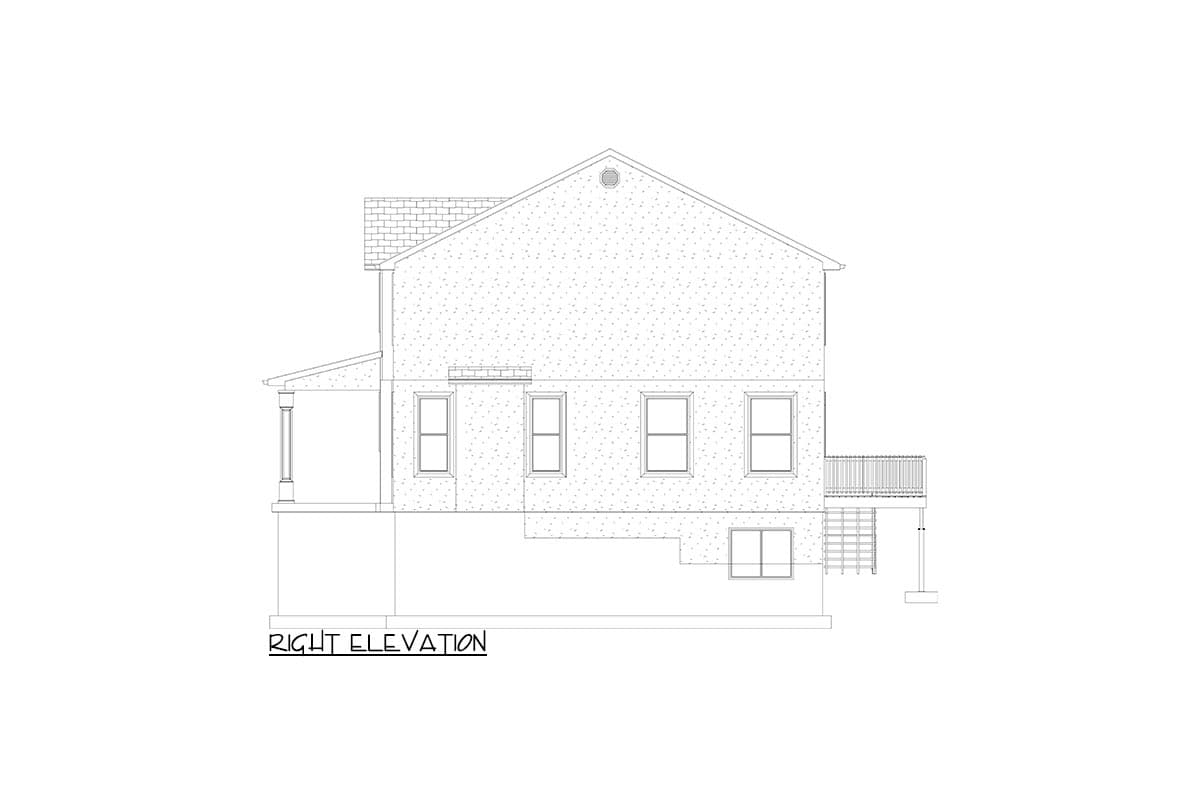

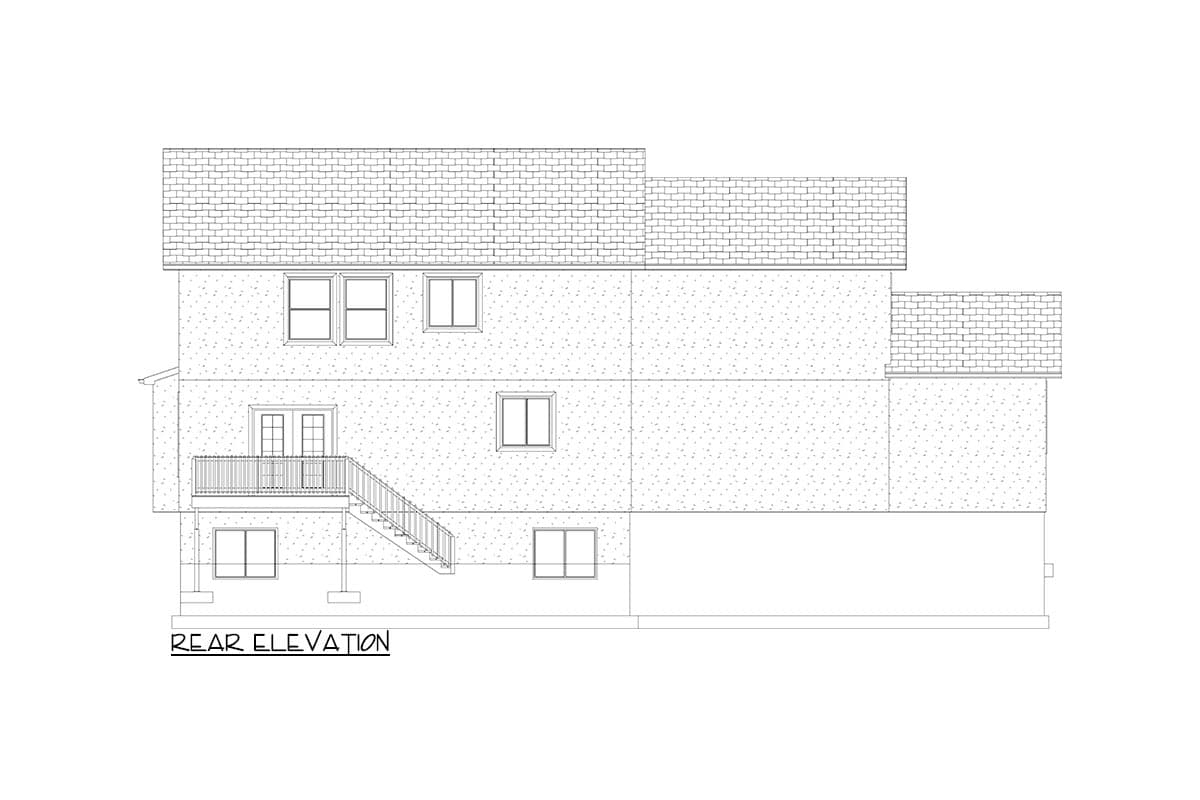

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details

Plan details



A Floor Plan that Flows

  • 2,864

    Heated s.f.

  • 4 - 5

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,075
  • PDF - Single-Build $1,150
  • 5 Sets + PDF $1,350
  • CAD - Single-Build $1,995
  • View all purchase option online

About This Plan

  • No room is closed off on the main floor of this Traditional home plan with attractive vertical siding on the front gable.
  • The big porch shelters you as you enter the home.
  • The living room, dining room and kitchen all flow into each other.
  • On the second floor, three of the bedrooms have nice walk-in closets.
  • The laundry room on this level saves you steps.
  • Plans come with an optional lower level layout for the basement.
  • The three car garage completes this home.

Floor Plans

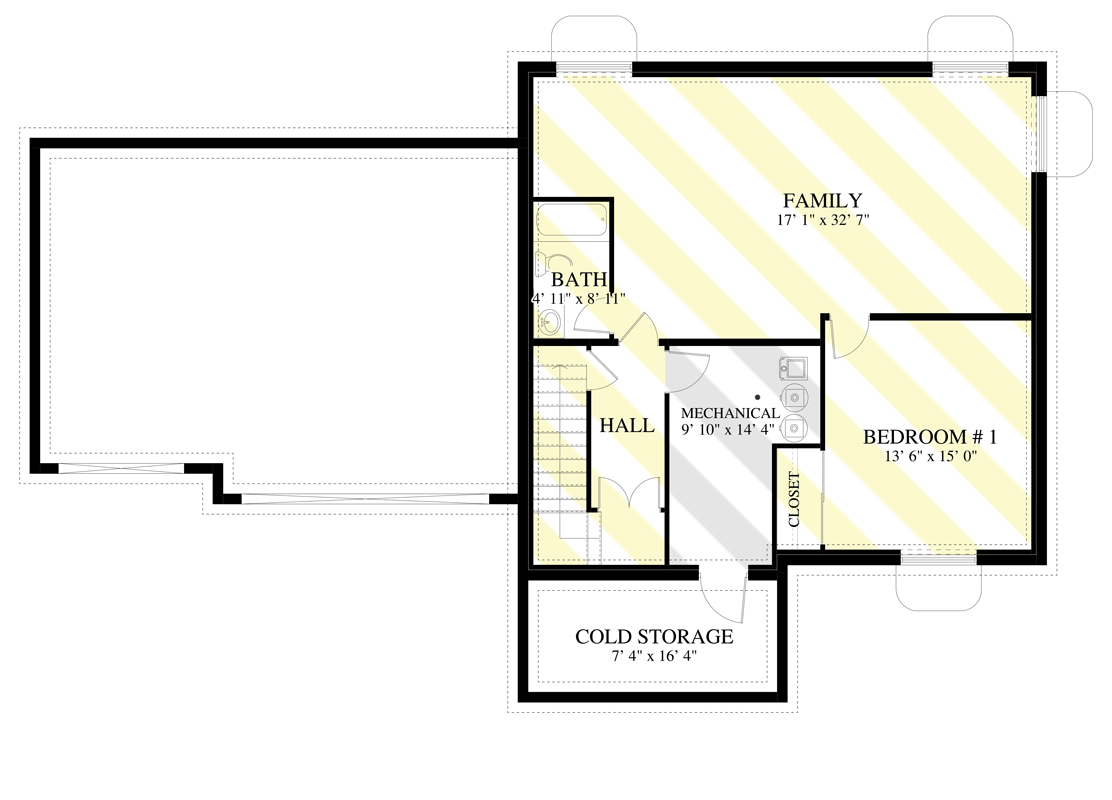

  • Basement

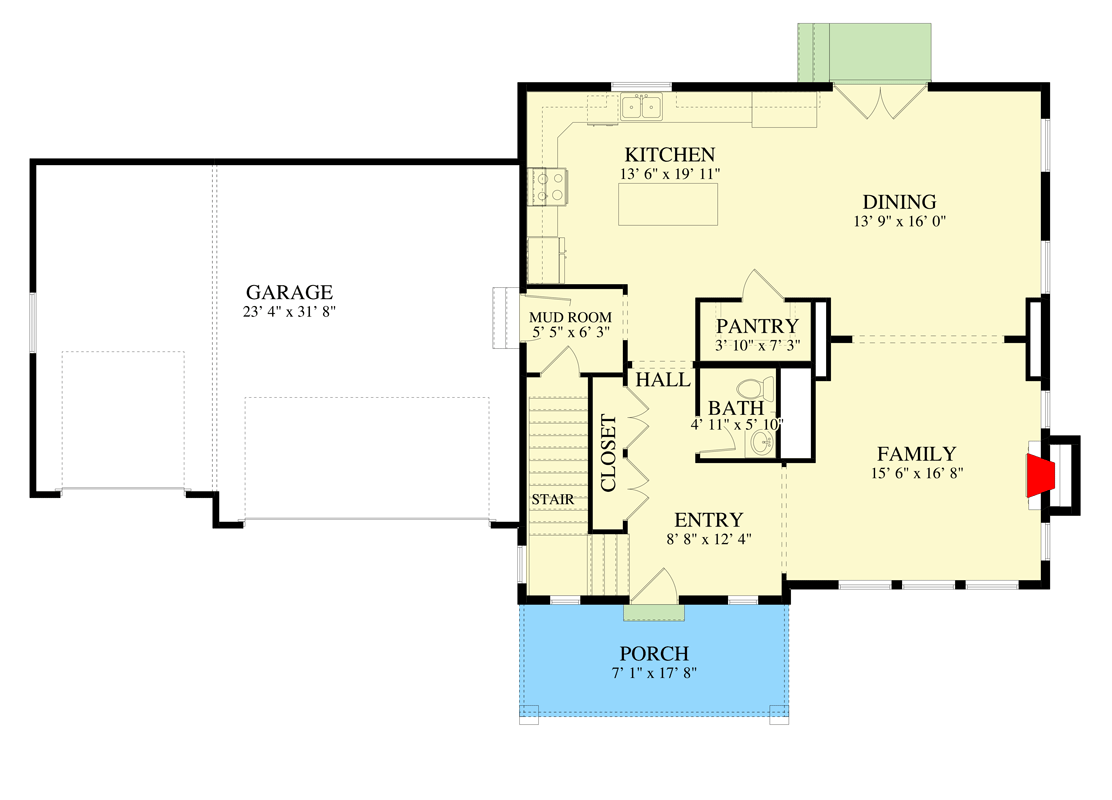

  • Main Level

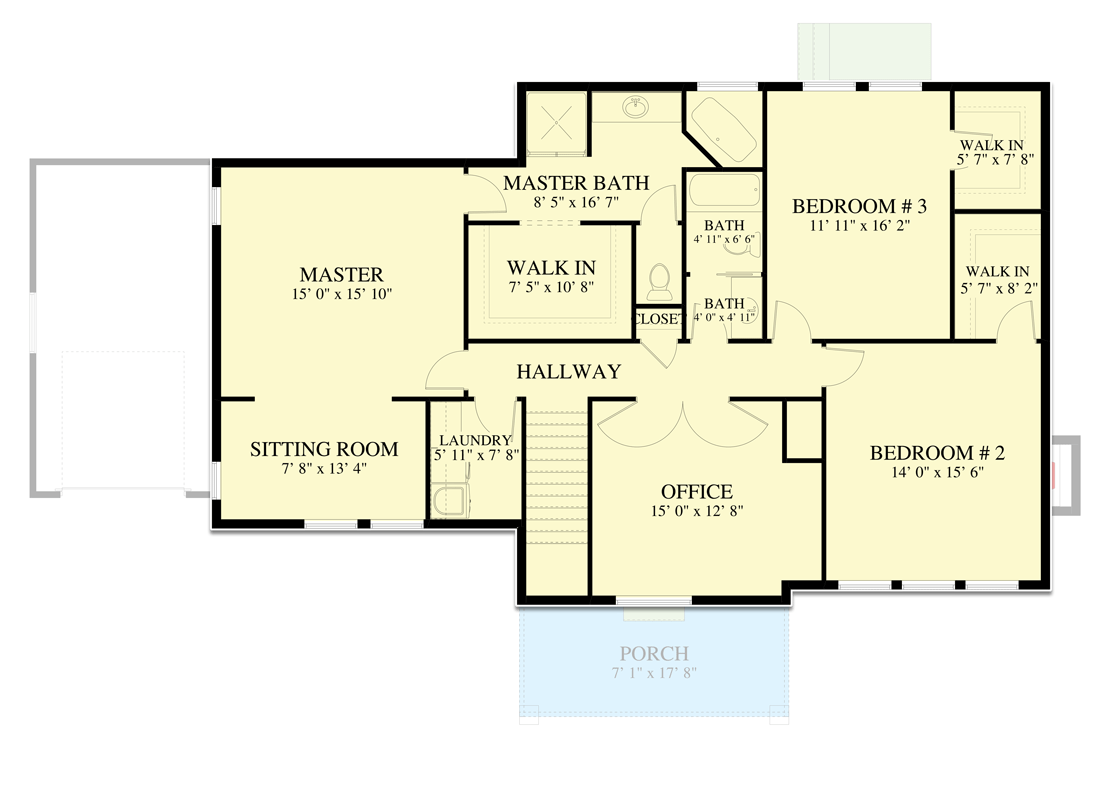

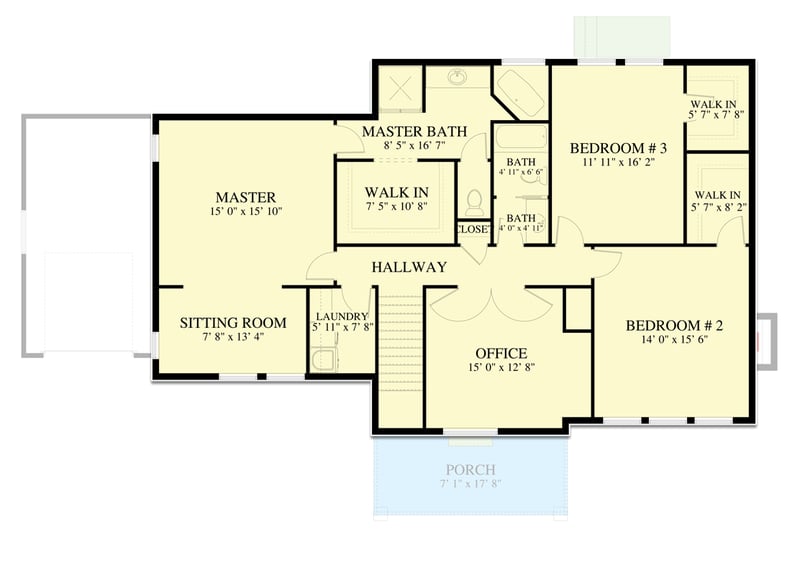

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,864 sq. ft.
  • 1st Floor: 1,200 sq. ft.
  • 2nd Floor: 1,664 sq. ft.
  • Basement Unfinished: 1,161 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 8"
  • Depth: 34' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 740 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
