Plan 490167NAH

A-Frame House Plan with Loft and Two-Story Great Room

Heated S.F.
1,870
Beds
3
Baths
2
Stories
2

Floor Plan

Plan 490167NAH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 490167NAH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

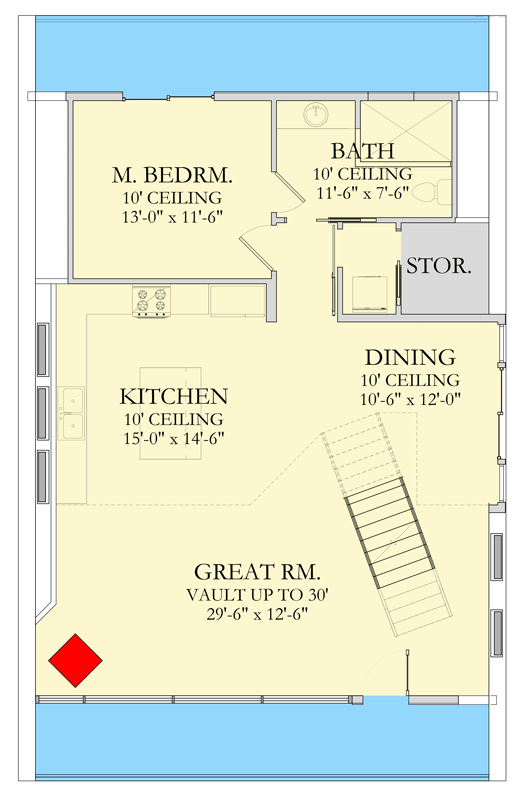

Plan 490167NAH: A-Frame House Plan with Loft and Two-Story Great Room - Floor Plan - Main Level - A-Frame, Mountain

2nd Floor

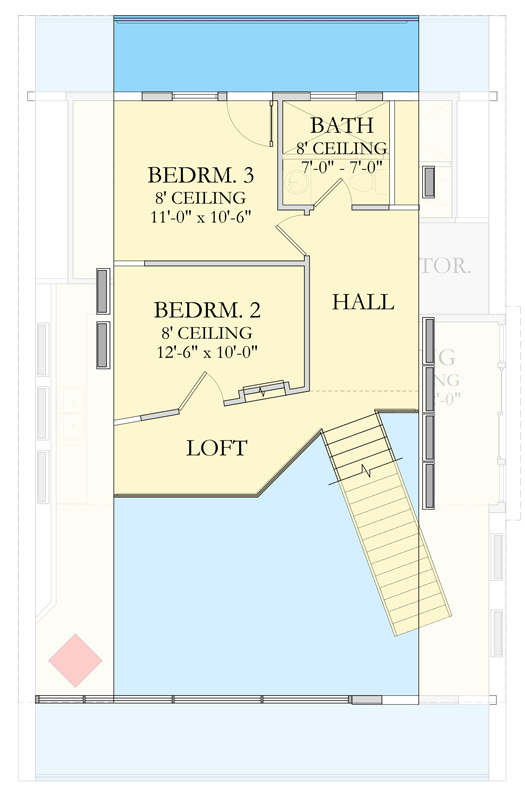

Plan 490167NAH: A-Frame House Plan with Loft and Two-Story Great Room - Floor Plan - 2nd Floor - A-Frame, Mountain

Plan Details

  • Discover a captivating 1,870 sq. ft. A-Frame home plan featuring 3 bedrooms, 2 baths, and an impressive 422 sq. ft. deck, all wrapped in striking design.
  • Enter into the expansive two-story great room with soaring ceilings and abundant natural light, setting the tone for this delightful open-concept layout.
  • The main floor includes a spacious kitchen and dining area, perfect for everyday living, alongside a cozy breakfast nook for morning gatherings.
  • The master suite is conveniently situated on the first floor, offering privacy and easy access, while the secondary bedrooms are located upstairs alongside a charming loft.
  • Outside, enjoy the serene beauty of your surroundings from the generous deck space, seamlessly connecting indoor and outdoor living.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,870 sq. ft.

1st Floor

1,148 sq. ft.

2nd Floor

722 sq. ft.

Deck

422 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 0"

Depth

40' 0"

Max Ridge Height

32' 0"

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

24 on 12

Architectural Style

A-Frame

Mountain

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,870 sq. ft.

1st Floor

1,148 sq. ft.

2nd Floor

722 sq. ft.

Deck

422 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 0"

Depth

40' 0"

Max Ridge Height

32' 0"

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

24 on 12

Architectural Style

A-Frame

Mountain

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room
