Lake Home Plan with Large Deck - 1230 Sq Ft
Heated S.F.
1,230
Beds
3
Baths
2
Stories
1
What's Included
Plan Details
  • This is a grand vacation or retirement home, designed for views and the outdoor lifestyle. The full-width deck complements the abundant windows in rooms facing it.
  • The living room is made for gathering with a vaulted ceiling, a fireplace and full-height windows overlooking the deck.
  • Open to this living space is the dining room with sliding glass doors to the outdoors and a pass-through counter to the U-shaped kitchen.
  • Two family bedrooms in the middle of the plan share a full bath. The master suite has a private bath and deck views.
What's Included
  • Front perspective
  • Foundation plan
  • Fully dimensioned floor plans
  • Cross sections
  • Floor structural supports
  • Electrical plans
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Lake Home Plan with Large Deck - 1230 Sq Ft

  • 1,230

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

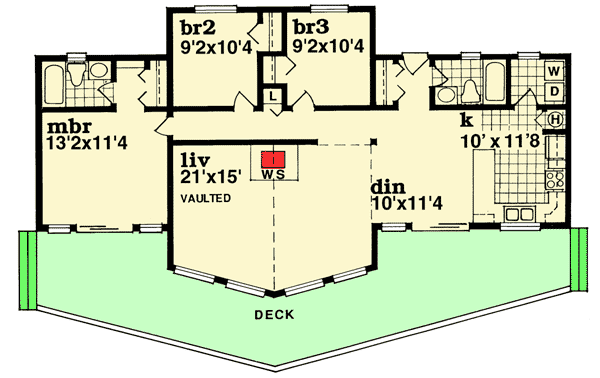

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,230 sq. ft.
  • 1st Floor: 1,230 sq. ft.

Dimensions

  • Width: 55' 6"
  • Depth: 30' 0"
  • Max ridge height: 16' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
