Plan 9314EL A Touch of Tudor

3,858 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

A Touch of Tudor

Plan 9314EL

  • 3,858

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

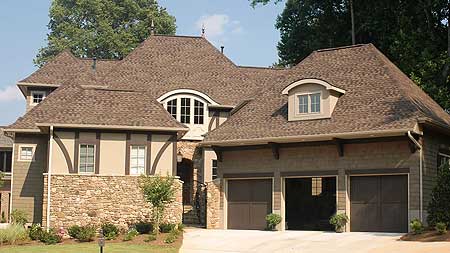

  • Stone and stucco give this house plan a Tudor style exterior. Windows with arched roof lines and decorative wood framing make this design reminiscent of homes in the English countryside.
  • An arched stone entry leads to a dramatic two-story courtyard. Beyond the courtyard, an entry foyer and gallery direct you to a great room with fireplace. Two columns, lining each side of the gallery, create a formal space for the kitchen on the right and for the morning room on the left.
  • A main level master suite with master bath, spa tub and spacious walk-in closet is privately located in the left wing of this house plan.
  • The upper level has three additional bedrooms, two baths, and a game room. There is even a bonus area above the three car garage for future expansion.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

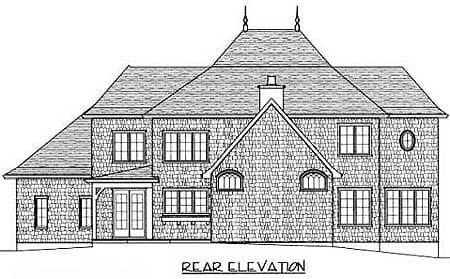

  • Front & Rear Elevation

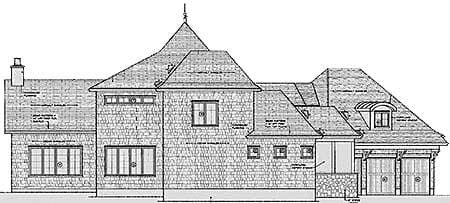

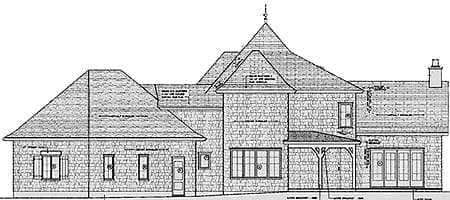

  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

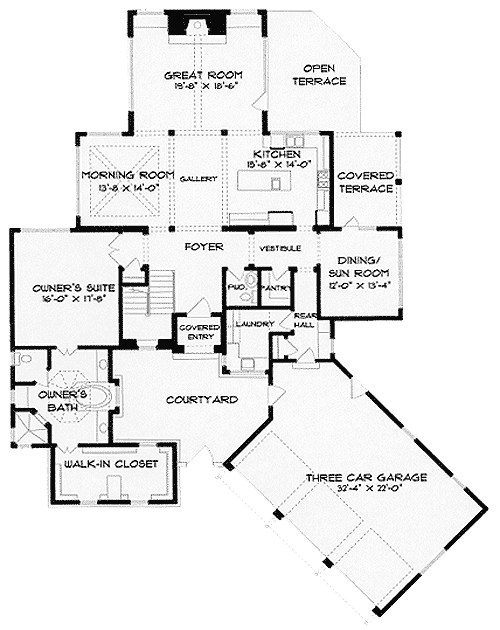

A Touch of Tudor - 9314EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

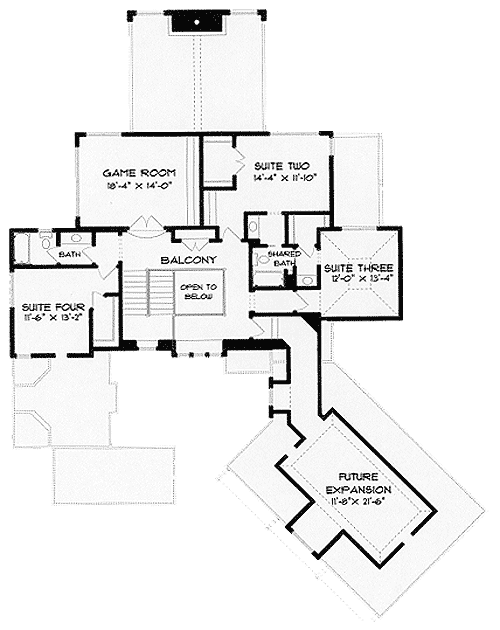

A Touch of Tudor - 9314EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,858 sq. ft.
  • 1st Floor: 2,420 sq. ft.
  • 2nd Floor: 1,438 sq. ft.
  • Porch, Combined: 251 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 71' 9"
  • Depth: 93' 0"
  • Max ridge height: 36' 0"

Garage

  • Type: Attached
  • Area: 711 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

A Touch of Tudor

  • 3,858

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • CAD+PDF - Single-Build $2,750
  • PDF - Unlimited Build $2,945
  • CAD - Unlimited Build $3,600
  • View all purchase option online

About This Plan

  • Stone and stucco give this house plan a Tudor style exterior. Windows with arched roof lines and decorative wood framing make this design reminiscent of homes in the English countryside.
  • An arched stone entry leads to a dramatic two-story courtyard. Beyond the courtyard, an entry foyer and gallery direct you to a great room with fireplace. Two columns, lining each side of the gallery, create a formal space for the kitchen on the right and for the morning room on the left.
  • A main level master suite with master bath, spa tub and spacious walk-in closet is privately located in the left wing of this house plan.
  • The upper level has three additional bedrooms, two baths, and a game room. There is even a bonus area above the three car garage for future expansion.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,858 sq. ft.
  • 1st Floor: 2,420 sq. ft.
  • 2nd Floor: 1,438 sq. ft.
  • Porch, Combined: 251 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 71' 9"
  • Depth: 93' 0"
  • Max ridge height: 36' 0"

Garage

  • Type: Attached
  • Area: 711 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
