Plan 860006MCD

Acadian Beauty with Spacious Rear Porch

Pageloader

Acadian Beauty with Spacious Rear Porch

Plan 860006MCD

  • 1,869

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

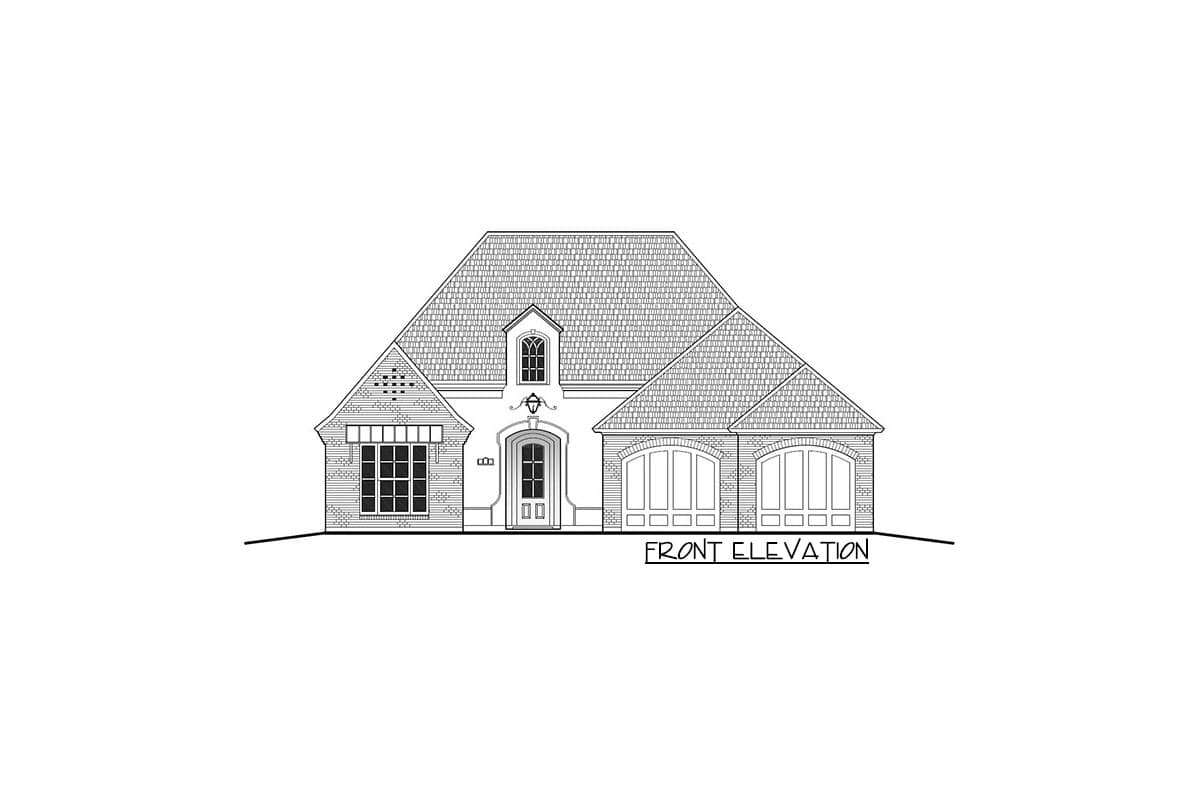

  • The dormer over the front entrance brings attention to the beautiful hip roof of this Southern house plan.
  • From the foyer you enter into the living room with its cathedral ceiling and big fireplace.
  • A large arch begins the transition to the kitchen and the kitchen island.
  • The open layout keeps you connected with gatherings in the living room and the dining area.
  • A pocket home office off the dining area is centrally located.
  • The very generous rear porch is perfect for entertaining or just enjoying the outdoors.
  • The master bedroom is located at the rear of the house away from the rest of the house giving it the maximum privacy.
  • Homeowners get a whirlpool tub, separate shower, two sink vanity, linen cabinet and a private toilet compartment.

This set of working drawings contains the following components

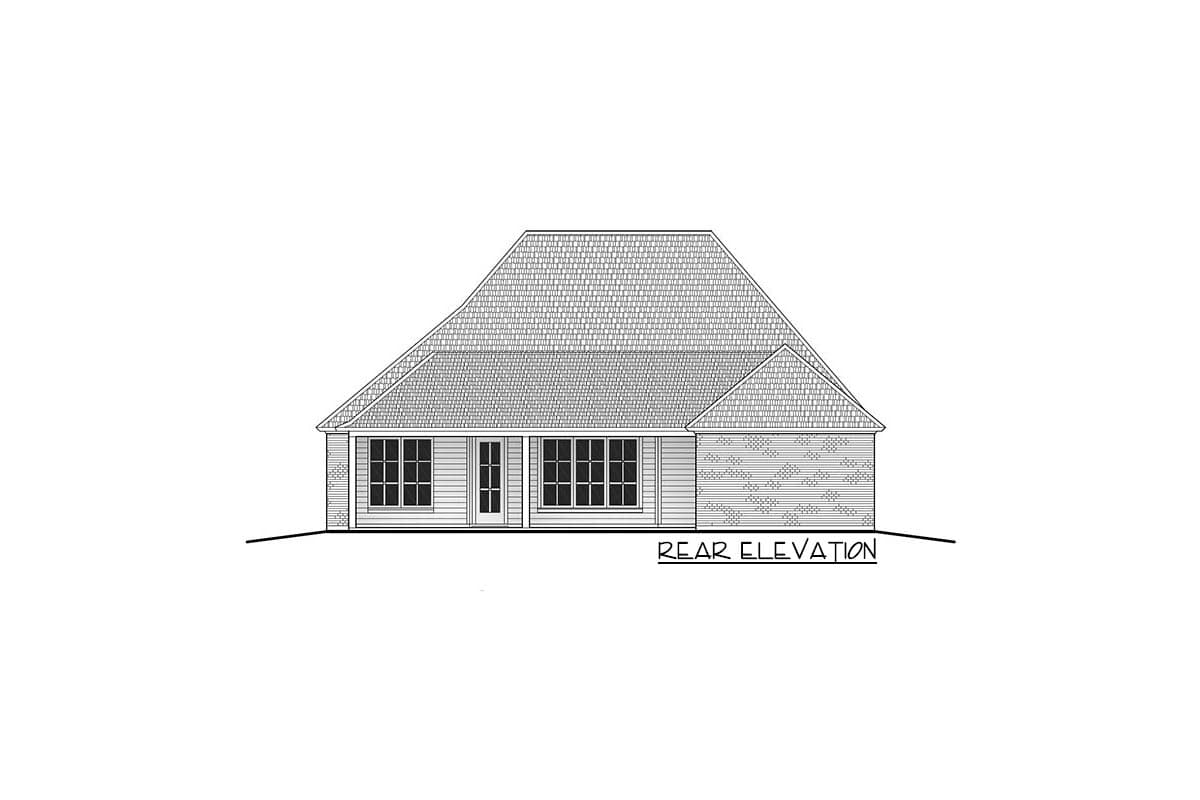

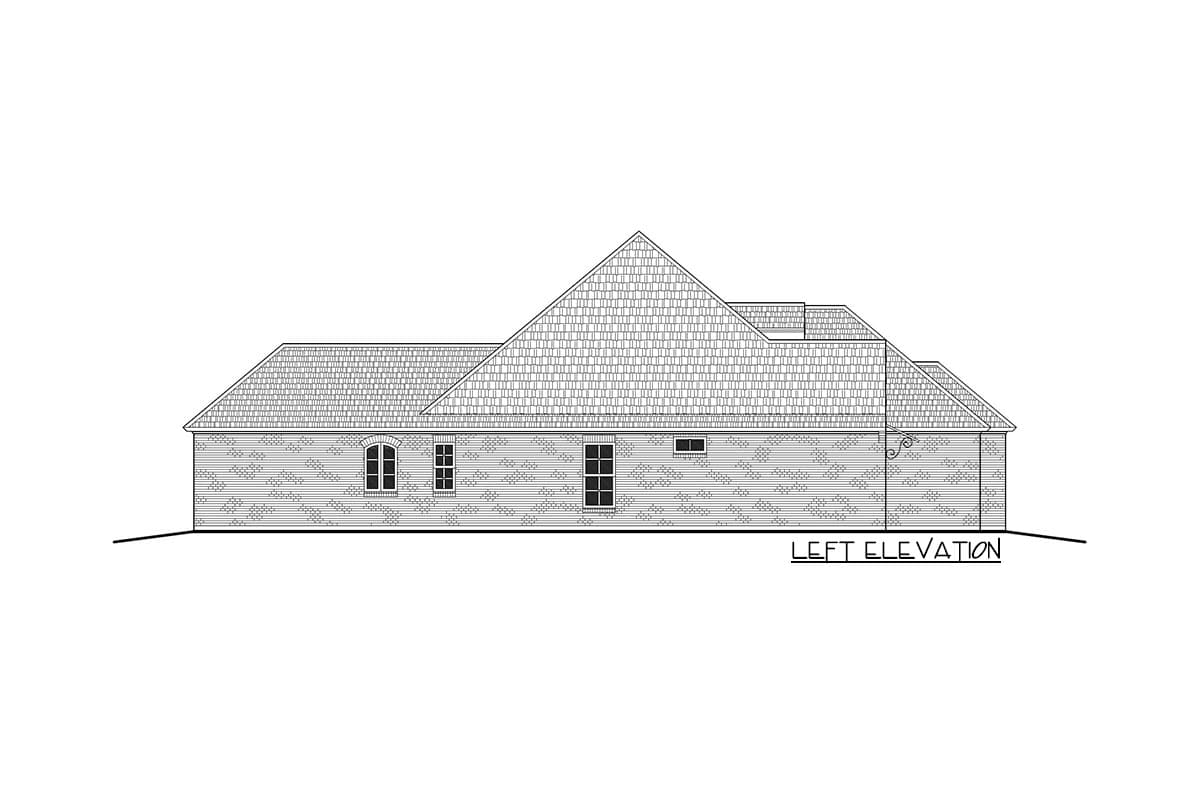

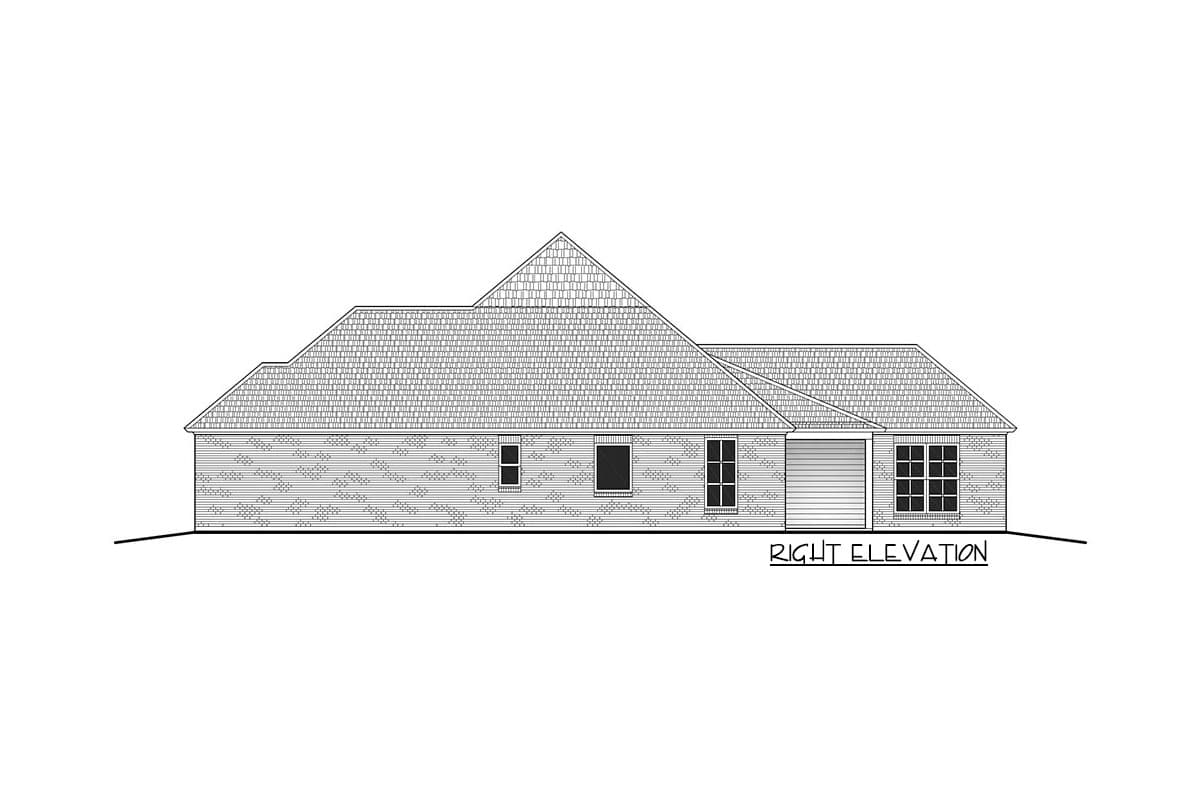

  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes

Floor Plan

Plan details



Acadian Beauty with Spacious Rear Porch

  • 1,869

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $995
  • 5 Sets $1,075
  • 8 Sets $1,125
  • View all purchase option online

About This Plan

  • The dormer over the front entrance brings attention to the beautiful hip roof of this Southern house plan.
  • From the foyer you enter into the living room with its cathedral ceiling and big fireplace.
  • A large arch begins the transition to the kitchen and the kitchen island.
  • The open layout keeps you connected with gatherings in the living room and the dining area.
  • A pocket home office off the dining area is centrally located.
  • The very generous rear porch is perfect for entertaining or just enjoying the outdoors.
  • The master bedroom is located at the rear of the house away from the rest of the house giving it the maximum privacy.
  • Homeowners get a whirlpool tub, separate shower, two sink vanity, linen cabinet and a private toilet compartment.

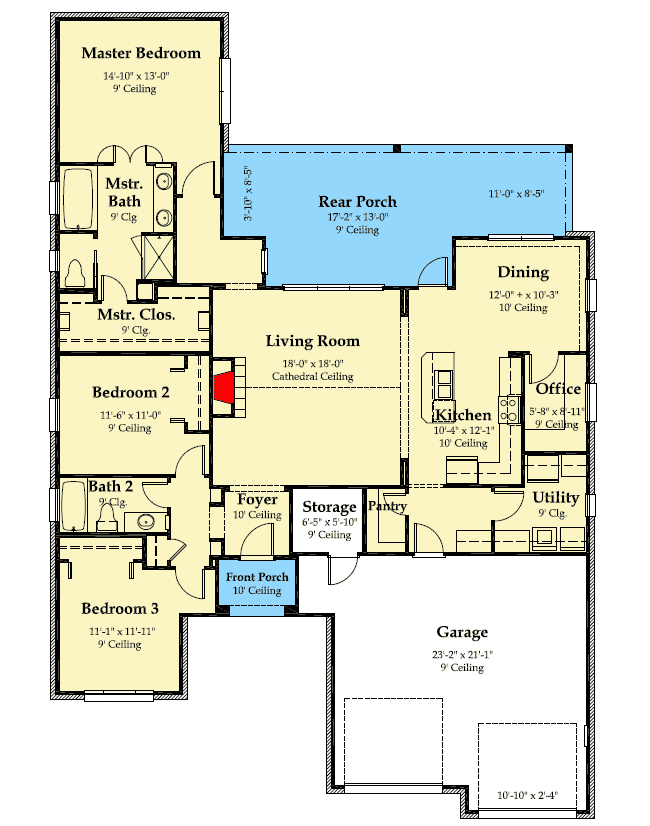

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,869 sq. ft.
  • 1st Floor: 1,869 sq. ft.
  • Porch, Combined: 386 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 74' 2"

Garage

  • Type: Attached
  • Area: 623 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front
