Acadian Home Plan with Private Master Retreat

Name: Plan 56307SM: Acadian Home Plan with Private Master Retreat
Brand: Architectural Designs
SKU: 56307SM
Price: 1295.0 USD
Availability: InStock

Heated S.F.

2,493

Beds

Baths

Stories

Cars

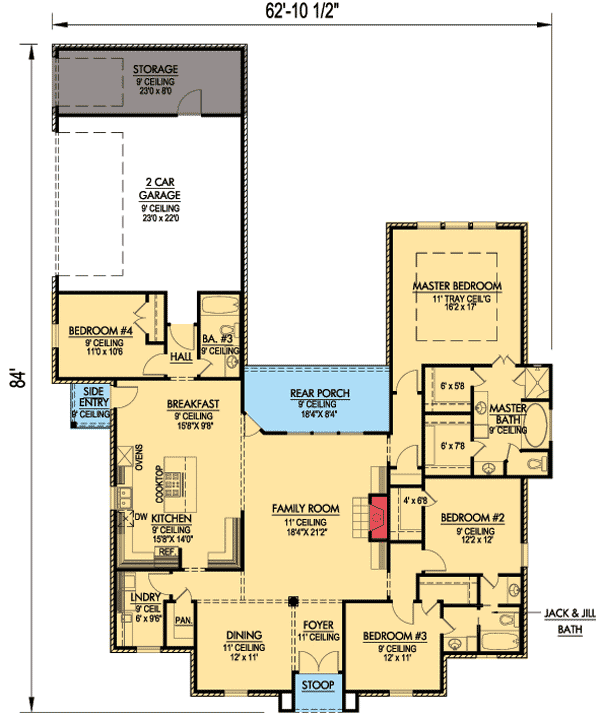

Floor Plan

Main Level

Plan Details

From the balanced facade to the decorative shutters and steep hip roof, this French Country home plan is true to its roots.
Double doors usher you into the foyer with sweeping views of the formal dining room and large family room to greet you.
The kitchen is enormous with a big center island that gives extra counter space.
The family bedrooms are off to the right, each with a large walk-in closet.
Guests will enjoy the privacy of a separate guest suite near the kitchen.
The crown jewel of the home is the private master retreat with its tray ceiling and over-sized spa bath.
NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
