Plan 510057WDY Acadian House Plan with 3-Car Courtyard Garage

2,705 4 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Acadian House Plan with 3-Car Courtyard Garage

Plan 510057WDY

  • 2,705

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A carefree brick exterior with timber accents - and a 3-car courtyard-entry garage - welcome you to this 4-bed Acadian-style house plan.
  • French doors open to the foyer which has views through the living room and the porch beyond. A fireplace in the living room can been all the way across the home to the kitchen.
  • Two bedrooms are located on the left of the home and share a Jack and Jill bath. The master suite is located across the home and a fourth bedroom is tucked away by the front (this one would make a nice home office).
  • A pocket office gives you a dedicated space to organize your affairs and a mud room with built-ins helps contain clutter.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

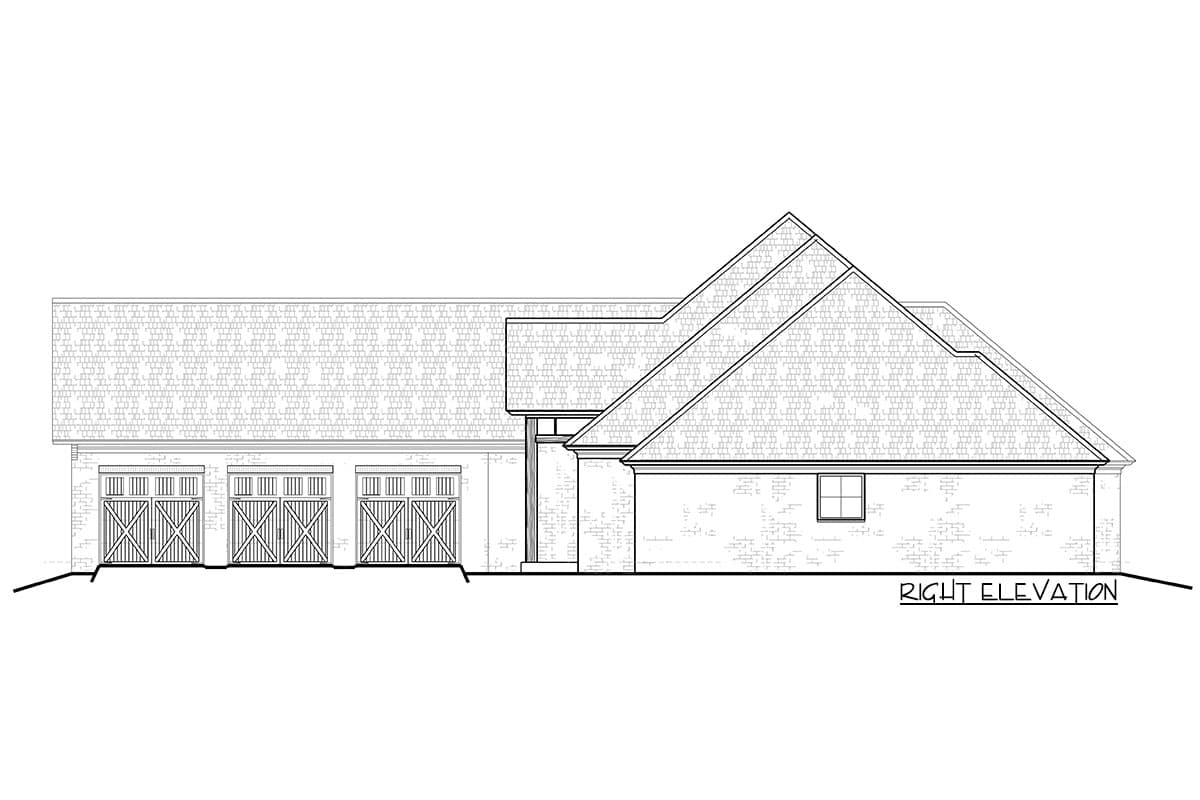

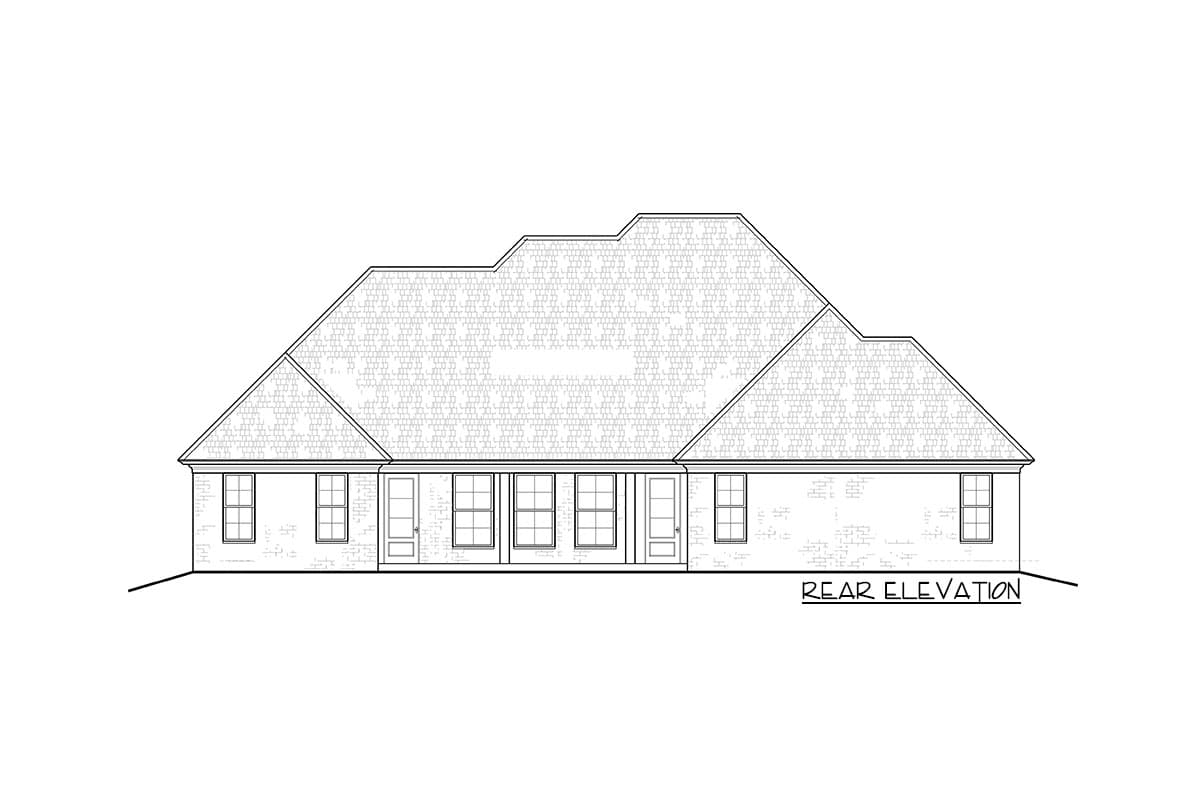

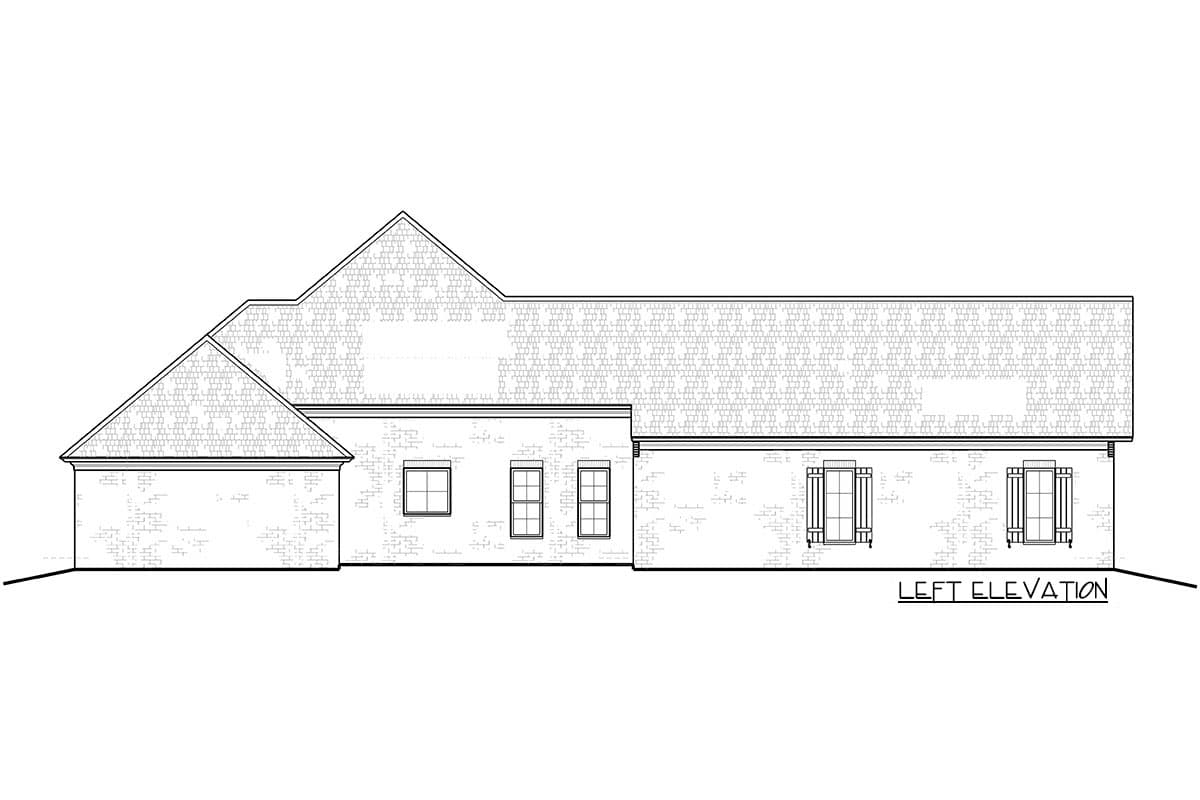

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

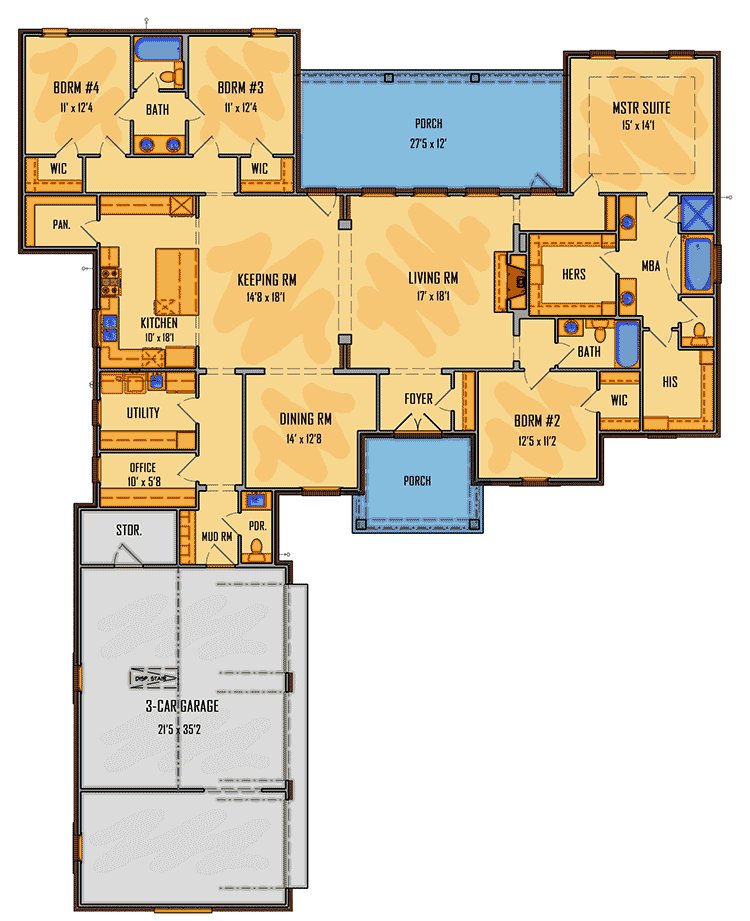

Acadian House Plan with 3-Car Courtyard Garage - 510057WDY floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,705 sq. ft.
  • 1st Floor: 2,705 sq. ft.
  • Porch, Combined: 464 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 92' 2"
  • Depth: 73' 4"

Garage

  • Type: Attached
  • Area: 844 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Acadian House Plan with 3-Car Courtyard Garage

  • 2,705

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $800
  • 8 Sets $900
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • CAD + PDF - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • A carefree brick exterior with timber accents - and a 3-car courtyard-entry garage - welcome you to this 4-bed Acadian-style house plan.
  • French doors open to the foyer which has views through the living room and the porch beyond. A fireplace in the living room can been all the way across the home to the kitchen.
  • Two bedrooms are located on the left of the home and share a Jack and Jill bath. The master suite is located across the home and a fourth bedroom is tucked away by the front (this one would make a nice home office).
  • A pocket office gives you a dedicated space to organize your affairs and a mud room with built-ins helps contain clutter.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,705 sq. ft.
  • 1st Floor: 2,705 sq. ft.
  • Porch, Combined: 464 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 92' 2"
  • Depth: 73' 4"

Garage

  • Type: Attached
  • Area: 844 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 510057WDY
View this and more for this plan by visiting www.architechtecturaldesigns.com/510057WDY
|
