Plan 56362SM

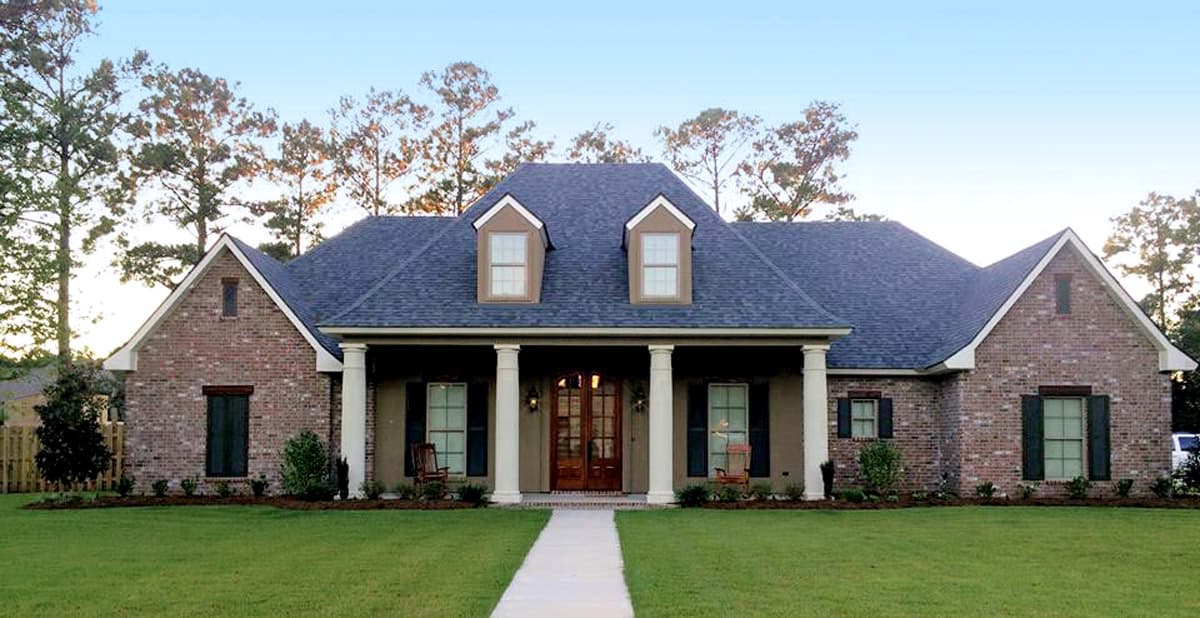

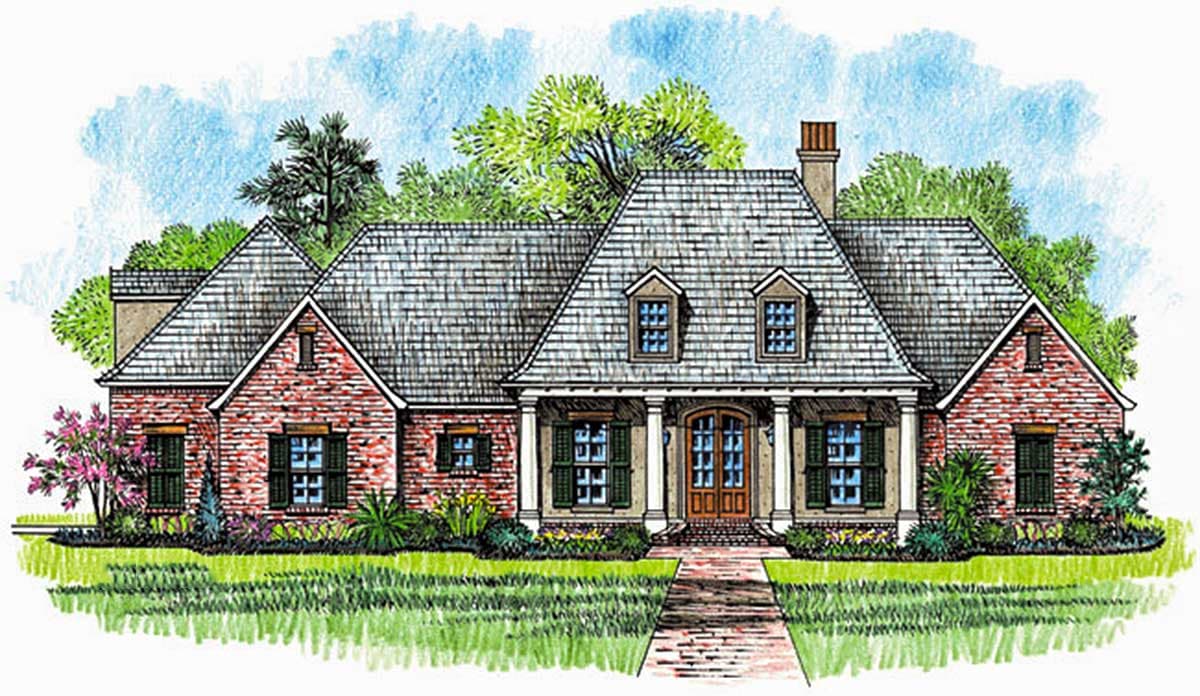

Acadian House Plan with Exposed Wood Beams
Heated S.F.
3,303
Beds
4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 56362SM

Main Level
slide image 0
Bonus
slide image 1

Plan 56362SM

1-800-854-7852

1-262-521-4596

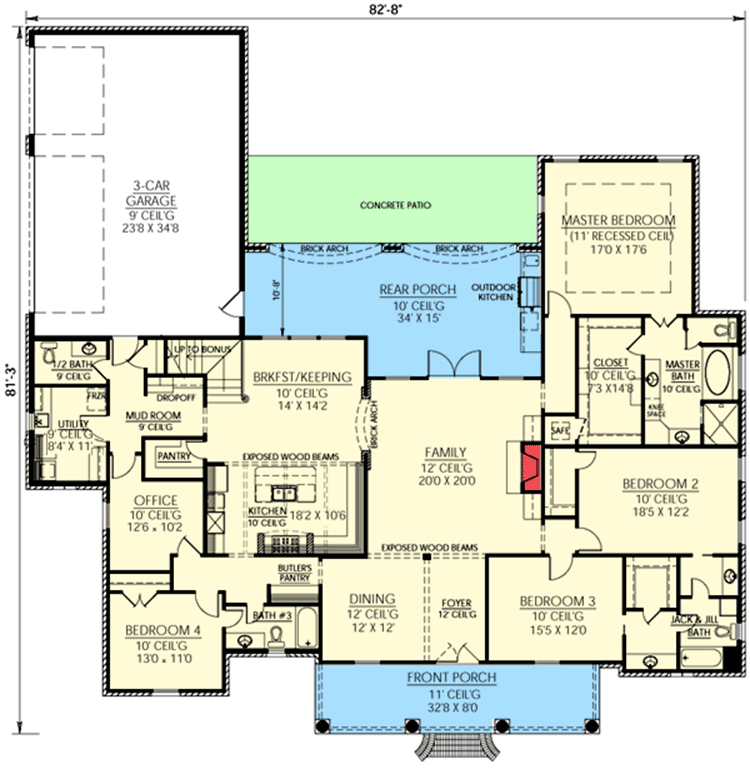

Main Level
floor plan image Main Level

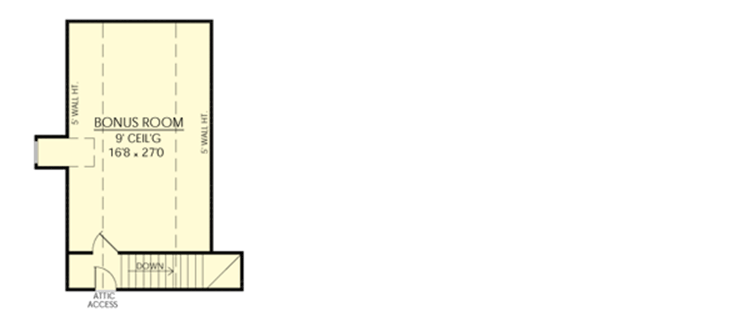

Bonus
floor plan image Bonus
Plan Details
  • Old World charm is added to this French Country home plan with the use of exposed wood beams.
  • Only a column separates the formal dining room from the foyer and family room so you gain wonderful views from room to room.
  • The brick arch in between the enormous kitchen and family room adds even more charm.
  • All the bedrooms are very large and each has a walk-in closet.
  • The master suite is set off by itself in back of the home with a built-in safe off the master closet.
  • More brick arches can be found on the rear covered porch with its delightful outdoor kitchen.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,303 sq. ft.

1st Floor

3,303 sq. ft.

Bonus

519 sq. ft.

Porch, Front

260 sq. ft.

Porch, Rear

455 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 8"

Depth

81' 3"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

817 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Architectural Style

Acadian

Plan Collections

Square Footage Breakdown

Total Heated Area

3,303 sq. ft.

1st Floor

3,303 sq. ft.

Bonus

519 sq. ft.

Porch, Front

260 sq. ft.

Porch, Rear

455 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 8"

Depth

81' 3"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

817 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12
