Plan 56397SM

Acadian House Plan with Open Floor Plan

Pageloader

Acadian House Plan with Open Floor Plan

Plan 56397SM

  • 2,207

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Acadian style house plan has a popular bedroom layout and an open floor plan with a formal dining room and a separate breakfast area.
  • It has 3 bedrooms, plus a study, two full and one half bath and the kids get their own Jack-and-Jill to share.
  • The formal dining room features round columns with arches and an 11' ceiling to set it off, and the living room and foyer have 12' ceilings.
  • The rear porch is spacious, and has a great view of a lake or back yard!
  • The roof pitch is 9:12.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.

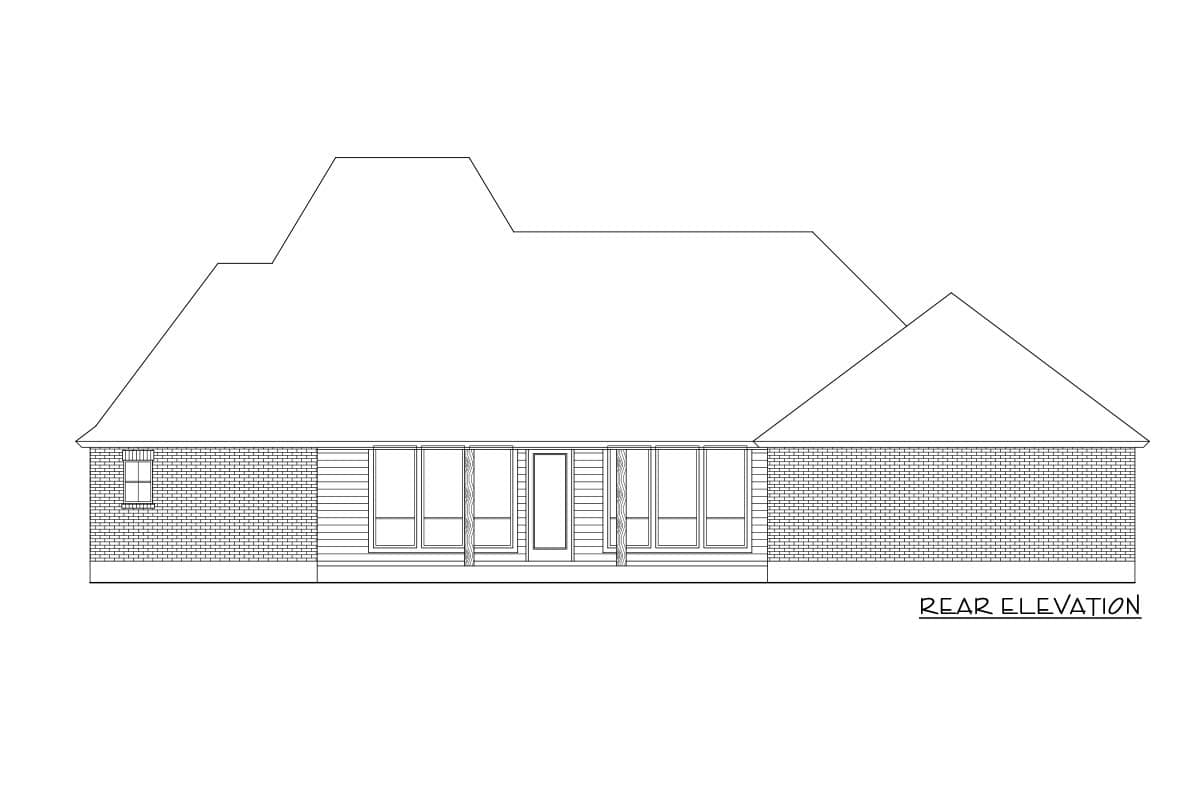

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

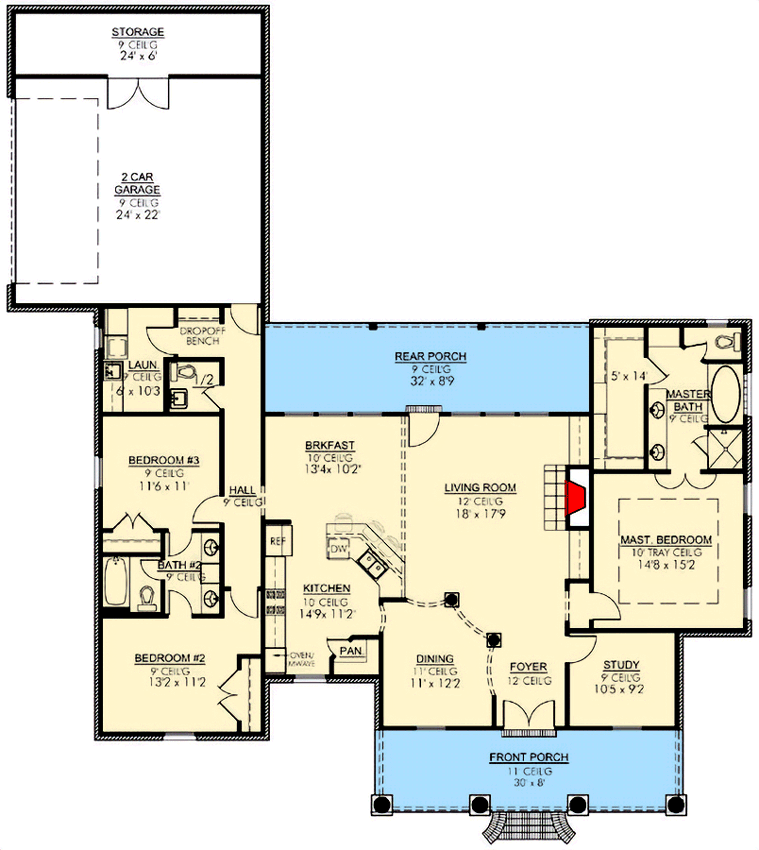

Floor Plan

Plan details



Acadian House Plan with Open Floor Plan

  • 2,207

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $875
  • 6 Sets $975
  • 5 Sets PLUS $1,175
  • CAD $1,875
  • CAD - multi-use $2,270
  • View all purchase option online

About This Plan

  • This Acadian style house plan has a popular bedroom layout and an open floor plan with a formal dining room and a separate breakfast area.
  • It has 3 bedrooms, plus a study, two full and one half bath and the kids get their own Jack-and-Jill to share.
  • The formal dining room features round columns with arches and an 11' ceiling to set it off, and the living room and foyer have 12' ceilings.
  • The rear porch is spacious, and has a great view of a lake or back yard!
  • The roof pitch is 9:12.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,207 sq. ft.
  • 1st Floor: 2,207 sq. ft.
  • Storage: 220 sq. ft.
  • Porch, Front: 237 sq. ft.
  • Porch, Rear: 280 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 72' 6"
  • Depth: 78' 7"

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
