Plan 56409SM
Acadian House Plan with Open Layout
Heated S.F.
1,816
Beds
4
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Southern charm rules the outside of this Acadian house plan that offers wonderful sight-lines inside, thanks to the open floor plan.
  • From the big kitchen you can see the foyer, dining room and family room all at once.
  • With a large island that seats 4 people, a walk-in pantry and a window by the sink, this kitchen is a delight to work in.
  • All the rooms in the center of the house benefit from the 11' high ceilings and there's a rear covered porch to relax on.
  • The split bedroom layout gives you a quiet master suite away from the other family bedrooms.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

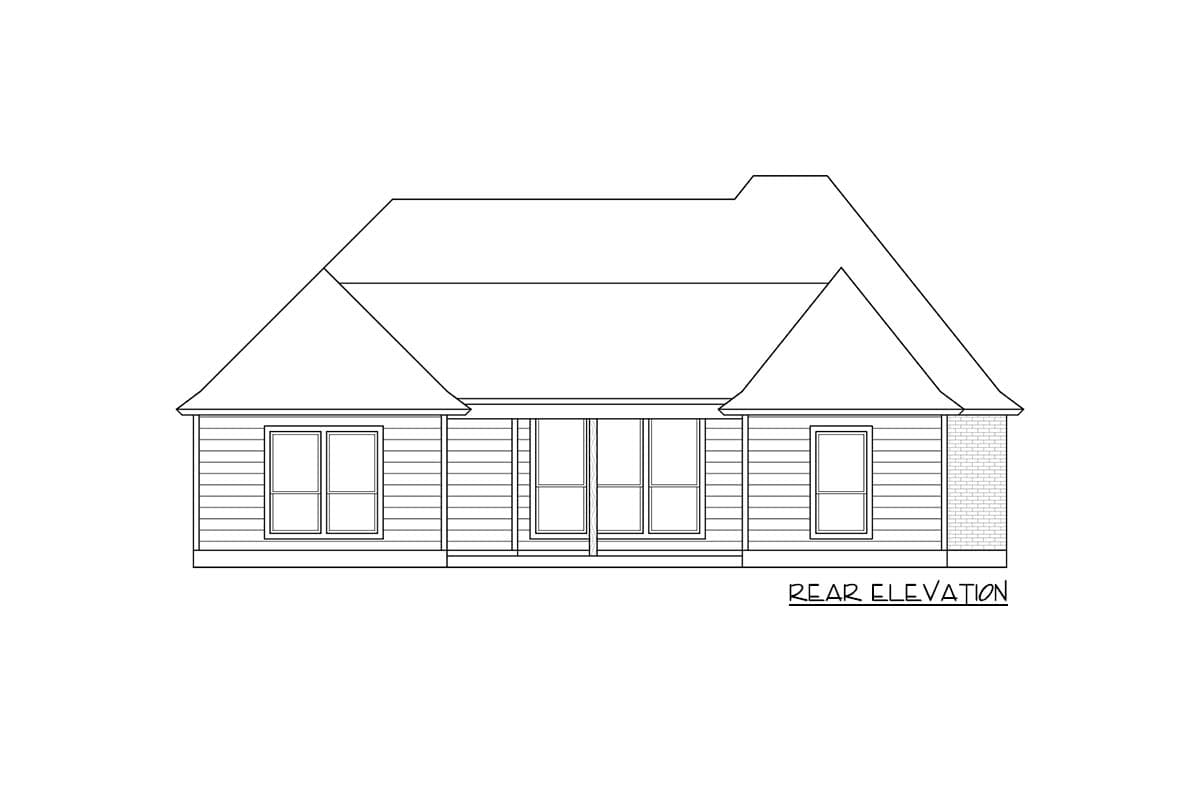

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Acadian House Plan with Open Layout

  • 1,816

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

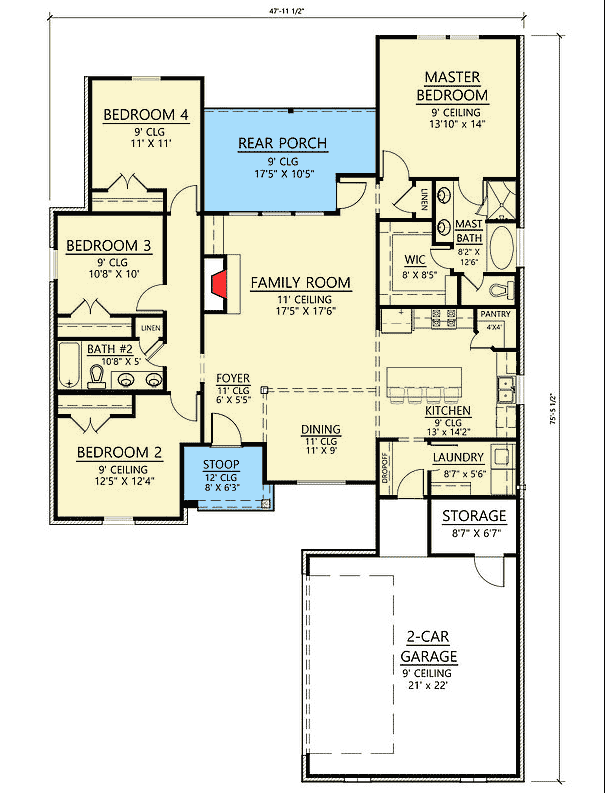

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,816 sq. ft.
  • 1st Floor: 1,816 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 75' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 602 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
