Acadian House Plan With Pine Beam Accents

Pageloader

Acadian House Plan With Pine Beam Accents

Plan 56384SM

  • 2,047

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Acadian style home plan features an open floor plan, brick column / antique pine beam accents in the foyer, kitchen, dining and living room.
  • The kitchen is large and spacious with an island for entertaining, and a cabinet pantry too.
  • The master bedroom has an 11' tray ceiling and views to the back. The master bath is beautiful with the centered tub, large shower and walk-in closet.
  • The rear half bath is closely located to the common areas of the house for guests and also close to the back of the house for outdoor activities.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Floor Plan

Plan details



Acadian House Plan With Pine Beam Accents

  • 2,047

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $825
  • 6 Sets $925
  • 5 Sets PLUS $1,125
  • CAD $1,825
  • CAD - multi-use $2,220
  • View all purchase option online

About This Plan

  • This Acadian style home plan features an open floor plan, brick column / antique pine beam accents in the foyer, kitchen, dining and living room.
  • The kitchen is large and spacious with an island for entertaining, and a cabinet pantry too.
  • The master bedroom has an 11' tray ceiling and views to the back. The master bath is beautiful with the centered tub, large shower and walk-in closet.
  • The rear half bath is closely located to the common areas of the house for guests and also close to the back of the house for outdoor activities.

Floor Plans

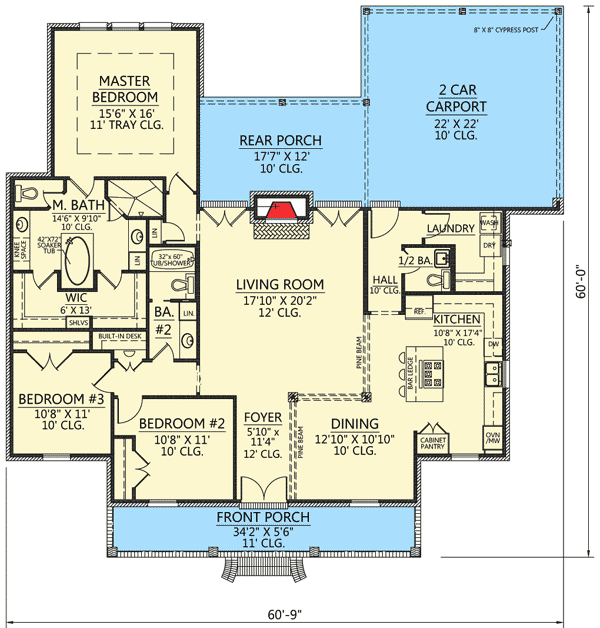

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,047 sq. ft.
  • 1st Floor: 2,047 sq. ft.
  • Porch, Front: 187 sq. ft.
  • Porch, Rear: 200 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 9"
  • Depth: 60' 0"
  • Max ridge height: 26' 3"

Garage

  • Type: Carport
  • Area: 488 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
