Plan 83875JW Acadian House Plan with Safe Room

1,708 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Acadian House Plan with Safe Room

Plan 83875JW

  • 1,708

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Three broad columns support the front porch of this Acadian house plan.
  • Inside, you get split bedrooms and a big, open floor plan that makes the home feel larger.
  • A rear covered porch is ideal for grilling and relaxing in private.
  • Homeowners will appreciate the 18' long utility room that gives you lots of counter space and a sink.
  • The quiet office is set in the middle of the house where there are no windows for distraction.
  • The large master bedroom has lots of wall space for furniture placement.
  • This home comes with a storage room in the garage and a safe room with no windows.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

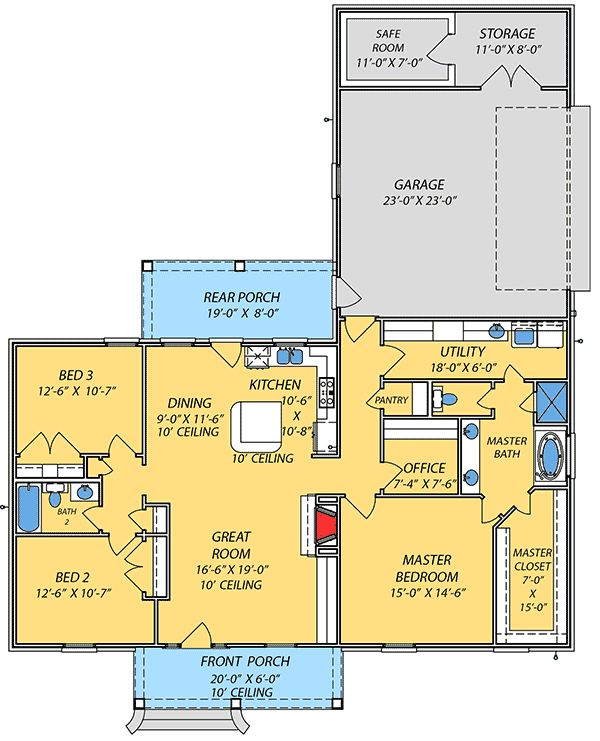

Acadian House Plan with Safe Room - 83875JW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,708 sq. ft.
  • 1st Floor: 1,708 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Monolithic Slab
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 10"
  • Depth: 69' 5"

Garage

  • Type: Attached
  • Area: 701 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Acadian House Plan with Safe Room

  • 1,708

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $845
  • 5 Sets $895
  • 5 Sets + PDF $995
  • 8 Sets $995
  • PDF - Unlimited Build $1,345
  • CAD - Single-Build $1,650
  • CAD - Unlimited Build $2,150
  • View all purchase option online

About This Plan

  • Three broad columns support the front porch of this Acadian house plan.
  • Inside, you get split bedrooms and a big, open floor plan that makes the home feel larger.
  • A rear covered porch is ideal for grilling and relaxing in private.
  • Homeowners will appreciate the 18' long utility room that gives you lots of counter space and a sink.
  • The quiet office is set in the middle of the house where there are no windows for distraction.
  • The large master bedroom has lots of wall space for furniture placement.
  • This home comes with a storage room in the garage and a safe room with no windows.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,708 sq. ft.
  • 1st Floor: 1,708 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 10"
  • Depth: 69' 5"

Garage

  • Type: Attached
  • Area: 701 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick
Plan 83875JW
View this and more for this plan by visiting www.architechtecturaldesigns.com/83875JW
|
