Plan 510218WDY
Acadian House Plan with Screened Porch and Optional Second Level
Heated S.F.
3,440
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS

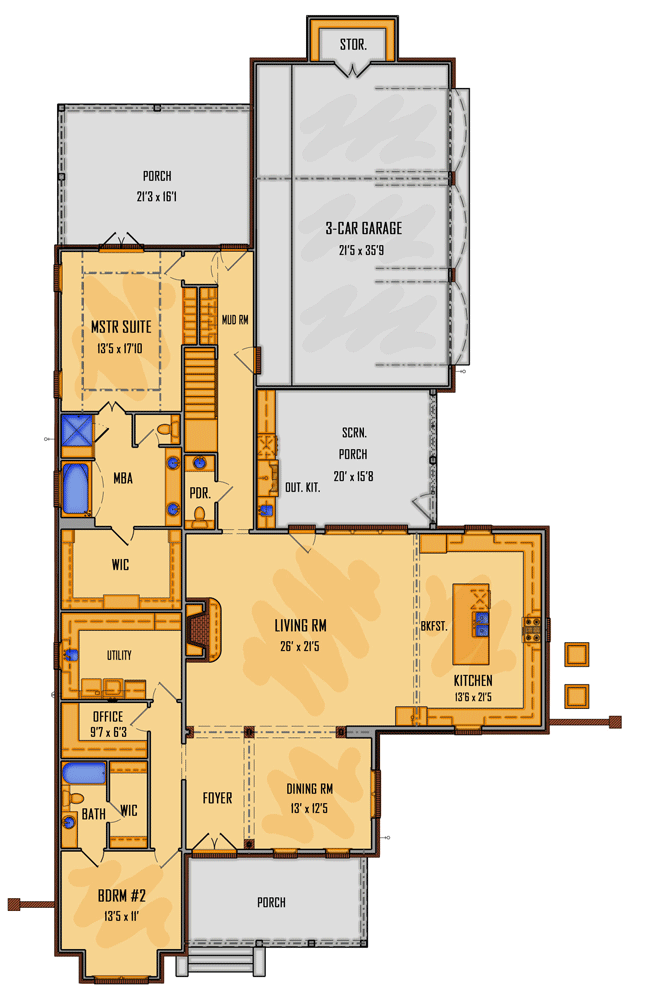

Main Level
Reverse Floor Plan
Acadian House Plan with Screened Porch and Optional Second Level - 510218WDY floor plan - Main Level

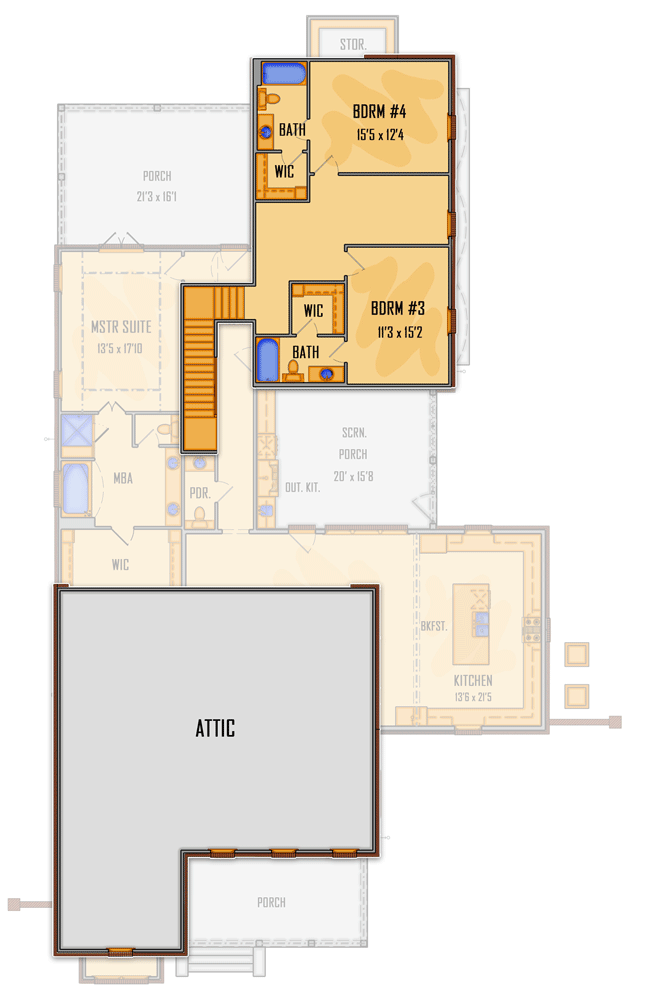

Optional Second Level
Reverse Floor Plan
Acadian House Plan with Screened Porch and Optional Second Level - 510218WDY floor plan - Optional Second Level
Plan Details
  • Clad in brick, this Acadian house plan showcases a steep, hip and valley roof with metal accents above the porch and rain awnings.
  • The living room opens into the kitchen where U-shaped cabinetry surrounds a large island. A screened porch with a summer kitchen is easily accessible and perfect for warm summer evenings.
  • The master suite features a 5-fixture ensuite, walk-in closet, and french doors that lead to a private covered porch. A second bedroom suite, near the foyer, neighbors a home office and generous laundry room.
  • For two additional bedroom suites, finish the second floor and gain a total of 812 square feet of living space.
  • The 3-car garage is attached to the rear of the home and includes a dedicated storage room.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Acadian House Plan with Screened Porch and Optional Second Level

  • 3,440

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Second Level

Plan Details

Square Footage Breakdown

  • Total: 3,440 sq. ft.
  • 1st Floor: 2,628 sq. ft.
  • 2nd Floor: 812 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 104' 11"
  • Max ridge height: 31' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 846 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 12 on 9
  • Framing Type: Stick
