Plan 915018CHP

Exclusive

Acadian House Plan with Unique Garage Layout

Heated S.F.
2,216
Beds
3
Baths
3
Stories
2
Cars
3

Floor Plan

Plan 915018CHP

Main Level
Main Level
2nd Floor
2nd Floor

Plan 915018CHP

M-F 9am-5pm EST |

1-203-761-8500

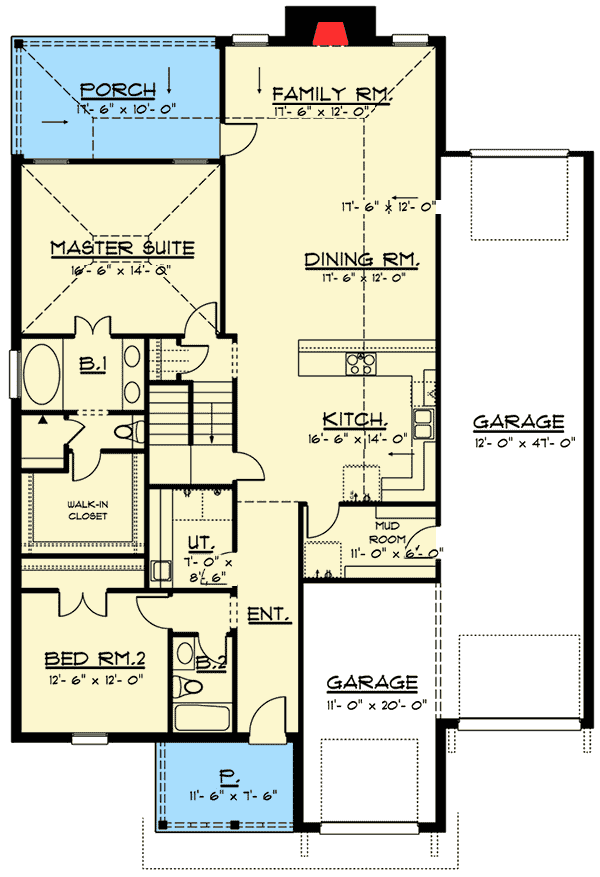

Main Level

Plan 915018CHP: Acadian House Plan with Unique Garage Layout - Floor Plan - Main Level - Acadian, Louisiana-Style, Southern

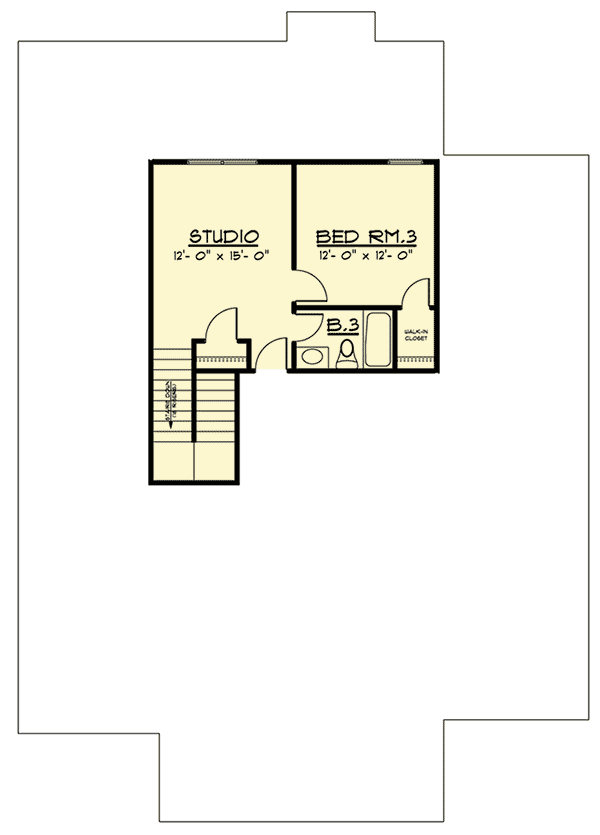

2nd Floor

Plan 915018CHP: Acadian House Plan with Unique Garage Layout - Floor Plan - 2nd Floor - Acadian, Louisiana-Style, Southern

Plan Details

  • Elegant Acadian styling combines with a unique three car garage layout in this Southern house plan.
  • There's a one car bay and then a tandem two car drive-through bay with doors front and back.
  • The kitchen, dining area and family room are connected under a 10' high vaulted ceiling that gives you an open layout.
  • With its quiet location in the back of the house, the master suite is a restful retreat.
  • Bedroom 2 lies in the front of the house with the third bedroom off by itself on the second floor.
  • The studio has a big double window to brighten the whole room.

What's Included

  • Elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical schematics
  • Cross section(s)
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,216 sq. ft.

1st Floor

1,775 sq. ft.

2nd Floor

441 sq. ft.

Porch, Combined

291 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

48' 6"

Depth

68' 10"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

854 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Garage

8' 0''

Room

Ceiling Type

Height

Kitchen

Vaulted

10' 0''

Master Bedroom

Vaulted

10' 0''

Dining Room

Vaulted

10' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Acadian

Louisiana-Style

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Exclusive

Photo Gallery
