Plan 83972JW

Acadian Style House Plan with 4 Bedrooms and Optionally Finished Bonus Room

Name: Plan 83972JW: Acadian Style House Plan with 4 Bedrooms and Optionally Finished Bonus Room
Brand: Architectural Designs
SKU: 83972JW
Price: 945.0 USD
Availability: InStock

Heated S.F.

2,120

Beds

3 - 4

Baths

2 - 3

Stories

Cars

Floor Plan

Plan Details

This charming Acadian-inspired home offers 2,120 square feet of living space, featuring up to four bedrooms, three bathrooms, and an attached two-car garage.
A welcoming covered porch leads directly into a thoughtfully designed interior that balances traditional warmth with modern functionality.

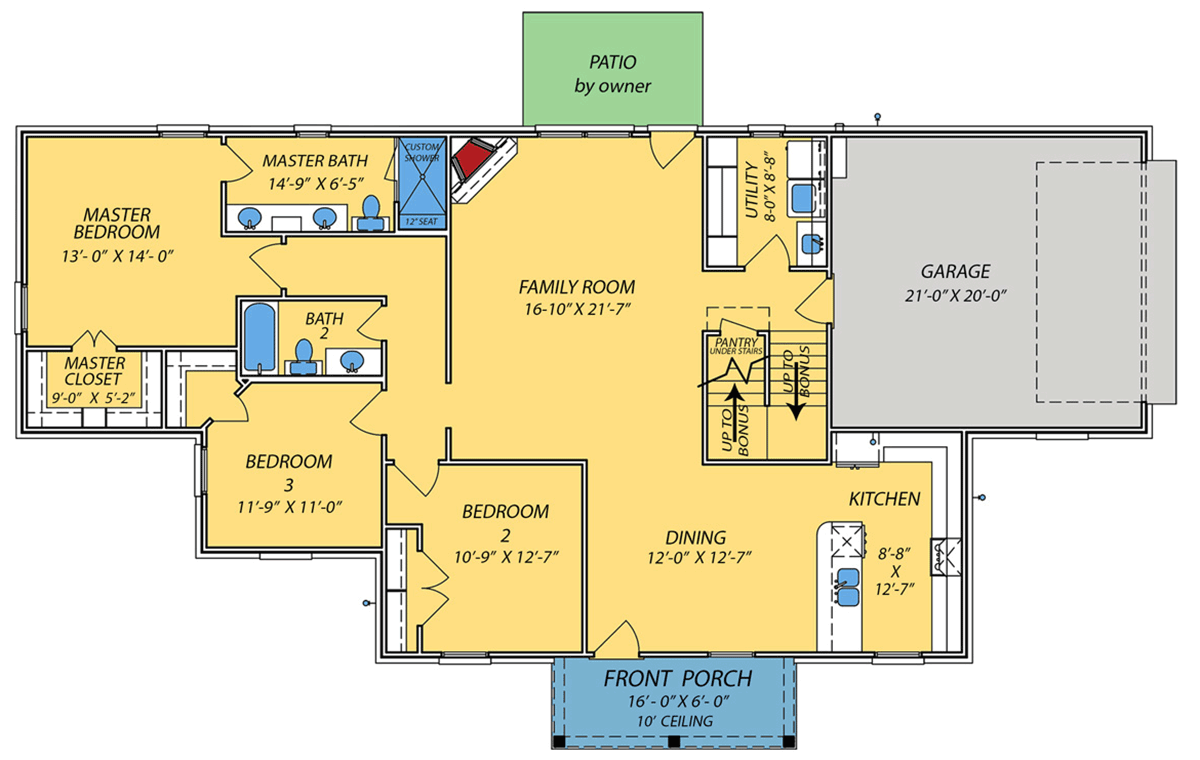

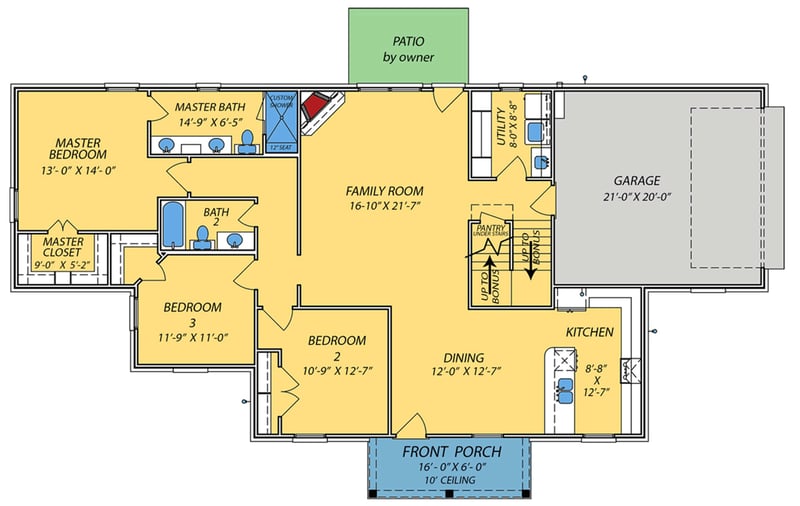

The main living area serves as the heart of the home, showcasing an open layout that creates a seamless flow between the kitchen and common spaces, complete with a convenient walk-in pantry.
The private primary suite is positioned on the main level for ease of living, while the secondary bedrooms are clustered together to provide a quiet, comfortable retreat for family or guests.

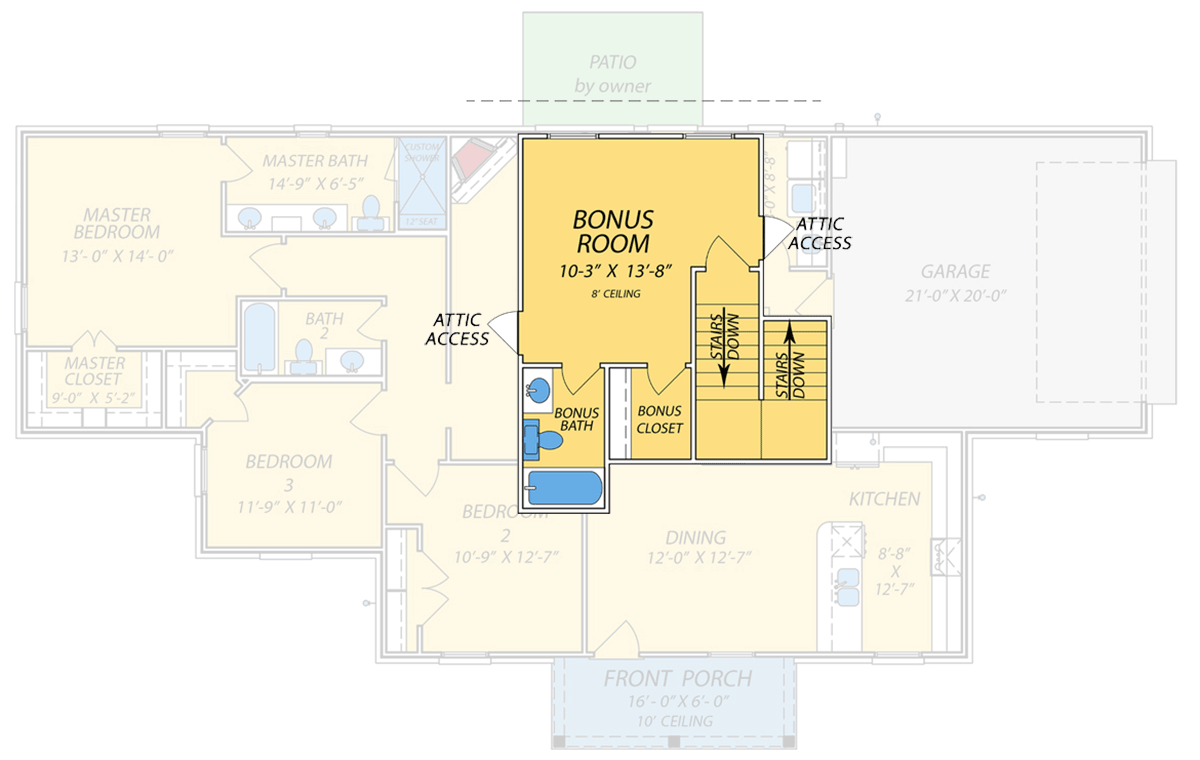

A versatile optionally finished bonus room above the garage offers the ideal space for a home office, media room, or hobby studio.

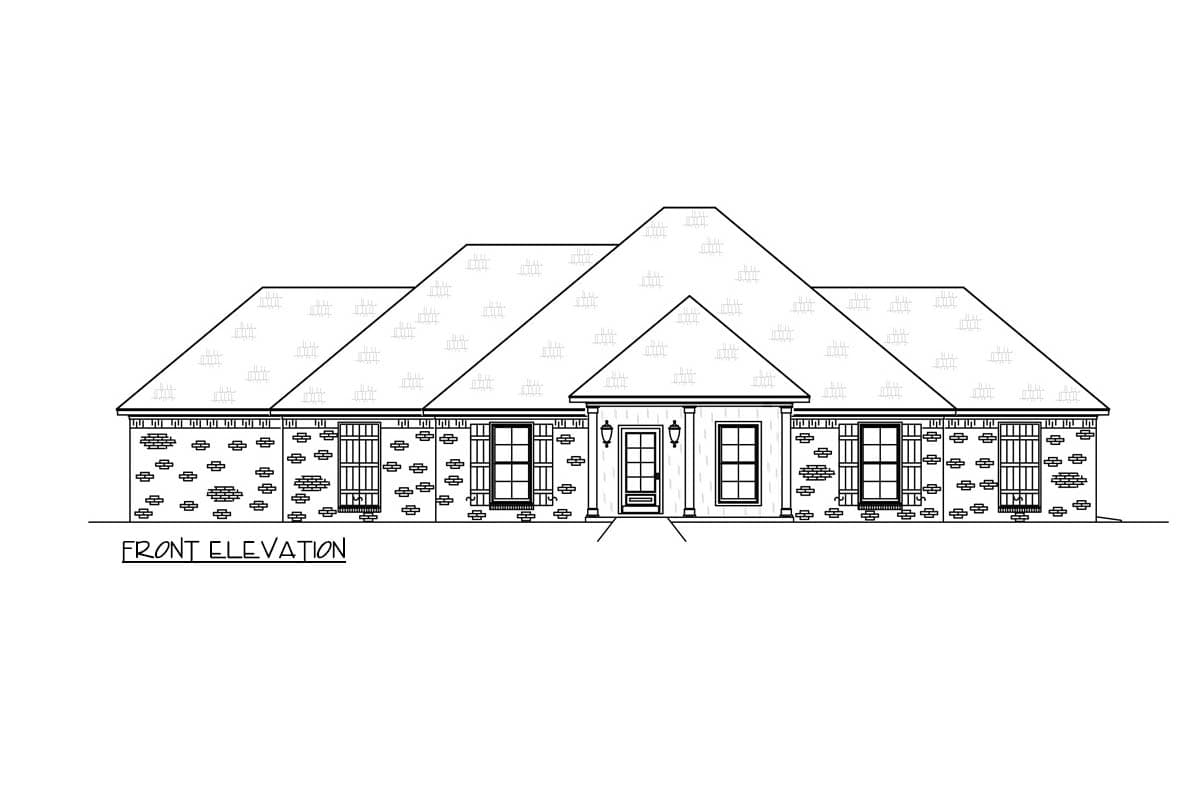

The exterior is defined by a classic roofline and a welcoming front entrance, perfect for enjoying peaceful evenings in your landscaped front yard.

What's Included

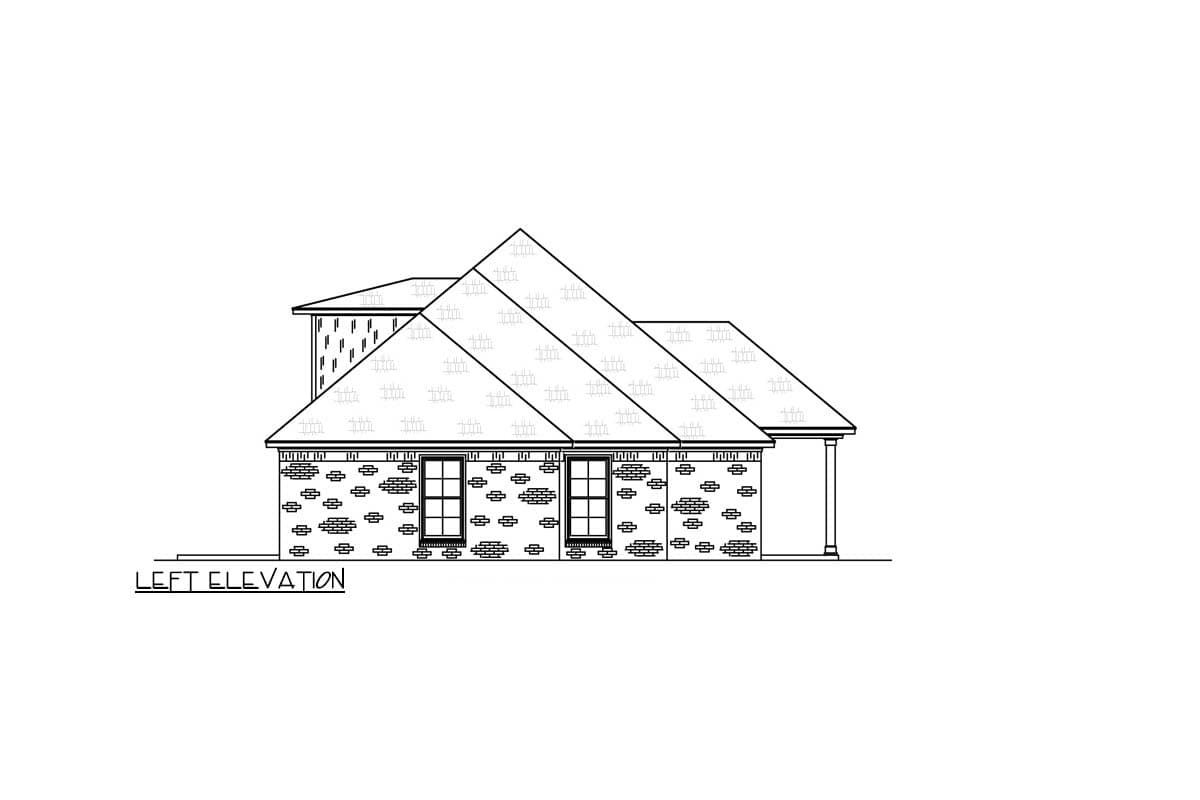

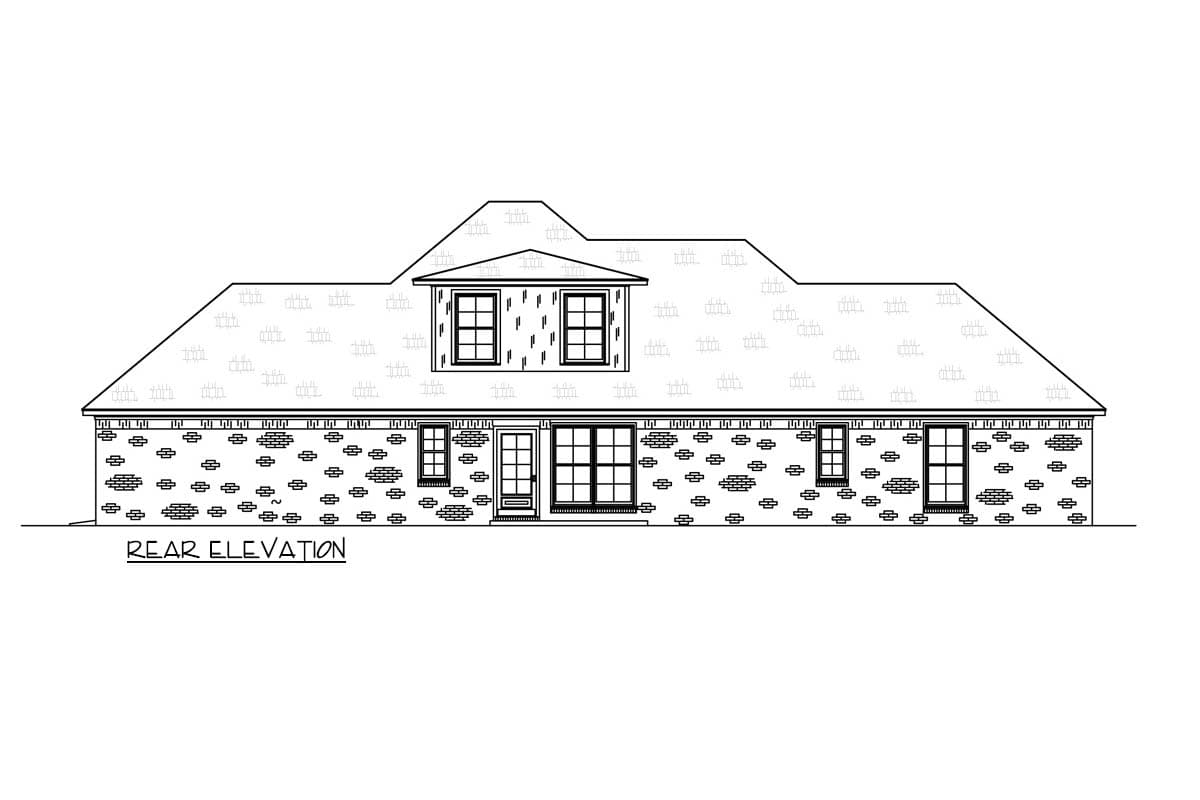

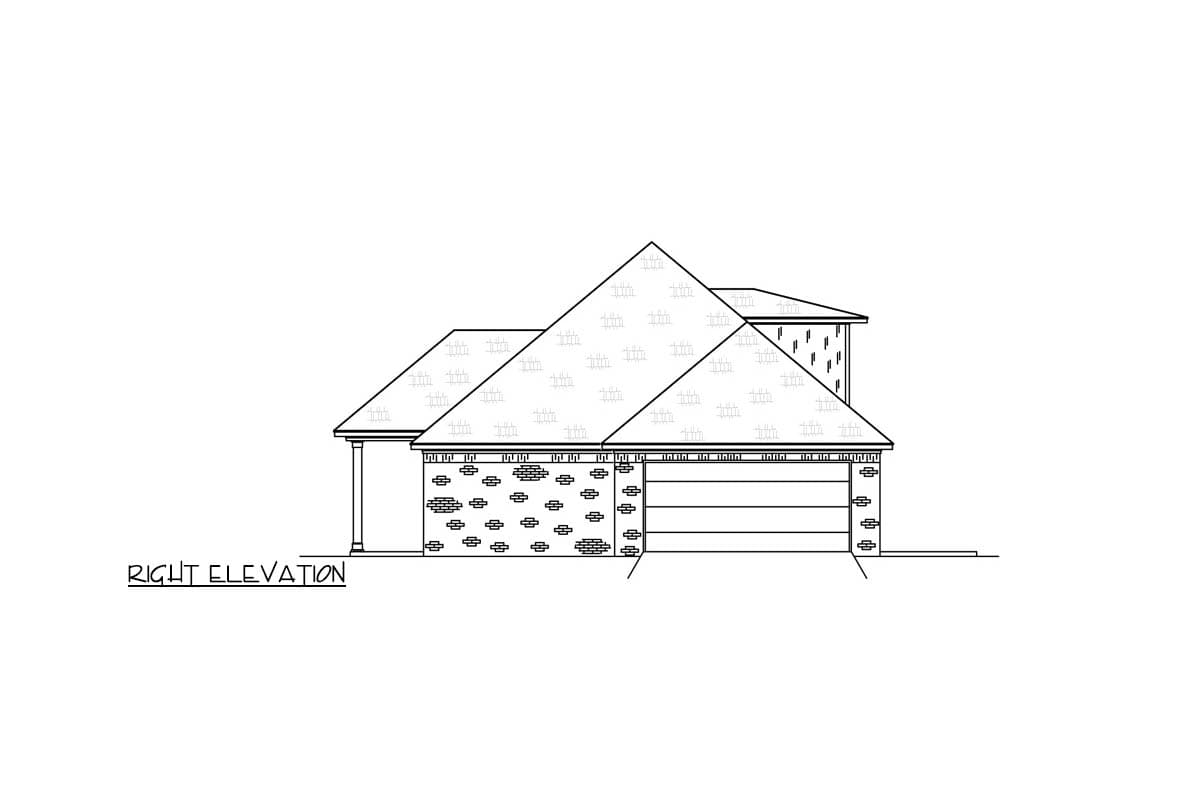

Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
