Plan 36503TX
Adorable Tudor for a Narrow Lot
Heated S.F.
2,827
Beds
3
Baths
3
Stories
2
What's Included
Plan Details

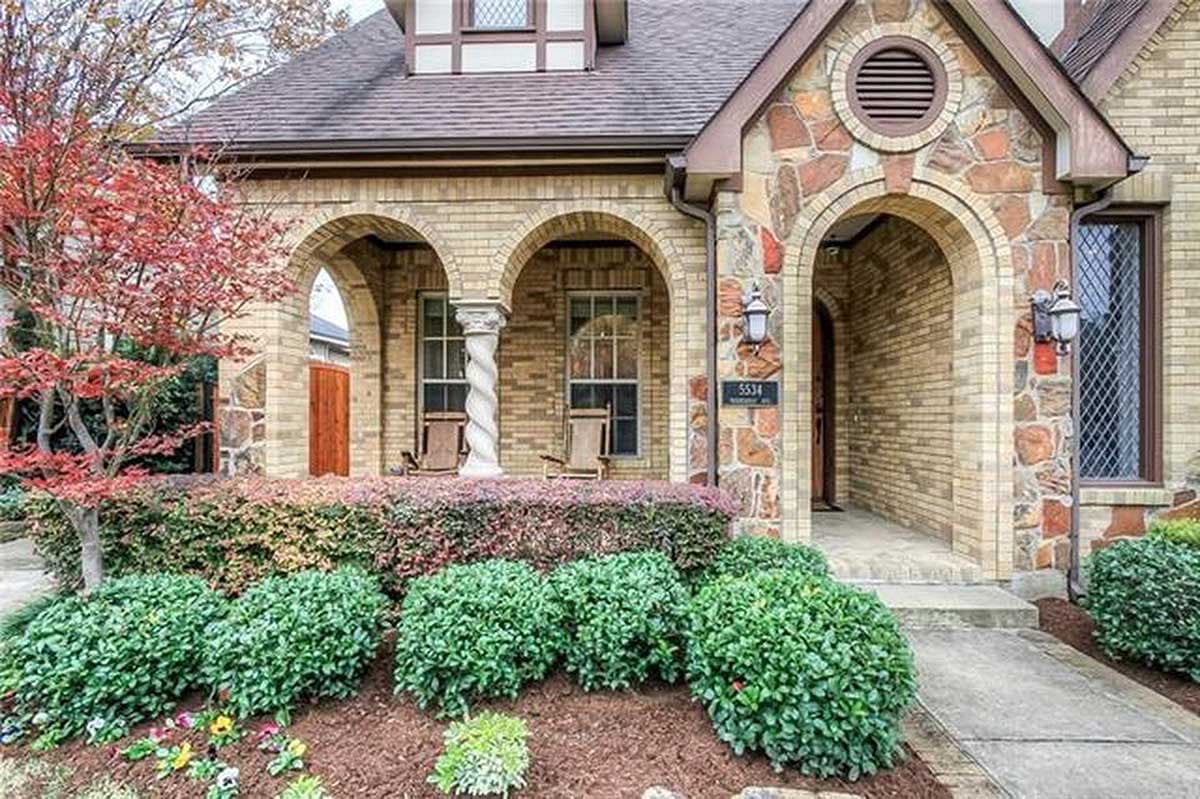

  • This narrow lot Tudor house plan is loaded with charm from the roped front column to the arched entry porch to the decorative wood trim.

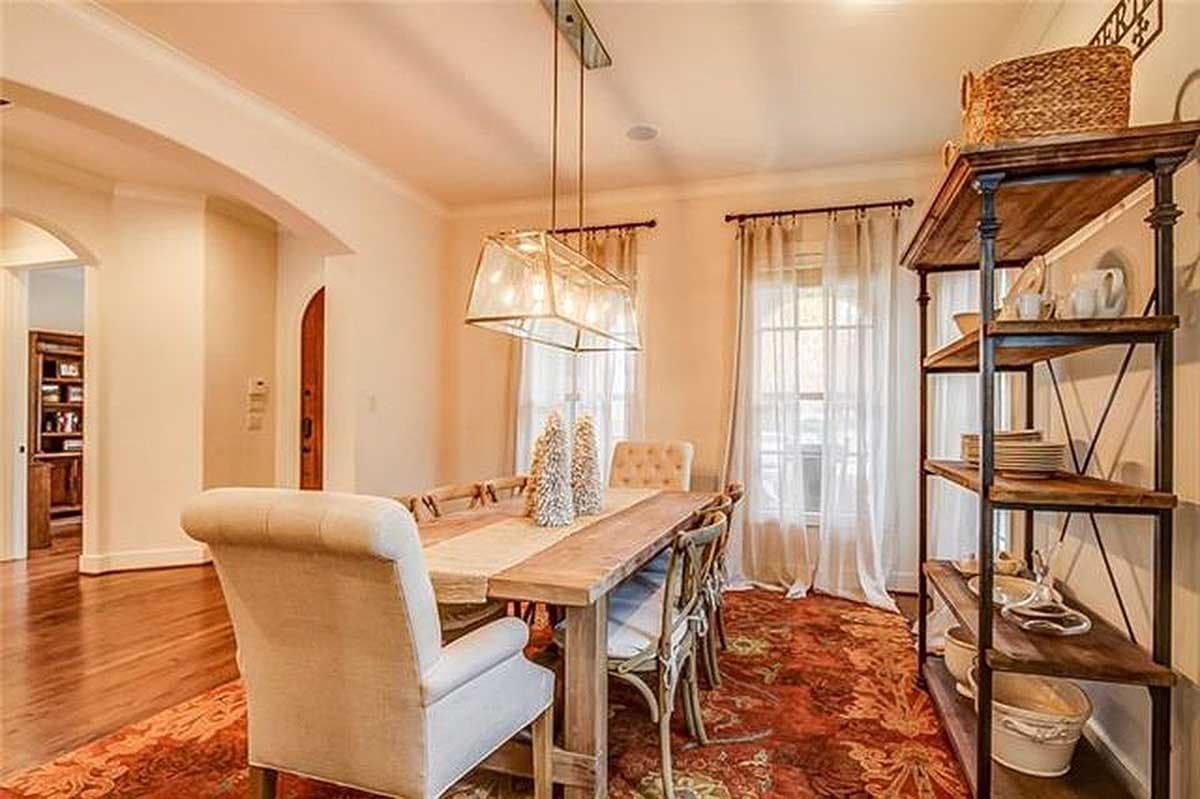

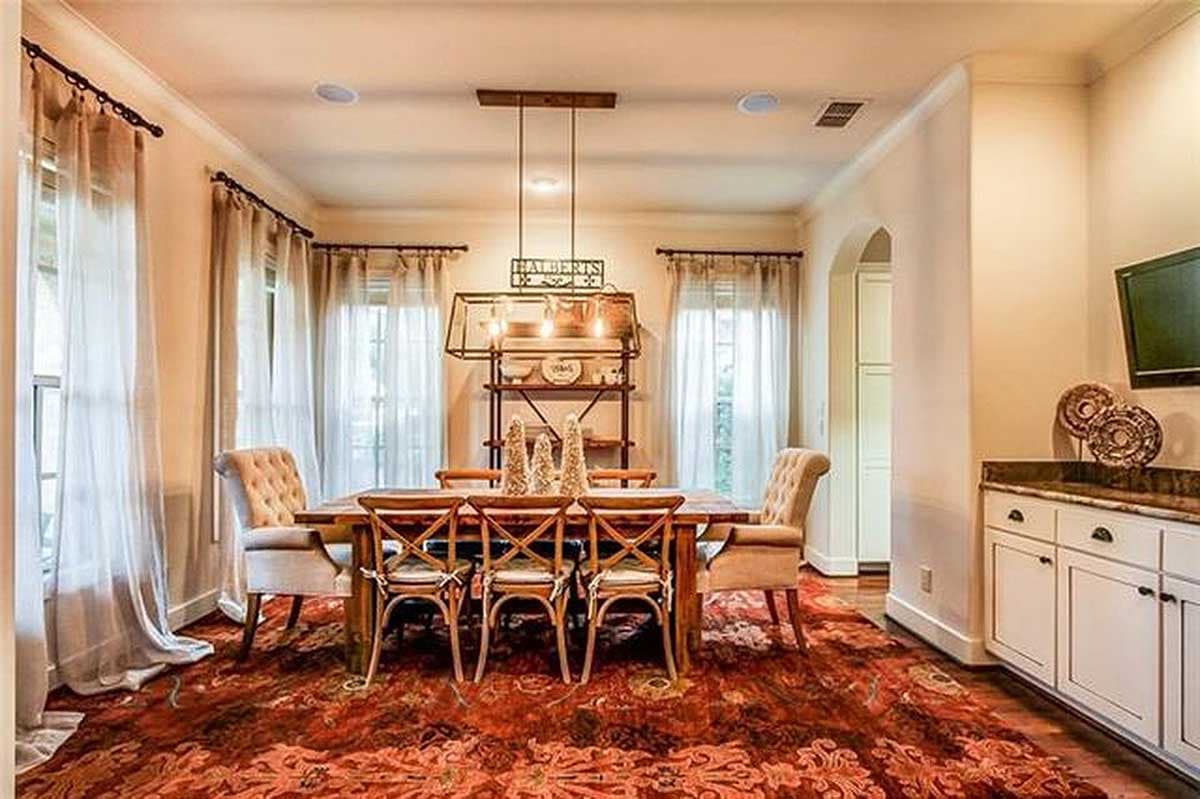

  • The large dining room has a built-in cabinet with another around the corner in the kitchen.

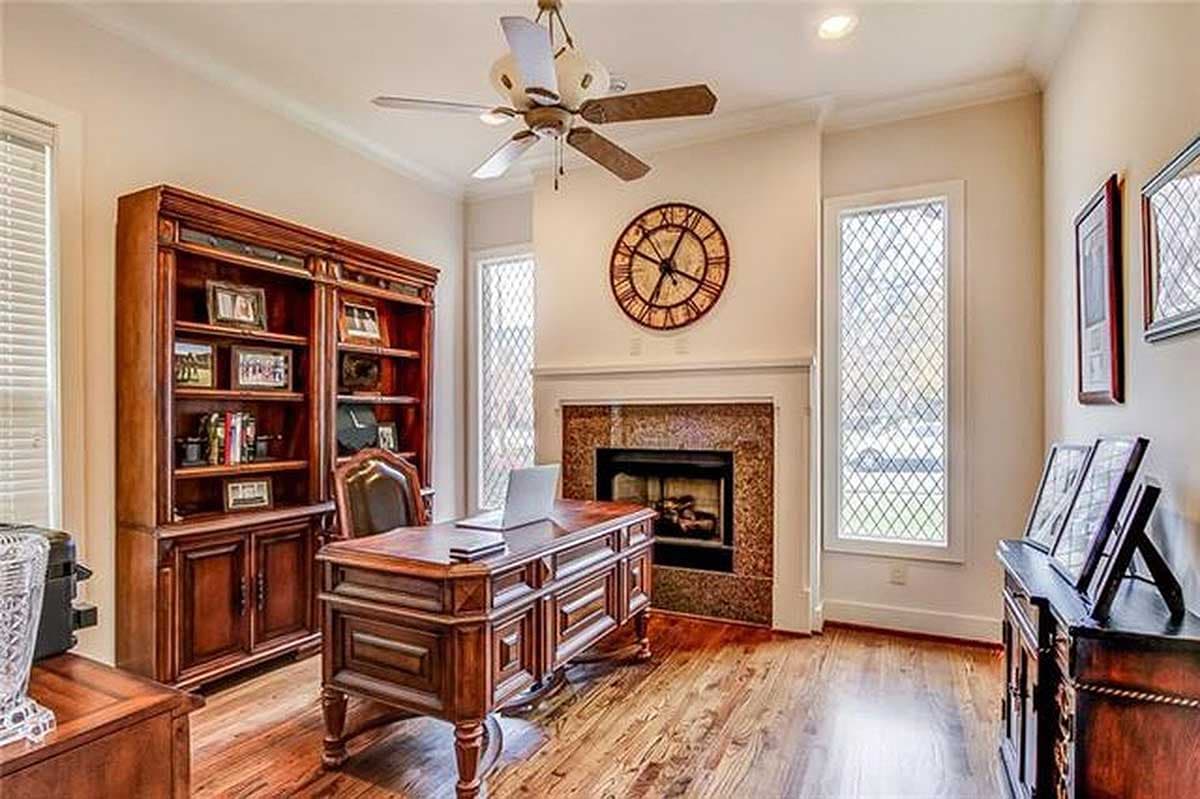

  • Use the study as an extra bedroom if desired since it has a closet and nearby full bathroom.

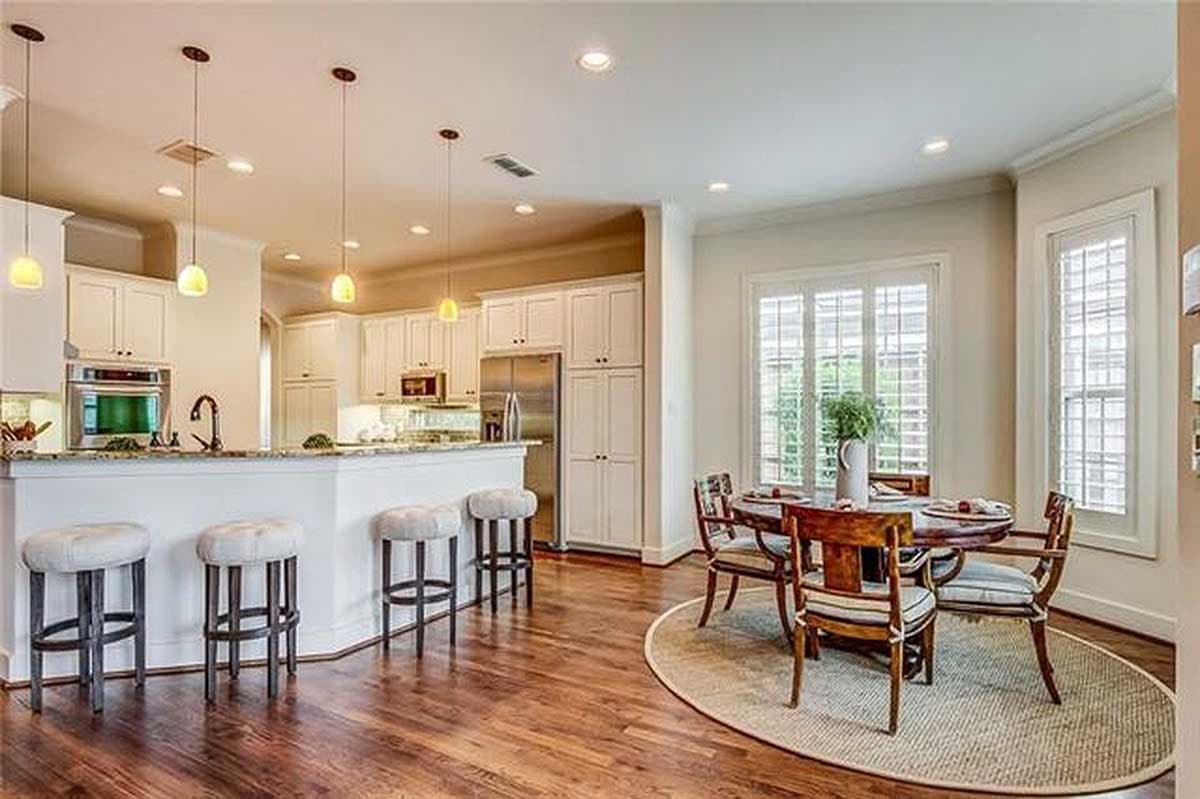

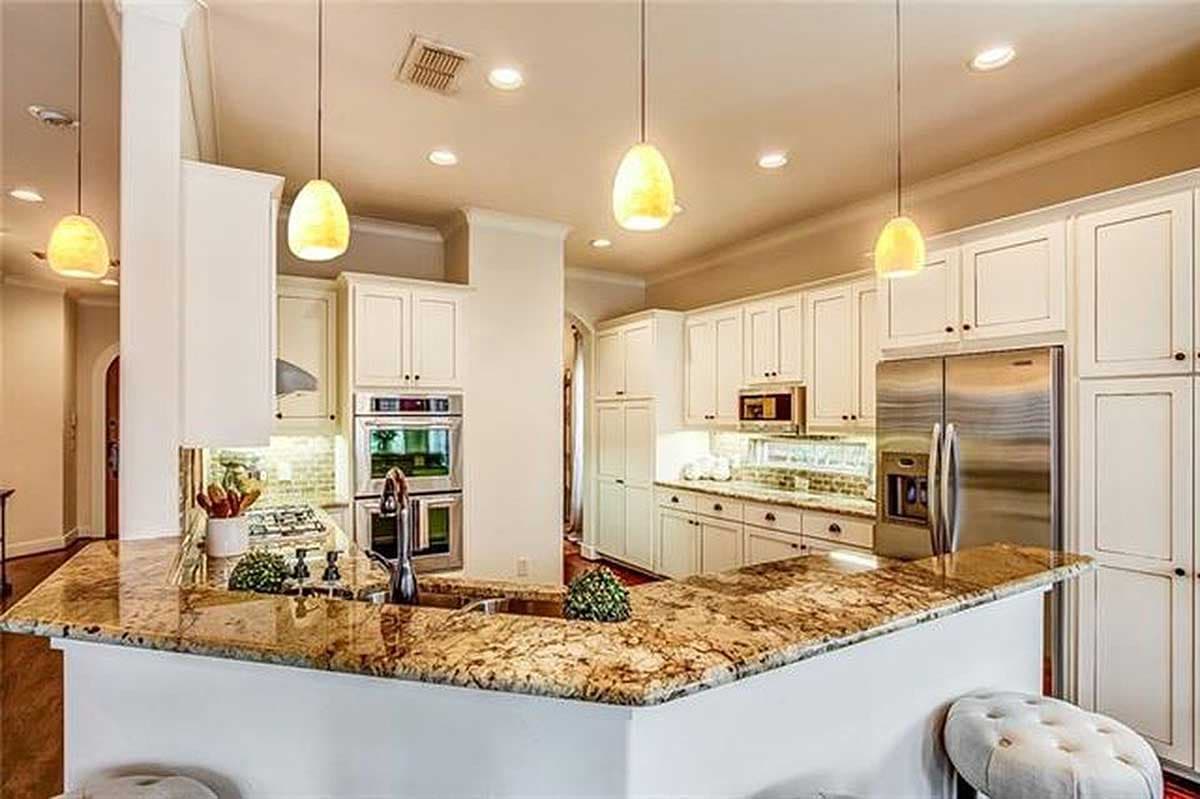

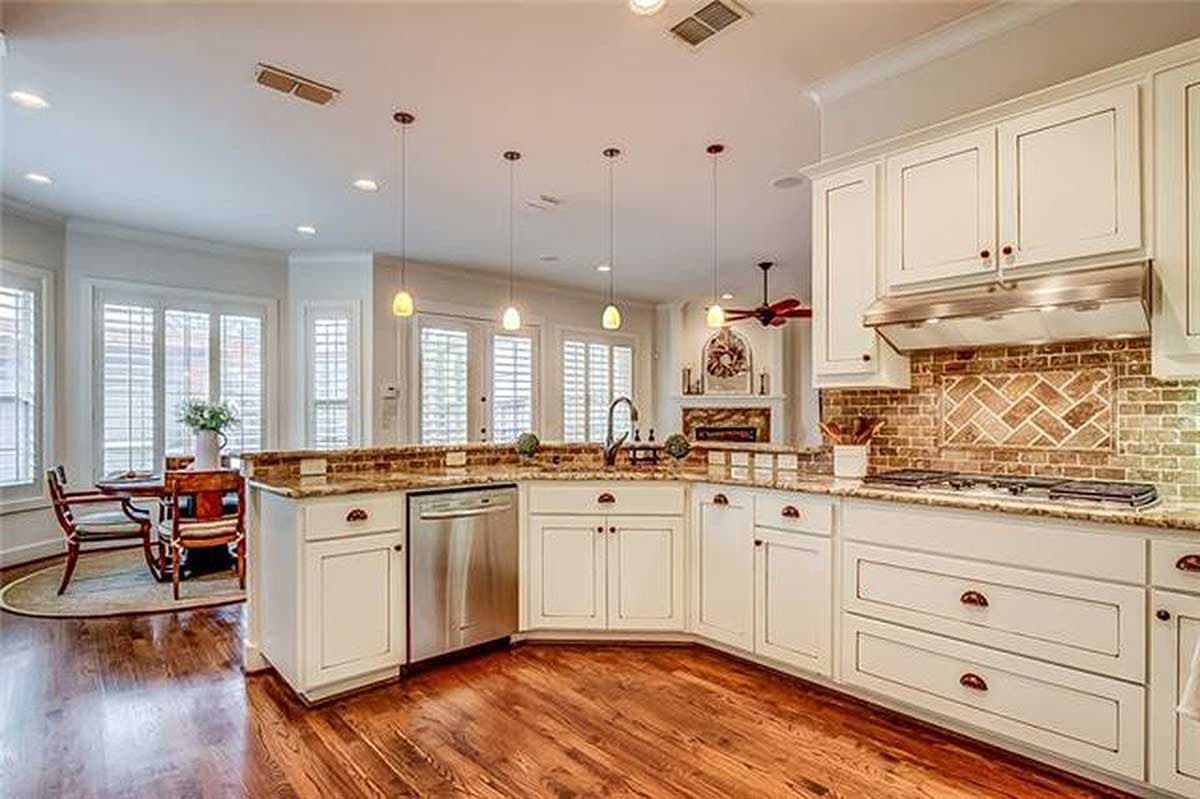

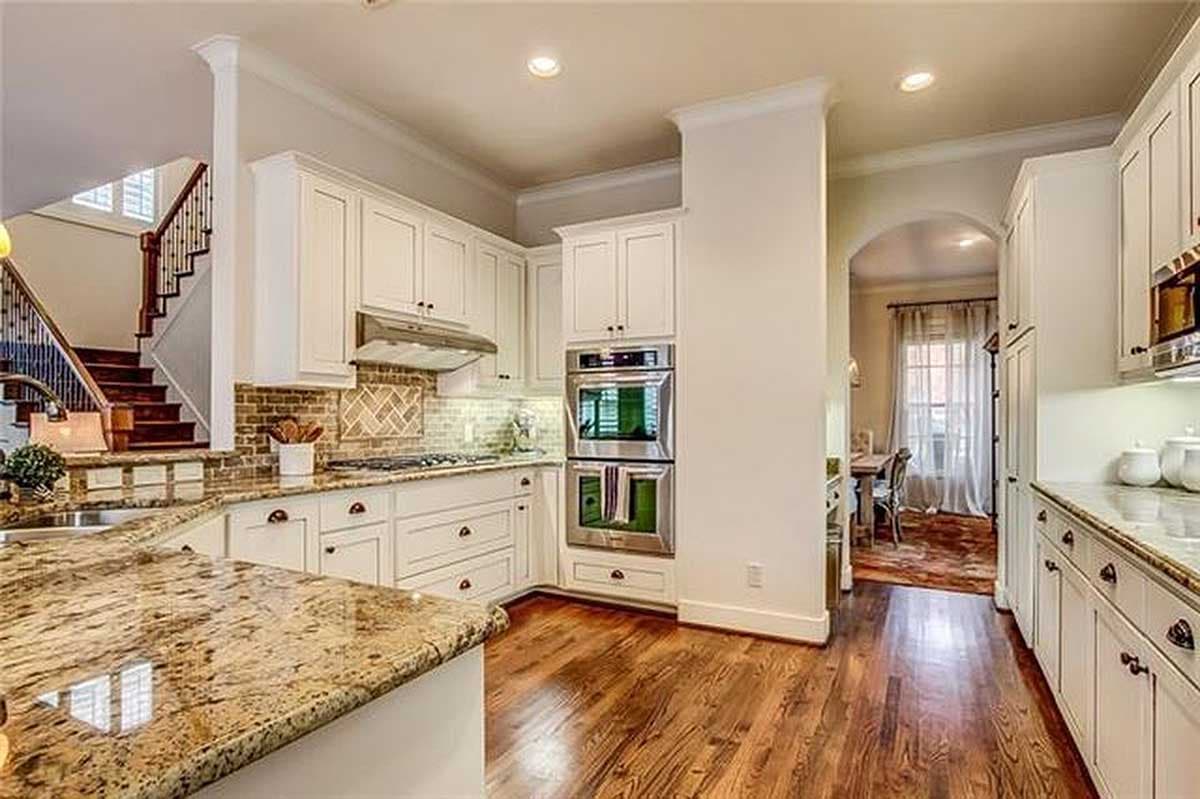

  • The up-to-the-minute kitchen boasts a wine fridge, cook top with 4 burners and loads of counter space.
  • From the kitchen sink, you can keep an eye on family while cooking.

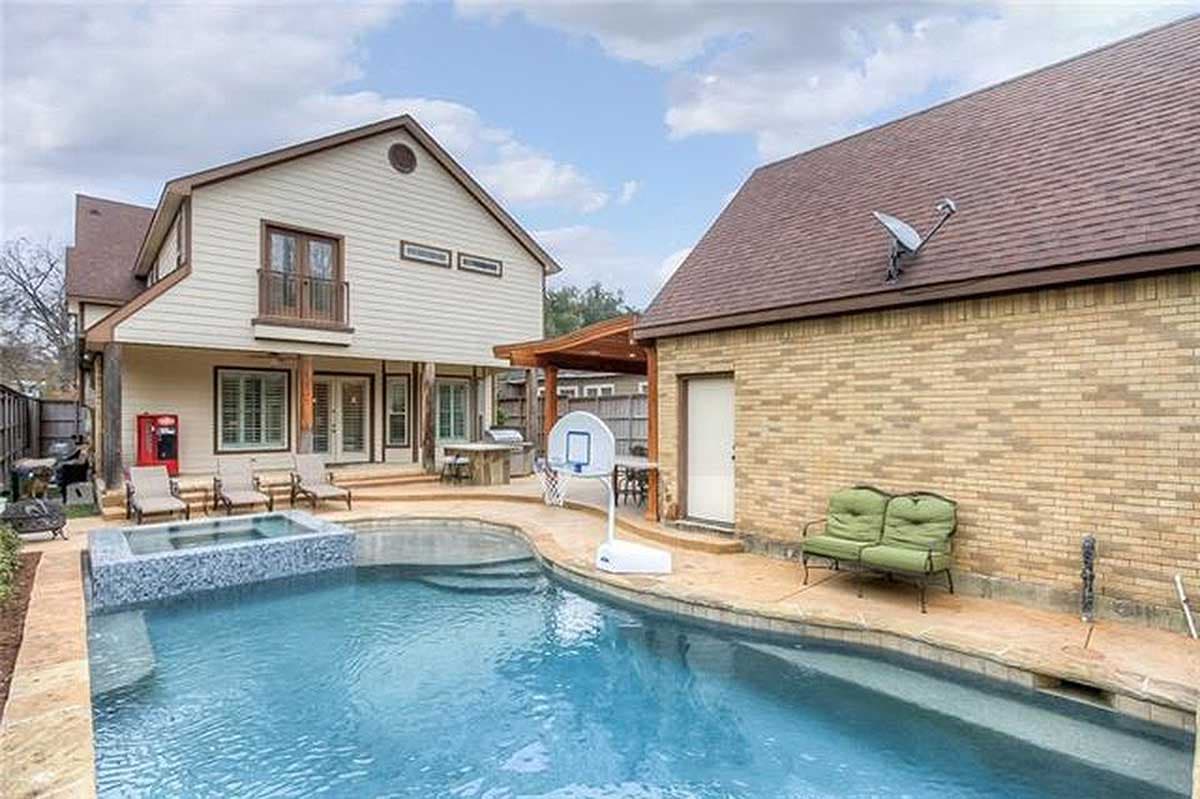

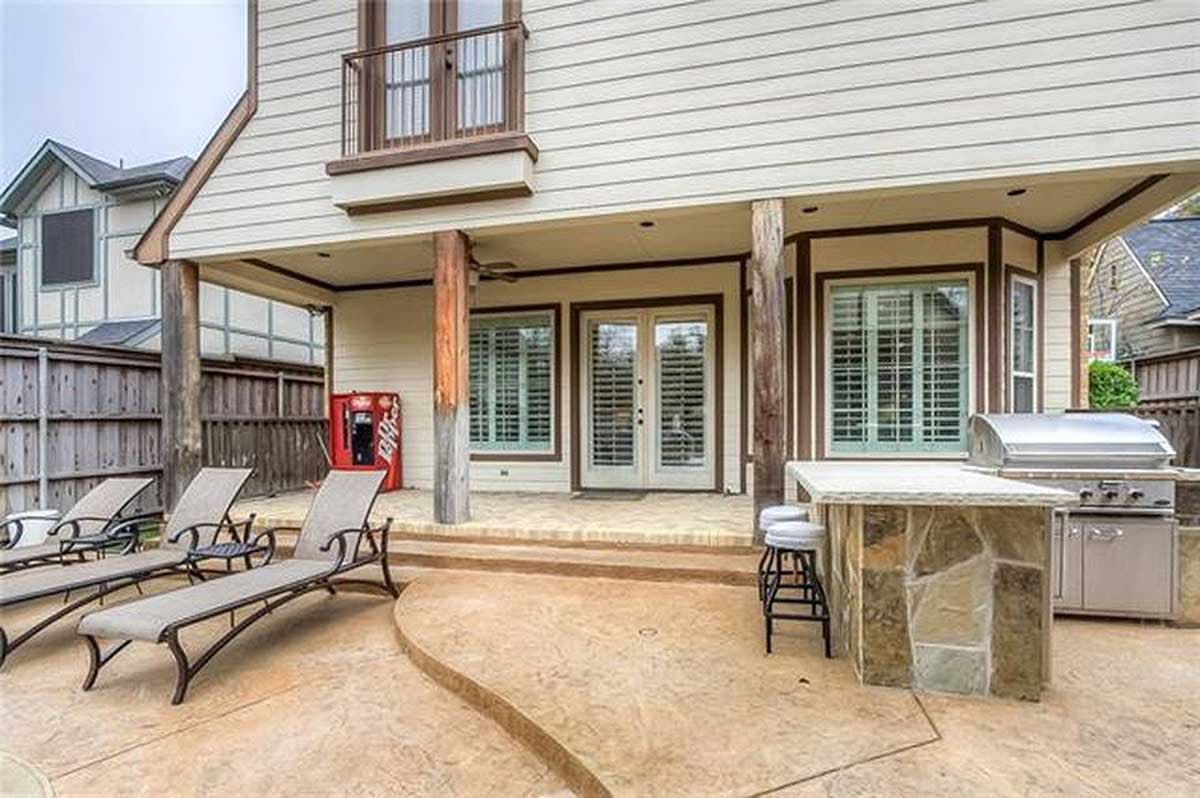

  • Double doors take you to the shaded veranda that spans the width of the house.

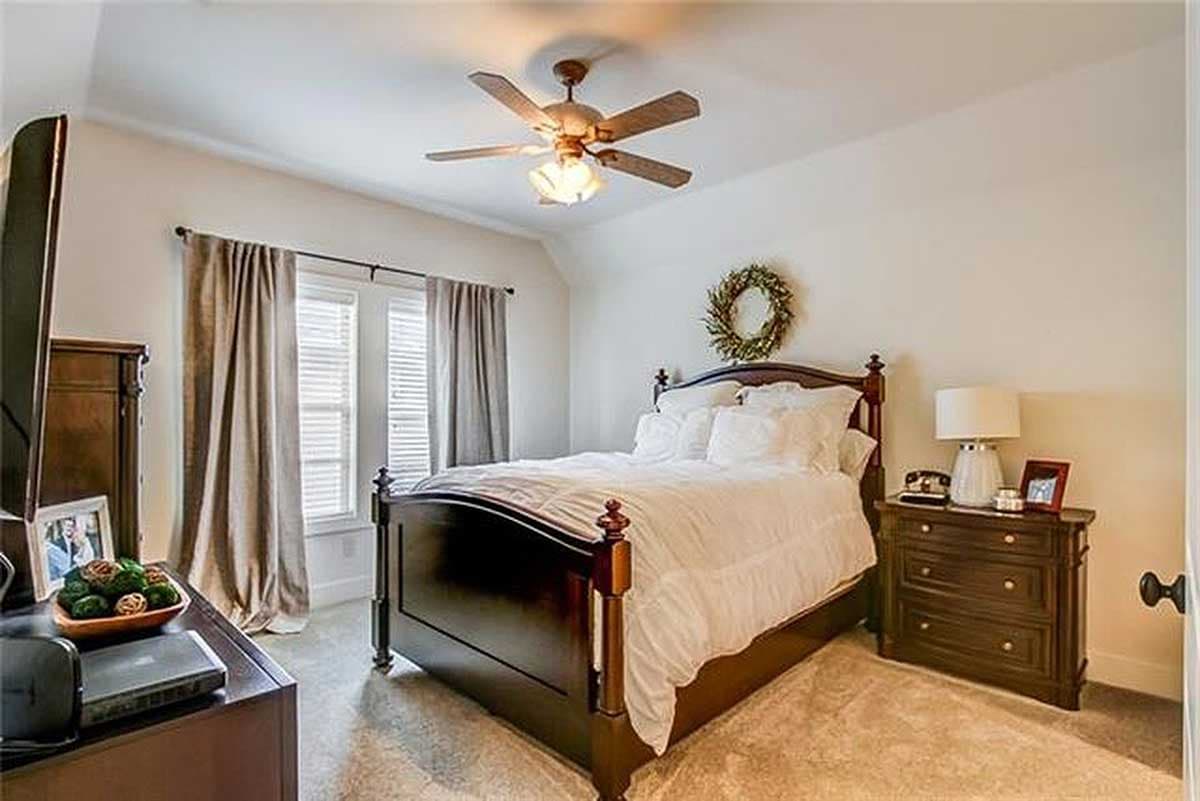

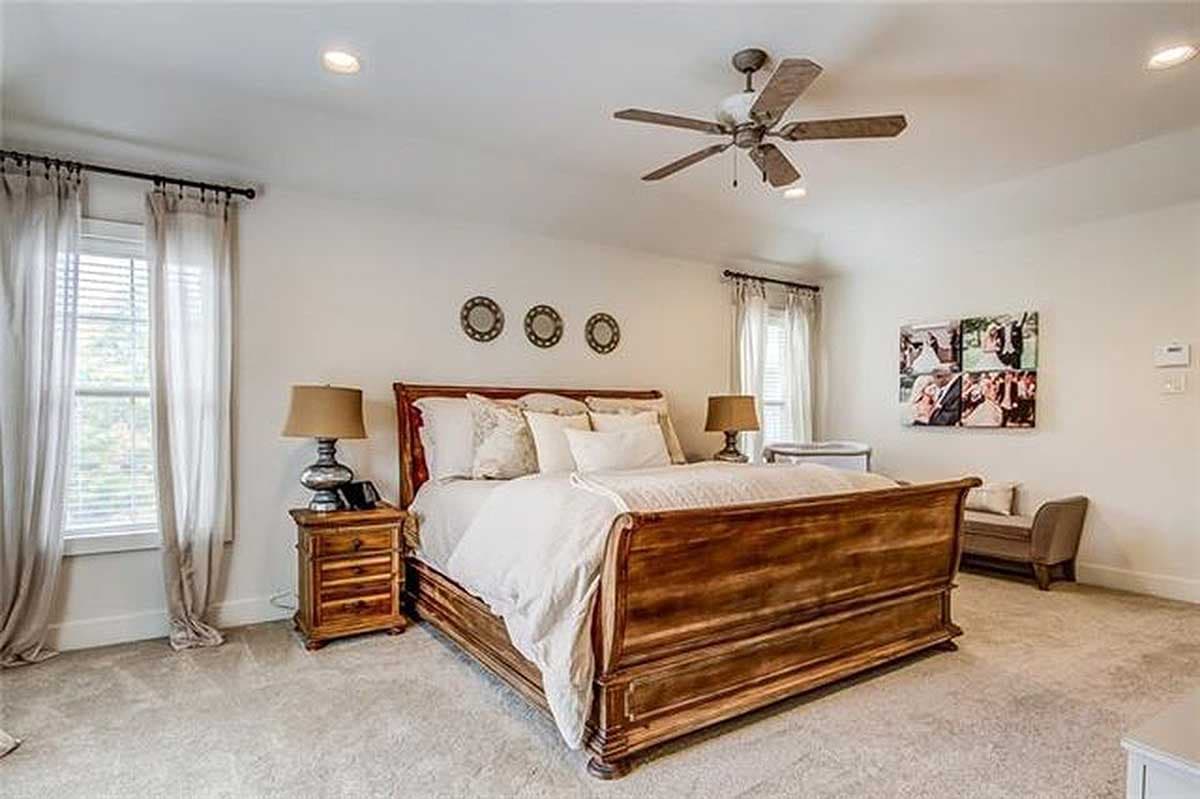

  • All the bedrooms are upstairs and each one gets a big walk-in closet.

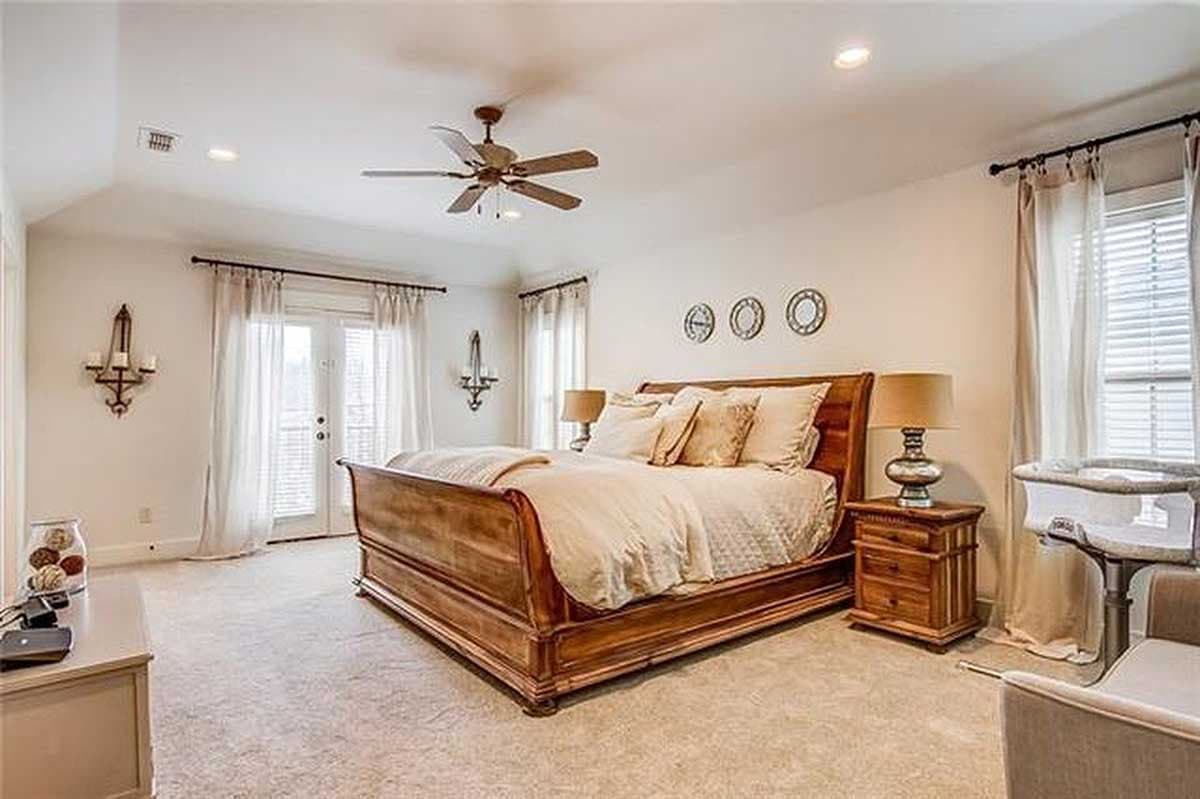

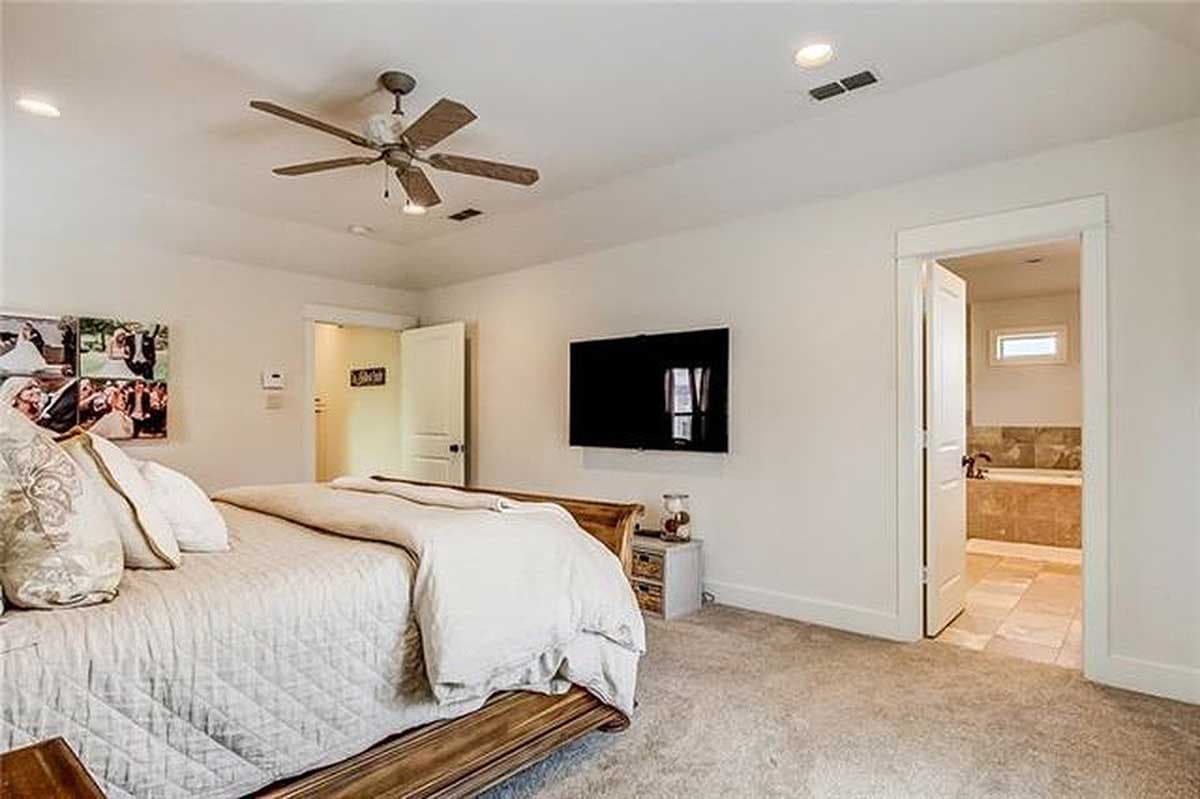

  • The master walk-in comes with built-ins and his and her sections.
  • The second floor laundry room is a marvelous convenience.



What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Adorable Tudor for a Narrow Lot

  • 2,827

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Floor Plan

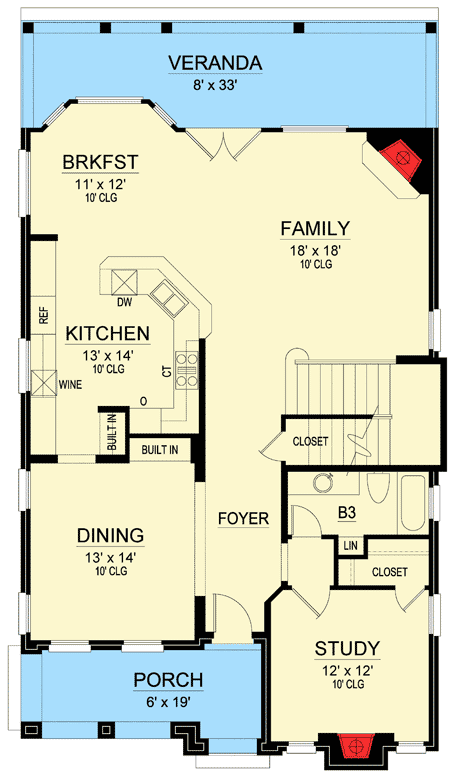

  • Main Level

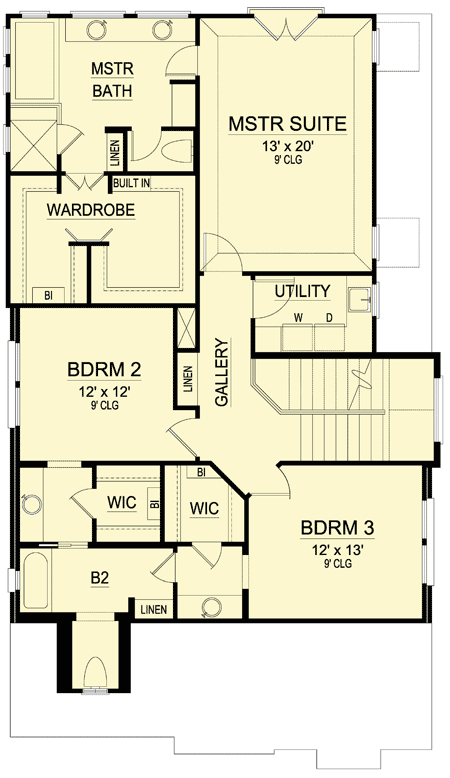

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,827 sq. ft.
  • 1st Floor: 1,441 sq. ft.
  • 2nd Floor: 1,386 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 60' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site

Adorable Tudor for a Narrow Lot

  • 2,827

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Adorable Tudor for a Narrow Lot

  • 2,827

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 2,827 sq. ft.
  • 1st Floor: 1,441 sq. ft.
  • 2nd Floor: 1,386 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 60' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
