Plan 677032NWL

ADU House Plan with 2 Bedrooms and an Open Living Space - 800 Sq Ft

Heated S.F.
800
Beds
2
Baths
2
Stories
1

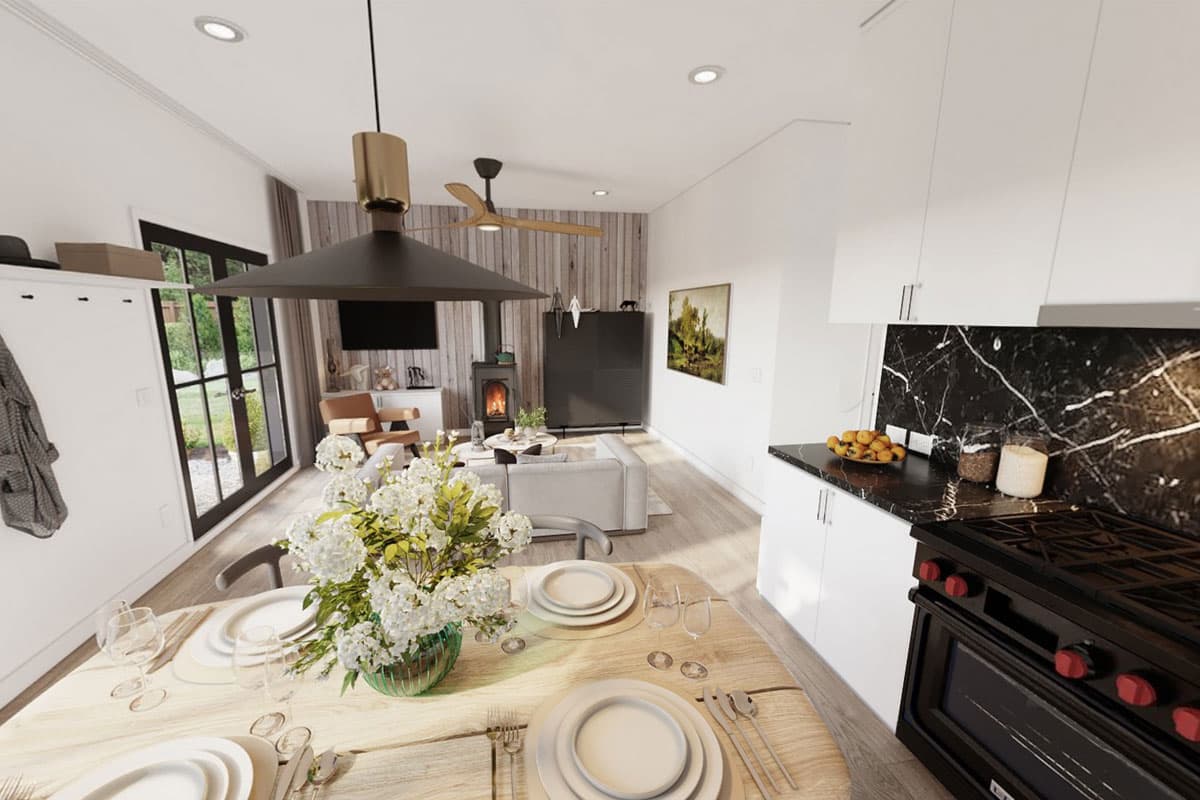

Tour

Floor Plan

Plan 677032NWL

Main Level
Main Level

Plan 677032NWL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

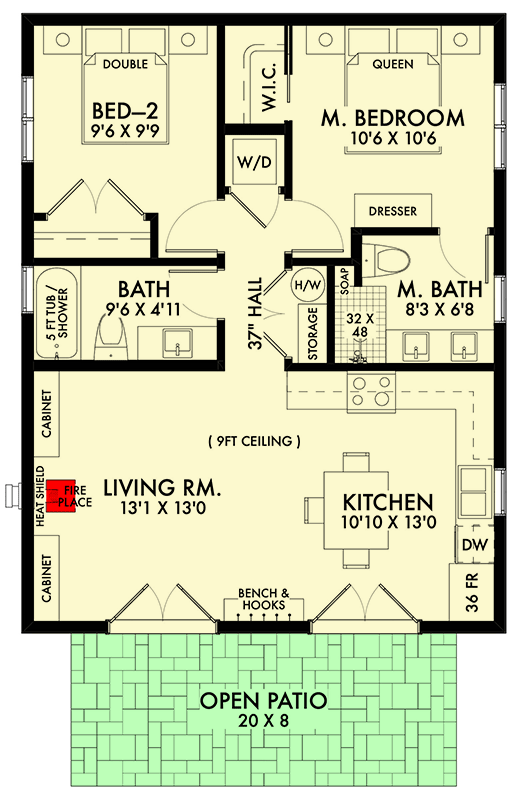

Plan 677032NWL: ADU House Plan with 2 Bedrooms and an Open Living Space - 800 Sq Ft - Floor Plan - Main Level - Cabin, Cottage, Country, Traditional

Plan Details

  • This ADU house plan gives you 2 beds, 2 baths and 800 square feet of heated living. Build this as an accessory dwelling unit, a rental cottage or a vacation - or downsizing - escape from your day to day.
  • The bedrooms are in back with the master suite having its own bathroom and Bed 2 using the hall bath.
  • In front, the living room is open to the kitchen with an island that can seat 3. Two sets of French doors open tot he front patio.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan

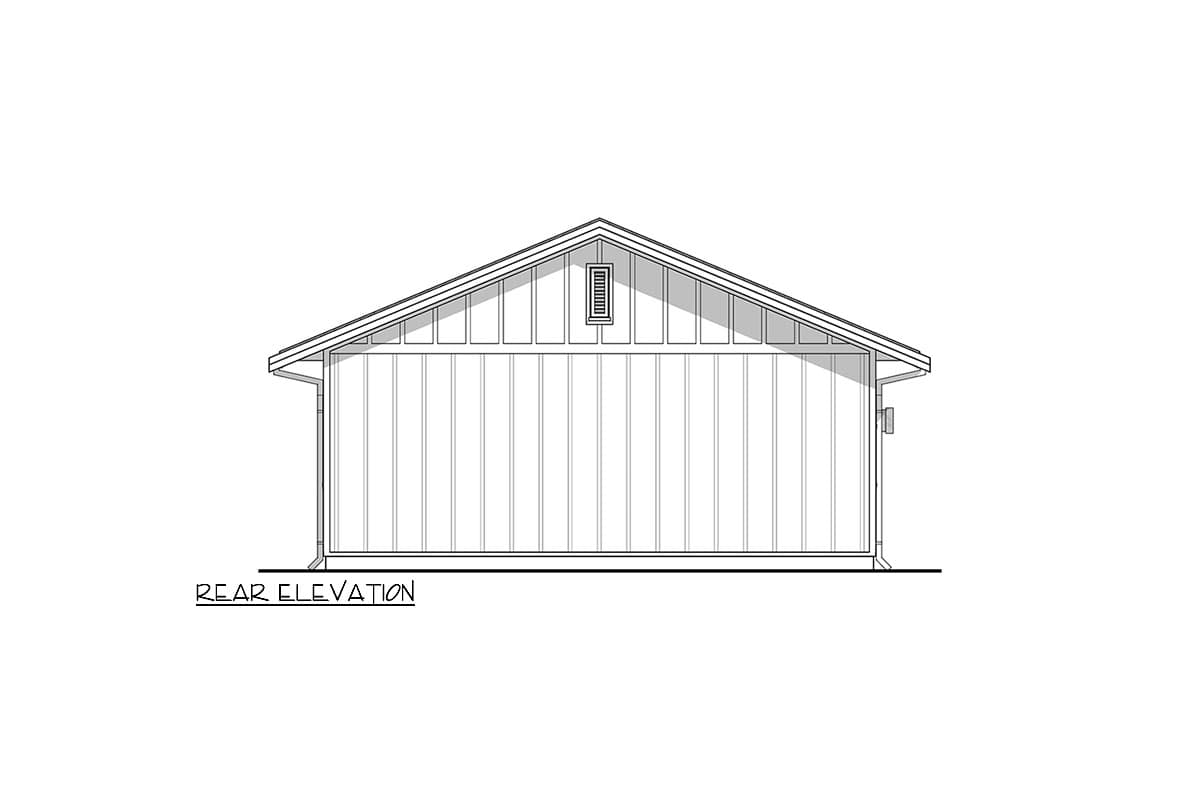

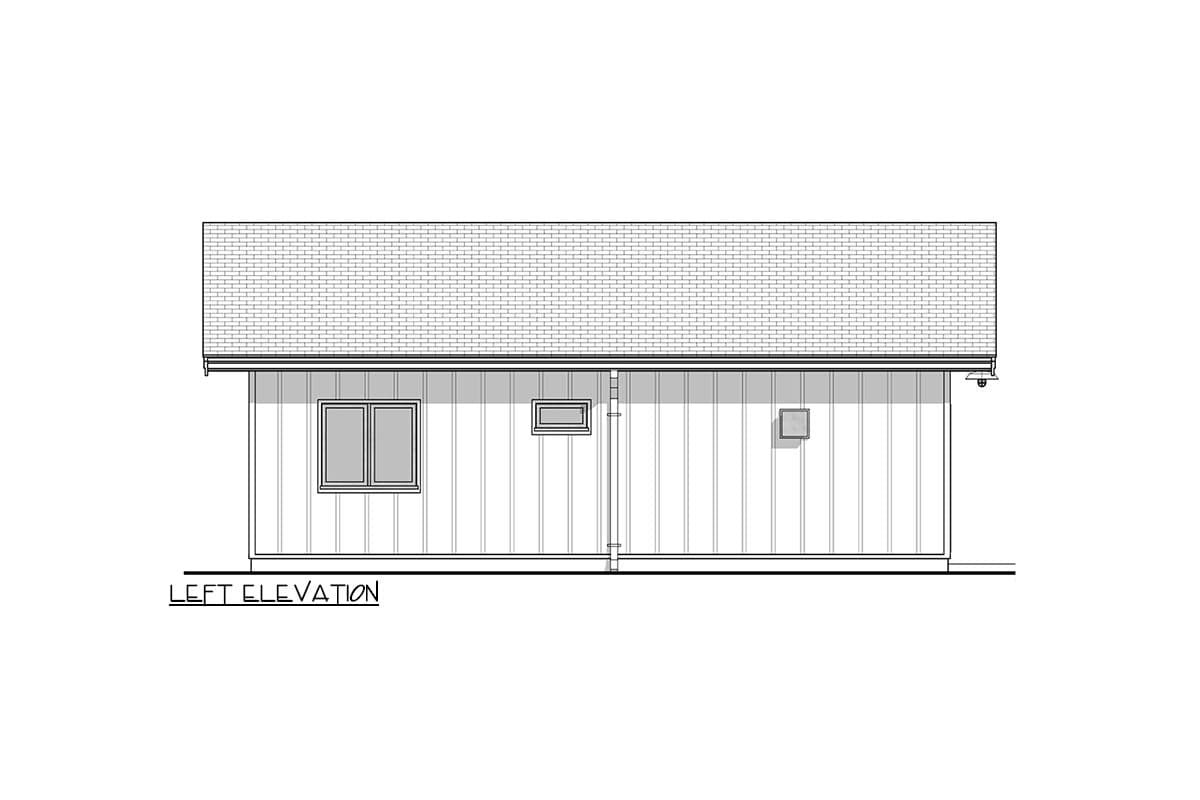

  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

800 sq. ft.

1st Floor

800 sq. ft.

Porch, Front

160 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

32' 0"

Max Ridge Height

15' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Canadian House Plans

Square Footage Breakdown

Total Heated Area

800 sq. ft.

1st Floor

800 sq. ft.

Porch, Front

160 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

32' 0"

Max Ridge Height

15' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Canadian House Plans
