ADU with 2 Garage Bays and a 1-Bed Apartment Above - 807 Sq Ft

Heated S.F.
807
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 360099DK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 360099DK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

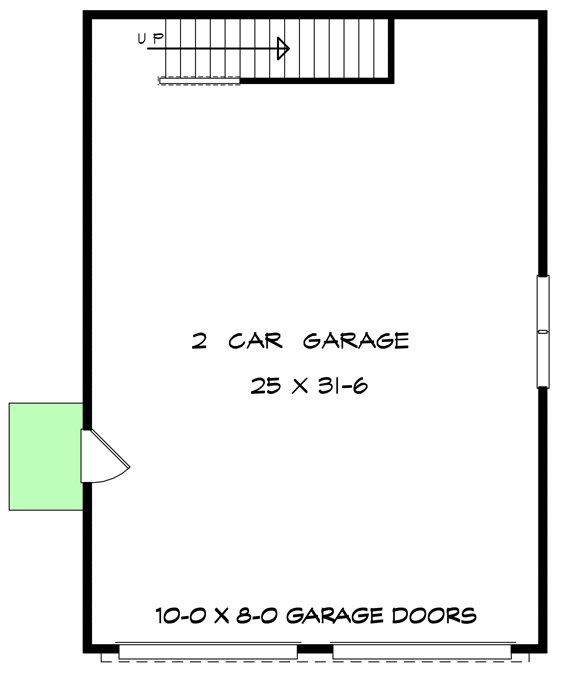

Plan 360099DK: ADU with 2 Garage Bays and a 1-Bed Apartment Above - 807 Sq Ft - Floor Plan - Main Level - Carriage, Country, Craftsman, Traditional

2nd Floor

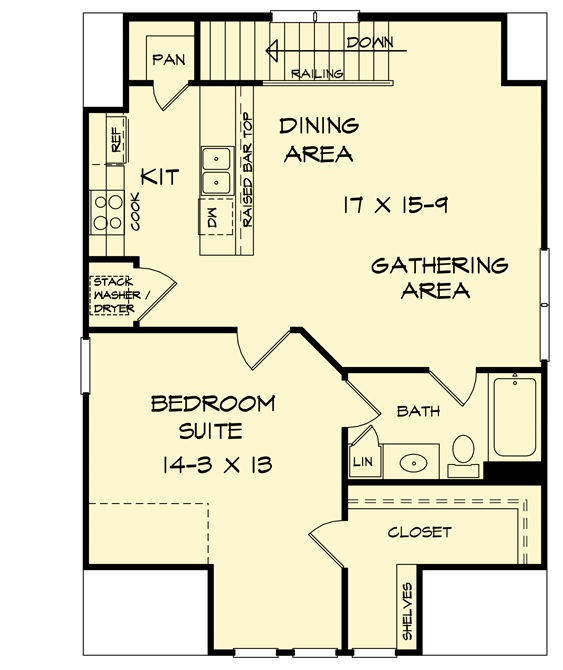

Plan 360099DK: ADU with 2 Garage Bays and a 1-Bed Apartment Above - 807 Sq Ft - Floor Plan - 2nd Floor - Carriage, Country, Craftsman, Traditional

Plan Details

  • This 2-car detached garage plan has 2 garage doors with an attractive-shed dormer that lets light into the upstairs bedroom.
  • Stairs run along the back and deposit you in the open living giving you a combined dining, kitchen and living room space.
  • There are 10' ceilings upstairs giving the space an open feel.
  • The exterior walls are 2x6 on the main floor and 2x4 on the upper floor.
  • Related Plan: Convert the upstairs to attic storage with plan 360082DK.

What's Included

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
