ADU with Cozy Covered Porch

Plan 420001WNT

  • 640

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

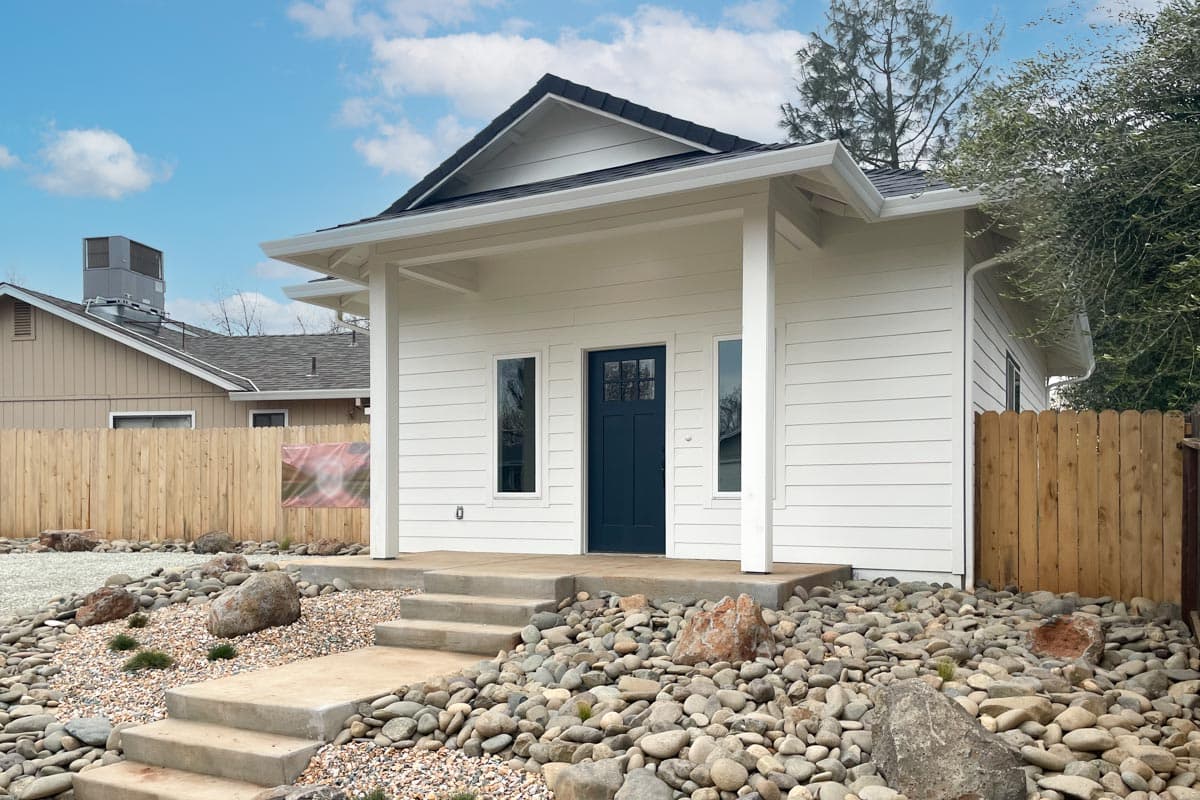

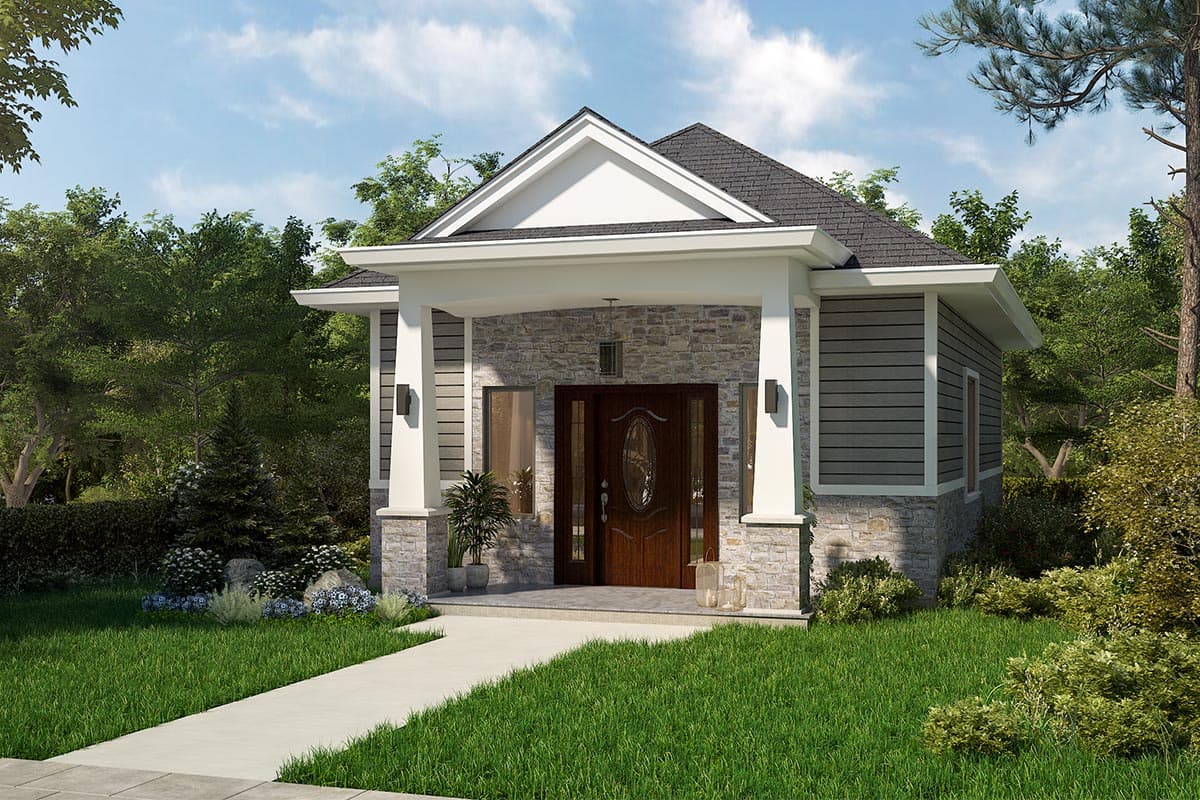

  • This ADU (accessory dwelling unit) presents 640 square feet of living space and a charming exterior, complete with a cozy covered porch.
  • The living room greets you upon entering, and opens to the eat-in kitchen.
  • Counter-height seating is available for dining or casual conversation in the kitchen.
  • A coat closet in the hallway neighbors the stacked laundry unit, and a space for linens in the full bath helps with storage.
  • The master bedroom features an optional coffered ceiling, and windows that overlook the backyard.

What is Included in Our Plans?

Each plan is designed to meet nationally recognized building codes for the year they were created. Following is a listing of sheets included in our plans:

Foundation Plan

outlines details of the slab, crawl space, or basement specifically associated with the house that this plan has been designed for. These details may include; Footing sizes and locations, Floor framing information, Slab information etc.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

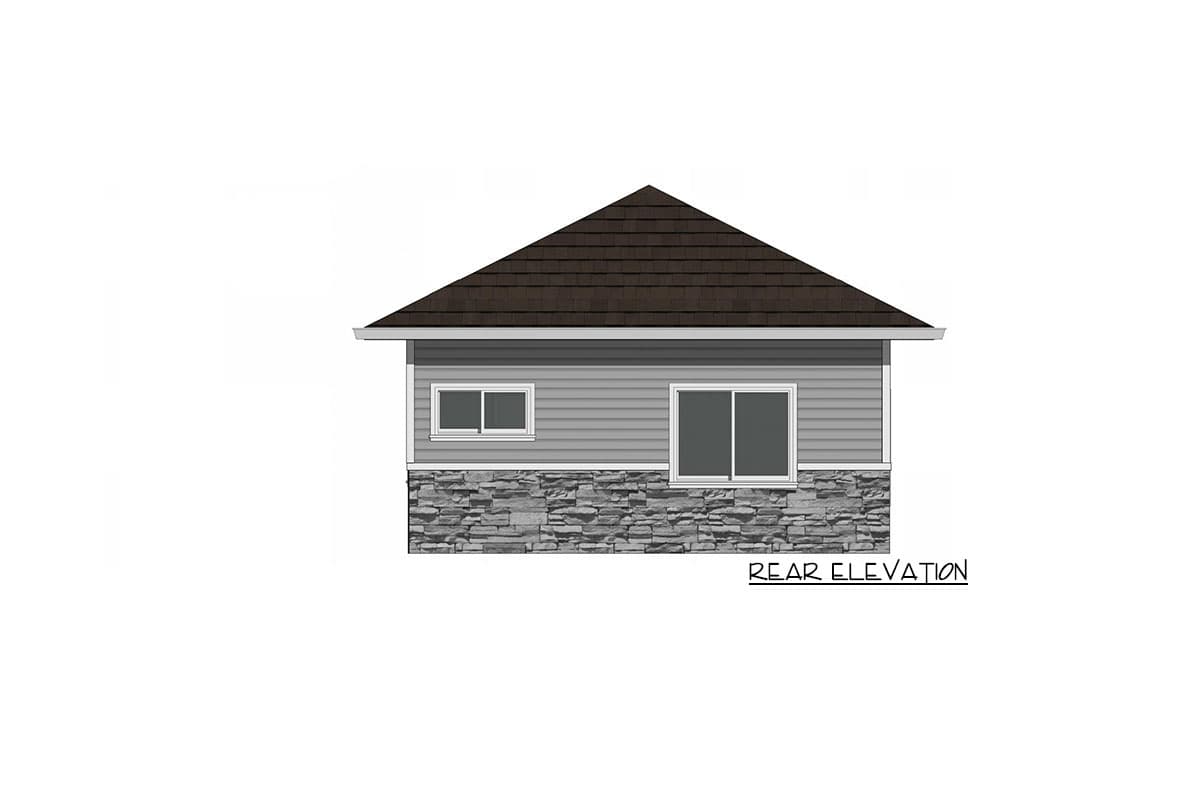

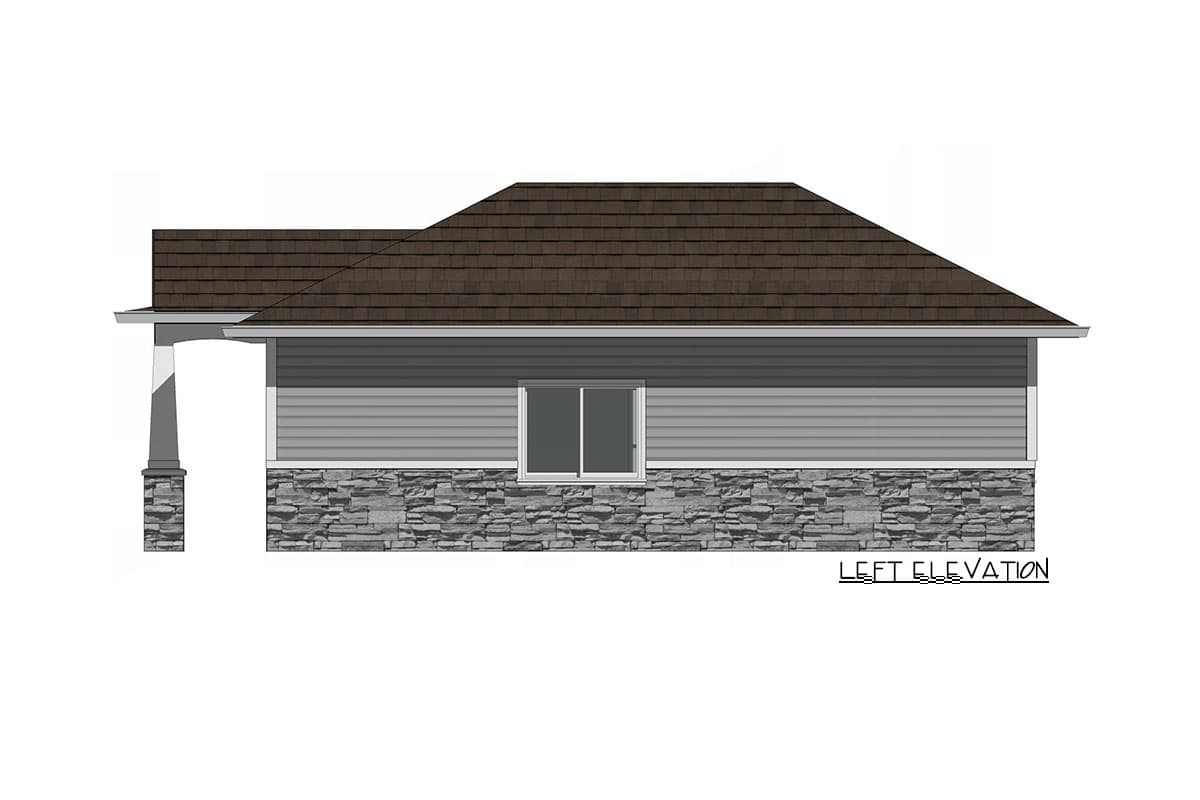

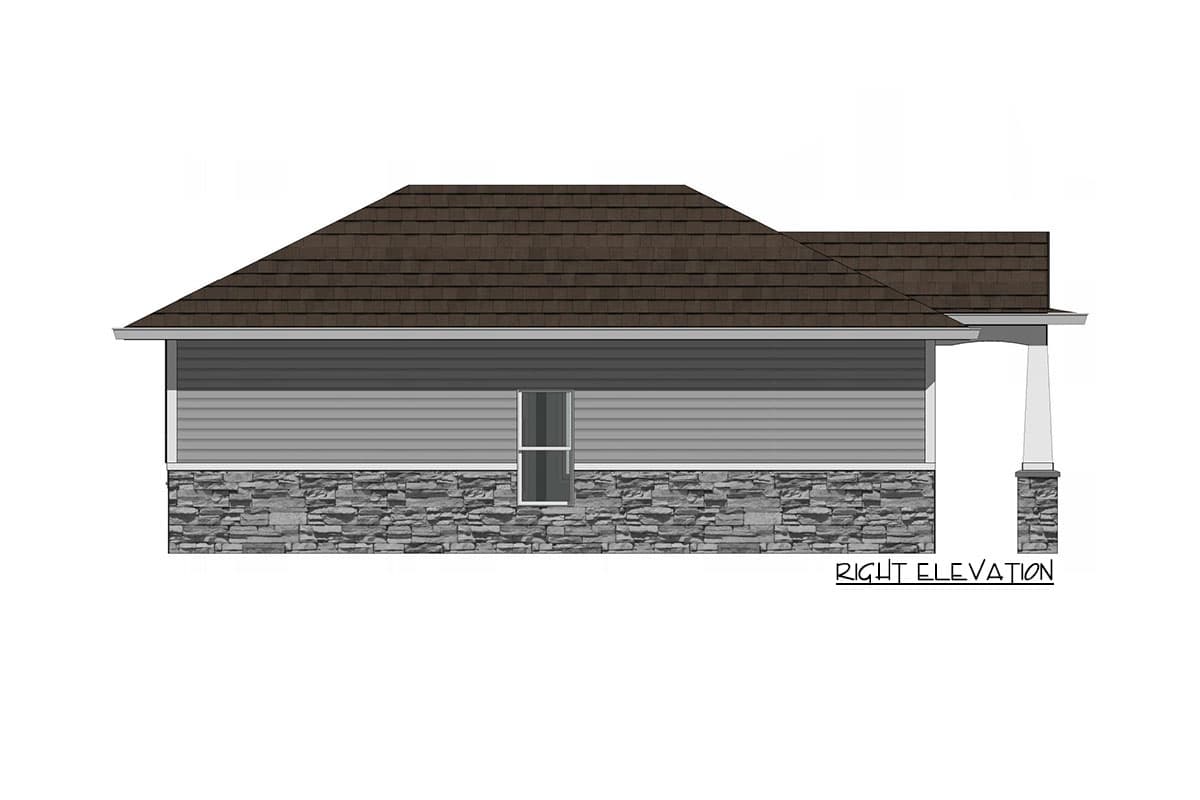

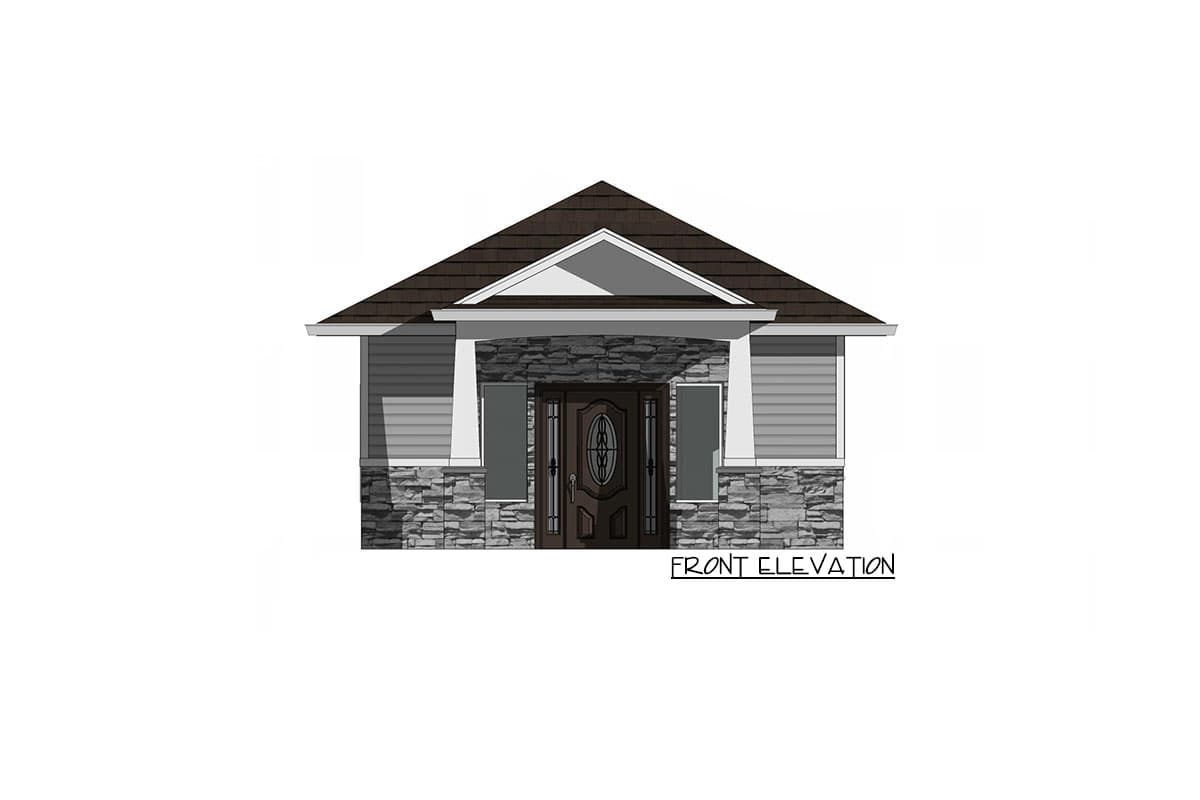

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.


Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan (available as an upgrade option)
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Floor Plan

Plan details

Architectural Style

Plan Collections



ADU with Cozy Covered Porch

  • 640

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $895
  • 5 Sets $1,045
  • 5 Sets + PDF $1,145
  • CAD - Unlimited Build $1,795
  • View all purchase option online

About This Plan

  • This ADU (accessory dwelling unit) presents 640 square feet of living space and a charming exterior, complete with a cozy covered porch.
  • The living room greets you upon entering, and opens to the eat-in kitchen.
  • Counter-height seating is available for dining or casual conversation in the kitchen.
  • A coat closet in the hallway neighbors the stacked laundry unit, and a space for linens in the full bath helps with storage.
  • The master bedroom features an optional coffered ceiling, and windows that overlook the backyard.

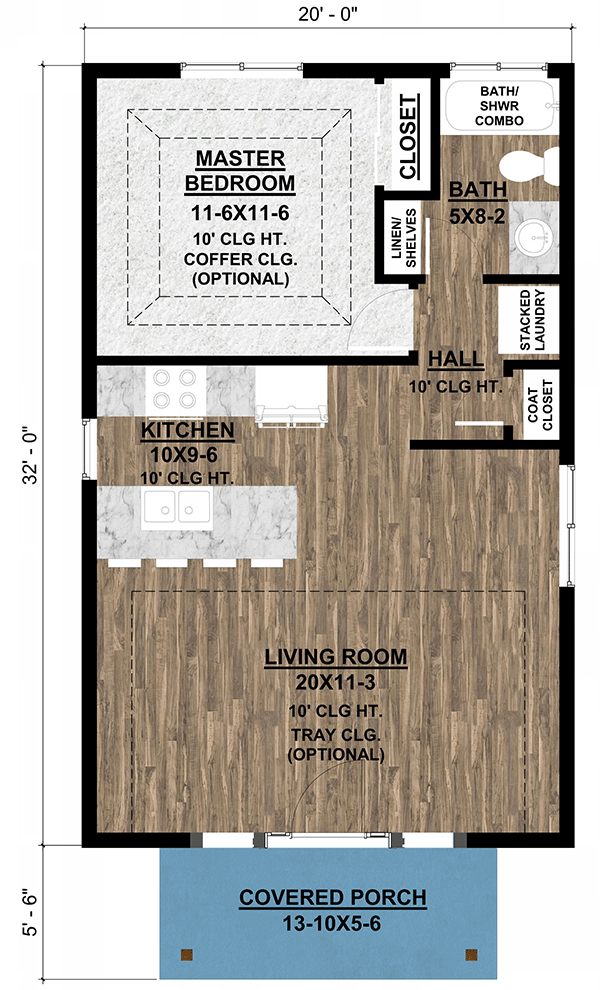

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 640 sq. ft.
  • 1st Floor: 640 sq. ft.
  • Porch, Front: 74 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 37' 0"
  • Max ridge height: 15' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
