Plan 100325GHR

Exclusive

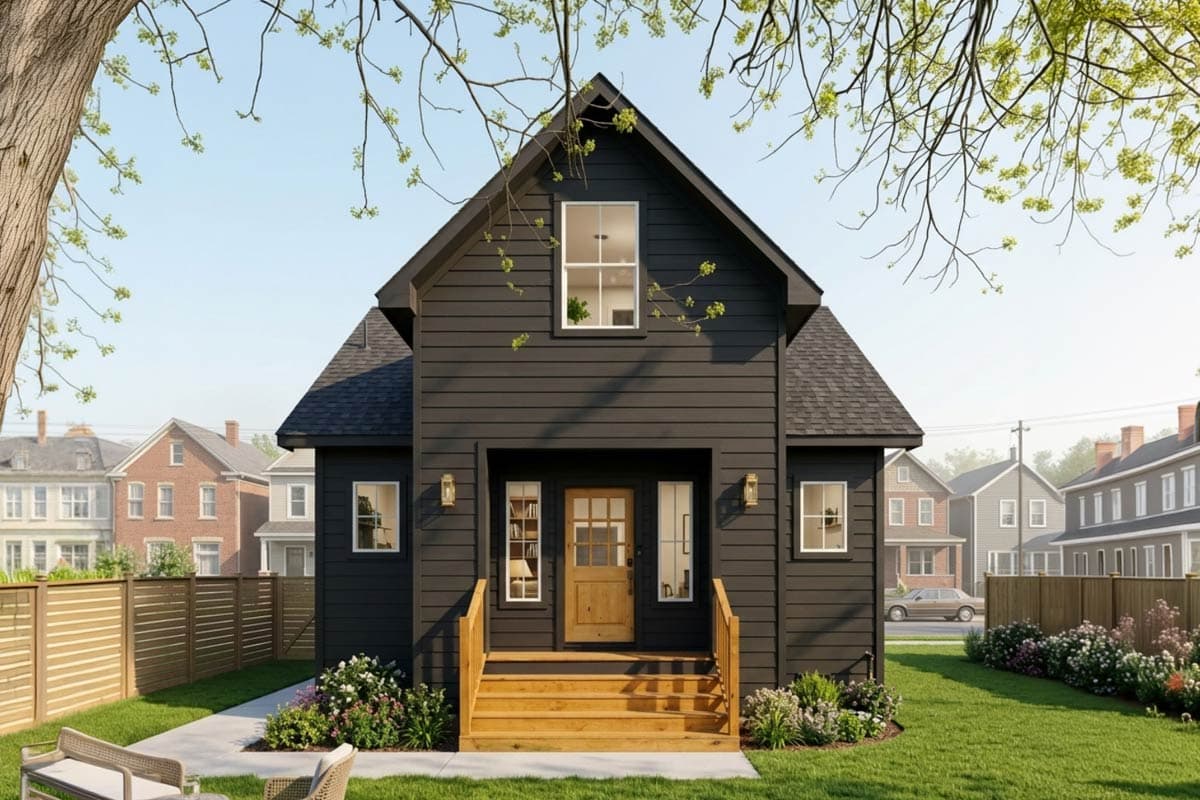

ADU with Upstairs Vaulted Sleeping Loft - 627 Sq Ft

Heated S.F.
647
Beds
1
Baths
1
Stories
2

Floor Plan

Plan 100325GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100325GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 100325GHR: ADU with Upstairs Vaulted Sleeping Loft - 627 Sq Ft - Floor Plan - Main Level - Cabin, Cottage, New American

2nd Floor

Plan 100325GHR: ADU with Upstairs Vaulted Sleeping Loft - 627 Sq Ft - Floor Plan - 2nd Floor - Cabin, Cottage, New American

Plan Details

  • Delight in 647 sq. ft. of living space in this charming 1-bedroom, 1-bathroom cottage, boasting a classic cabin aesthetic.
  • Step inside to an inviting open floor plan with a 9' 1" ceiling on the first floor, blending the kitchen and living areas seamlessly.
  • The efficient main floor layout places the bedroom and full bathroom conveniently adjacent, optimizing the cozy space.
  • Ascend to the airy loft area, perfect for a home office or additional sleeping quarters, with a ceiling height of 8' 1".
  • Enjoy 25 sq. ft. of front porch space, ideal for relaxing with morning coffee or greeting friendly neighbors.
  • Built with flexibility in mind, this plan offers an optional crawl foundation and enhanced 2x6 exterior wall framing.

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

647 sq. ft.

1st Floor

451 sq. ft.

2nd Floor

196 sq. ft.

Porch, Front

25 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

23' 8"

Depth

21' 1"

Max Ridge Height

21' 3"

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

New American

Special Features

Loft

Plan Collections

ADU

Exclusive
