Plan 280008JWD Affordable 3-Bed Narrow Lot Ranch House Plan

1,852 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Affordable 3-Bed Narrow Lot Ranch House Plan

Plan 280008JWD

  • 1,852

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

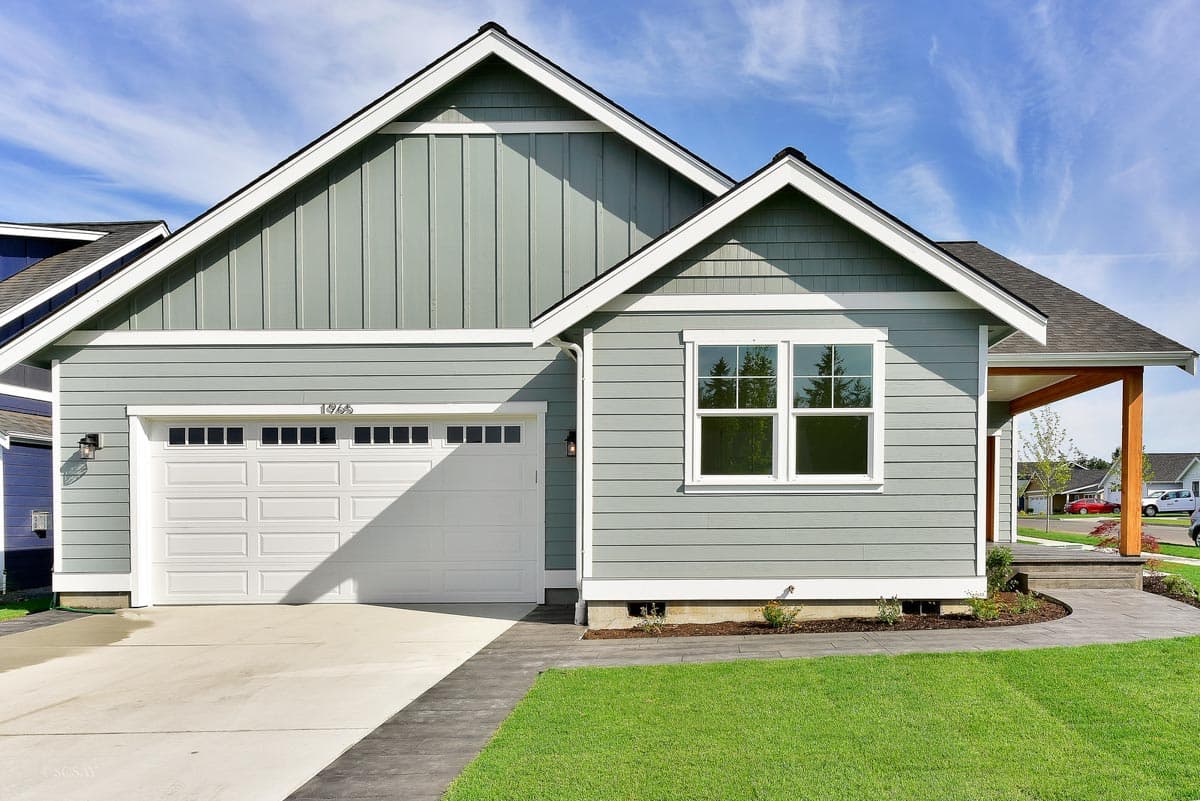

  • Just 45' wide, this attractive Ranch house plan will fit well on a narrow lot.

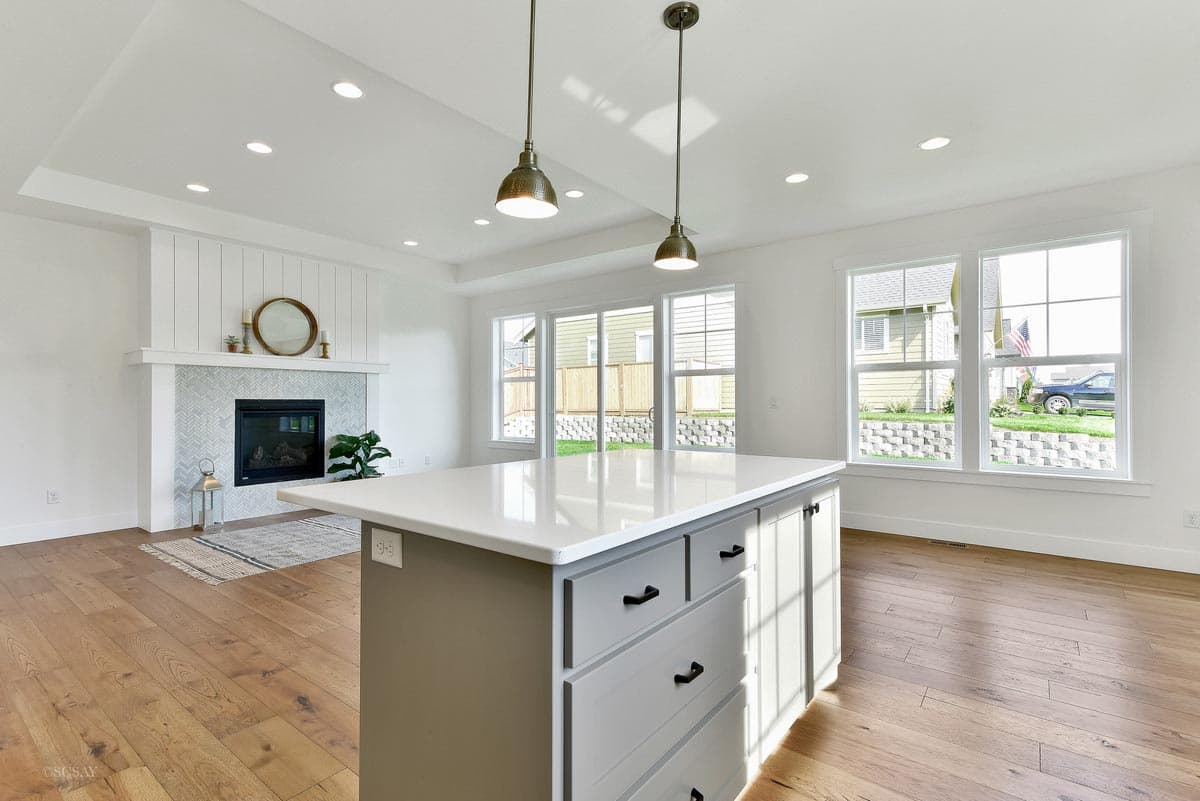

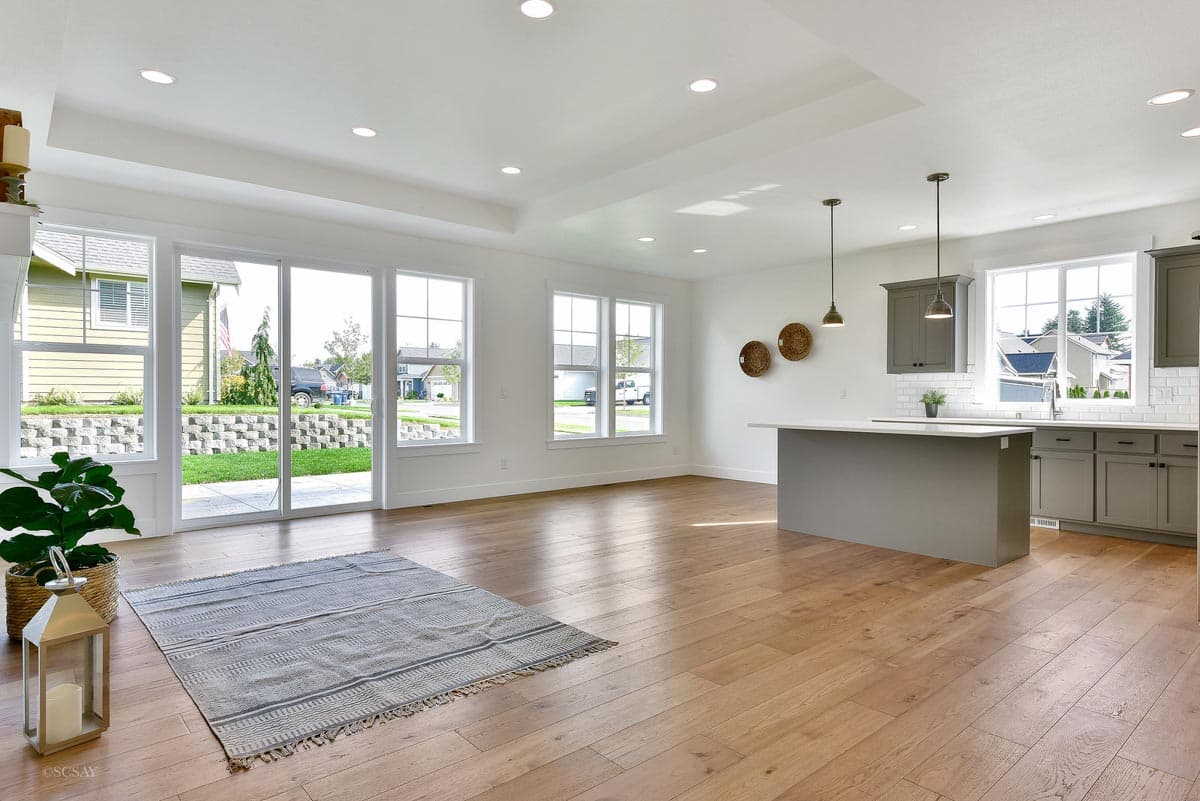

  • The main living area features a big, open layout but if you want quiet time, head for the den near the foyer.
  • Bedrooms are separated with the family bedrooms in front and the master suite in back, away from street noise.

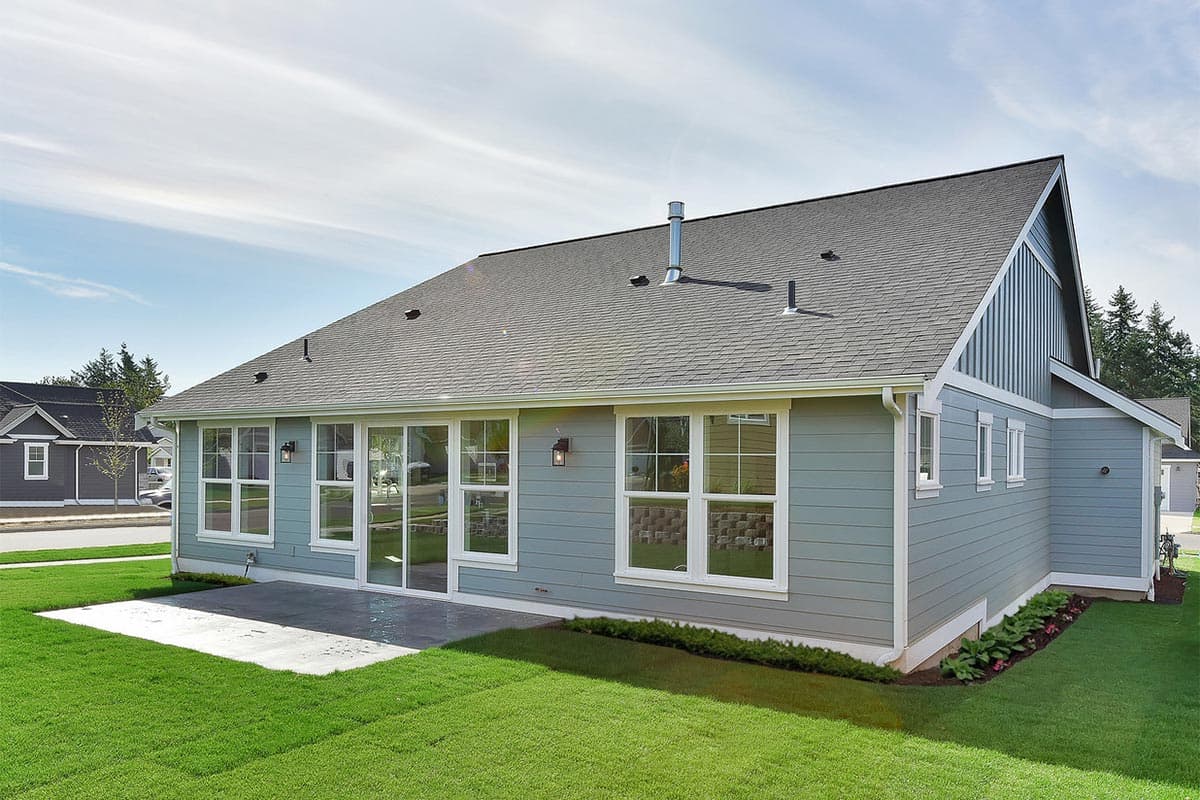

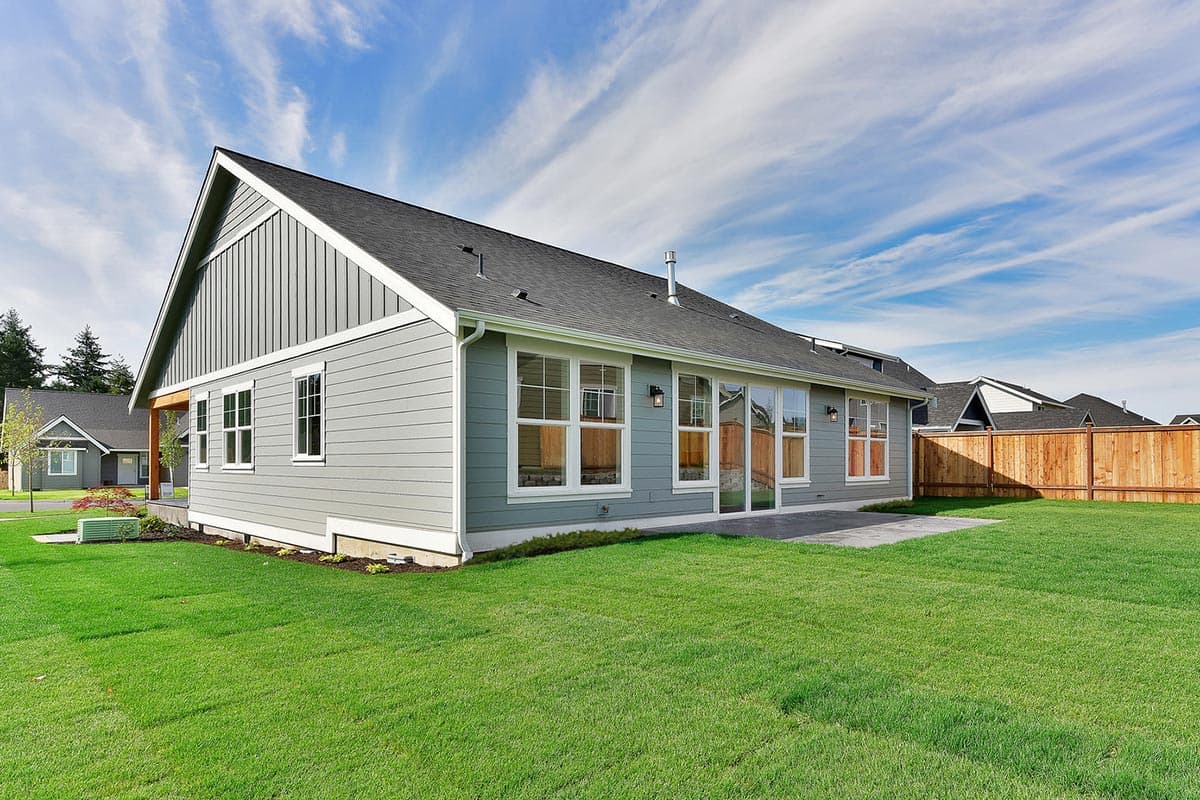

  • Sliding glass doors lead out to a large rear patio where you can cook out or relax with a book.

This house plan includes the following details:

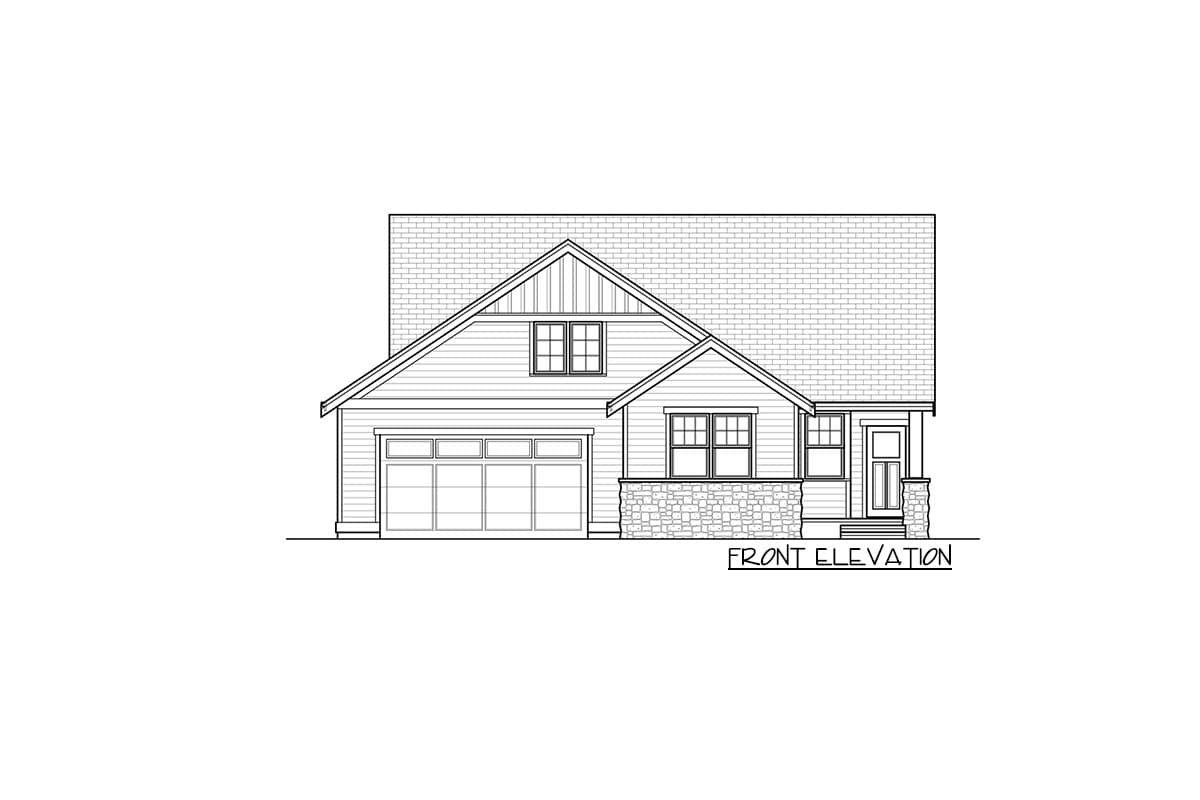

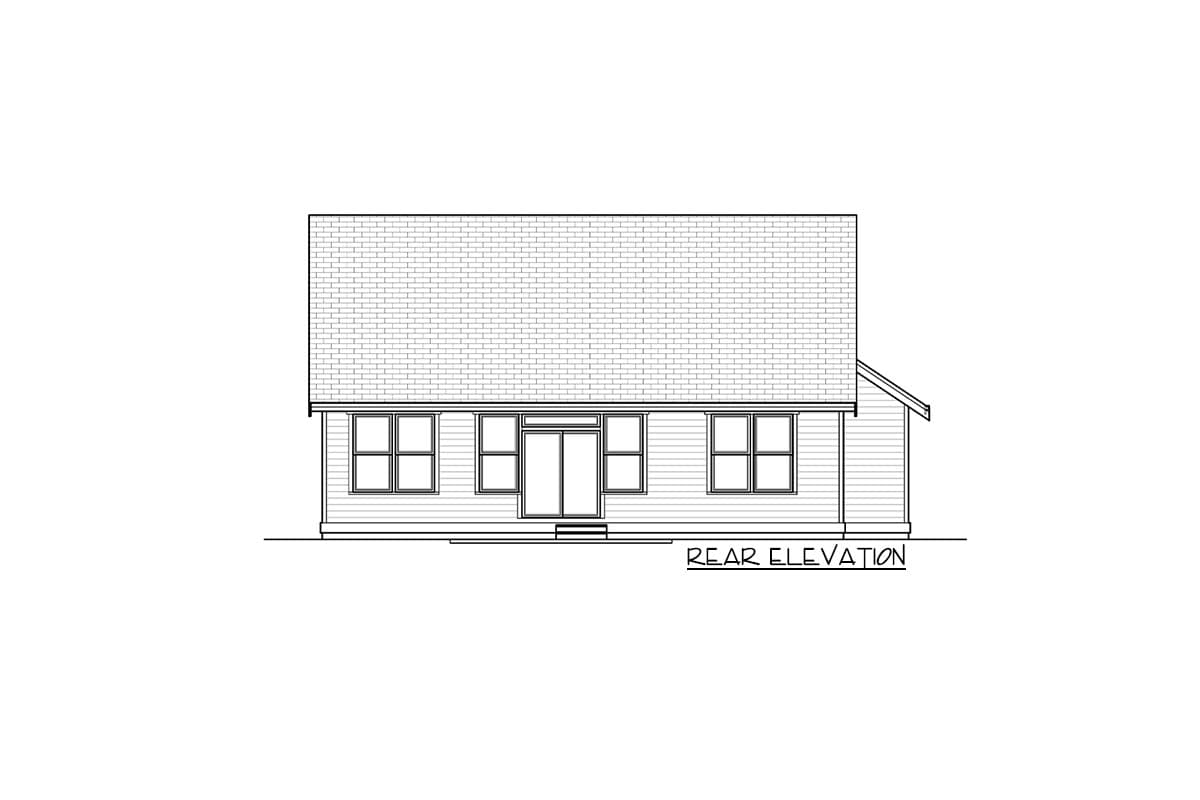

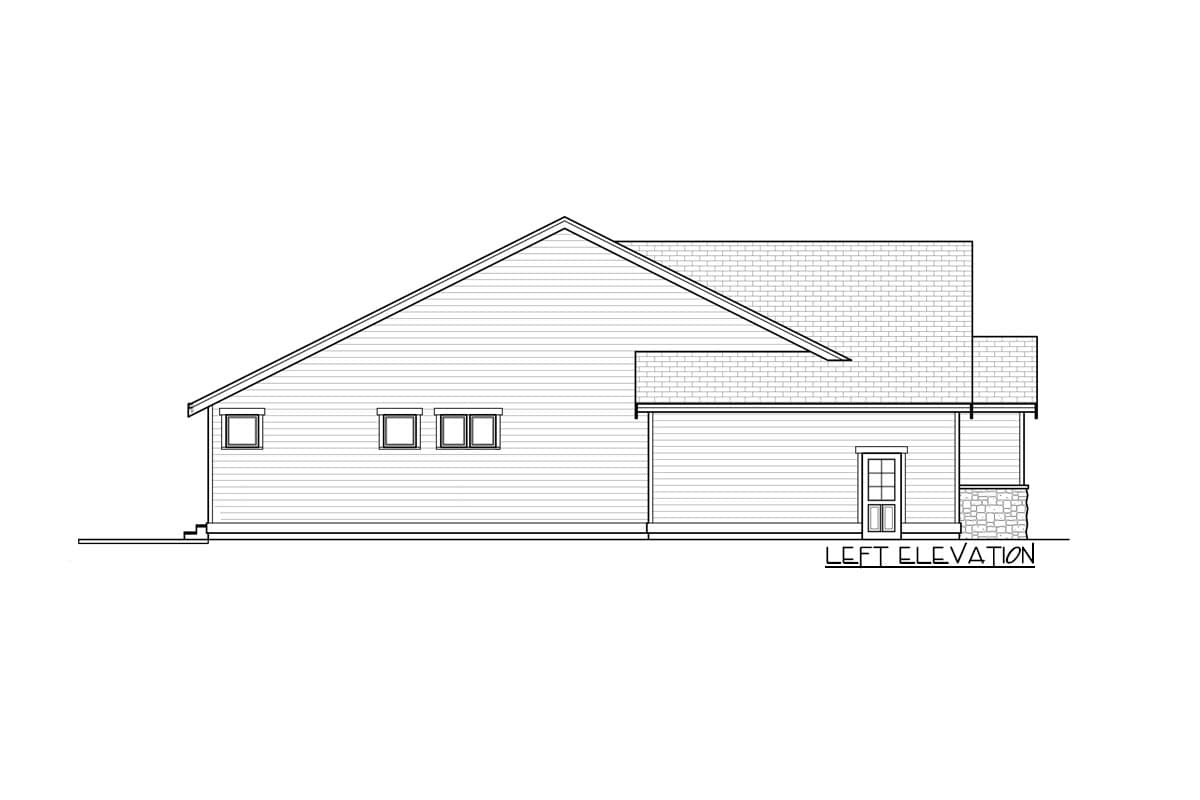

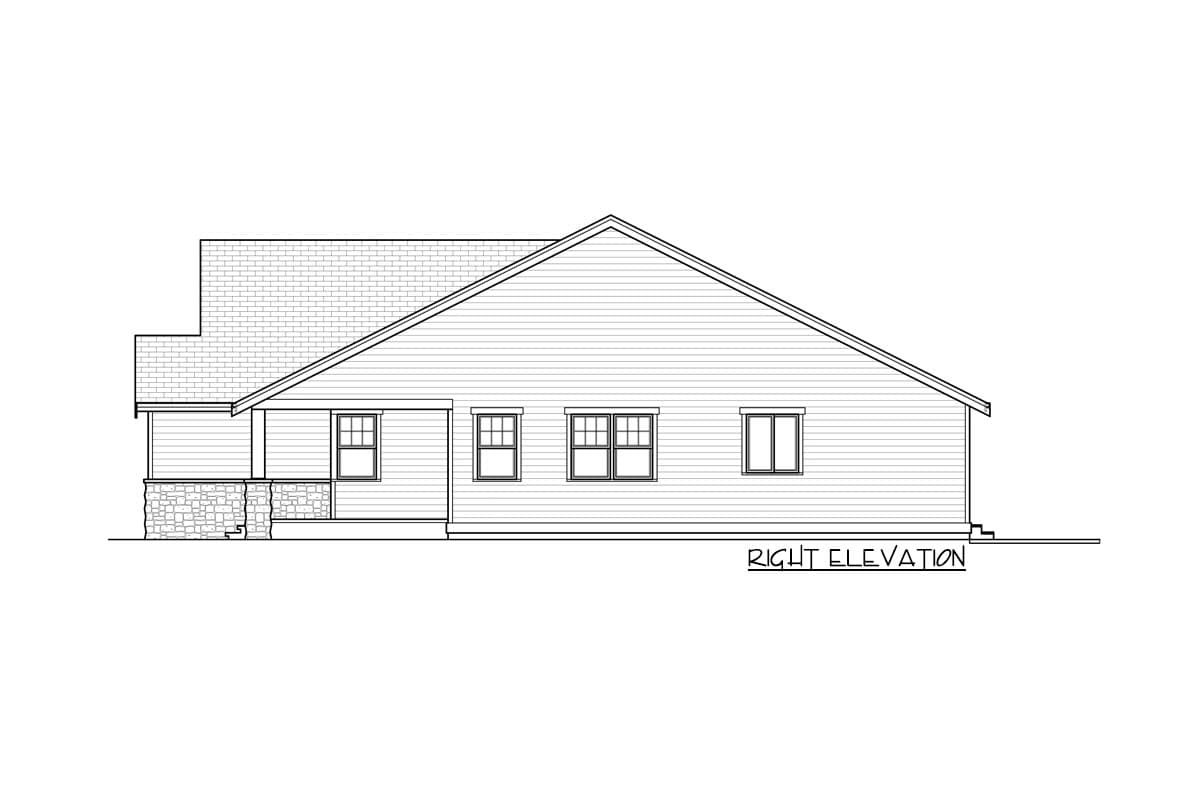

  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

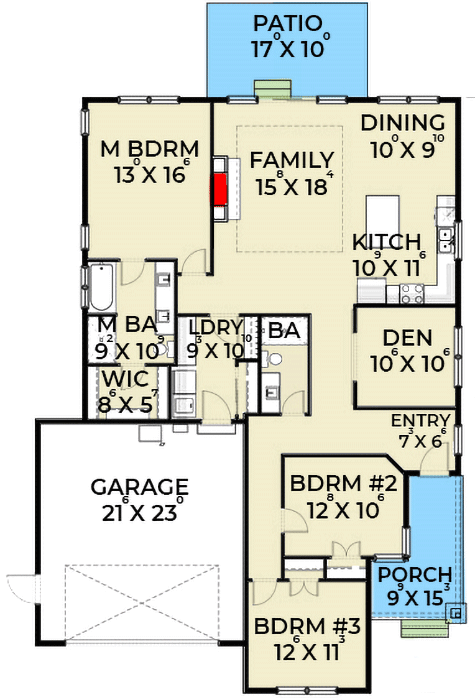

Affordable 3-Bed Narrow Lot Ranch House Plan - 280008JWD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,852 sq. ft.
  • 1st Floor: 1,852 sq. ft.
  • Porch, Front: 107 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 0"
  • Depth: 63' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Affordable 3-Bed Narrow Lot Ranch House Plan

  • 1,852

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $2,200
  • CAD + PDF - Single-Build $2,250
  • View all purchase option online

About This Plan

  • Just 45' wide, this attractive Ranch house plan will fit well on a narrow lot.
  • The main living area features a big, open layout but if you want quiet time, head for the den near the foyer.
  • Bedrooms are separated with the family bedrooms in front and the master suite in back, away from street noise.
  • Sliding glass doors lead out to a large rear patio where you can cook out or relax with a book.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,852 sq. ft.
  • 1st Floor: 1,852 sq. ft.
  • Porch, Front: 107 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 0"
  • Depth: 63' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
