Plan 57123HA

Affordable Ranch Home Simplicity

Heated S.F.
1,196
Beds
3
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 57123HA

Main Level
Main Level

Plan 57123HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

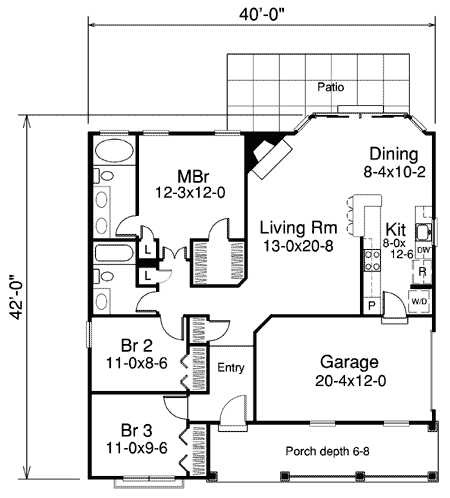

Plan 57123HA: Affordable Ranch Home Simplicity - Floor Plan - Main Level - Ranch

Plan Details

  • Home includes an extra-deep porch for evening relaxation.
  • The large living room enjoys a corner fireplace, dining area featuring a wide bay window with sliding doors to the rear patio, and a snack bar open to the kitchen.
  • The master bedroom has a nice walk-in closet, it's own linen closet and a roomy bath with a double-bowl vanity and garden tub.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

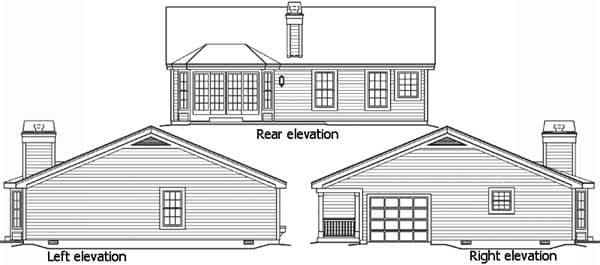

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,196 sq. ft.

1st Floor

1,196 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Max Ridge Height

17' 9"

Garage

Type

Attached

Area

244 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,196 sq. ft.

1st Floor

1,196 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Max Ridge Height

17' 9"

Garage

Type

Attached

Area

244 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
