Plan 86315HH
Alley Accessible 3-Bedroom European Cottage Home Plan
Heated S.F.
3,712
Beds
3
Baths
2.5
Stories
2
Cars
2-3
Plan Details

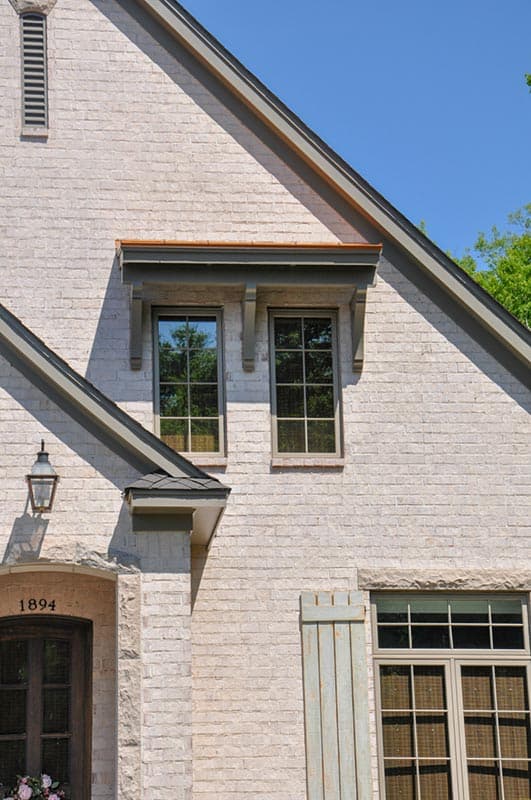

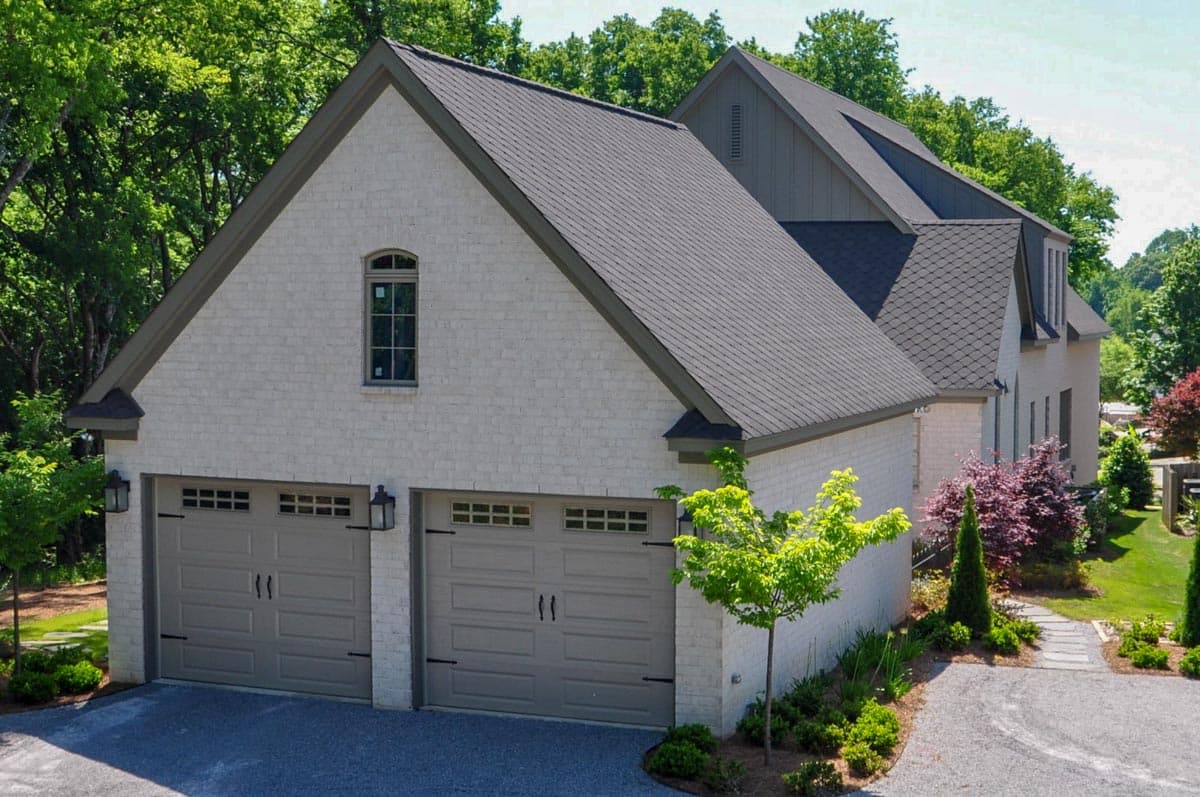

  • Old-world charm abounds in this traditional Tudor style house plan, featuring a brick exterior, covered front entry, and 2-car alley-access garage with an enclosed storage area.

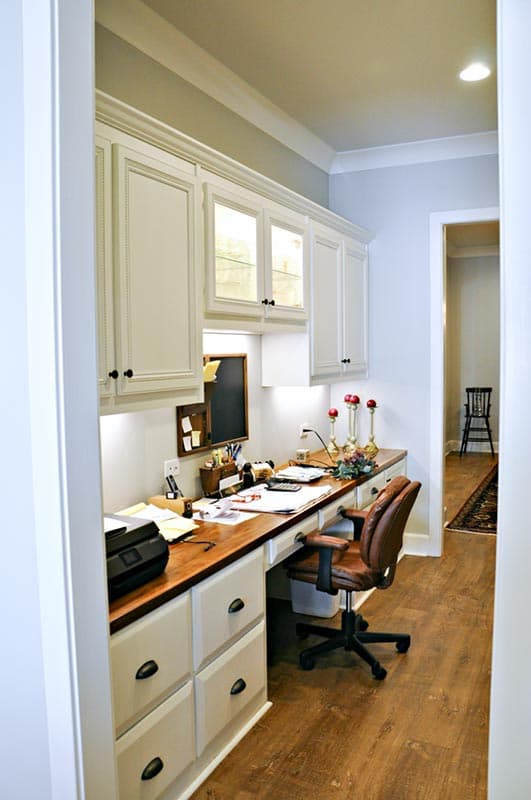

  • A quiet library in the front of the home offers privacy and versatility.

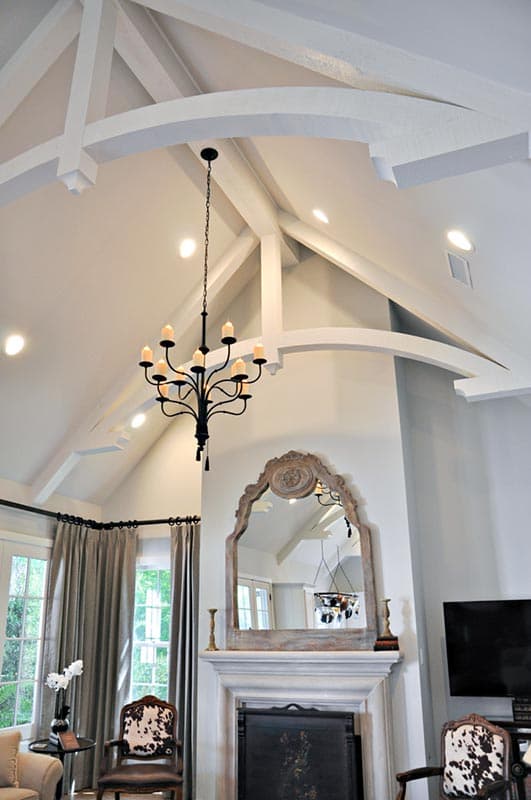

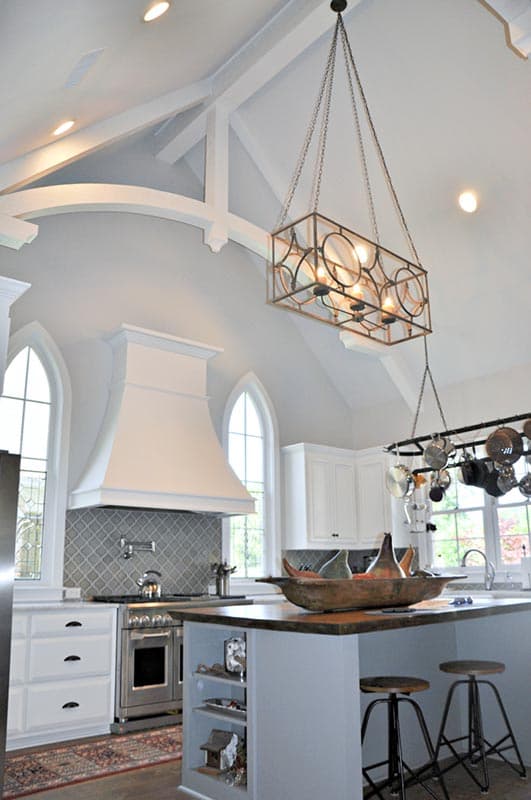

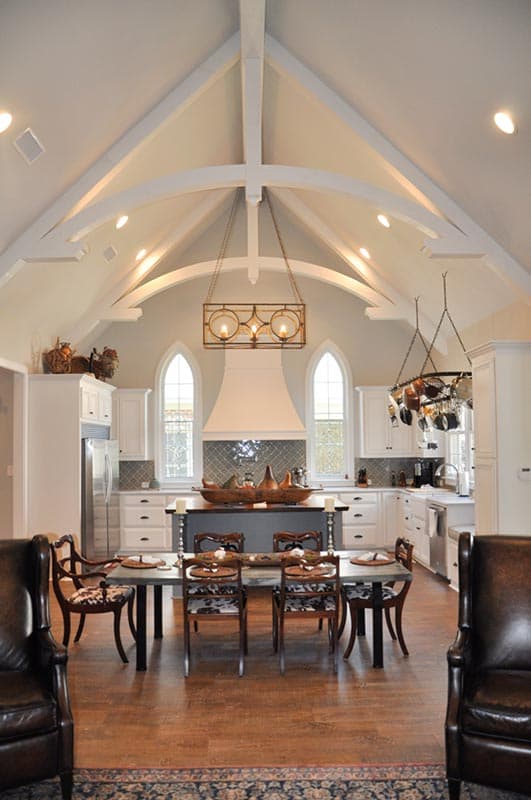

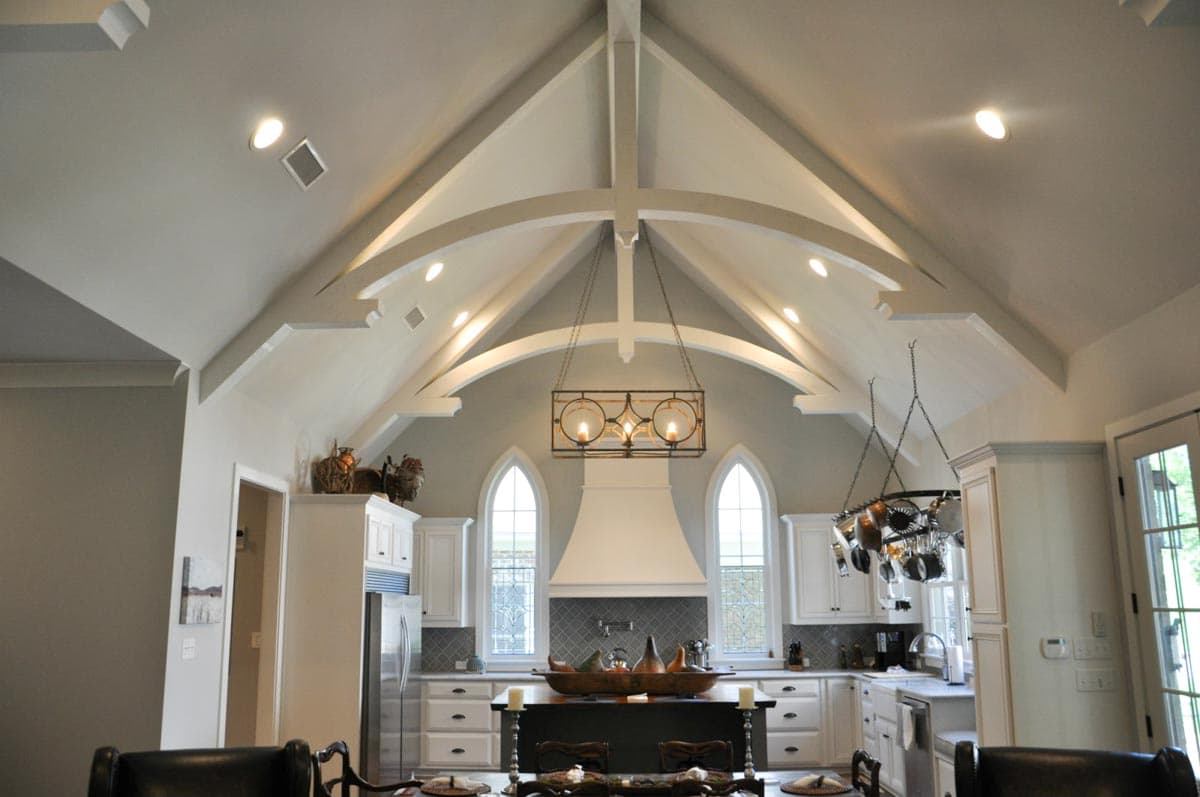

  • Through the foyer, discover a vaulted kitchen and family room with a fireplace.

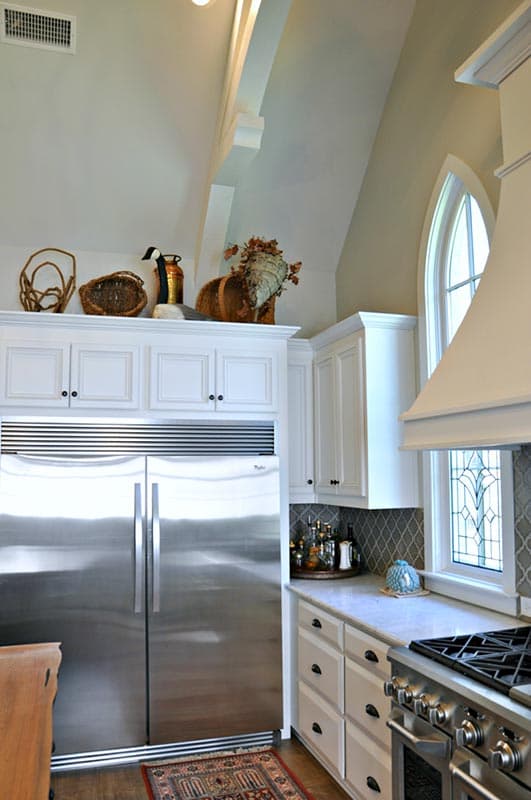

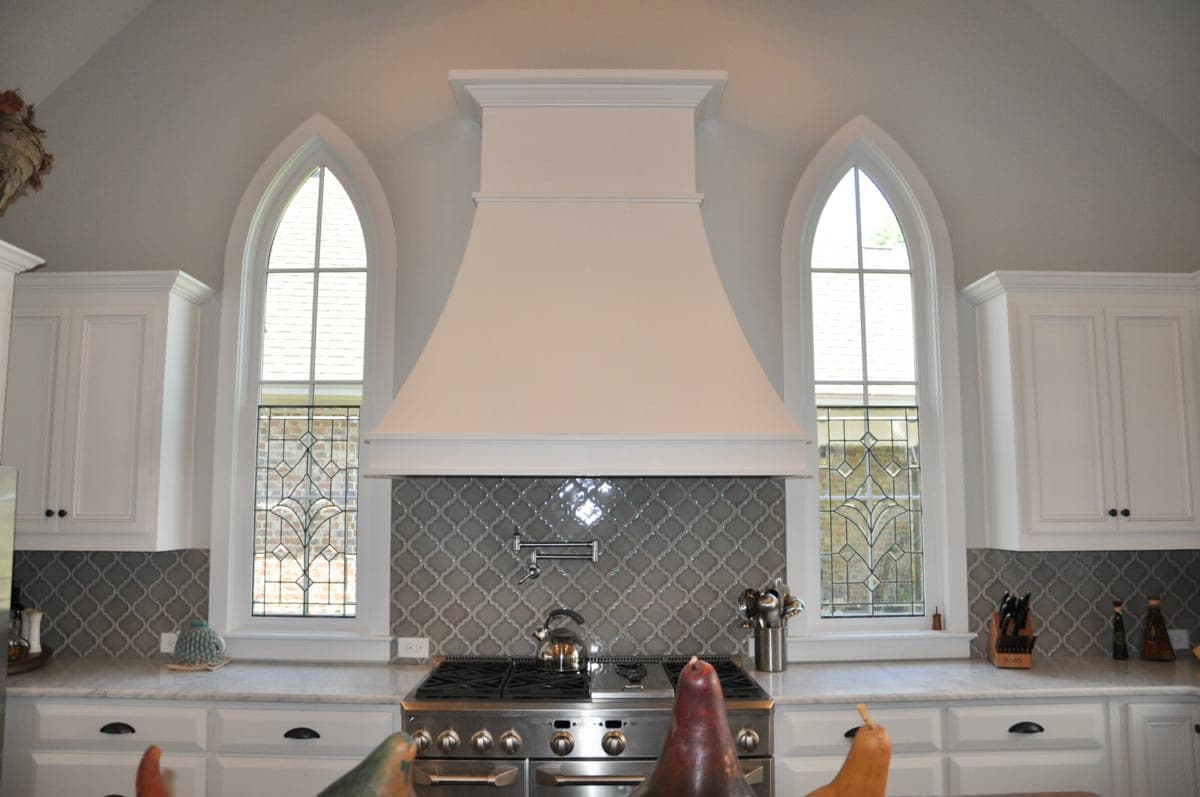

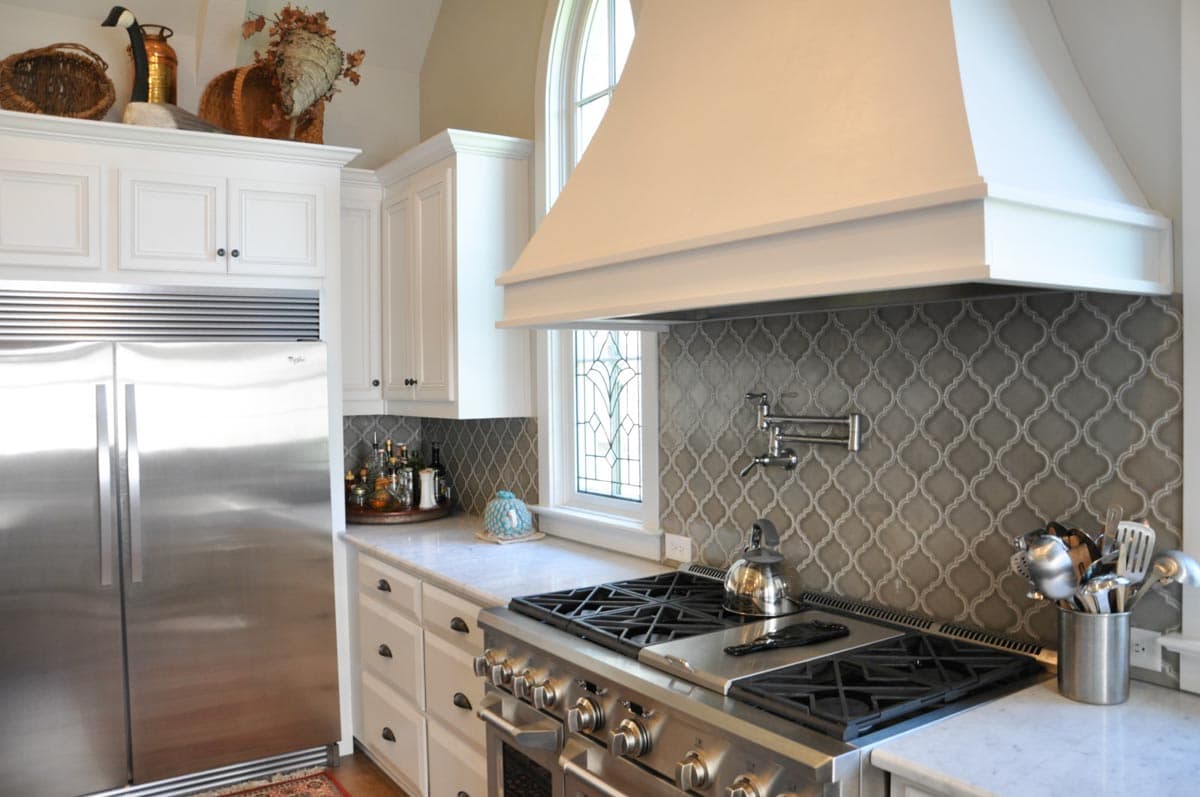

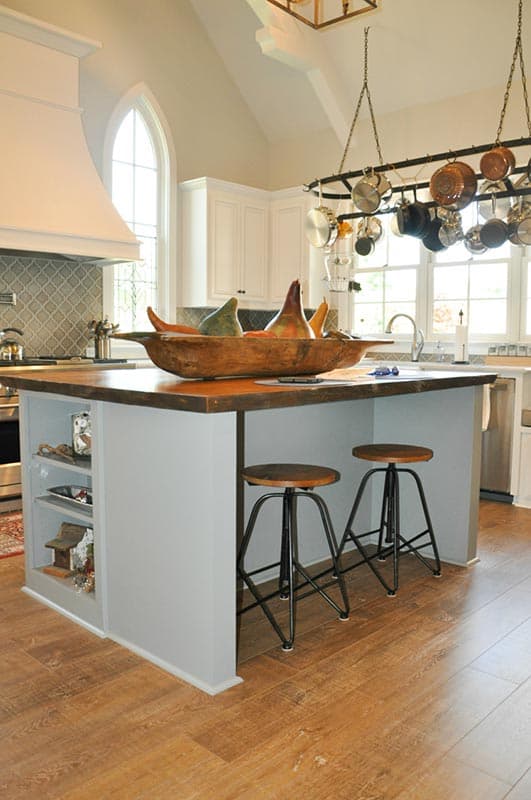

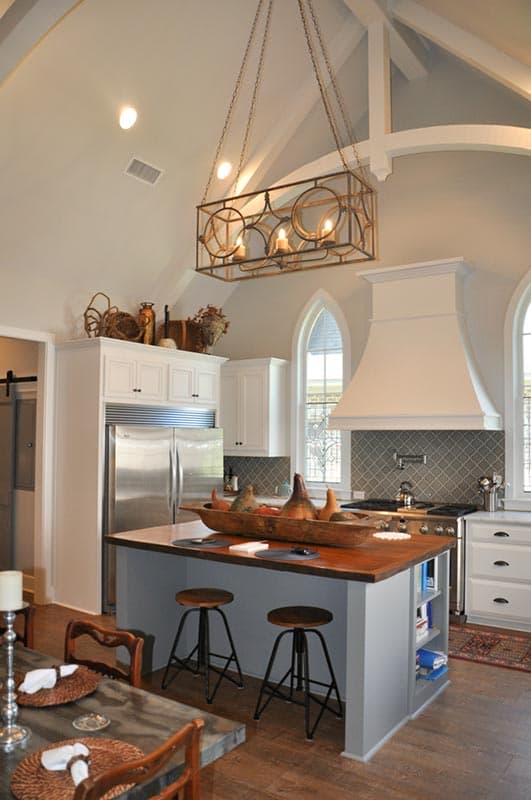

  • The well-appointed kitchen boasts an oversized island with a breakfast bar, butler’s pantry, and built-in tech center.

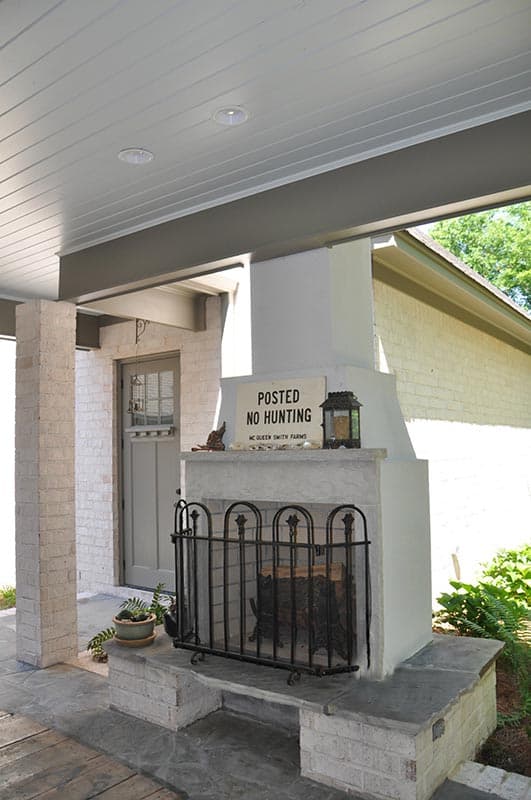

  • Tucked between the kitchen and garage, a covered porch with a fireplace becomes your private oasis.

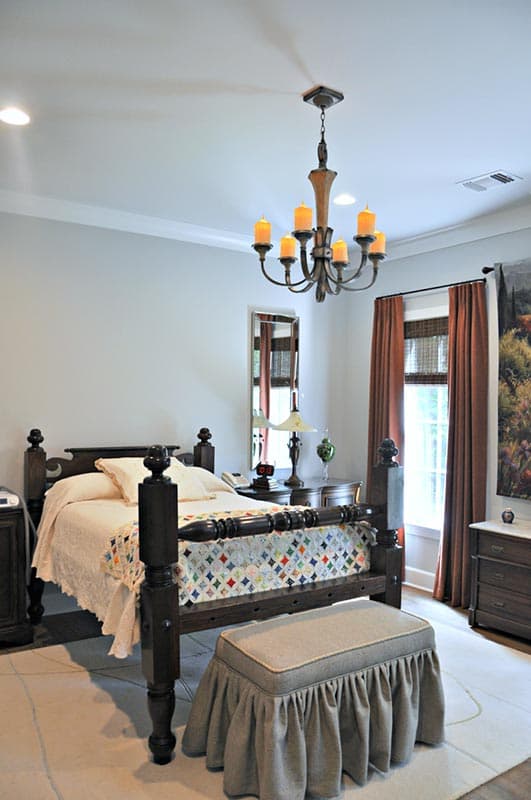

  • The main-floor master suite features a generously sized walk-in closet and 4-piece bath.

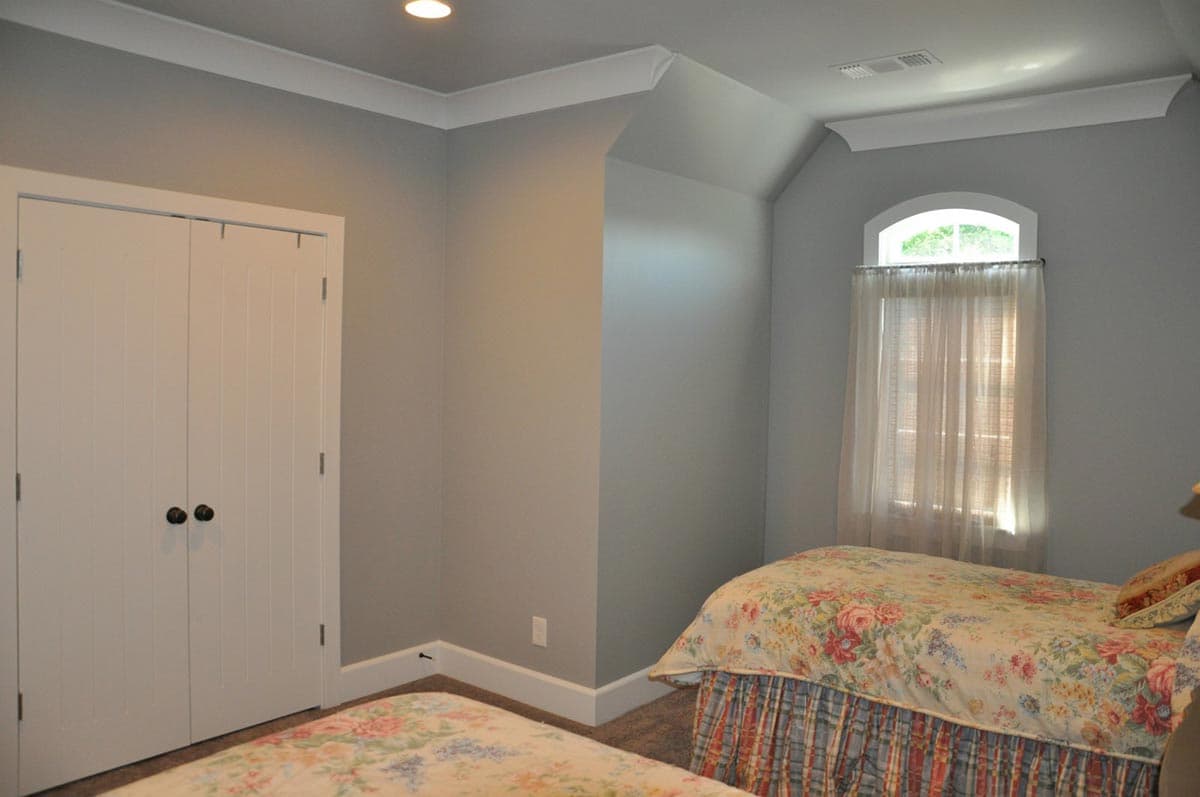

  • On the upper level, you'll find a spacious loft, two bedrooms, a full bath, and optional bonus space with endless possibilities.
  • NOTE: Please allow 3-10 business days for optional foundations.

What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Alley Accessible 3-Bedroom European Cottage Home Plan

  • 3,712

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

Floor Plan

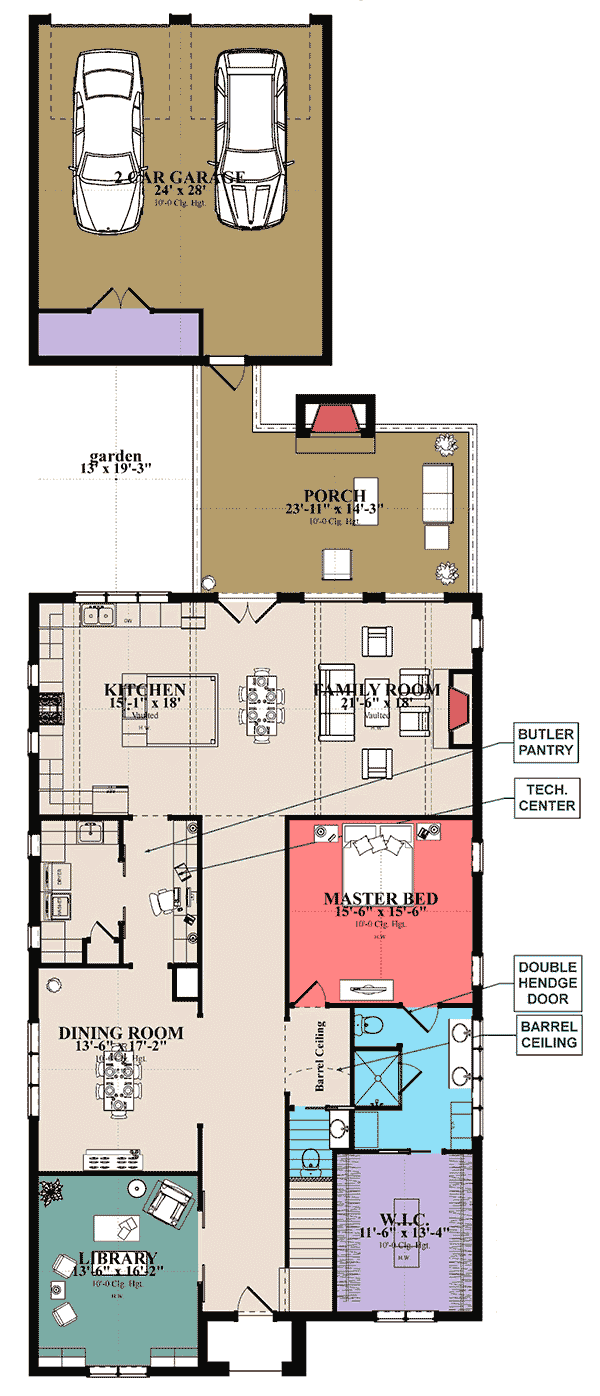

  • Main Level

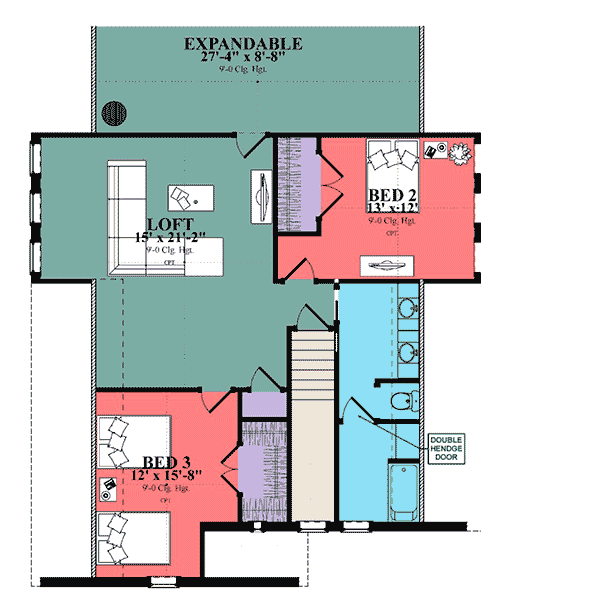

  • 2nd Floor
