Plan 59471ND
Alternate Exterior Available
Heated S.F.
3,474
Beds
3-4
Baths
4 - 5
Stories
1
Cars
3
What's Included
Plan Details
  • You're sure to enjoy the large great room featuring a built-in media center and fireplace in this home plan.
  • A spacious kitchen holds a magnificent island and large, eat-at bar that easily serves the adjacent breakfast room.
  • Relax in style on the spacious lanai and connecting terrace.
  • The master suite accommodates a private terrace entrance, and raised whirlpool tub backed by sleek glass blocks.
  • Upstairs, a mammoth bonus area with a full bath is capable of handling a variety of household activities.
  • Related Plan: For an all wood exterior, see house plan 59472ND.
What's Included
Each plan set includes the following:
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Alternate Exterior Available

  • 3,474

    Heated s.f.

  • 3-4

    Beds

  • 4 - 5

    Baths

  • 1

    Floors

  • 3

    Car garage

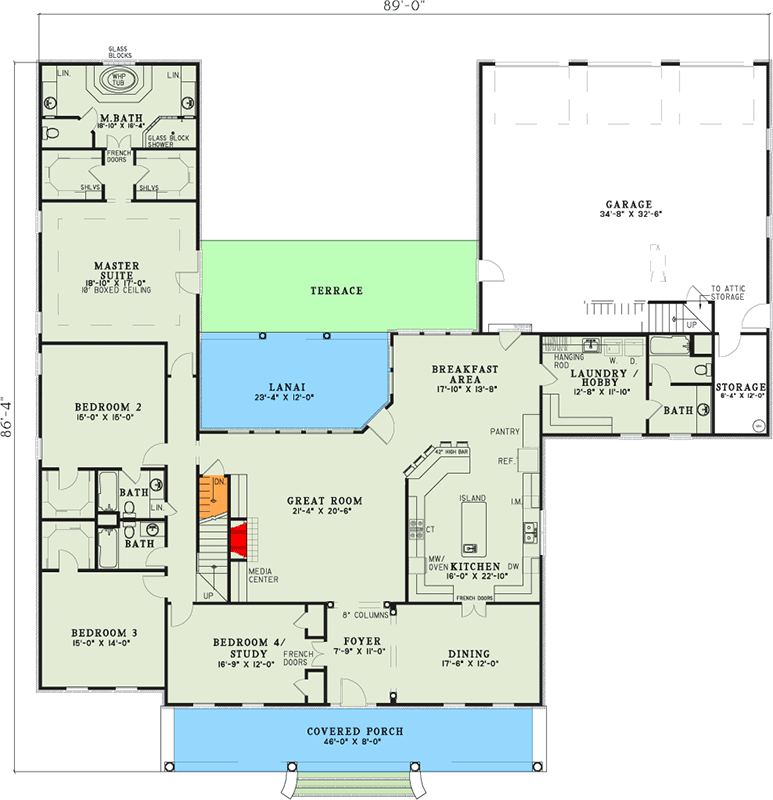

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,474 sq. ft.
  • 1st Floor: 3,474 sq. ft.

Dimensions

  • Width: 89' 0"
  • Depth: 86' 4"
  • Max ridge height: 28' 3"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4 or 5

Garage

  • Type: Attached
  • Area: 1127 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
