Plan 59710ND

Alternate Exteriors Available

Heated S.F.
1,923
Beds
2 - 3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59710ND

Main Level
Main Level

Plan 59710ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

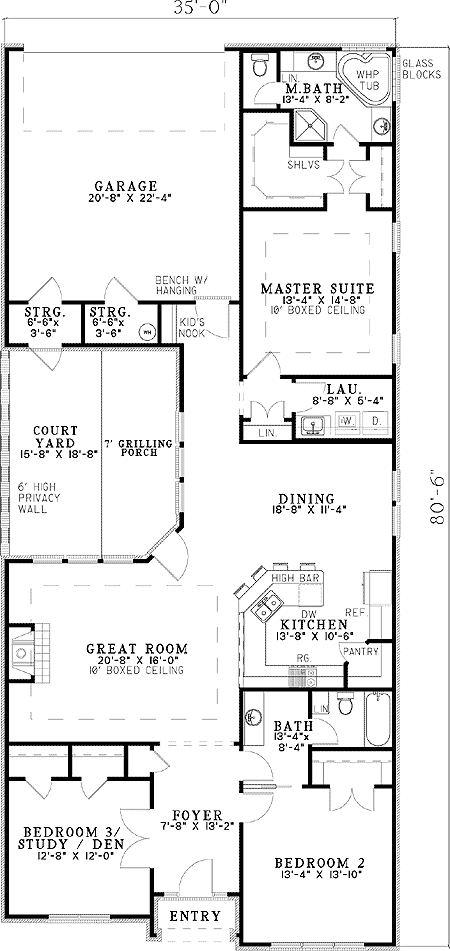

Plan 59710ND: Alternate Exteriors Available - Floor Plan - Main Level - Traditional

Plan Details

  • This house plan comes in 3 exteriors selections for you and your home builder to choose from. Brick, stone and a combination of both allow you to achieve the street appeal that will best suit your neighborhood.
  • The covered entry leads into the foyer with French doors to the study or den.
  • The open great room features a boxed ceiling treatment as well as a gas fireplace.
  • The step-saver kitchen has a convenient walk-in pantry with a snack bar open to the dining area.
  • The courtyard is accessed from the great room and can feature an herb garden.
  • The master suite is tucked to the rear of the design for privacy.
  • Related Plans: For alternate exteriors, see house plans 59709ND and 59711ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,923 sq. ft.

1st Floor

1,923 sq. ft.

Porch, Combined

156 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 0"

Depth

80' 6"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

532 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Courtyard

Den

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
