Plan 62962DJ Amazing 3-story Coastal Living Home Plan with 2 Lanais and 3 Balconies

Amazing 3-story Coastal Living Home Plan with 2 Lanais and 3 Balconies

Plan 62962DJ

  • 4,376

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This amazing 3-story beach house plan has a stucco exterior built on a CMU block foundation making it the perfect house for your coastal lot. Outside entertainment is a priority on this house including 2 covered lanais, a covered deck, a catwalk, and three balconies.
  • Inside the main level, you'll find a rec area and a bathroom. An elevator (5'1" by 5') or a staircase takes you to the second level. A wet bar and mechanical room can be accessed under the catwalk.
  • The second level includes the primary living areas. the great room is warmed by a fireplace and includes a built-in bookshelf. The kitchen and dining room flow seamlessly in an open layout. The kitchen includes a large 3' by 8' island and a walk-in pantry. The master suite is also located on the second level and includes a walk-in closet, his/her vanities, a soaking tub, and a private 10' by 8' balcony.
  • The third level includes 3 bedrooms and an additional family room.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

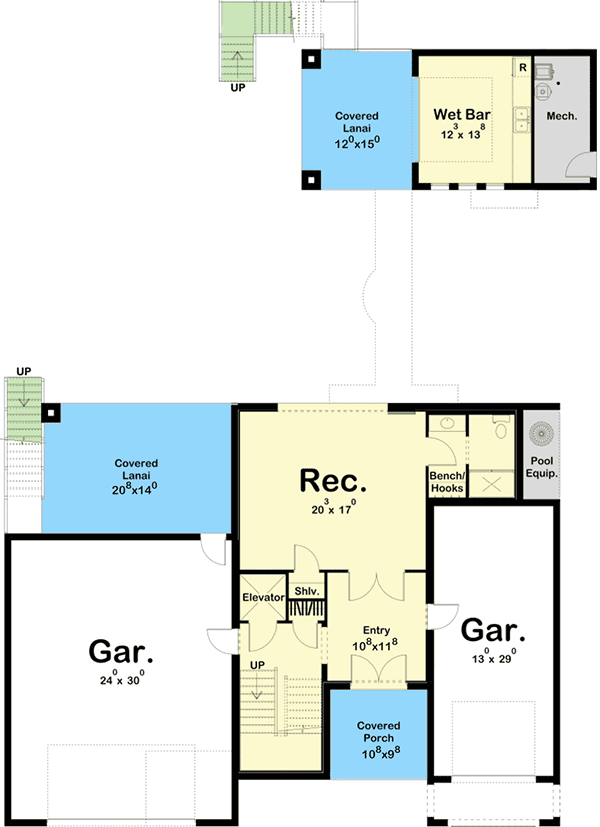

Amazing 3-story Coastal Living Home Plan with 2 Lanais and 3 Balconies - 62962DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

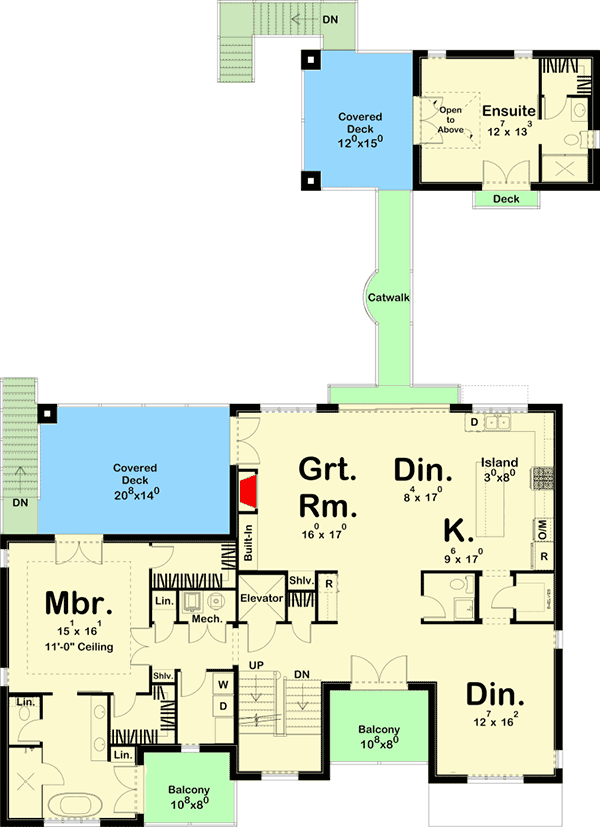

Amazing 3-story Coastal Living Home Plan with 2 Lanais and 3 Balconies - 62962DJ floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

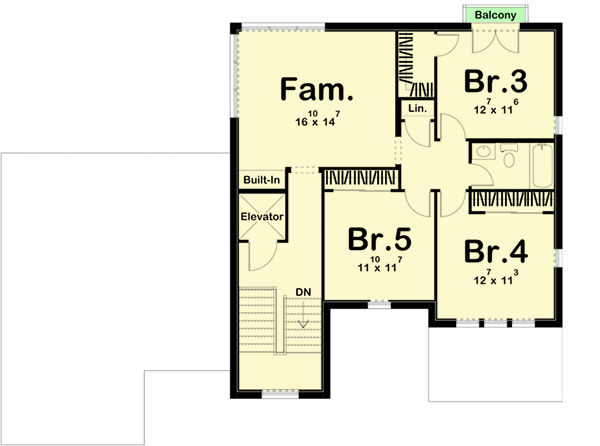

Amazing 3-story Coastal Living Home Plan with 2 Lanais and 3 Balconies - 62962DJ floor plan - 3rd Floor

Plan details

Amazing 3-story Coastal Living Home Plan with 2 Lanais and 3 Balconies

  • 4,376

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,800
  • 5 Sets + PDF $2,050
  • PDF - Unlimited Build $2,300
  • CAD + PDF - Single-Build $2,300
  • CAD - Unlimited Build $2,800
  • View all purchase option online

About This Plan

  • This amazing 3-story beach house plan has a stucco exterior built on a CMU block foundation making it the perfect house for your coastal lot. Outside entertainment is a priority on this house including 2 covered lanais, a covered deck, a catwalk, and three balconies.
  • Inside the main level, you'll find a rec area and a bathroom. An elevator (5'1" by 5') or a staircase takes you to the second level. A wet bar and mechanical room can be accessed under the catwalk.
  • The second level includes the primary living areas. the great room is warmed by a fireplace and includes a built-in bookshelf. The kitchen and dining room flow seamlessly in an open layout. The kitchen includes a large 3' by 8' island and a walk-in pantry. The master suite is also located on the second level and includes a walk-in closet, his/her vanities, a soaking tub, and a private 10' by 8' balcony.
  • The third level includes 3 bedrooms and an additional family room.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,376 sq. ft.
  • Lower Level: 1,040 sq. ft.
  • 1st Floor: 2,229 sq. ft.
  • 2nd Floor: 1,107 sq. ft.
  • Lanai: 469 sq. ft.
  • Deck: 469 sq. ft.
  • Porch, Front: 103 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 84' 0"
  • Max ridge height: 37' 0"

Garage

  • Type: Drive Under
  • Area: 1232 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
